Made in China low price gi wire/25kg/roll galvanised binding wire/black annealed iron wire(lowest price)

Product Overview

Description

Galvanized Wire

1)Hot-dip galvanized iron wire

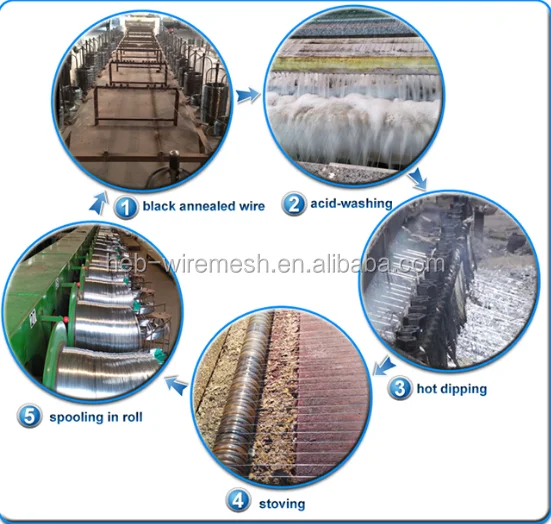

Hot-dip galvanized iron wire is made with choice low carbon steel wire, through wire drawing,

acid washing and rust removing, annealing and coiling. It’s mainly used in construction, handicrafts,

woven wire mesh, express way fencing mesh, packaging of products and other daily uses.

Size range: BWG 8-BWG 22

Zinc coat: 30-280g/m2

Tensile strength: 350-550N/mm2

Elongation: 10%

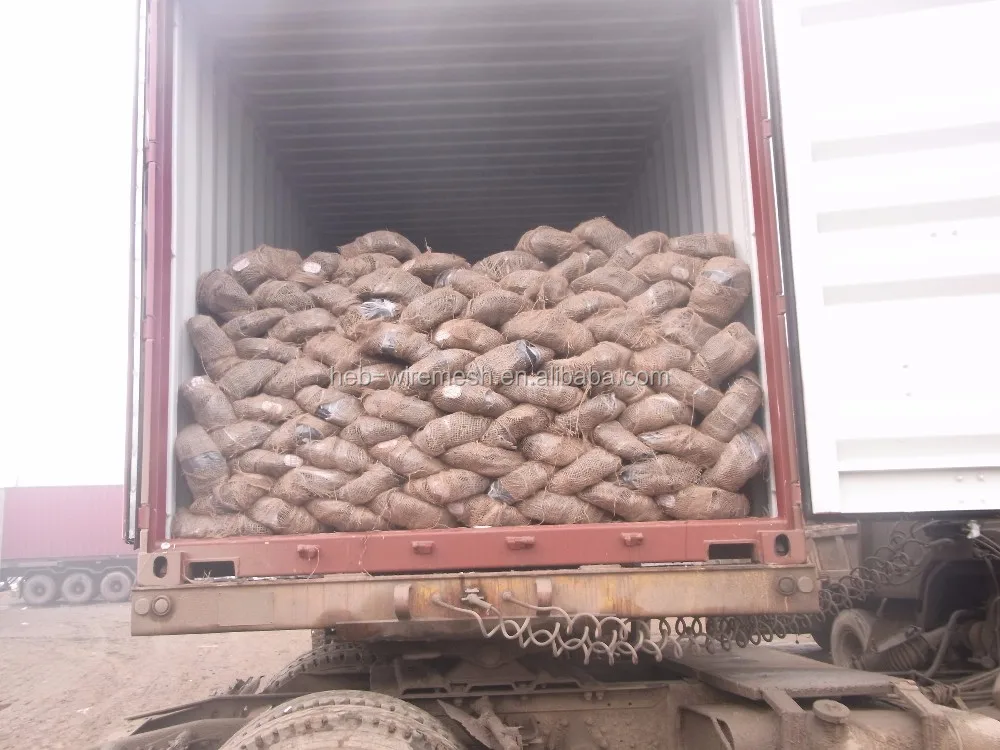

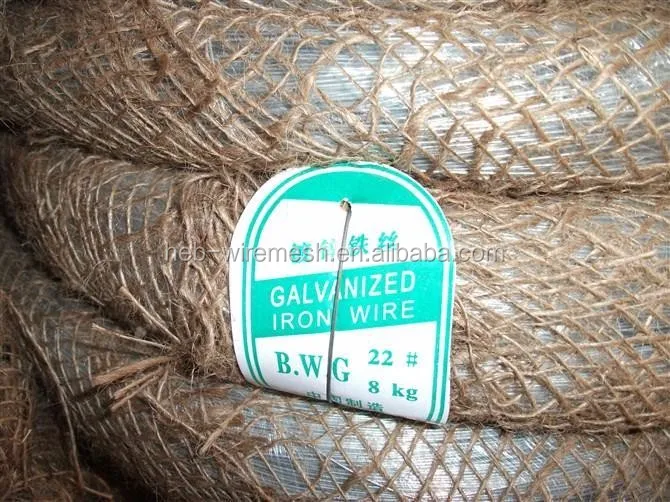

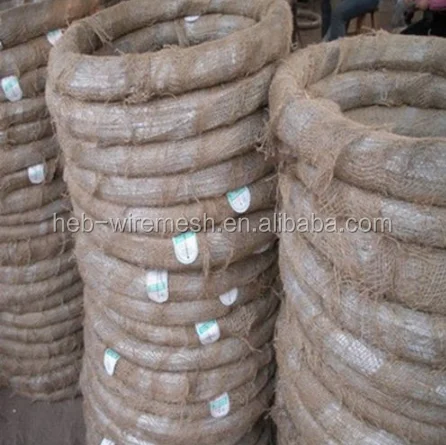

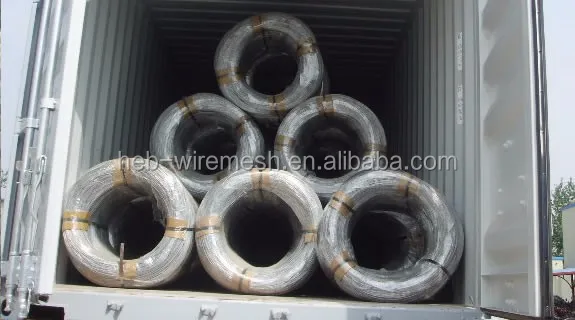

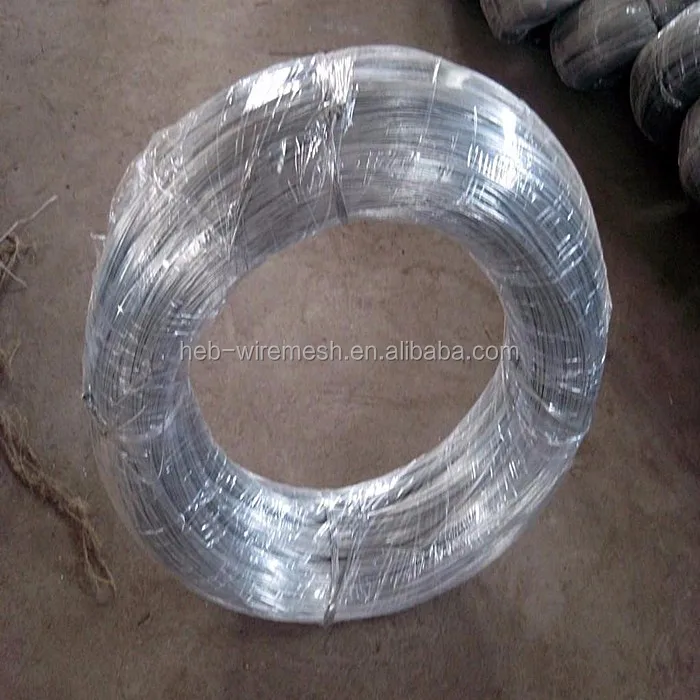

Packing: 1-1000kgs/coil, coil with plastic cloth inside and hessian outside or weave outside

Electro galvanized iron wire



Electro galvanized iron wire is made with choice mild steel, through wire drawing,

wire galvanizing and other processes. Electro galvanized iron wire has the characteristics of thick zinc

coating, good corrosion resistance, firm zinc coating, etc. It’s mainly used in construction, express way

fencing, binding of flowers and wire mesh weaving.

Size range: BWG 8-BWG 22, we can also offer BWG 8-BWG 28

Zinc coat: 10-25g/m2

Tensile strength: 350-550N/mm2

Elongation: 10%

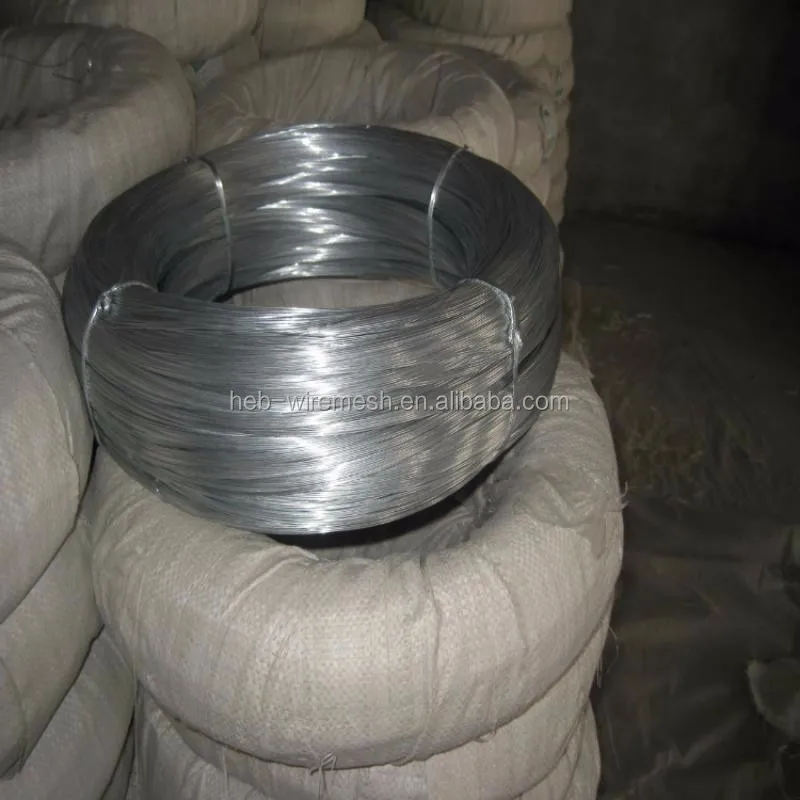

Packing: 1-1000kgs/coil, coil with plastic film inside and hessian cloth outside or weave cloth outside



Galvanized Wire
Wire Gauge Size	SWG(mm  )	BWG(mm)	BG(mm)
6	4.87	5.15	5.032
7	4.47	4.57	4.481
8	4.06	4.19	3.988
9	3.66	3.76	3.551
10	3.25	3.40	3.175
11	2.95	3.05	2.827
12	2.64	2.77	2.517
13	2.34	2.41	2.24
14	2.03	2.11	1.994
15	1.83	1.83	1.775
16	1.63	1.65	1.588
17	1.42	1.47	1.412
18	1.22	1.25	1.257
19	1.02	1.07	1.118
20	0.91	0.89	0.996
21	0.81	0.813	0.887
22	0.71	0.711	0.749
23	0.61	0.025	0.707
24	0.56	0.022	0.629
25	0.51	0.02	0.56
26	0.46	0.018	0.498

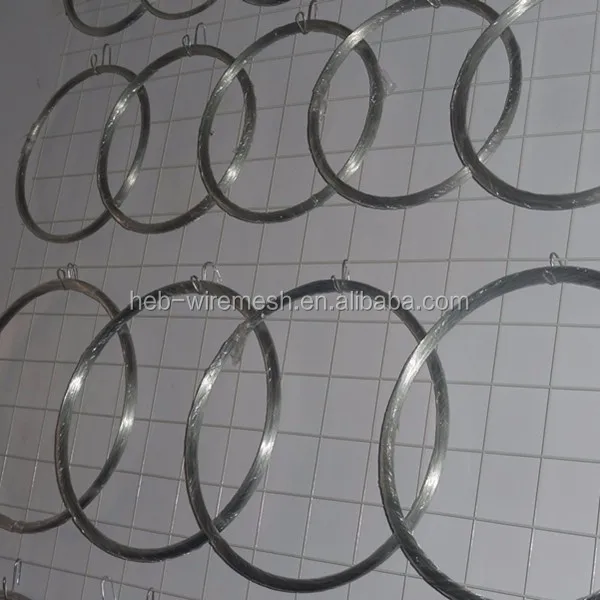

 Product pictures
