Mesh Nylon Tea Bags packing machine, pyramidal Nylon Tea packing machine

Share on (60549250129):


Price:

Quantity:


Product Overview

Description


The Features of triangle tea bag packing machine , tea bag making machine , price tea packing machine

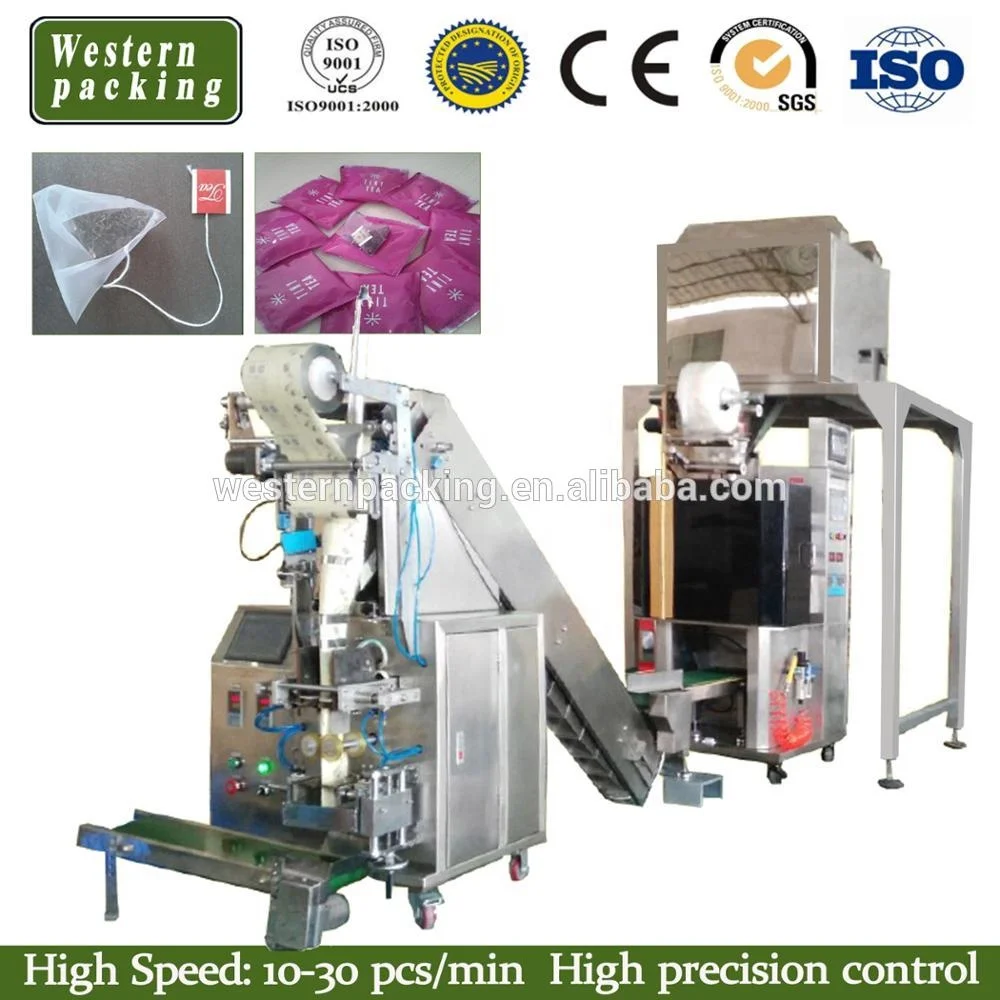

Automatic Nylon Pyramid Tea Bag Machine For Market


1.   The machine is made of SUS304 stainless steel.


2.   High efficiency. Packing speed: 35~40bags/min.


3.   User-friendly, stable & durable.


Application:

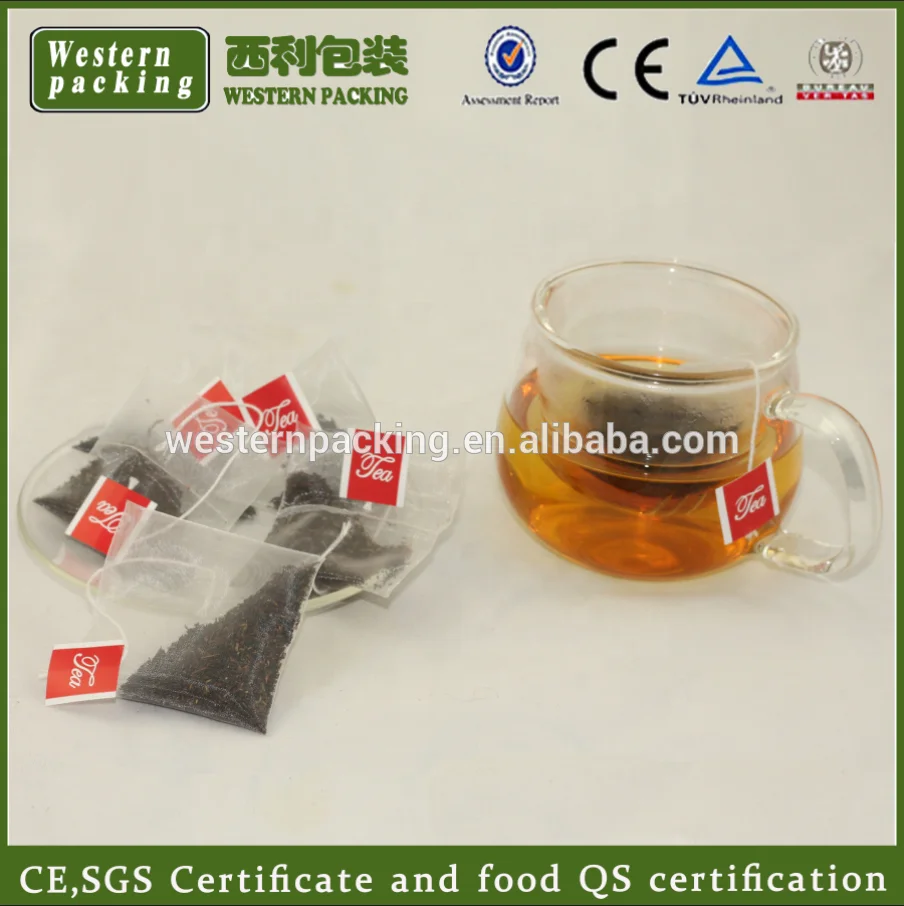

It is suitable for packing product such as loose leaf tea, herbal teahealth care tea,


TieGuanYin, DaMaoFeng, LongJing, DaHongPao, rose tea, ginseng, etc.


Tea fitter sachet packaging machine application a


Feature:


1. Adopts environmental friendly nylon and non-woven material imported from Japan, which is FDA approved.


2. Adopts ultrasonic sealing, tight, reducing sealing width, reducing material waste.


3. Machine is made of US304 stainless steel, ensuring hygiene production.


4. The machine can complete bag-making, filling, measuring, sealing, cutting and counting automatically. It would highly improve the working efficiency and reduce labor expenses.






Product Description






























































uct name



Automatic Nylon Pyramid Tea Bag Machine For Market/tea bag packing machine



Bag type

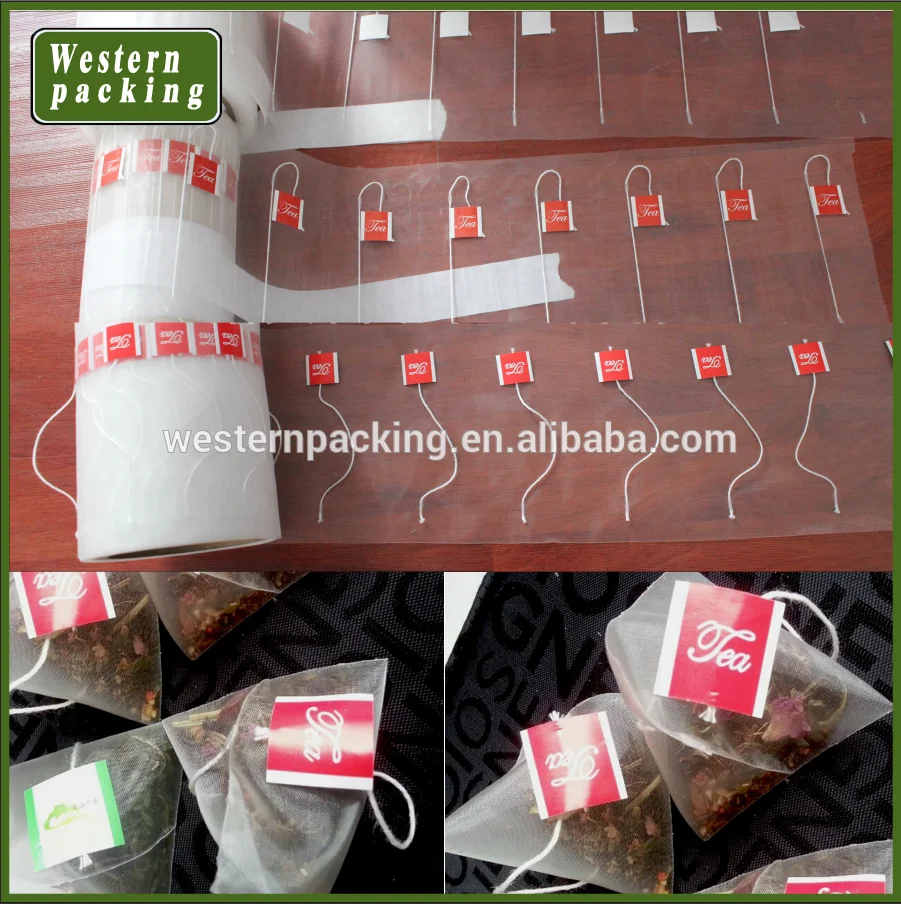

3 side sealing flat bag ; Triangle pyramid bag



Feeding system



Volumetric cup filler



Sealing type



Ultrasonic sealing



Air pressure



≥ 0.6Mpa (air compressor can be provided)



Feeding range



1-10g



Width of the material



140mm. 160mm. 180mm



Sealing length



50, 60, 70, 80mm



Tag size



L:20-24mm ,W:40-55mm



Length of the thread



155mm



Motor Power



380V, 50HZ, 1.2KW



Packing speed



35-40 bags/min



Weight



400KG

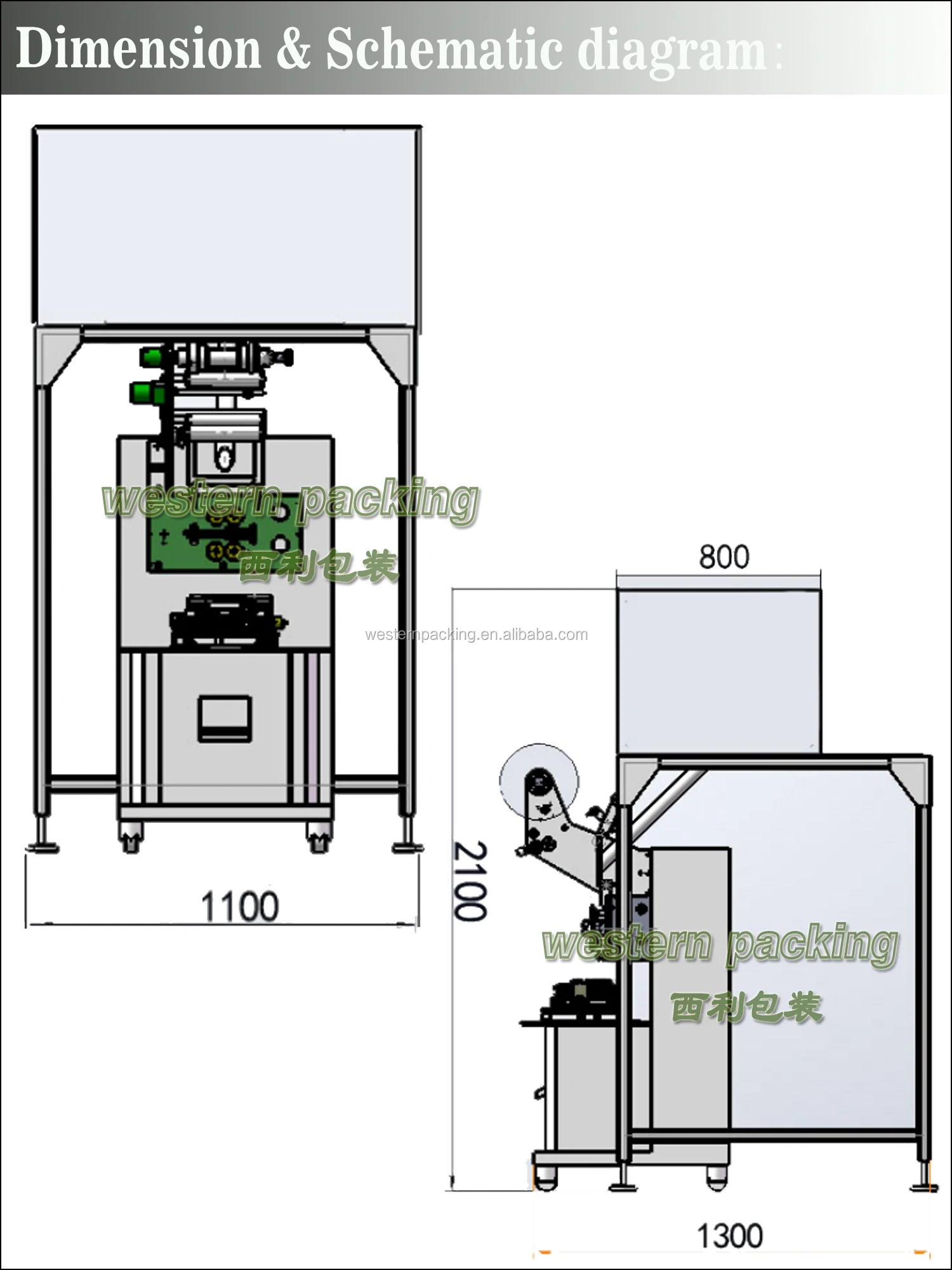

Dimension (L*W*H)



1200*900*1800mm












Ultrasonic welding.jpg

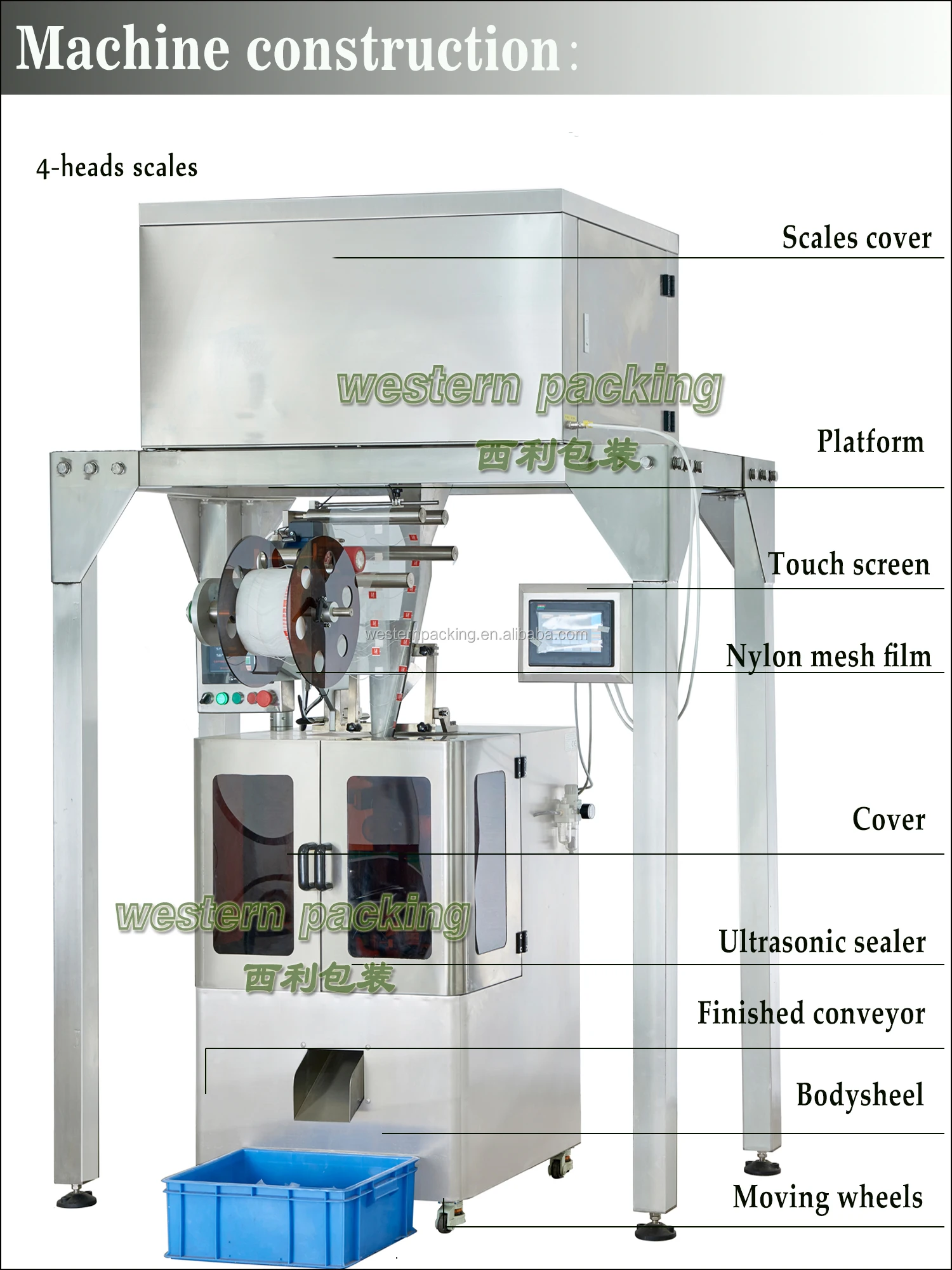

machine construction-.jpg








QQ20161023193353
