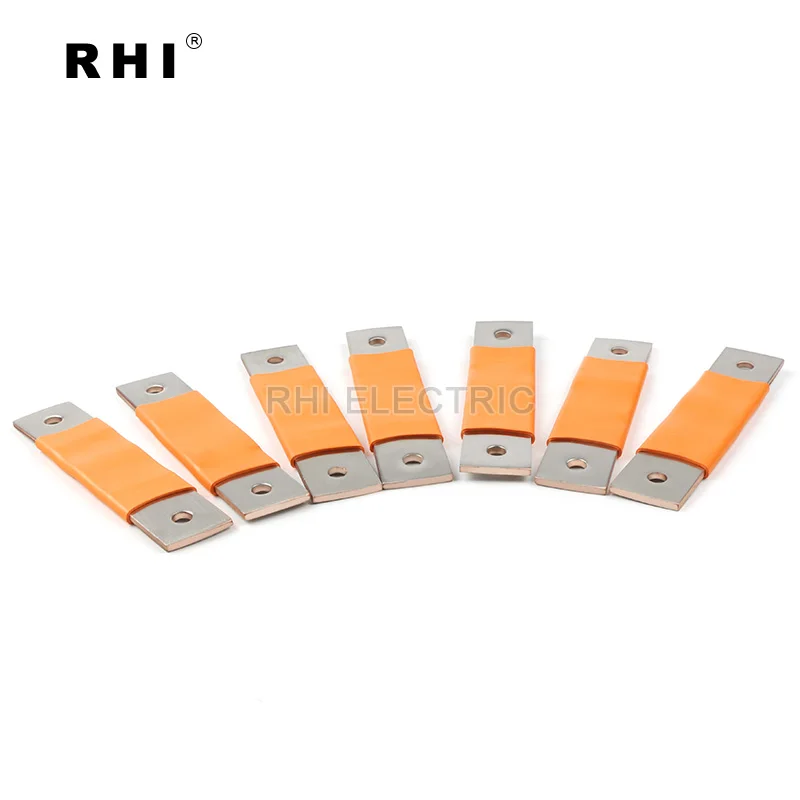

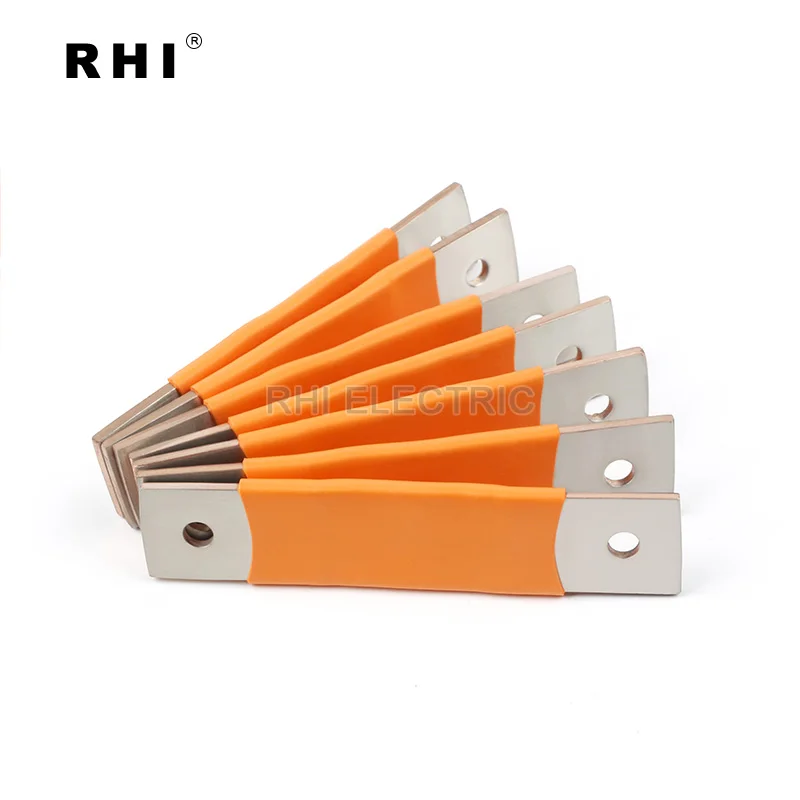

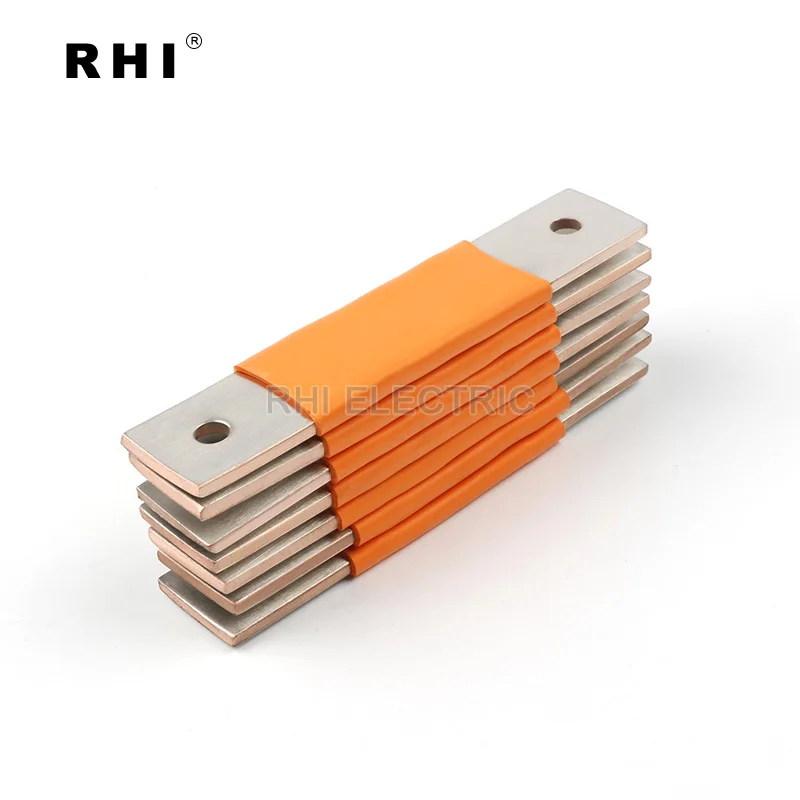

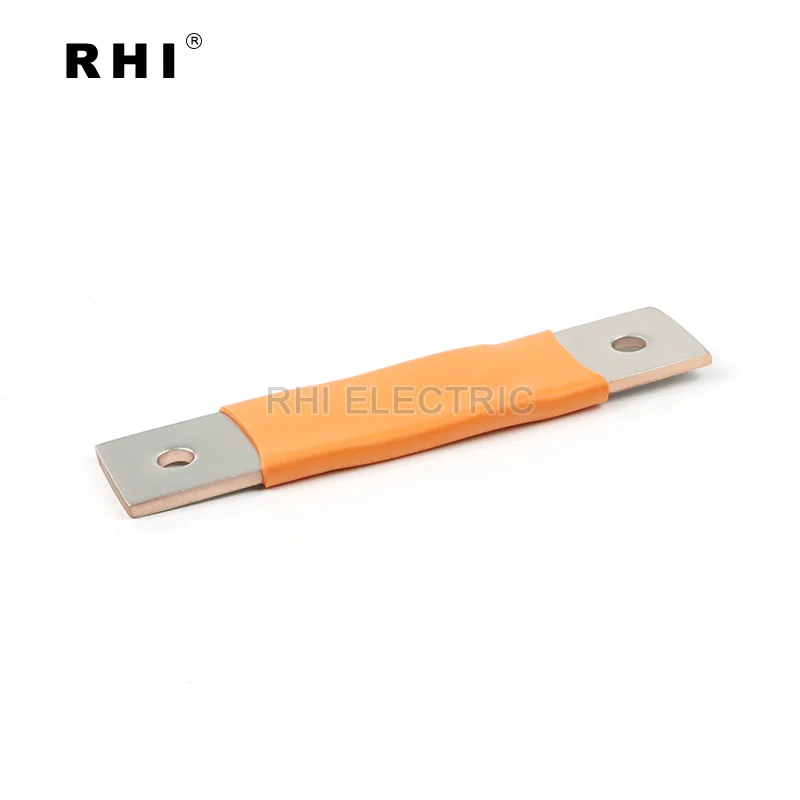

RHI battery package bus bar connector copper flexible shunt for Germany market
- Category: >>>
- Supplier: Zhejiang Rhi Electric Co. Ltd.
Share on (60549282954):
Product Overview
Description
Product Description
RHI battery package bus bar connector copper flexible shunt for Germany market
Battery flexible copper bus bars are made of copper foil thickness from 0.1 to 1mm. They are produced by process of welding, stamping, plating, forming, insulation and so on. The plating can be tin and nickel. The insulation can be pvc dipping and PE heat shrink tubing. Because of it's feature of good conductivity, flexible, easy to install and space saving, flexible busbars are widely used in electric vehicle battery pack, new energy power distribution, UPS, Charging pile etc.
| Material Standard | GB : T2 Copper with Min. 99.9% DIN: E-Cu58 (Number: 2.0065) EN: Cu-ETP ( Number: CW004A) ISO: Cu-ETP UNS: C11000 JIS: C1100 BS: C101 Other Material also can be customized |
| Resistance | 0.00001Ω |
| Conductivity | 57% |
| Copper Foil of Single Layer Thickness | 0.1/0.2/0.3/0.5/1.0mm,depend on bus bar structure, we will advise suitable thickness |
| Insulation Material | PVC Dipping Coating is good performance, Special shaped bus bar can be put on directly, it is not easy to break when it be bent with many times. |
| Insulation Performance | PE and PVC are good, PVC dipping is better than PE heat shrink tubes |
| Flame Retardant/Fire Resistance | UL94-V-0 or upon you request |
| Leakage Testing | PVC Dipping Sleeves: In condition of 3500VDC with 30s upon thickness 1.5mm, Leakage is 0.025 MA; In condition of 5000 VAC with 30s to 60s upon thickness 1.8mm to 2.0mm, Leakage is 0.065 MA; Or upon your working voltage, we advise to choose better solution. |
| Surface Plating | Nickel, tin or silver plated etc Plating Thickness:Normally 3um to 12um or upon customers' request |
| Salt Spray Testing | In a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest |
| Bending Testing | Bend 10000 times in 15 radian angle without breakage or fracture. |
| Temperature Rise Testing | Depend on flexible busbar cross-sectional area, We can offer all temperature rising test report before delivery if you request |
| Operating Temperature | -45 to +150 ºC |
| Copper Foil Tensile Strength | ≥500N |
| Quote Time | Quotation sheet will be sent in 1-3 working days when receiving your enqiury |
| Sample/Trial Order Delivery Time | In 5 -15 working days according to different bus bar structure and manufacture process |
| Quality Management Standard | Meet Auto Industry IATF 16949 |
| Eco-friendly Certificate | ROHS, REACH |
Flexible Busbar vs Rigid Busbar:
1.Press bonded laminations improve electrical conductivity.
2.The feature of flexible enable us to make flexible busbars in more types.
3.Flexible busbar can be made with longer length.
4.Flexible laminate busbar is not easy to be broken after thousands times of bending.
5.Graduated laminates increase power efficiency.
Application
FAQ
1. Do you accept OEM?
Yes. All sizes can be customized. Logo can be made as your request.
2. Can you provide samples?
We can send you samples within 3 days. The sample is free, but sample freight will be paid by your company.
3.What's your delivery time?
For goods in stock, we can ship in 3 days. For bulk order, we can finish within 20 days according to your order quantity .
4. What's your payment term?
The payment can be paid by TT , western union or paypal. For bulk order, our term is 30% payment before production, 70% payment before delivery.
5. What certificates of your products have?
We have ROHS, ISO9001,UL, ATF16949.
Our Services
1.Advanced Technology: We have industry-leading processes and technologies like automatic robot dipping, automatic robot welding, automatic copper forming and 20 years’ experience of busbar insulated dipping technology. With automation equipment and R&D team, we continuously improve our production efficiency and product quality reliability.
2.Efficient Supply Chain: From raw materials to finished products, all processes include mould and fixture are finished in our plant. Only the plating is finished by our supplier near our factory.
3.Superior Service: Give response in 8 hours, arrive at customer’s site to solve problem in 24 hours ( Site outside China may need to be extended).
4.Quick Response: With efficient supply chain and perfect production process, we can provide small batch products in a short time to support early development of customer’s project.
5.Quality Commitment: We are committed to the highest quality standards. Material is tested before production to guarantee it is ETP grade copper. All goods are inspected before delivery. We have certificates of ROHS, REACH, UL94V-0, ISO14000 and IATF16949.
6.Timely Delivery: Experienced workforce, large production capacity and sound supply chain guarantee timely delivery time for customer.
7.Competitive Price: With efficient supply chain and production environment in China, we have advantage of low cost.
