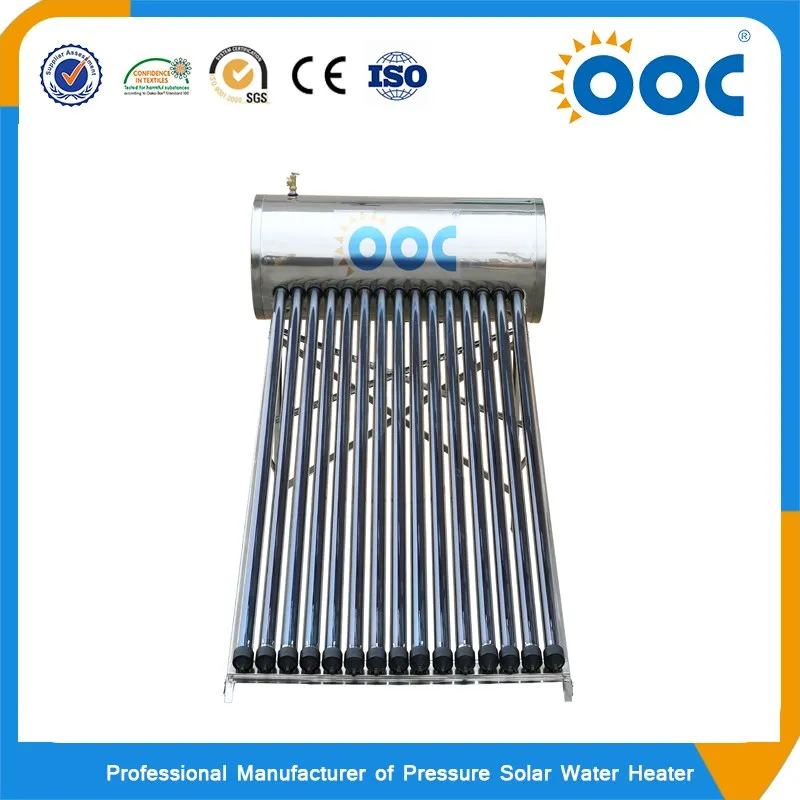

Solar geysers energy systems compact pressurized vacuum tube heat pipe solar water heater

Share on:

Price:RUB 24,086.55
Price in USD:Details


Product Overview










Product Description
name Integrated and pressure solar water heater
model 6 tubes- 36 tubes

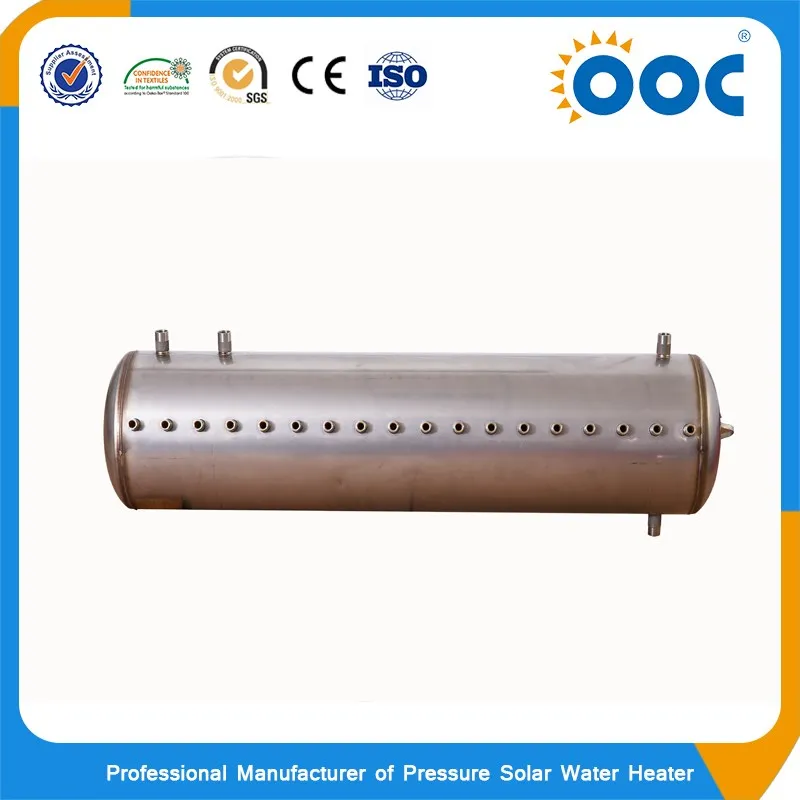

inner tank Sus304-2B, thickness 1.2mm/ sus316 1.2mm
out tank zinc steel plate 0.4mm/ stainless steel 0.4mm
Bracket Zinc steel plate 1.5mm/ stainless steel 1.2mm
insulation High density polyurethane foam 50mm/55mm/60mm
frame degree 0 degree-45 degree. Dual-purpose frame for both flat and inclined roof
inner tank size Inner tank diameter with 370mm
out tank size Outer tank diameter with 470mm
vacuum tubes Tri- element tubes 58*1800/47*1500
capacity 60L-300L
holding time 72Hours
Hail resistance 25mm
Max. Fluid pressure (Pa) 0.6mpa
Operating fluid pressure (Pa) 0.6mpa

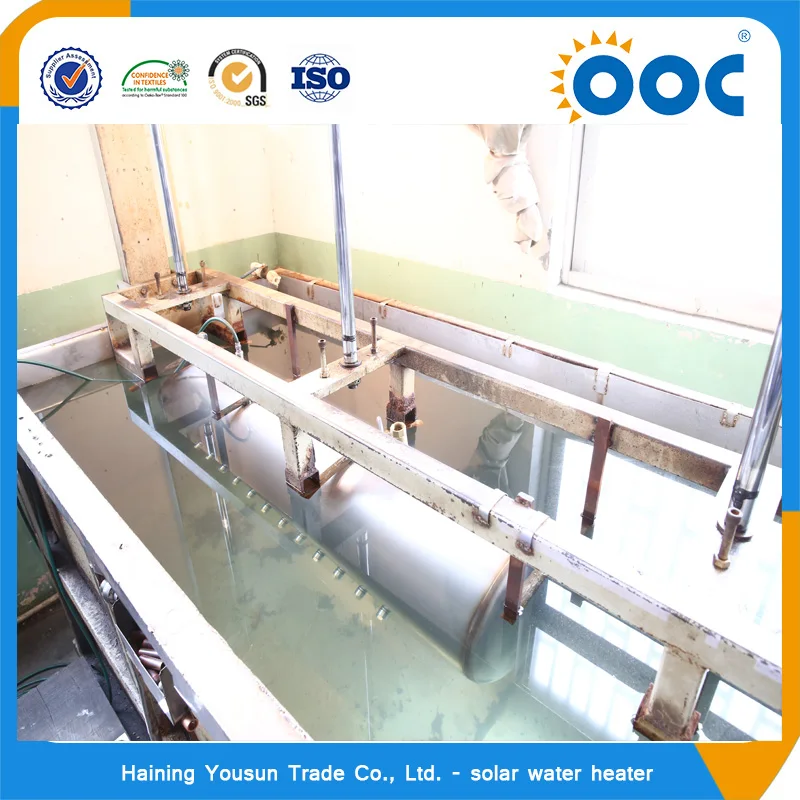

Test pressure 1.0mpa

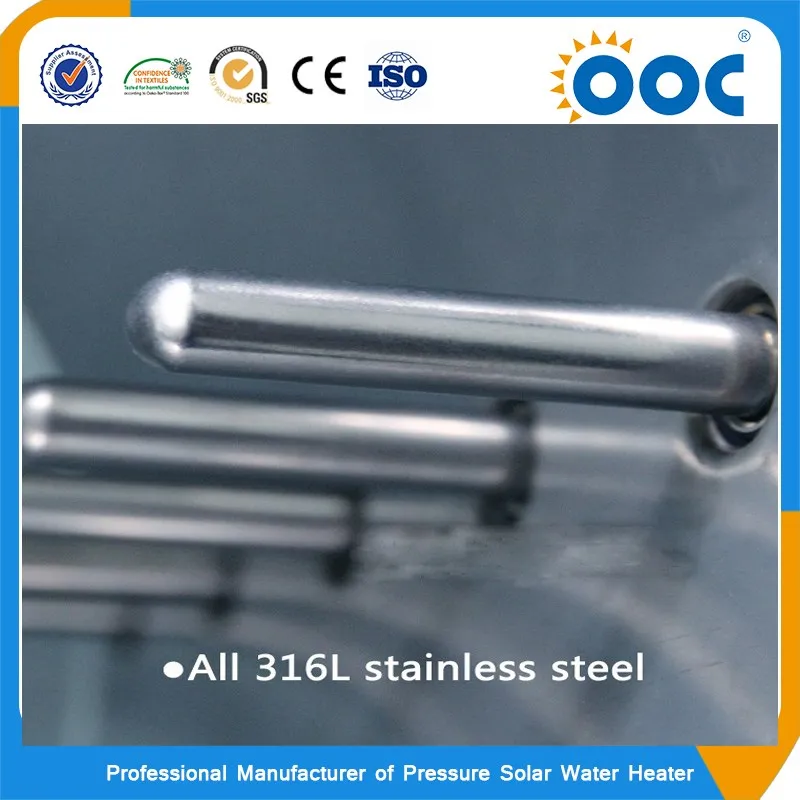

Heat pipe 90mm length condenser, 14mm diameter body, thickness:0.6mm
Dust Proof Rubber EPDM

2,Features and advantages

  1,There is no water in vacuum tube the system can work as usual even if there is one tube broken

  2,Tank can bear the pressure of 0.7mpa.

  3,Test pressure is 1.0mpa .

  4,You still can get hot water on second floor if you install solar water heater on the floor.


The vacuum tubes absorb sunlight and get heat ,then transfer heat to heat pipe via aluminum fin , then

heat pipe transfer heat to the tank by condenser after many hours , water in tank will be hot .

Company Information

Haining yousun trade co.,ltd is a manufacturing and trading combo produce and export solar water heater items for more

than 10 years.

Company Overview Haining yousun trading co.,ltd a manufacturing and trading combo company
Brand name ooc brand for foreign markets
Brief info we are professional solar water heater manufacturer in haining zhejiang province china. our main product is solar water heater include non-pressure type, compact pressure type ,split pressure type and solar collector
Staff 11-50 worker
Capacity 100,000 sets
Authenticate Passed the certification of ISO,CE,CCC,SOLAR KEYMARK
Capability OEM&ODM service for more than 30 brands
Able to source across multiple industries

Total annual sales volume reaches above US$ 5 million




1. Packing: Standard export carton with foam or wooden box,  Wooden Box Packing for Sample

2. Shipping:  3 days for sample, 10 days for 20/40 container.
3. MOQ: Sample is available
4. Warranty: 10 years guarantee for whole set solar water heater
5. Port of departure: Shanghai or Ningbo

6. Supply ability: 5000 sets per month time : more than 20 years
