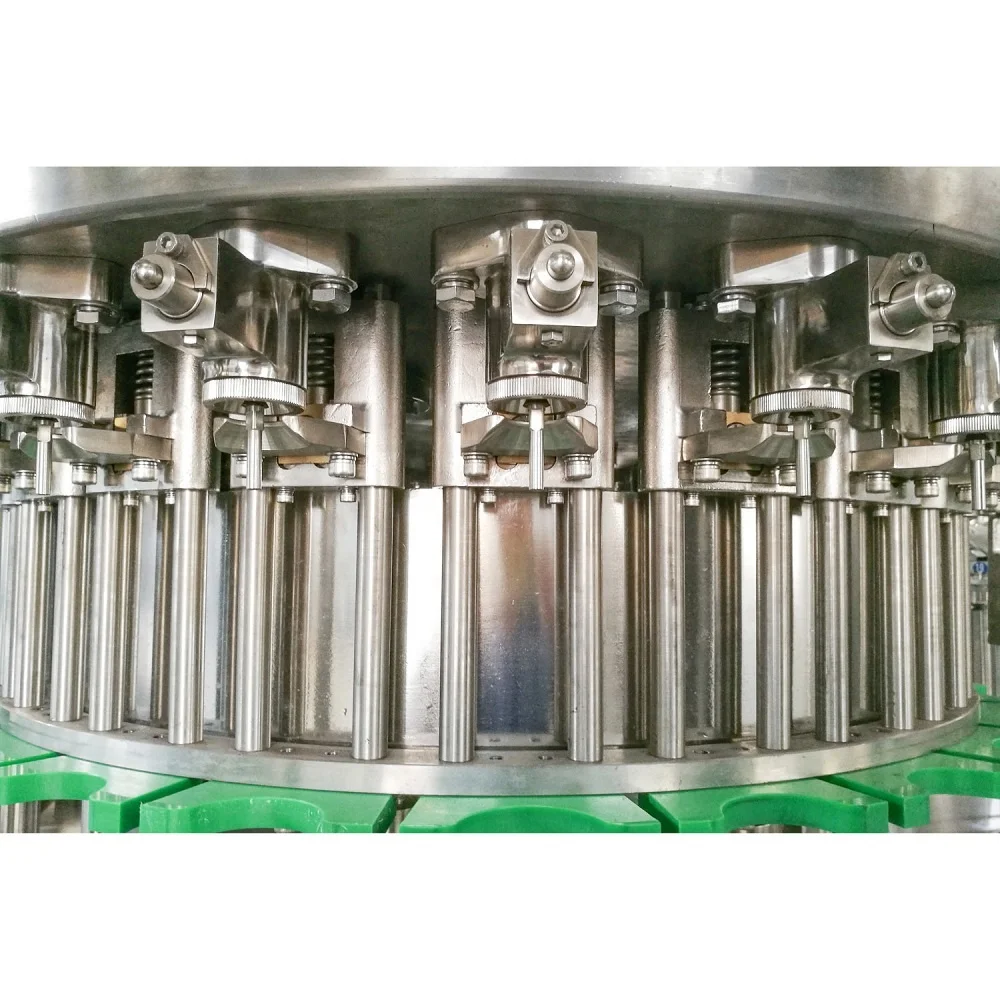

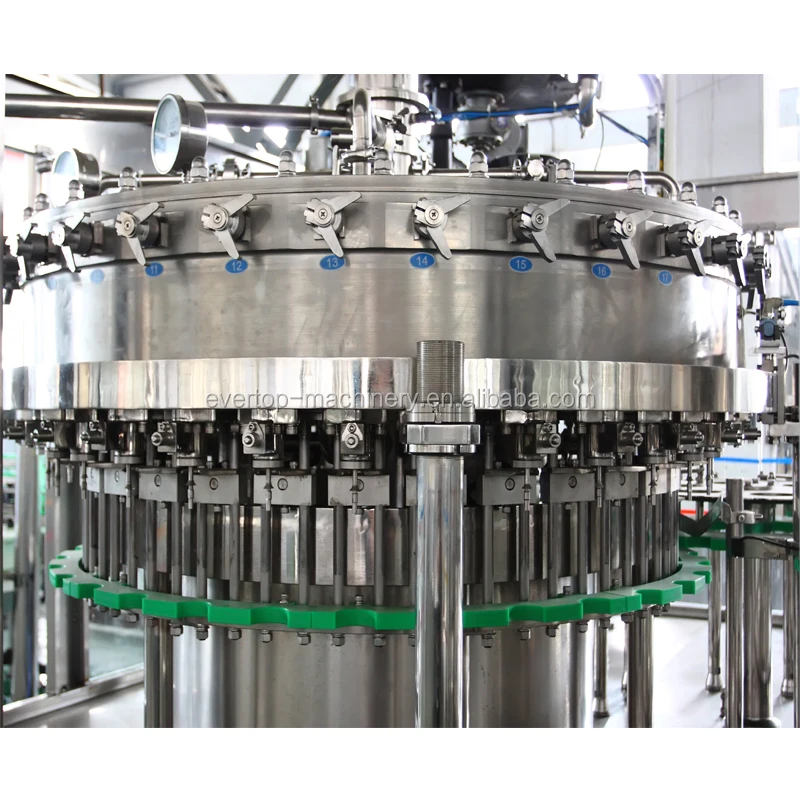

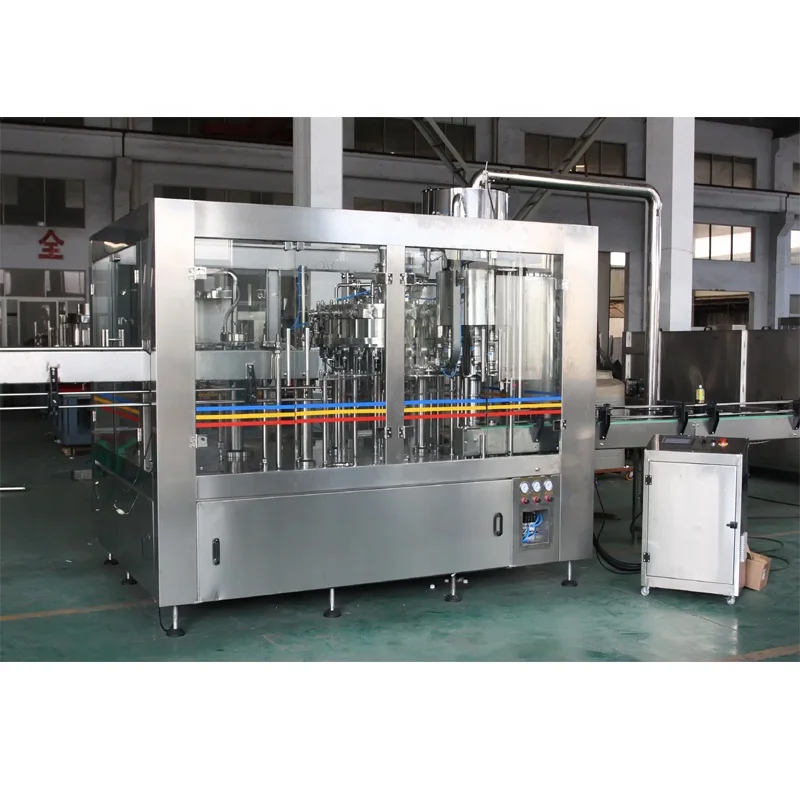

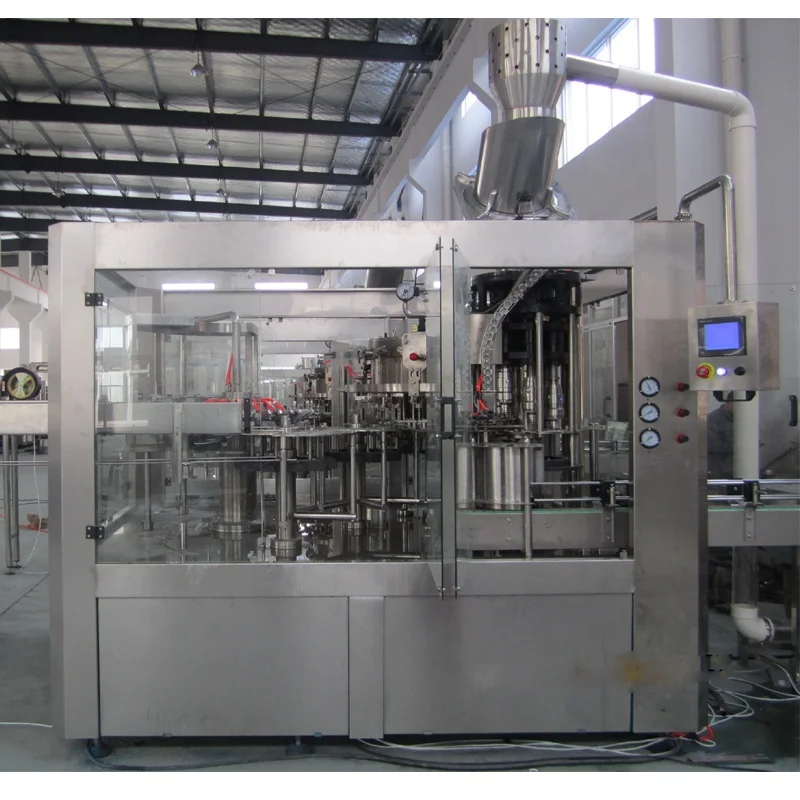

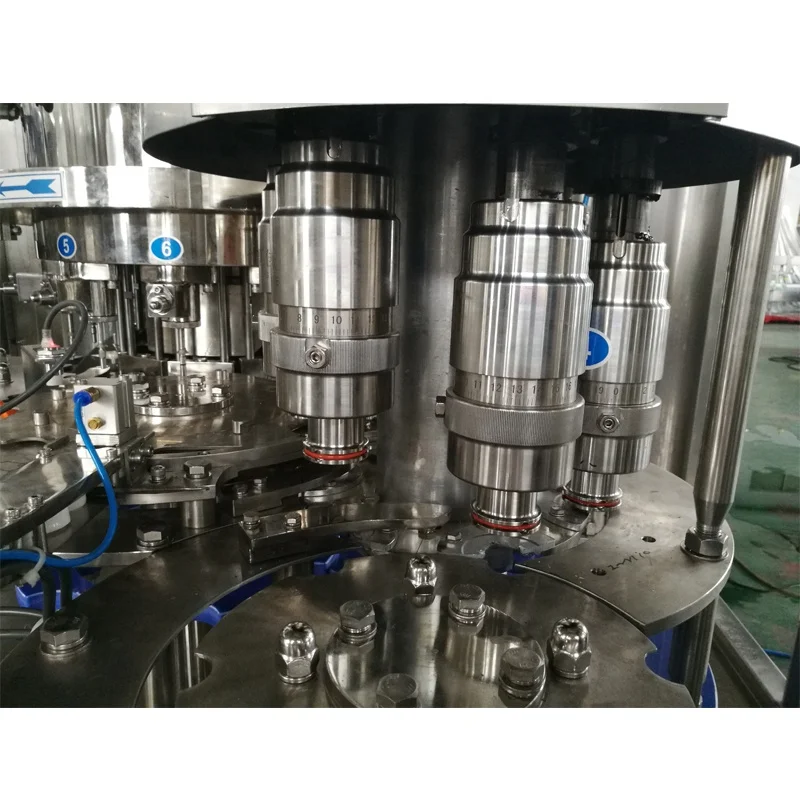

Automatic Plastic PET/ Glass Bottle Soda/ Sparkling Water CSD Rinsing Filling Capping Machine

1. It adopts bottle neck-hanging technology to make air conveyer and in-feeding star wheel connected directly, to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing, change different bottles just need to adjust little accessories.

2. Perfect bottle gripper for stainless filing machine is firm and durable, can keep away of whorl part of bottle mouth second pollution.

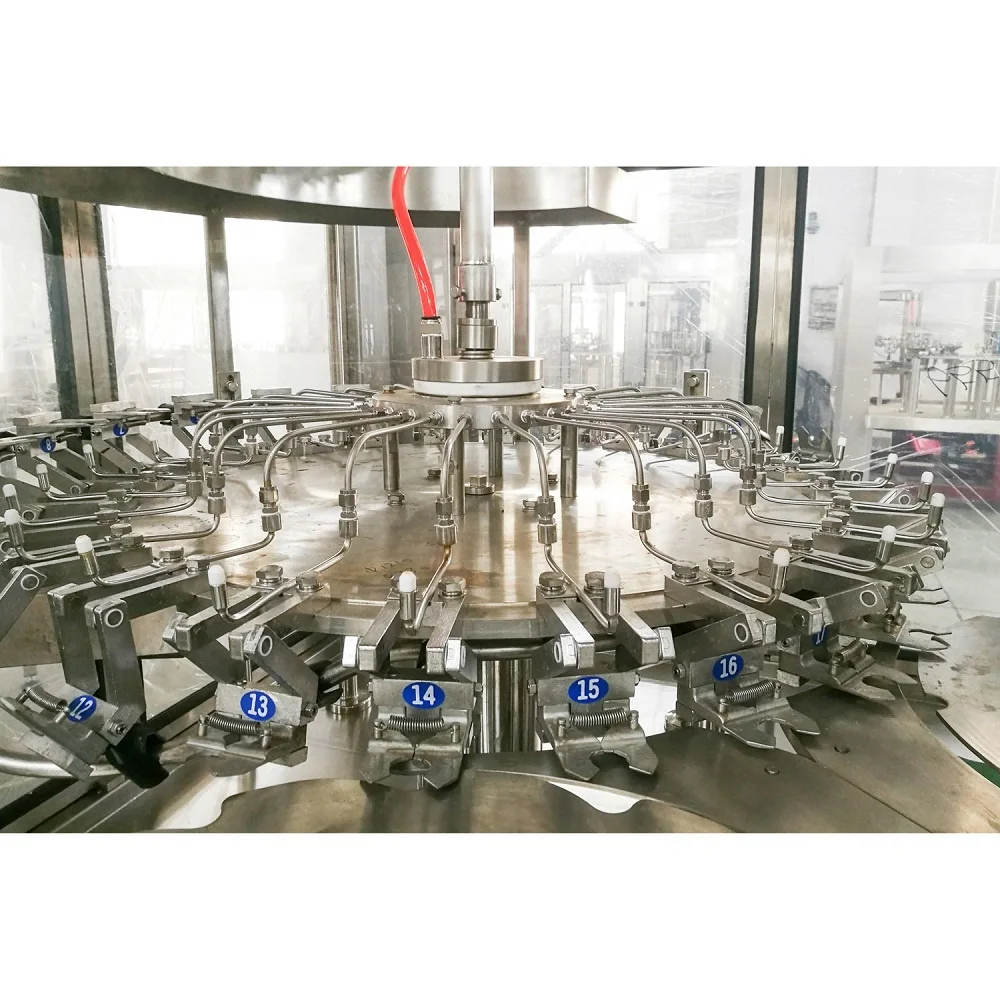

3. Spring style rinsing grippers, empty bottles overturn 180°with the path, two times washing for out and in of bottles, make washing efficiency is high.

4. High speed and high flux washing, sanitation and easily clean rinsing valve. We use perfect CIP loop and control system, make sure equipment can be cleaned.

5, Pedestal of star wheel for bottle conveyer adopts twist descending way to simplify the process of bottle-size-changing. Screw dropping way, just need to change related arc board and star wheel, this process just need ten minutes.

6. Constant temperature circle system, temperature and circumfluence are controlled automatically.

Technical Parameter:

Technological Flow Sheet (Carbonated Drink Production Line):
1. PET Preform Injection Molding System
PET material→ Dehumidify→ Load material→ Injection machine→ Preform

2. PE/PP Cap Compression Molding System
PE material→ Dehumidify→ Load material→ Compression machine→ Cap

3. PET Bottle Blowing System
PET Preforms→ heat preform→ stretch→ blowing→ bottles

4. Water Purifying System
Raw water→ Multistage centrifugal stainless pump→ Quartz sand filter→ Active carbon filter→ Water softner→ Micro filter→ Reverse osmosis→ UV sterilizer→ Water tank→ Pump

5. Carbonated Beverage Preparing System
Sugar melting tank→ Pump→ Syrup filter→ Mixing tank→ Pump→ Syrup cooler→ Carbonated Mixer←Cooling water tank← Chiller

                                                                                                                                       CO₂ filter

6. Filling, Labeling and Packing System
(Bottle Unscramble)→ Air conveyor→ Rinsing, Filling& Capping Mono-Block→ Lamp checker→ Conveyor→ Bottle Warmer→ Dryer→ Auto labeling machine→ Date printer→ Auto PE Film pack shrinking machine/Carton packing machine→ Stock

Zhangjiagang Evertop Machinery Co., Ltd., which has the function of research, development and manufacture, is specialized in beverage packaging machinery.

We are providing the following products: liquid filling machine (bottle water, juice/tea, carbonated drink, oil, milk, wine etc.), 3 to 5 gallons water filling production line, water treatment machine, labeling and packing machine, automatic/semi-automatic bottle blow molding machine, injection molding machine and  automatic batching, mixing system, a variety of sterilization equipment etc.

Since foundation, we devote all the strength to the new field of beverage packaging machine technology and absorb the advanced technology from German and Italy. Company insists the management ideas of market-oriented, technology-first, quality of life, faith-based, service paramount, and has established perfect quality assurance system.

1. The plant layout
To provide customers with pre-project workshop planning, design.

2. Commissioning services
Send experienced engineers and technicians to be responsible for equipment installation and commissioning, to ensure customers' factory normal production.

3. Spare parts
With one year of wearing parts when the device is shipped. In addition, we prepare adequate equipment spare parts in stock. Customers ever need spare parts to repair and maintain quipment, we can supply to them quickly.

4. Technical training
To ensure that your technical staff to become familiar with the performance of the equipment, to master the equipment proper operation and maintenance procedures, we provide on-site technical training, in order to facilitate customers faster and more comprehensive access to technology.

Q What is your trade clause?
A We mainly handle it by FOB, CFR, CIF, EXW, FCA. It depends on the client’s need.

Q What is your payment term?
A 30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment

Q What is the valid of your price?
A Because the cost and exchange rate changes rapidly, so all of our quotation for you is with 30 days valid. If you need any update price, please feel free to contact us.

Q How could I know if your products' specification is suit for our country power?
A All the machines are custom made. We will make suitable voltage and frequency products according to your need.

Q How long can you arrange delivery?
A About 30 days after we received the deposit payment, all the machines will be ready. You are welcomed to test the machine in my factory or we send you video of your machine running. Then you arrange the balance payment and we will pack the machines with wooden case and arrange the shippment by sea or by train.
