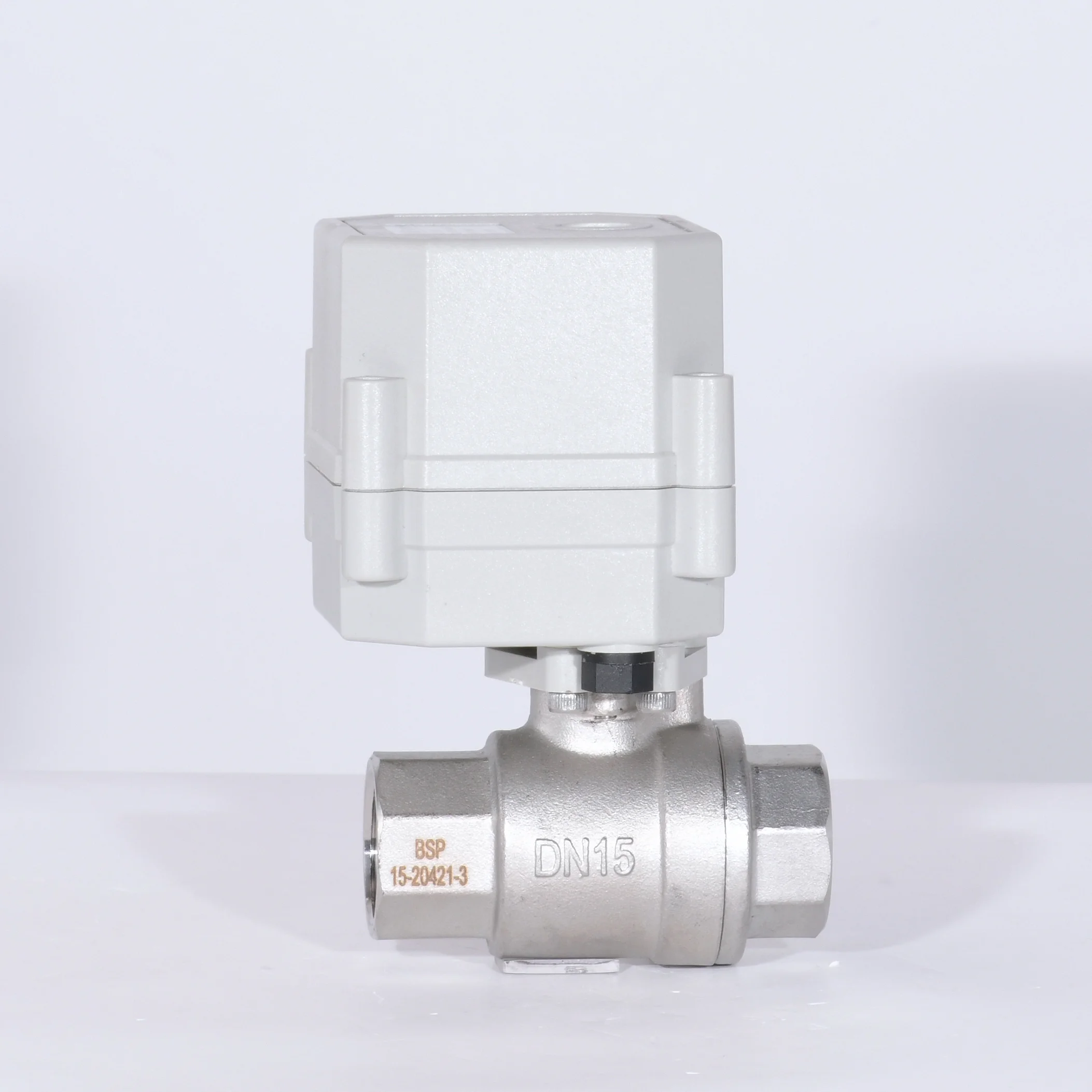

CE SS304 DN15 0~5V electric modulating actuator 4 20mA regulating control ball valve
- Category: >>>
- Supplier: Taizhou Tonhe Flow Control Co. Ltd.
Share on (60549894868):
Product Overview
Description
Product Description
CE SS304 DN20 0~5V electric modulating actuator 4-20mA regulating control ball valve
Technical Parameters:
Valve size ------------------- 1/2”
Working voltage------------------- DC9-24V
Wire control-------------------3 wire or 5 wire(with feedback wire)
Control current-------------------0-5V
Cable length-------------------0.5m or customer demand
Motor voltage-------------------5v
Switching time-------------------≤7S
Material of valve body-------------------SS304
Sealing material-------------------FKM
Thread-------------------BSP, NPT
Control accuracy------------------- ±1%
Protection Class-------------------IP67
Valve operate stages-------------------It should be able to control at 5% open , 10% open ....90% open and 100% open
Valve actuator material-------------------engineering plastic

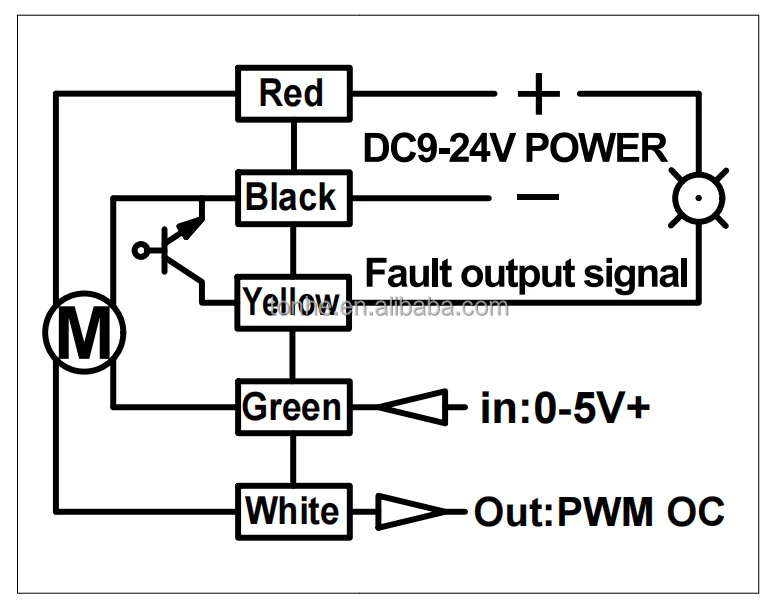

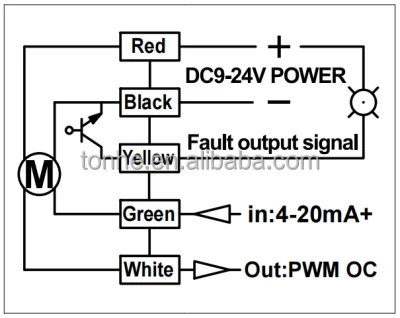

Wire Drawing below:
Application
Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.
Our Services
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can
totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
TONHE is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved
CE certification and SS valve approved NSF61 international certification.
we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .

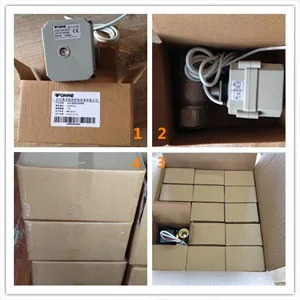

Product packaging
 |  |
Company exhibition

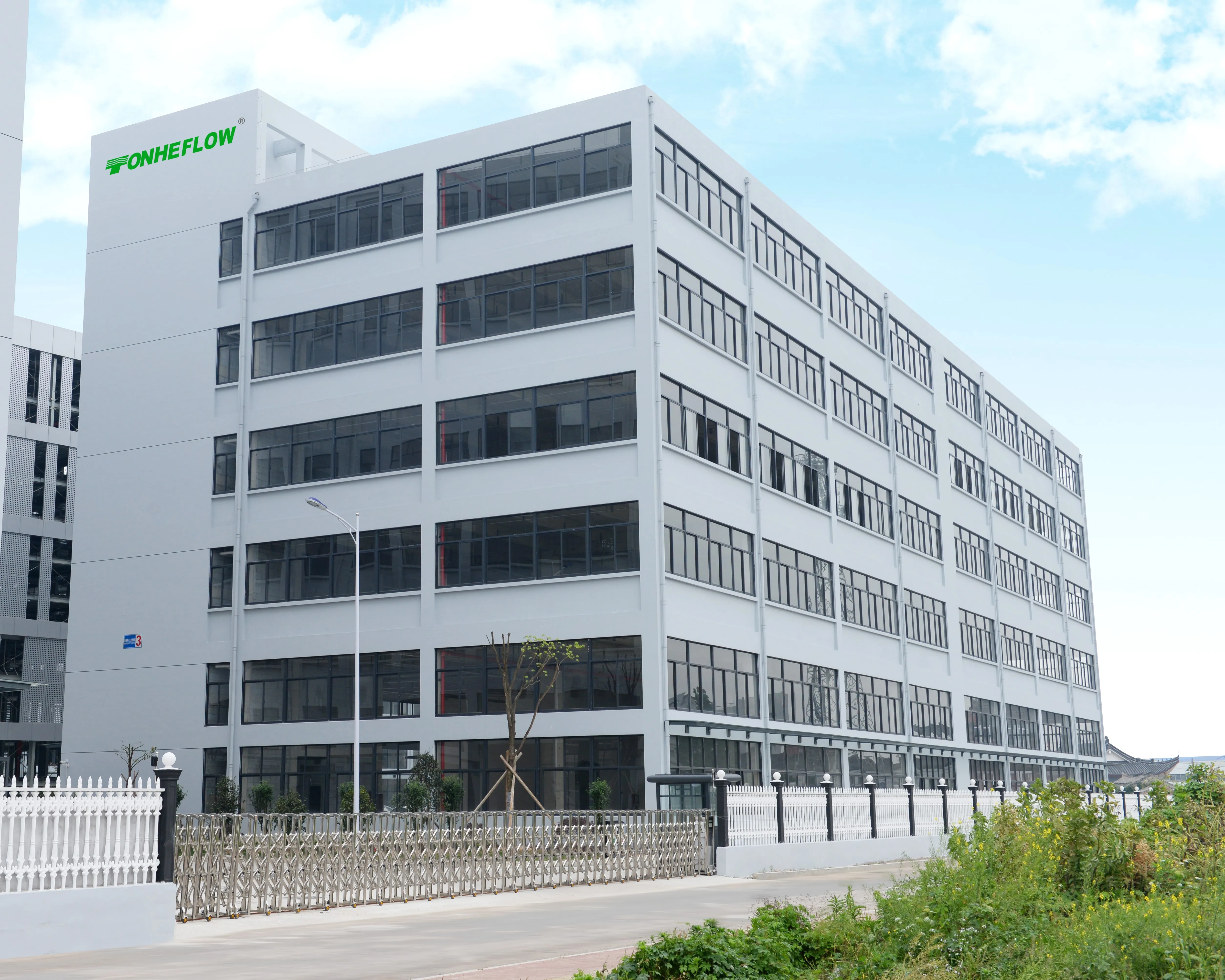

ABOUT US
Where multiple product series has passed NSF61 - G, CEROHS and other international certification. Electric ball valve product is
compact structure, beautiful appearance, intelligent control, low working current, high sealing etc., are widely used in the pump
cylinder automatic drainage, water storage, water treatment, efficient small devices such as section water, industrial control,
product application prospect, social economic benefit is obvious.
compact structure, beautiful appearance, intelligent control, low working current, high sealing etc., are widely used in the pump
cylinder automatic drainage, water storage, water treatment, efficient small devices such as section water, industrial control,
product application prospect, social economic benefit is obvious.
Where multiple product series has passed NSF61 - G, CEROHS and other international certification. Electric ball valve product is compact structure, beautiful appearance, intelligent control, low working current, high sealing etc., are widely used in the pump cylinder automatic drainage, water storage, water treatment, efficient small devices such as section water, industrial control,
|  |

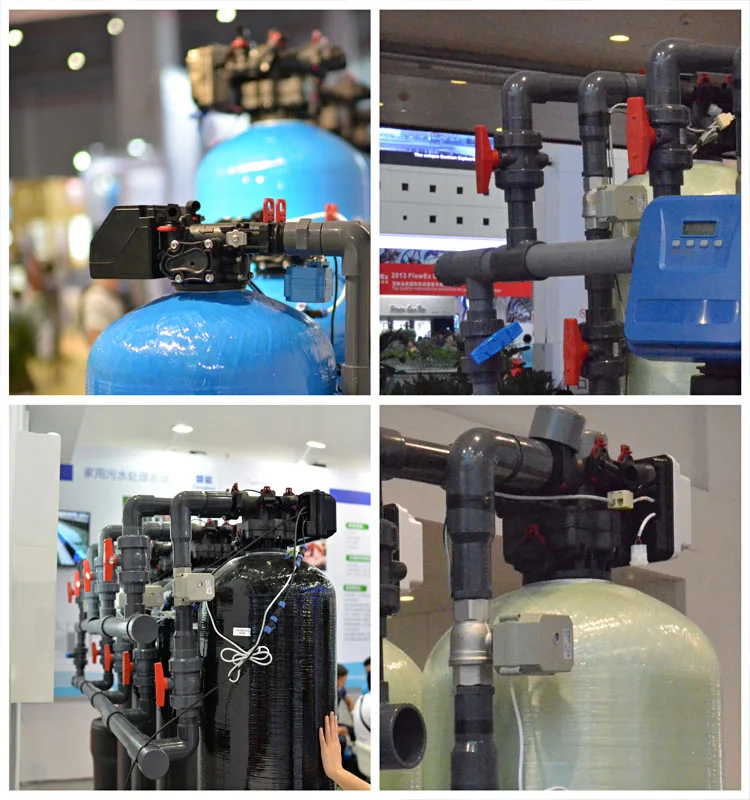

Example diagram

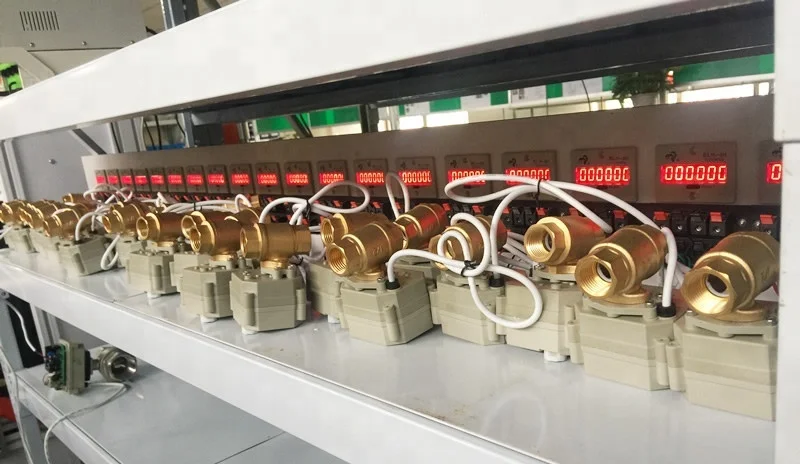

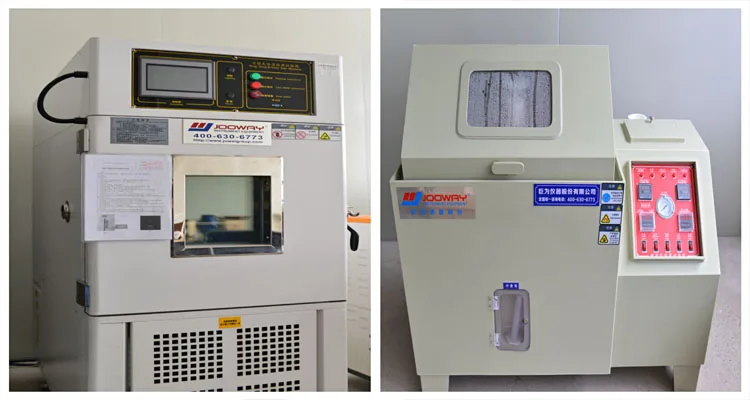

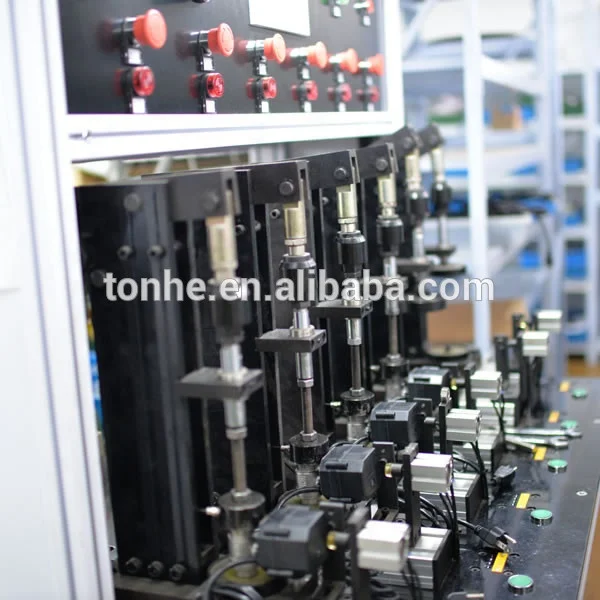

Equipment diagram
Our customers
FAQ
1. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.
Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Q: How about your products and company approved?
A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.
Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more
reliable and guaranteed for your customer or the user.
