Intelligent battery tester with software RFNT3
- Category: >>>
- Supplier: Shenzhen Runfeng Elec. Tech. Co. Ltd.
Share on (60550000737):
Product Overview
Description
~~ Hi Welcome to Visit Our Company and Product~~
Shenzhen Manufacturer outuput 19V4.74A Universal Poloso RFNT3 laptop battery tester
Product Description
Features:
- Supporting two intelligent batteries at once:
- With charge and test functions
- LCD for displaying battery information
- LED for indicating working status
- Pre-charge, fast charge and constant voltage charge for charging stages
- With a USB port for connecting with computers, master machine can monitoring and control slave machine.
Parameters:
| Model:RFNT2 | |
| Output | DC19v4.74a |
| Input | AC100--240v |
| Dimensions | 201 x 99 x 35 mm |
| Weight | 333g |
| Color | white |
| Working temperature | 0-40℃,20%-90% RH(Non Condensing) |
| Storage temperature | -20℃-65℃,10%-95% RH(Non Condensing) |
| Reliability | 1 year warranty and lifelong maintenance |
| Protection | |
| low power consumption in standby modes, over-temperature protection, overload protection | |
| Charging mode | CC+CV |
| Display mode | Segment LCD with white backlight + LED in red and green |
| Max charging current of each channel | 2.5A |
| Maximum charging time | 8 hours |
| Usage | Test, charge, discharger laptop battery |
Function
Function
Charge
Two channels can work independently and serve two intelligent batteries separately. Active, pre-charge, constant current and constant voltage are the stages of charging mode. The initial charging mode depends on the battery voltage, so active and pre-charge don't happen to every batteries.
Test
Testing time is 30seconds and the purpose is to check both the charging and discharging performances. After finishing test, LED flickers with green color and LCD reports the test result.
Normal: Test OK Shown on LCD
Abnormal: Test NG Shown on LCD
Possible causes and solutions for the abnormal:
1)Cause: battery voltage is too low to discharge
Solution: try to charge the battery to raise voltage
2)Cause: remaining capacity is too full to charge any more
Solution: try to discharge the battery to reduce the remaining capacity
3)Bad contact of battery connecting wires
4) Damaged battery
5)Tester trouble
Online Functions

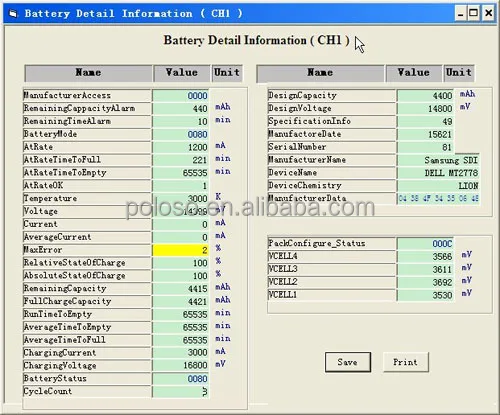

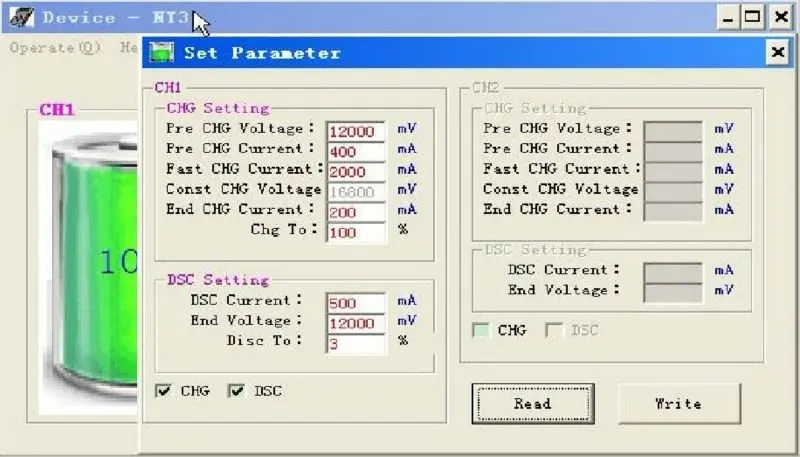

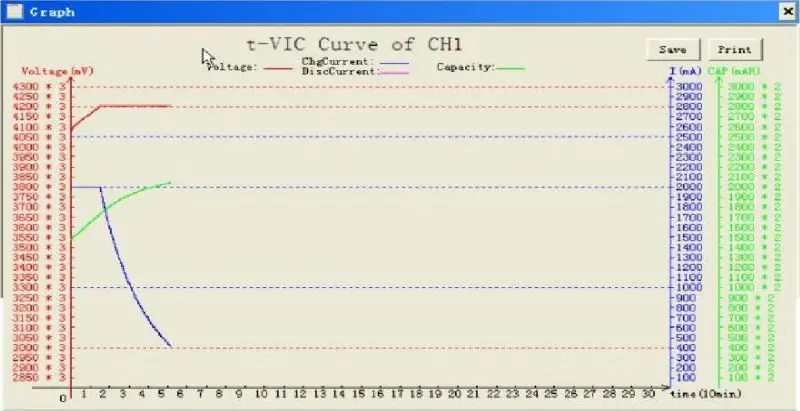

Tester can be connected with master machine via a USB port. Users can monitor, control and set parameters via Battery Manager software in the master machine.

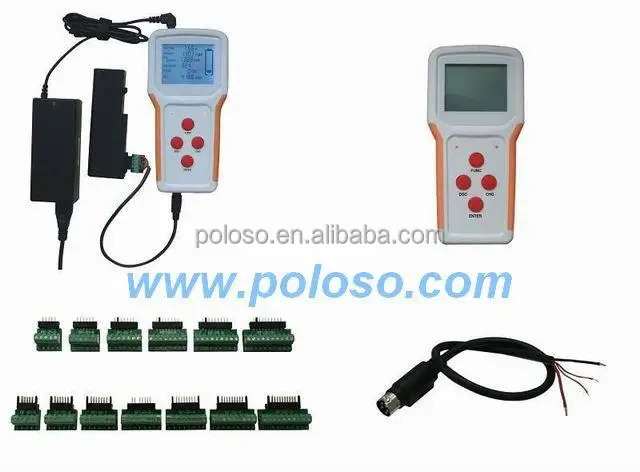

Accessories
1).1 x adapter
2). 1 x USB cord
3). 1 x CD
4). 14 x connectors
5). 10 x cables
6). 10 x jumpers
Packaging & Shipping
Packing detail: We will packing it in carton, we can also do it as your requirement.
Delivery detail: We will shipping it within 5-7 days.
