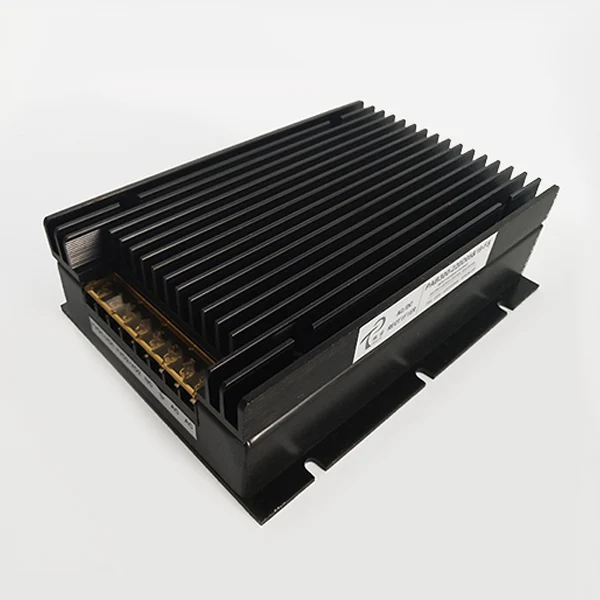

PAB G series China 24v 30a dc power supply
- Category: >>>
- Supplier: Nanjing Pengtu Power Supply Co. Ltd.
Share on (60550252936):
Product Overview
Description
Product Description
Specification
Features
l Wide input voltage
l Broadband noise filter of input
l Surge suppress circuit of input
l Comply with UL1950, IEC950 safety regulation
l Nice shape design
l Easy Installation
l Terminal connection method
l Fast dynamic response
Input Characteristic
l Inputvoltage range……………………176 ~ 264 VAC Rated value: 220VAC
Reverse Protection
Fuse Outside
Output Characteristic
l Voltage accuracy …….................…………±1%
l Line regulation(main) ………………........±0.2%
l Load regulation(main) …………….......…±0.4%
l Temperature coefficient …………........…±0.01%/℃
l Output current limiting ………….........… 110%(Typ)
l Dynamic response ……………………… 400μs
l Output current …………………………… 6-60A
l Output voltage …………………………… 12-110V
l Power …………………………………… 500-1000W
General Characteristic
l Switching frequency …………………… 160-200 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output:>1500 VAC/Min (Leakage current<5mA)
Input-case: >1500 VAC /Min (Leakage current<5mA)
Output-case: >500 VDC/Min
l Environmental Characteristic
Case temperature …………………… Industry: -25-+85℃; Military I: -40-+85℃; Military II: -55-+85℃
Storage temperature ……………….. Industry: -45~ +105℃; Military: -55-+105℃
l Wide input voltage
l Broadband noise filter of input
l Surge suppress circuit of input
l Comply with UL1950, IEC950 safety regulation
l Nice shape design
l Easy Installation
l Terminal connection method
l Fast dynamic response
Input Characteristic
l Inputvoltage range……………………176 ~ 264 VAC Rated value: 220VAC
Reverse Protection
Fuse Outside
Output Characteristic
l Voltage accuracy …….................…………±1%
l Line regulation(main) ………………........±0.2%
l Load regulation(main) …………….......…±0.4%
l Temperature coefficient …………........…±0.01%/℃
l Output current limiting ………….........… 110%(Typ)
l Dynamic response ……………………… 400μs
l Output current …………………………… 6-60A
l Output voltage …………………………… 12-110V
l Power …………………………………… 500-1000W
General Characteristic
l Switching frequency …………………… 160-200 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output:>1500 VAC/Min (Leakage current<5mA)
Input-case: >1500 VAC /Min (Leakage current<5mA)
Output-case: >500 VDC/Min
l Environmental Characteristic
Case temperature …………………… Industry: -25-+85℃; Military I: -40-+85℃; Military II: -55-+85℃
Storage temperature ……………….. Industry: -45~ +105℃; Military: -55-+105℃
item | value |
Place of Origin | China |
Jiangsu | |
Brand Name | PengTu 24v 30a dc power supply |
Model Number | PAB800-220S24-G |
Output Power | 500W |
Output Type | Single |
Input Voltage | 220VAC |
Output Voltage | 15VDC |
Output Frequency | 160-200KHz |
Output Current | 33.33A |
Product Name | 24v 30a dc power supply |

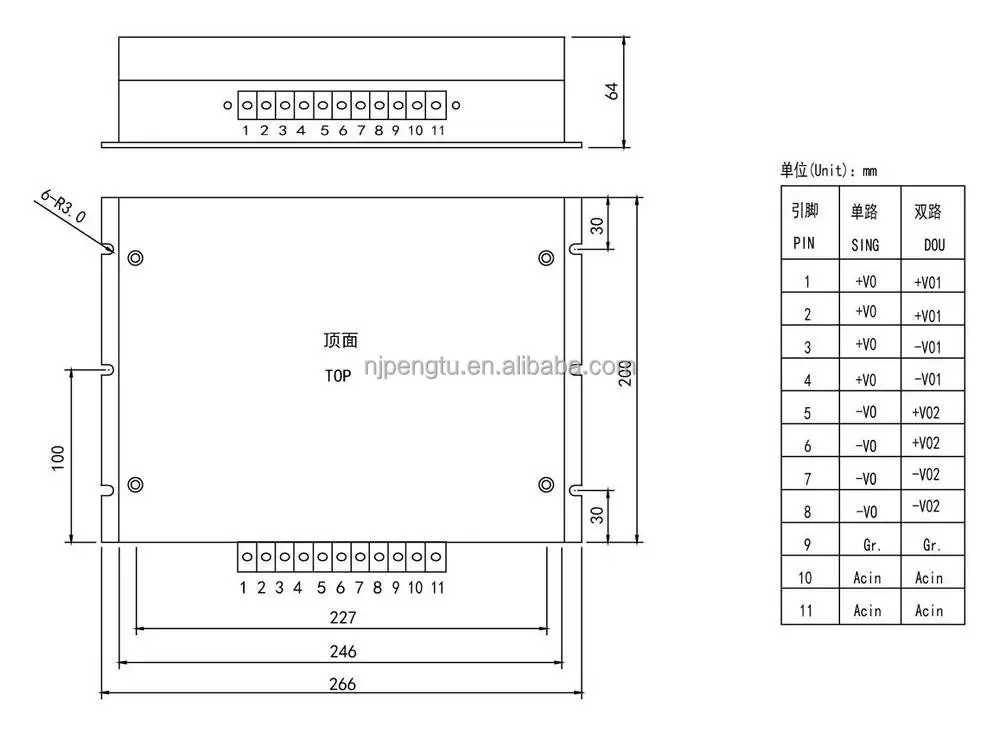

Size | 64*200*266mm |
Voltage Set-point Accuracy | ±1% |
Line Regulation | ±0.2% |
Output current Limiting | 120%(Typ) |
Isolation Resitstance | 200MΩ |
MTBF | >500000h |
Packing & Delivery
carton (it's ok according to your requirement)
Company Profile
Nanjing Pengtu Power Supply Co., Ltd was established in 2007, is located in NO. 26 Daxiaochang Road, Qinhuai District, Nanjing, China. Our company is a manufacturer specializing in power product development, design, production, sales and service company. Our company has R&D, Production, Marketing, Quality Control department and other functional departments, And has a number of high-tech talents, which college degree or above of our personnel is more than 50% of the total number of employees. Our company has not only passed ISO9001-2008 Quality System Certification, and some products through the Measurement of Jiangsu Province Academy of Sciences and National Electric Power Academy of Sciences and other authorities detection. Product safety and electrical properties fully comply with the Ministry of Information Industry YD/T731-2000 High Frequency Switch Rectifier Standard.
In the power supply field, our company has independent research and development of AC/DC, DC/DC switching power supply module series mature products, power covers 3W-1000W. And our company strictly reference (GJB9001A - 2001) Nations Standard Quality Management System requirements, design and produce the special specifications of the power supply for the army and common customer.
Since its establishment to now, our company adhere to the science and technology as the forerunner, take the technology as the backing, and constantly develop all kinds of hi-tech leading colleague's new products. Currently we has a number of national patent. Our company produces the "PengTu" brand power has been widely used in railway, military, aerospace, power, communication, control, instrument, car equipment, ship and major scientific research institutions, etc various fields, from the customer high praise.
We will always remember the business philosophy "quality first service first", to provide users with convenient one-stop service. With our practical, innovation, refinement spirit of enterprise, we accelerate the company's technical innovation and product development and at the same time we will with more quality products, more detailed services and more excellent results return to the vast number of customers. Let us work together to create you and I better tomorrow.
In the power supply field, our company has independent research and development of AC/DC, DC/DC switching power supply module series mature products, power covers 3W-1000W. And our company strictly reference (GJB9001A - 2001) Nations Standard Quality Management System requirements, design and produce the special specifications of the power supply for the army and common customer.
Since its establishment to now, our company adhere to the science and technology as the forerunner, take the technology as the backing, and constantly develop all kinds of hi-tech leading colleague's new products. Currently we has a number of national patent. Our company produces the "PengTu" brand power has been widely used in railway, military, aerospace, power, communication, control, instrument, car equipment, ship and major scientific research institutions, etc various fields, from the customer high praise.
We will always remember the business philosophy "quality first service first", to provide users with convenient one-stop service. With our practical, innovation, refinement spirit of enterprise, we accelerate the company's technical innovation and product development and at the same time we will with more quality products, more detailed services and more excellent results return to the vast number of customers. Let us work together to create you and I better tomorrow.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(20.00%),Eastern Europe(15.00%),Western Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Mid East(6.00%),Eastern Asia(5.00%),South Asia(5.00%),South America(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ACDC Converter,DC DC Converter,EV on board charger,battery charger,Power Supply
4. why should you buy from us not from other suppliers?
We are a manufacturer specializing in power product development, design, production, sales and service company. We has independent research and development of AC/DC, DC/DC switching power supply and EV on board charger. Various products are widely used.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Korean
We are based in Jiangsu, China, start from 2007,sell to North America(20.00%),Eastern Europe(15.00%),Western Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Mid East(6.00%),Eastern Asia(5.00%),South Asia(5.00%),South America(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ACDC Converter,DC DC Converter,EV on board charger,battery charger,Power Supply
4. why should you buy from us not from other suppliers?
We are a manufacturer specializing in power product development, design, production, sales and service company. We has independent research and development of AC/DC, DC/DC switching power supply and EV on board charger. Various products are widely used.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Korean
