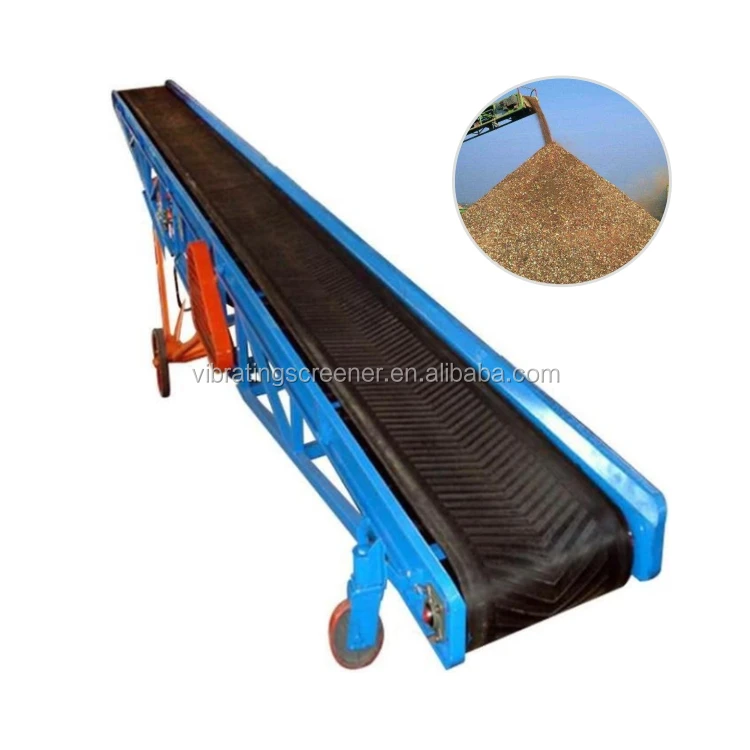

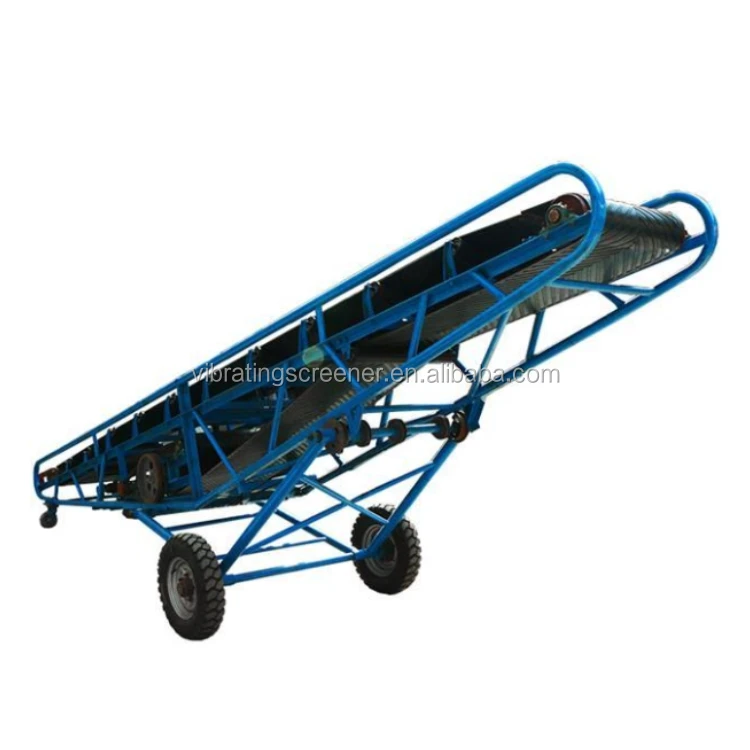

Mobile Flat or Troughed Belt Conveyor with Adjustable Lifting Height
- Category: >>>
- Supplier: Xinxiang Dazhen Sift Machine Co. Ltd.
Share on (60550276716):
Product Overview
Description
Introduction:
A Mobile Belt Conveyor is a type of material handling equipment that can be easily moved from one location to another, lifting height can be fixed or changeable, rollers can be flat or troughed. Mobile Belt Conveyor is a good helper at such place: port, wharf, station, coal plant, warehouse, construction site, quarry, farm...
Technical Parameters:
Model | DY5051 | DY5071 | DY50101 | DY50102 | DY50102A | DY50151 | DY50152 | DY50152A | |
Conveyor length(m) | 5 | 7 | 10 | 10 | 10 | 15 | 15 | 15 | |
Belt width(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
Belt speed(m/s) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
Max. conveying height(m) | 1.63 | 1.59 | 1.77 | 4.52 | 4.52 | 1.61 | 6.32 | 6.32 | |
Conveying capacity | M3/h | 160 | 160 | 160 | 125 | 125 | 160 | 125 | 125 |
t/h | 145 | 145 | 145 | 112 | 112 | 145 | 112 | 112 | |
Angle | 13°59′ | 9°16′ | 6.5° | 10°~22° | 10°~22° | 3.81° | 10°~22° | 10°~22° | |
Drive pulley | Model | DY1.4 | DY1.4 | DY1.4 | DY1.5 | DY1.3 | DY1.4 | DY1.6 | DY1.3 |
Power KW | 2.2 | 2.2 | 2.2 | 3.0 | 1.1 | 2.2 | 4.0 | 1.1 | |
Weight(Kg) | 518 | 604 | 892 | 1126 | 1071 | 1225 | 1491 | 1491 | |
Key Advantages:
1. Ability to load and unload vehicles from ground level
2. Can be easily moved from one place to another
3. Designed with ease of use & low maintenance

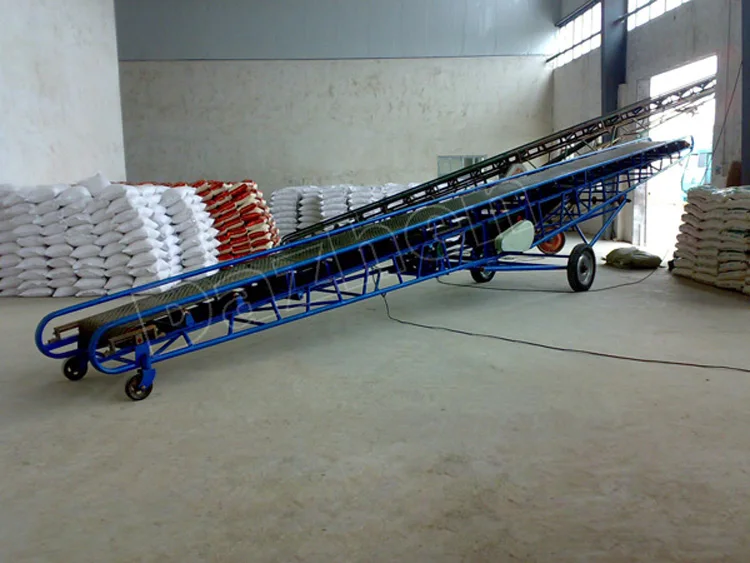

4. Used to stack and de-stack sack/bags in warehouses
Contact Us
Mr. Johnny Cash Mobile: +86 18603807086 Skype: hachedegiat
Xinxiang DaZhen Sift Machine Co., Ltd
Address: Jingba Road, Economic & Technical Development Zone, Xinxiang, Henan,China
Website: www.vibrosieve.com
