Product Overview

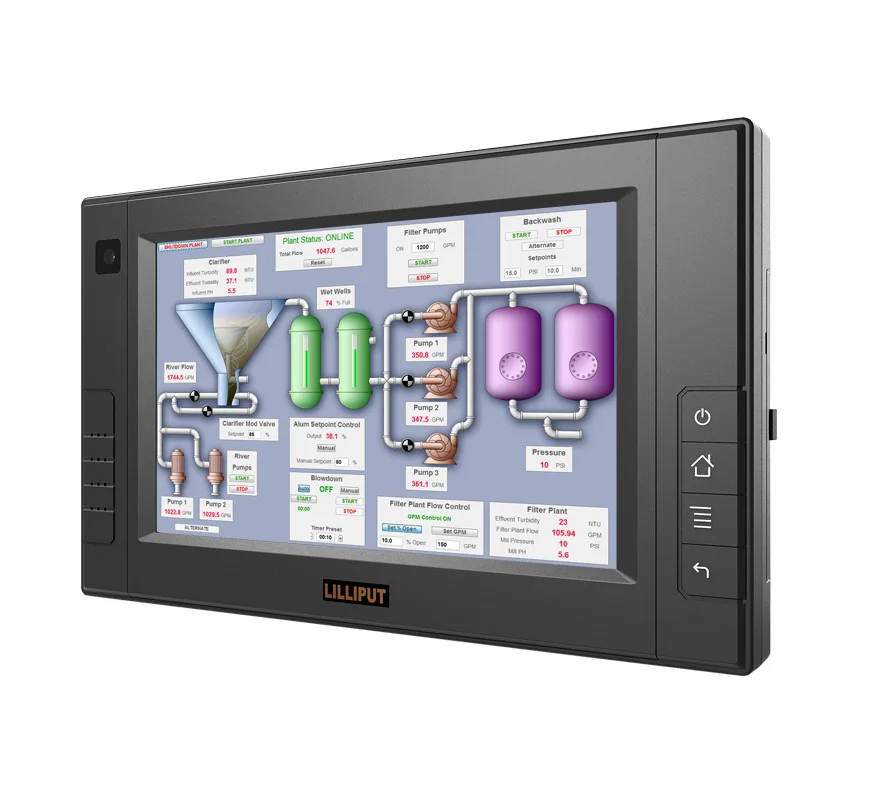

Lilliput PC-7106 7" Industrial Touch PC With Android 5.1.1

CPU: NXP i.MX6DualLite / i.MX6Quad Cortex-A9

RAM: 1G DDR3, flash ROM: 8G eMMC

OS: Android 5.1.1, Linux Debian 8.0, WinCE 7.0

Multipoint capacitive touch screen

Comply with IP64 standard, dust & water-proof

9-36V wide power voltage

USB host 2.0×1, USB device 2.0×1

RS232×4 / RS232×3+RS485×1 / RS232×2+RS422×1+RS485×1

Gpio input×4, Gpio output×6, CAN Bus×2

Wi-Fi, bluetooth, 3G/4G, ACC & GPS for optional


Application Fields

Feet Management System

Taxi Dispatch

Industrial Automation

Military Tablet

Medical Control

Smart Logistic/Warehouse



It features customized ABS material accompanying with IP64 rating, which

offer a 360° protection to prevent from dust and water;

All interfaces are equiped with protective components to cope with complex industrial environment.


Powerful CPU

It uses a NXP i.MX6DualLite / i.MX6Quad processor, an architecture based on ARM Cortex A9 800-1000MHz speed with a high-performance CPU, which is stable and reliable.

The processor makes the multimedia performance more powerful, to meet various field applications.



Abundant extended modules, which makes the device much more powerful, such as bluetooth, Wi-Fi and camera, etc. Operation system can be alternatived by customer for different applications, and all software and hardware can be customized to meet the best needs or cost savings. OEM & ODM services are highly welcomed!



Rich resource working with Android, Windows CE or Linux OS to apply in different fields, eg. Fleet management, large warehouse management, agriculture & construction vehicle, manufacturing, retail, portable medical device, Human-machine interface, intelligent industrial control system, electric power industry, catering and entertainment, port terminal, container freight, etc.

PC-7106 (1).jpg


 Display Screen

  7" LED backlit


  800 x 480 (1,152,000 pixels)

  Touch Panel




  Aspect Ratio



  Android 5.1.1 / Linux Debian 8.0 / WinCE 7.0


  CPU: NXP i.MX 6DualLite 800MHz ARM Cortex-A9 processor
  Optional: NXP i.MX 6Quad 1.0GHz ARM Cortex-A9 processor


  3D Vivante GC880 35Mtri/s 266Mpxl/s Open GL ES 2.0


  RAM: 1G DDR3, flash ROM: 8G eMMC

  Expansion Storage

  Micro SD (TF) card


  Ethernet 1000M (RJ45)

  Transfer Interface

  USB Host 2.0 x 1, USB Device 2.0 x 1
  RS232 x 4 / RS232 x 3+RS485 x 1 / RS232 x 2+RS422 x 1+RS485 x 1
  GPIO input x 4, GPIO output x 6


  Ear phone slot x 1
  Speaker (front) x 1



  Power consumption


  Charging consumption


  Working Temperature

  -20 ~ 60ºC

  Storage Temperature

  -30 ~ 70ºC

  Power Supply

  DC 9-36V


  220 x 132 x 36.5 mm



Standard Accessories

Extended cable

1 piece

DC adapter

1 piece

Mini USB cable

1 piece

Touch pen

1 piece

CD drive

1 piece


1 copy

Optional Accessories

75mm VESA rail slot

1 piece

75mm VESA folding bracket

1 piece

Built-in / External GPS

1 piece

Built-in Bluetooth & Wi-Fi

1 piece

Built-in 3G / 4G module

1 piece

Micro SD card

1 piece

2200mAh Battery

1 piece
