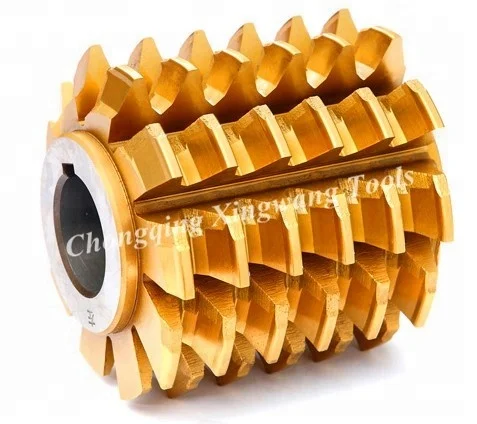

HSS Types Gear Hob Factory DP7 Hobber Cutter

Product Overview

Description

HSS Types Gear Hob Factory DP7 Hobber Cutterr



Module:DP7, Pressure Angle:PA20 degree



Tooth profile to DIN3972, GB, Accuracy to Class A,AA quality DIN3968

Gear Hobs for Finishing,Pre-grinding,Pre-shaving

HSS Material:M2,M2Al,M2E,M35,M42,ASP30+TiN/TiALN coating



Diametral Pitch Gear Hob Cutter can be ordered as Gear Hob Cutter DP1,DP1.25,DP1.5,DP1.75,DP2,DP2.25,DP2.5,DP3,

Solid Gear Hobs for Spur Gears:DP3.5,DP4,DP4.5,DP5,DP5.5,DP6,DP6.5,DP7,DP8,DP9,DP10,DP11,DP12,

                                 DP14,DP15,DP16,DP18,DP20,DP22,DP24







When ordering special gear hob cutters, a detailed drawing of the part to be cut should be furnished,



Your information must include the following data:



Work Details: Name: gear,No of teeth:,



Outside Dia. Root Dia.Whole Depth,Helix Angle



Normal Tooth Thickness,Given No of Teeth,Span Measurement,Pin Dia.,Over Pin Distance,



True Involute Form Dia. Chamfer of Radius Direction,



Mating Gear Details,No of teeth,Outside Dia.Center Distance,



Work Material,Hardness
