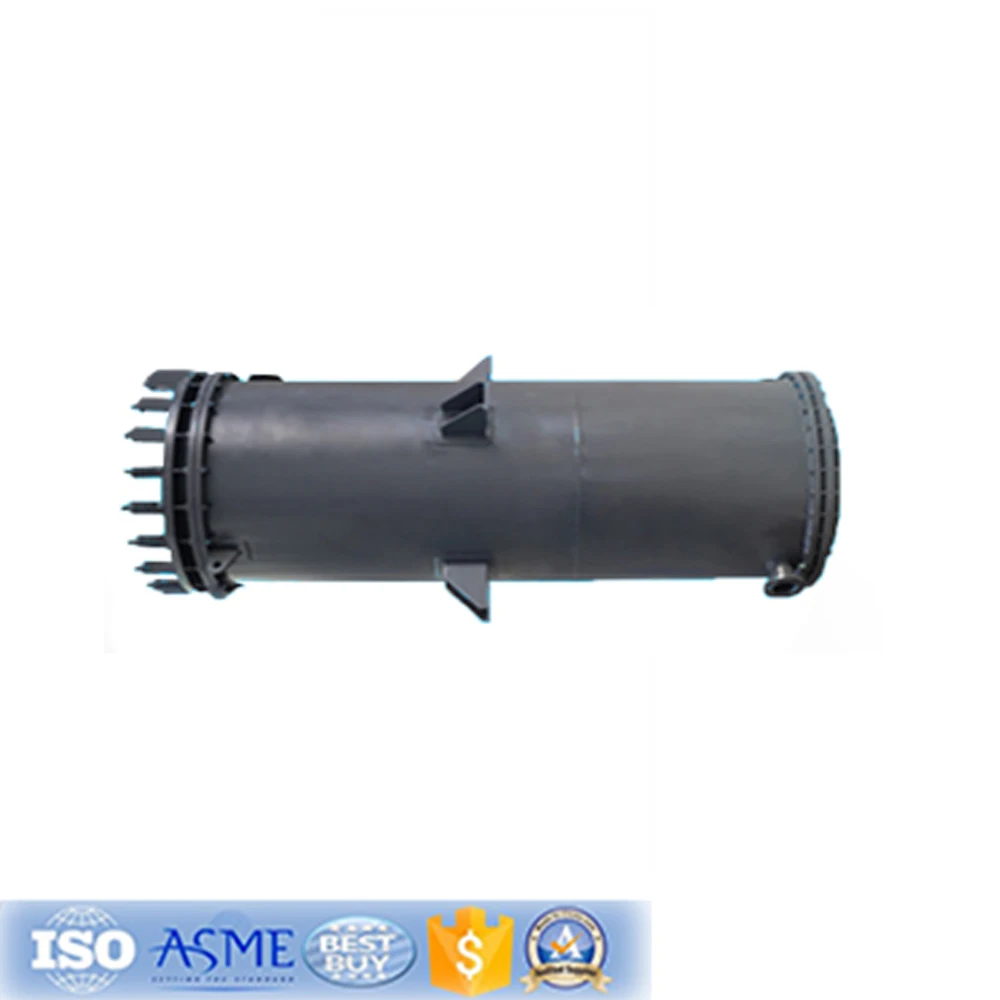

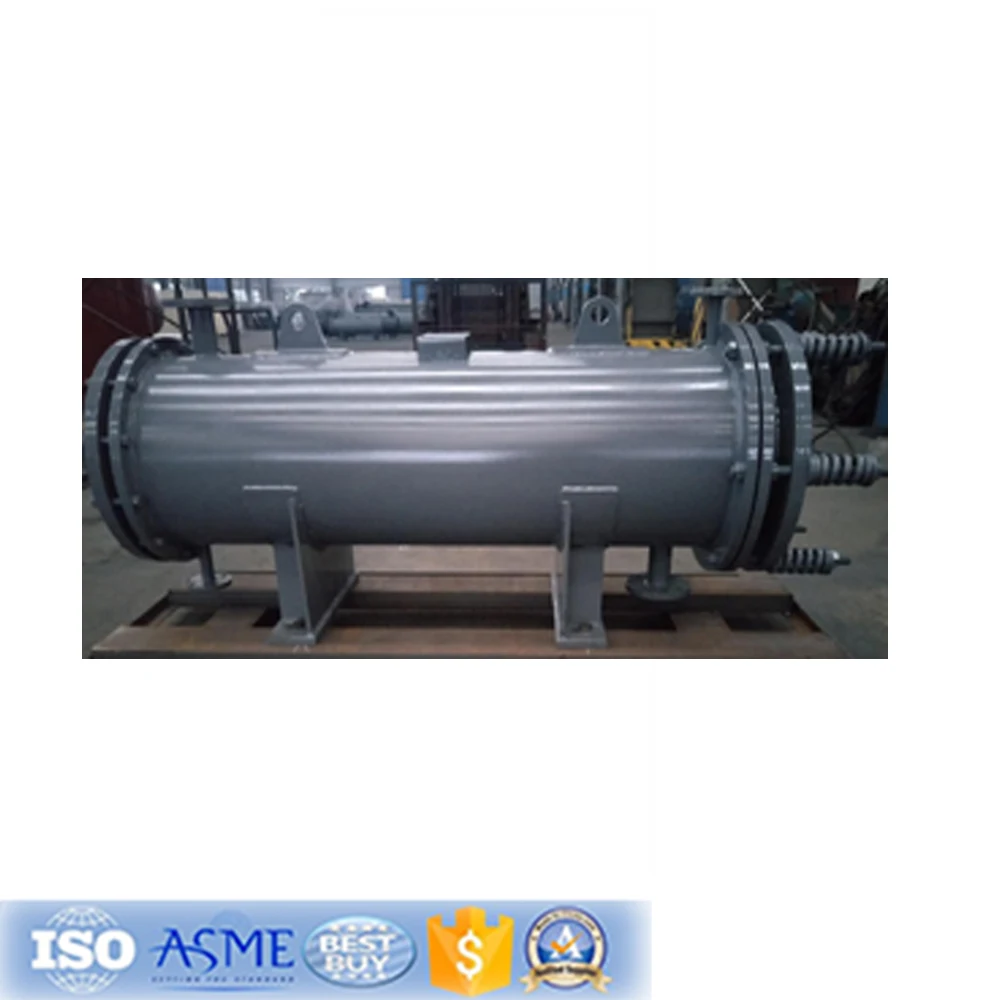

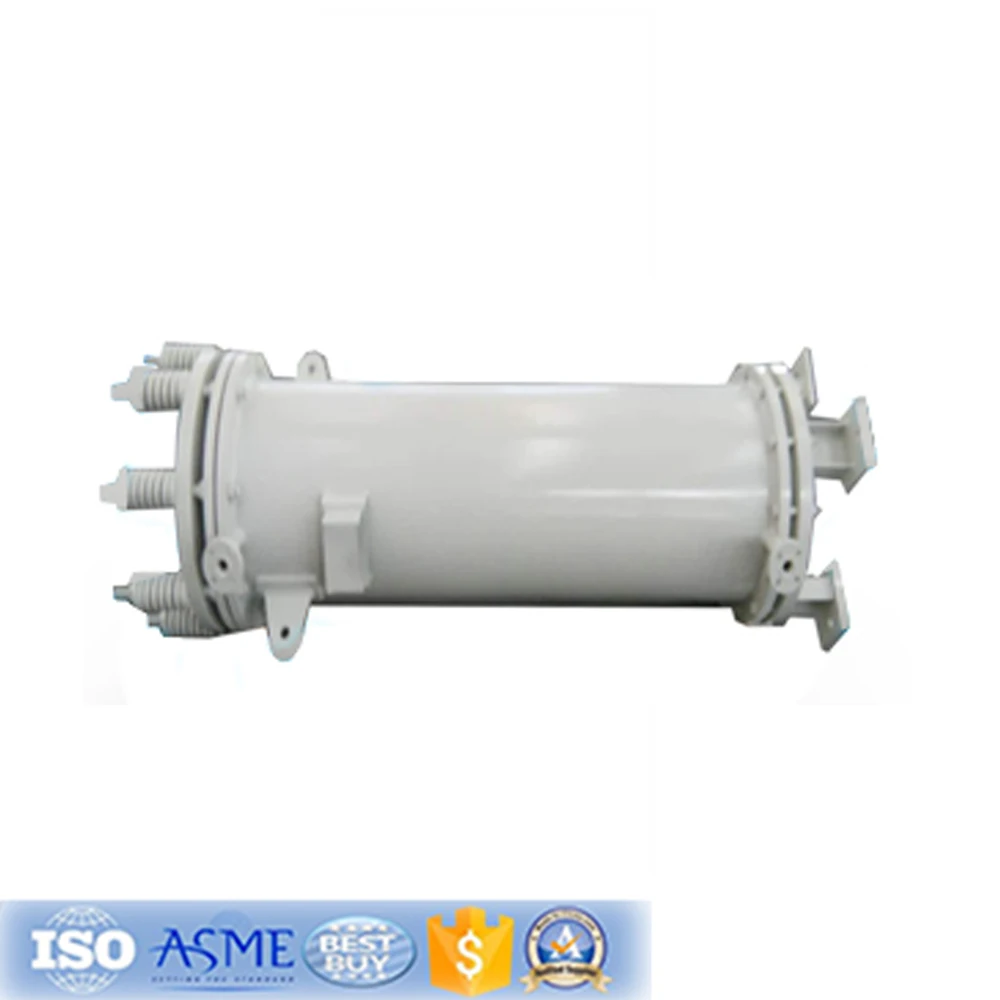

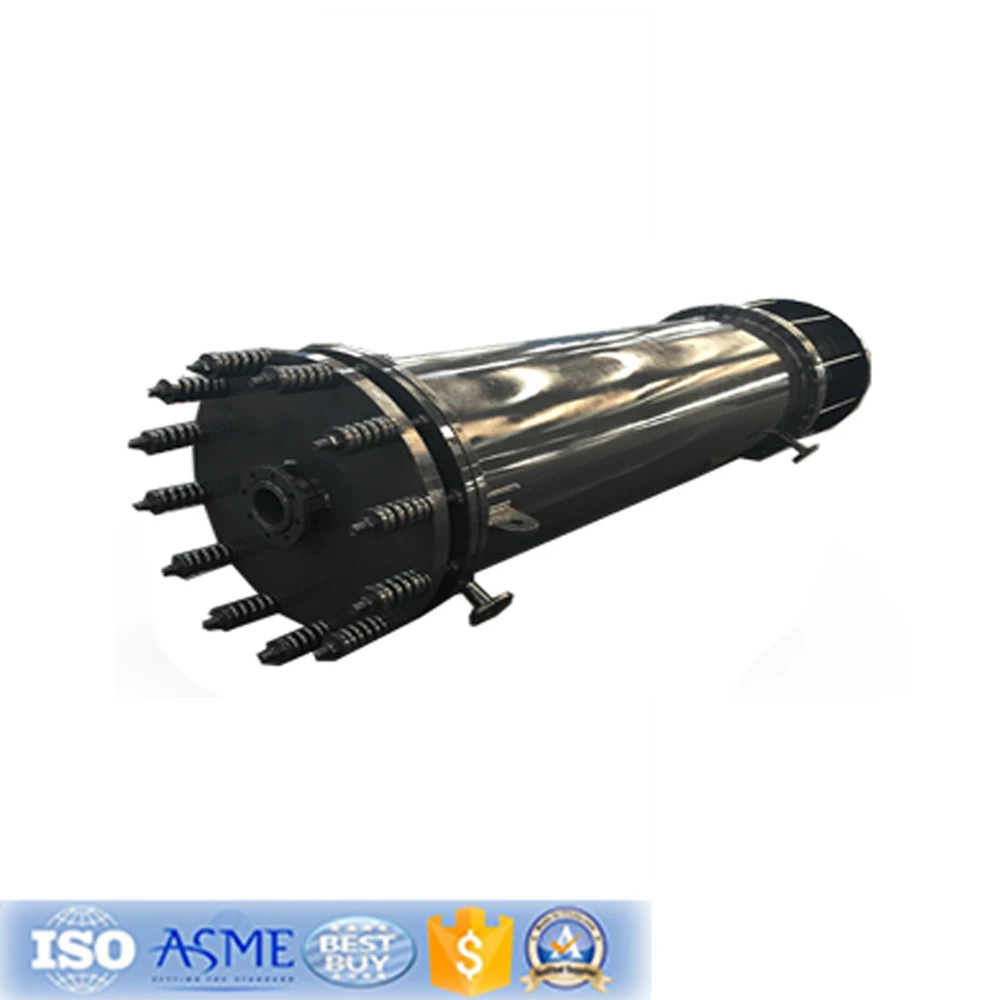

isostatic graphite tube heat exchanger

Product Overview

Description

Our company has the most  complete R&D,experiment and testing equipment in the world nation.It was devoted to provide customers with the best option for mass transfer,heat transfer,anti-corrosive equipment and technology solutions. The main system units are HCL Synthetic(absorption)system,Hydrochloric acid deep(conventional)analytic system,waste water & ! waste gas disposal system,sulfuric acid concentration and hydrogen chloride drying system.Our main products include By-products steam graphite 2(3 4) in one synthetic furnace,Round piece of hole type heat transfer and absorption equipment,resin extruded tube and asphalt dip tube heat exchange and absorption equipment,graphite stirring tank and assortment of tower equipment systems.It has over 100 type of productio,over 1000 specification,and process non-standard equipments.





 I.Structure And Features

This product uses the special processing technology, can achieve the purpose of heat exchange with two kinds of corrosive media,breaks the technology of the original steel lined anti-corrosion structure and avoids the equipment manage caused by different coefficients of expansion. The produce has advantages such as good baffling effect, high heat transfer efficiency,stable and reliable operation,long service life,strong shock resistance and easy maintenance.



II.Technical Features

A. Design temperature
Tube pass: -35-180℃ shell pass: -35-180℃
B. Design pressure:
Tube pass: 0.5MPaG   shell pass: 0.5MPaG
C. Size: 5-1000m2
D. Note:

1. The oversized products may be designed and processed according to user requirements.
2. Specifications of heat exchange tubes ofφ50/φ36, φ37/φ25, φ32/φ22 etc.

III.Raw materials

 IV. Product process











1.Sending the technical parameters(flow rate,material,working pressure,inlet and outlet temperature,etc.)



2.A normal drawing is the best.



3.We make a detail plan to you.



4.Discussion between each other.



5.Your confirmation.



6.Make a meating.



 We can design and produce according to your requirements!
