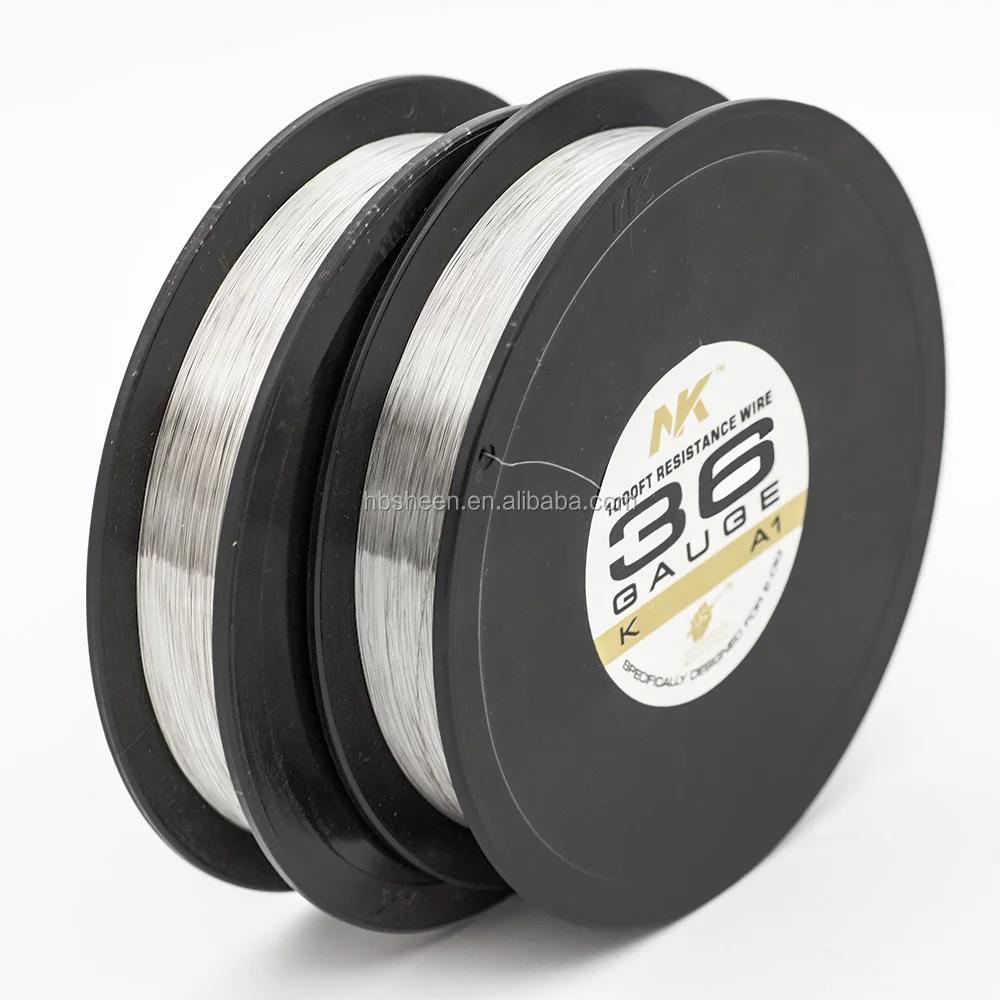

0Cr25Al5 1000ft heating wire for electrical cigarette
Type | A1 36 38 40 AWG |
Material | 0Cr25Al5 |
Form | Round wire |
Size | 1000ft |
AWG | 20/22/24/26/28/30/32/34/36/38/40g |
Packing | 1pc per special aluminum box |
Alloy Nomenclature Performance | 0Cr25Al5 | |
Main Chemical composition | Cr | 23.0-26.0 |
Al | 4.5-6.5 | |
Re | opportune | |
Fe | Rest | |
|
| |
Max. continuous service temp. of element(℃) | 1250 | |
Resistivity at 20ºC(μΩ·m) | 1.42 | |
Density(g/cm3) | 7.10 | |
Thermal conductivity(KJ/m·h·ºC) | 46.1 | |
Coefficient of lines expansion(α×10-6/ºC) | 16.0 | |
Melting point approx.( ºC) | 1500 | |
Tensile strength(N/mm2) | 630-780 | |
Elongation at rupture(%) | >12 | |
Variation of area(%) | 60-75 | |
Repeat Bending frequency(F/R) | >5 | |
Hardness(H.B.) | 200-260 | |
continuous service time(Hours/ ºC) | ≥80/1300 | |
Micrographic structure | Ferrite | |
Magnetic properties | Magnetic | |




1. All coils are packaged in crush proof containers, the outside of bottle is wrapped in a layer of plastic bubble.
2.Different products have different package.
3.Small orders will be sent within 2working days when we receive the pament.
4.Big orders generally ship within 3~7working days.


Q1:How to ensure the quality of products?
A1:By creating a company that survives. Any low quality product is guaranteed to die. We have the merchandiser in factory to make sure the quality is good in every order, and check before loading.
Q2:What`s the term of payment?
A2:T/T, West Union, Paypal, MoneyGram, Escrow etc are negotiable.
Q3:What`s the delivery time?
A3:Within 2 working days after payment,7-15 days for 1,000pcs normally, negotiable for urgent orders.
Q4:How to shipping the goods to customer?
A4:DHL, UPS, Fedex, EMS, ePacket, by air, by sea, customers forwarder are acceptable.
