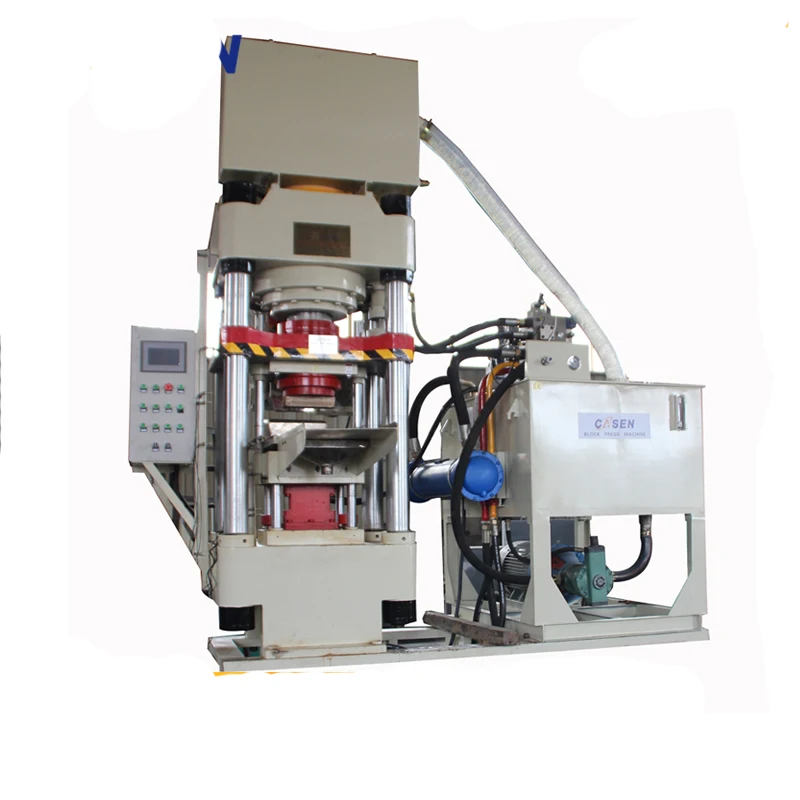

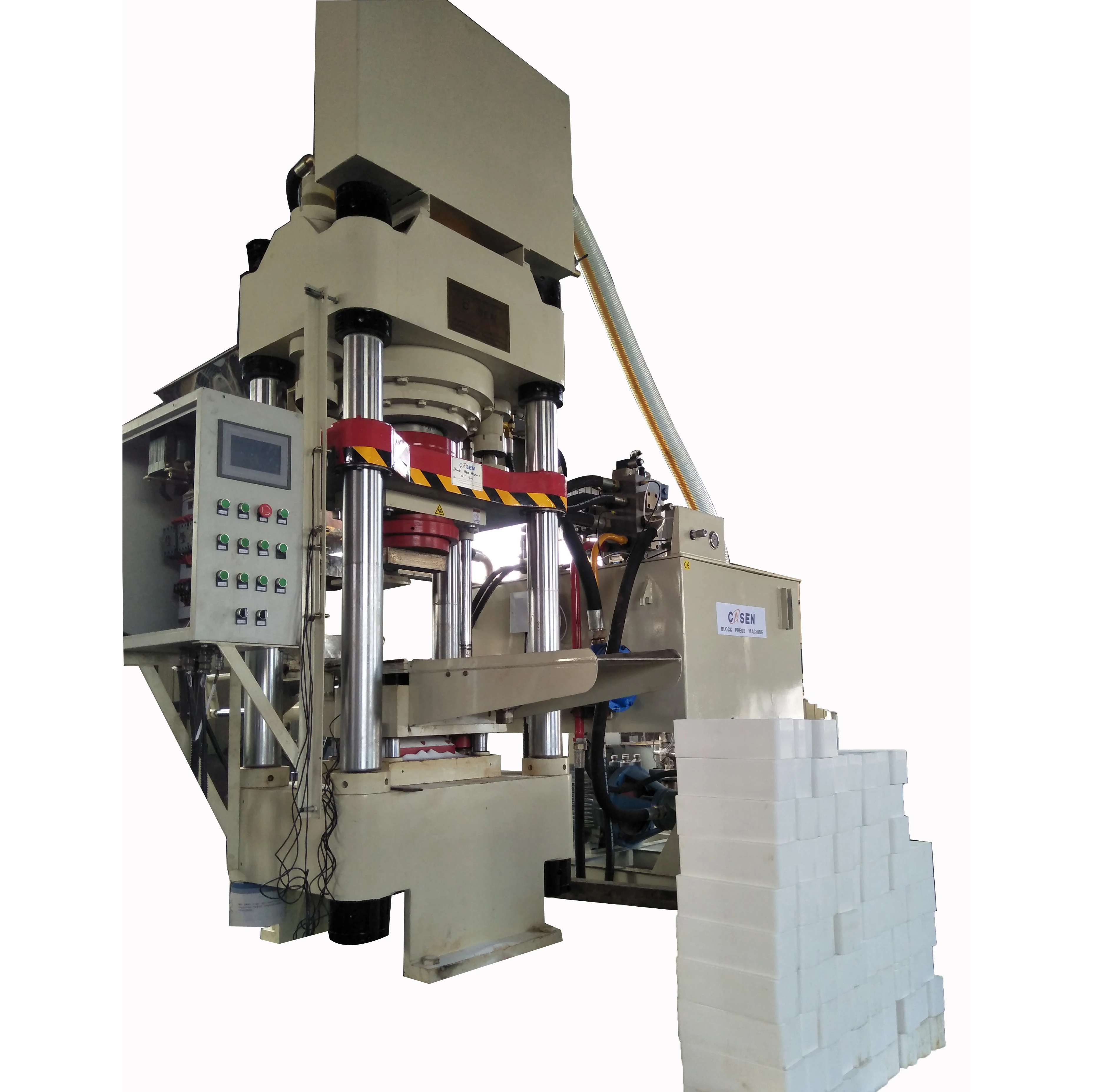

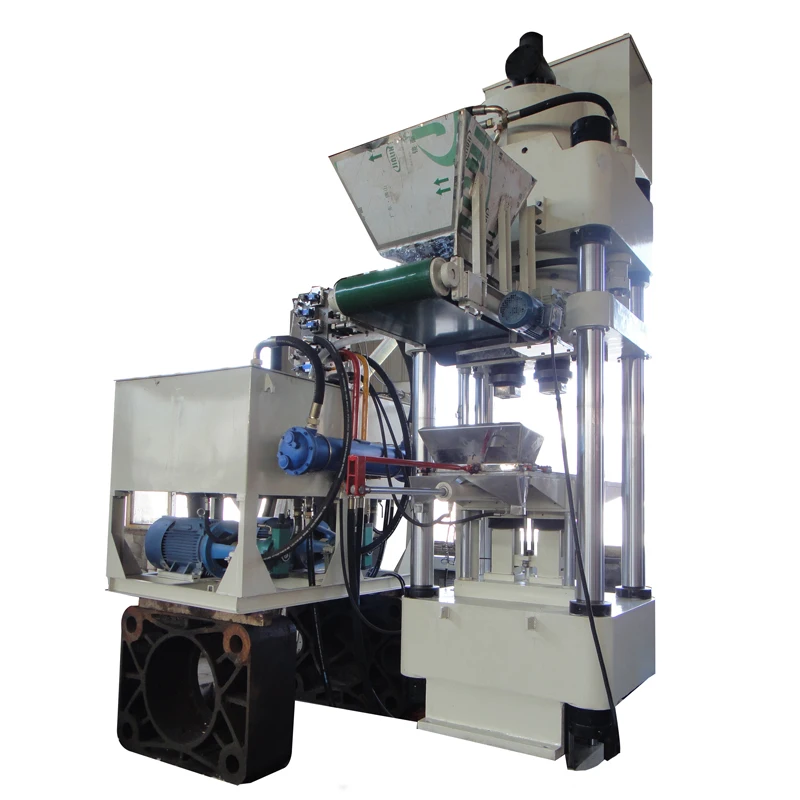

Casen Salt Block Press Machine Animal Mineral Licking Salt Brick Press

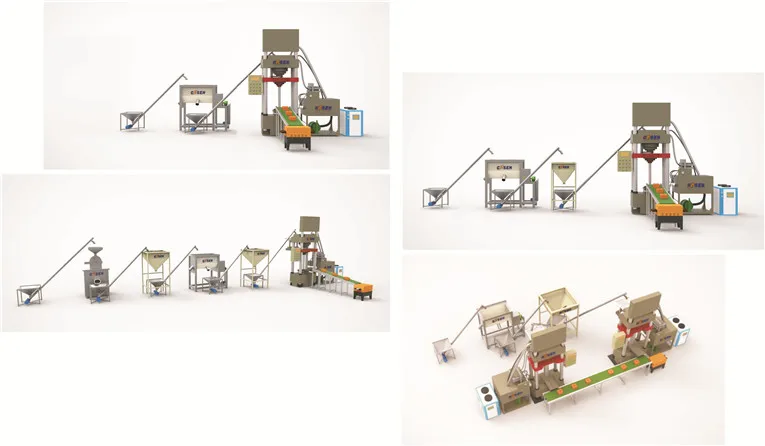

Product Overview

Description

For Hydraulic Salt Block Press Machine, A Professional Sales, Design & Service Team To Build Solutions According to User's Demand, And Bring In The Best Economic Beneift For Users.

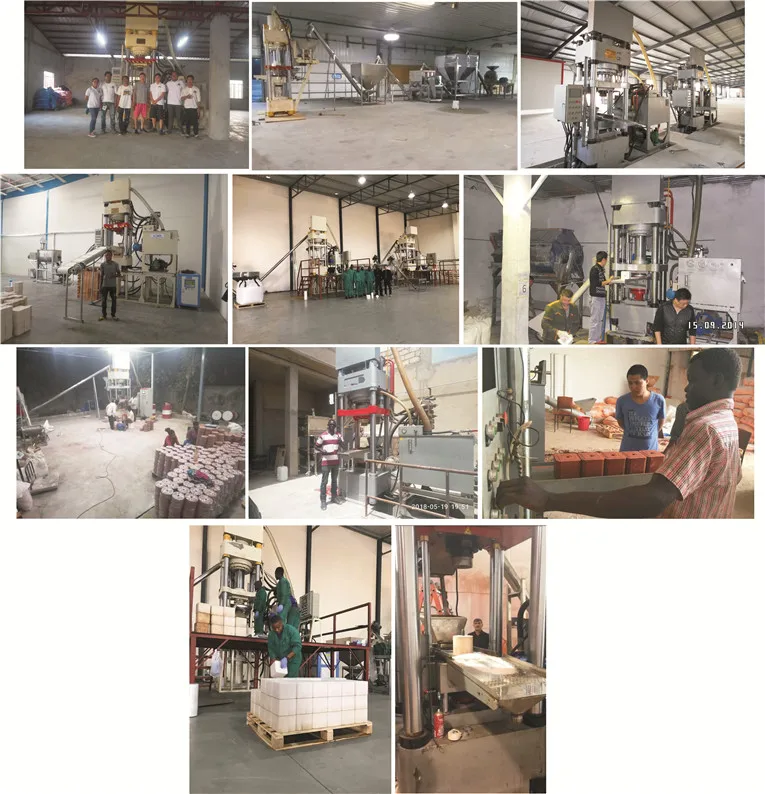

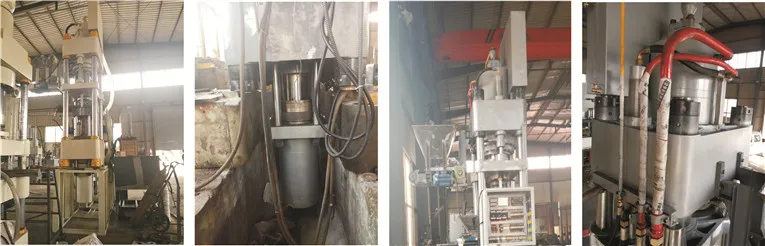

Oversea Site of Cooperation Partners







Technical Parameters of Salt Block Press Machine

No	Item	Unit	XY200	XY315	XY400	XY500	XY720
1	Nominal pressure rating	kN	2000	3150	4000	5000	7200
2	Max liquid working pressure	Mpa	25	25	25	25	25
3	Max distance from sliding block flatto workbench	mm	1100	1150	1200	1200	1200
4	Sliding block pressing/pressing force	kN	2000	3150	4000	5000	7200
5	Sliding block pressing/knock out force	kN	300	55	55	55	115
6	Effective working area of workbench	mm	685*800	685*800	845*1000	845*1000	900*1100
7	Motor total power	kw	15	22	30	30	60
8	Block weight	Kg	2	2-4	5-7	5-10	10-20

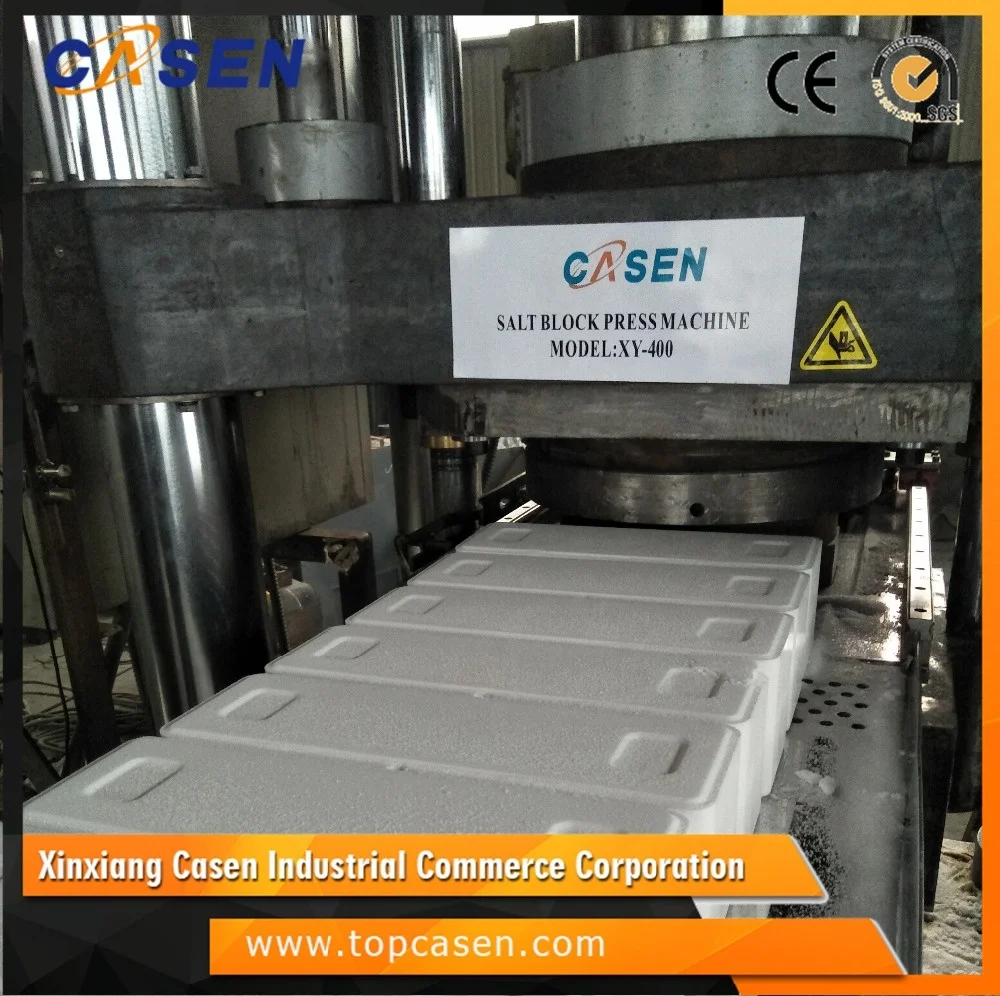

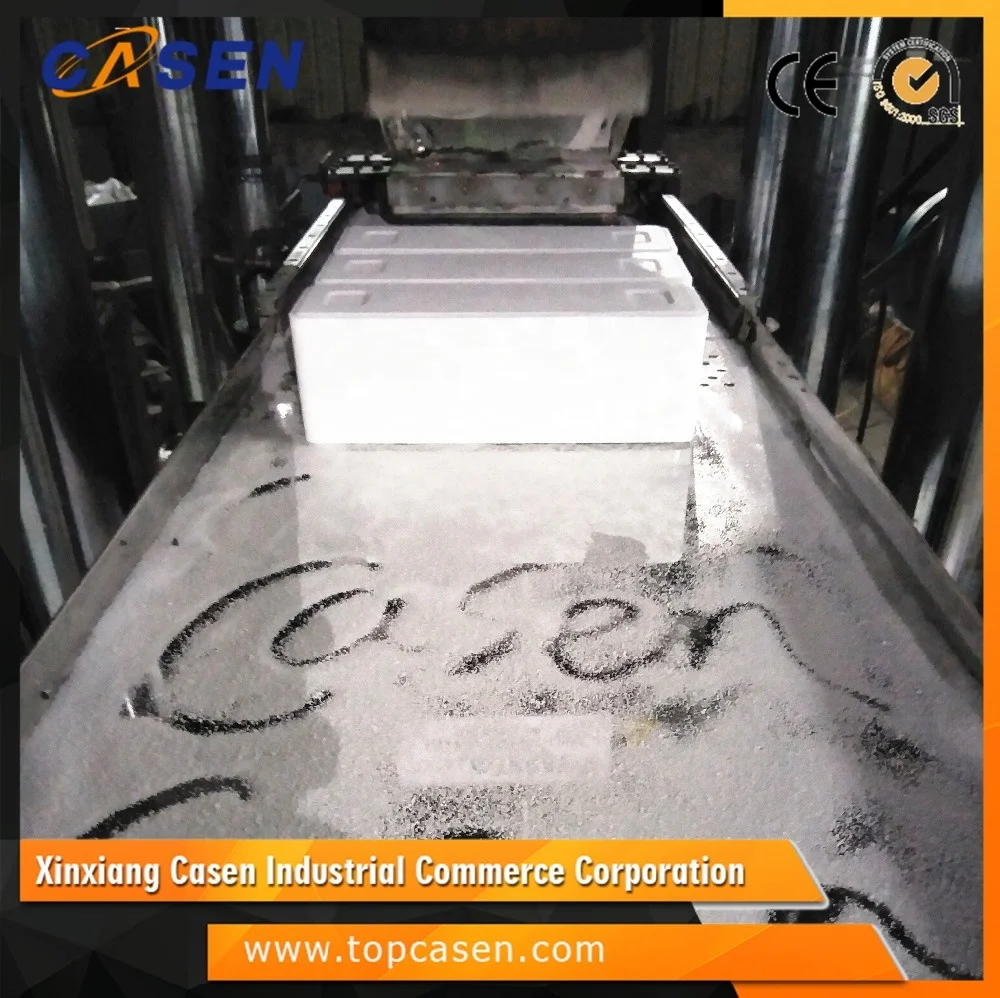

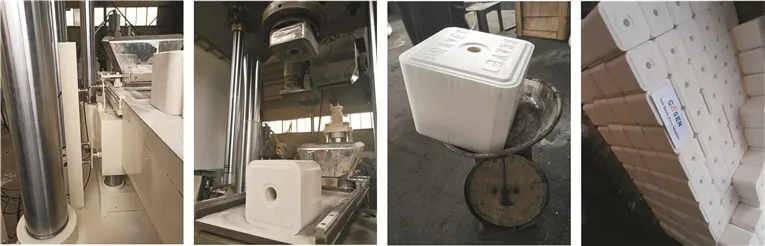

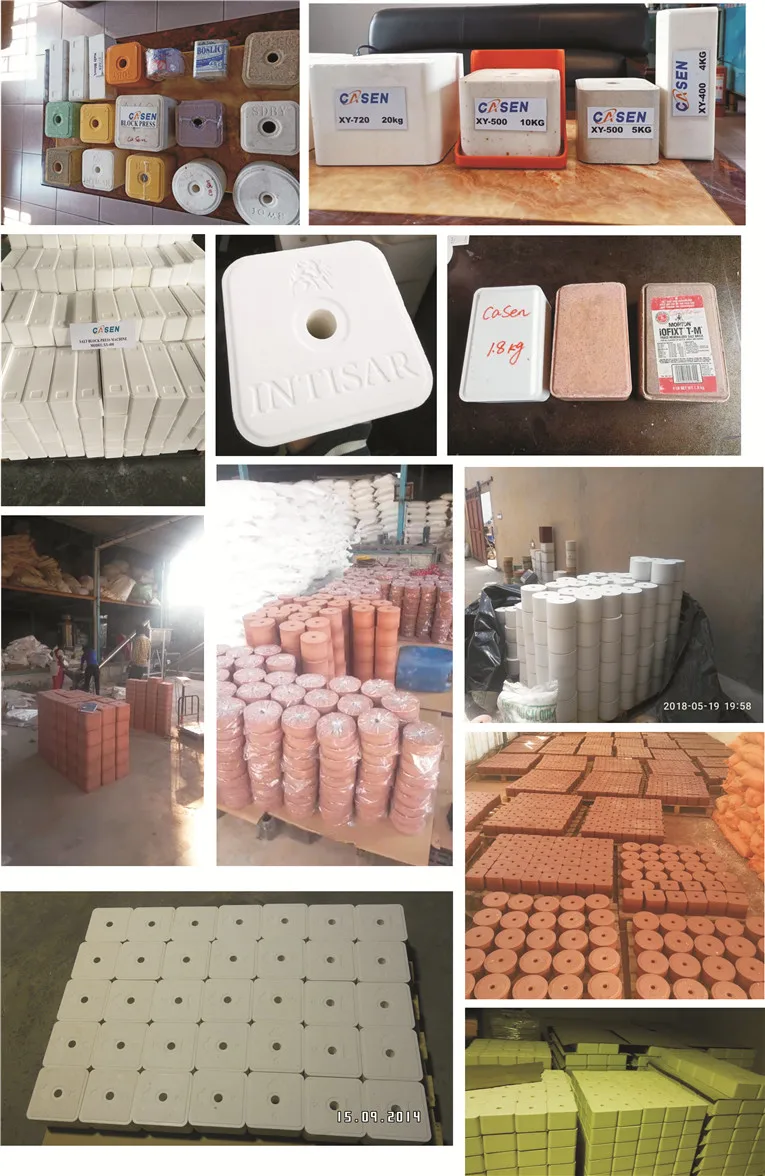

Pressed Salt Block

Uniform, Clean and  Solid block



Main Features of Salt Block Press Machine

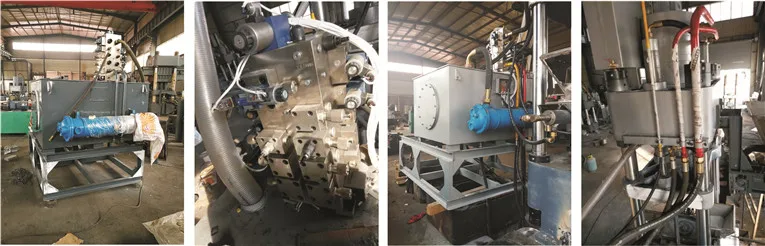

 1. Adopt the most advanced professional cartridge valve blocks, large flow path, save system pressure loss. Good seal performance, under long-term heavy load work condition, the system also won't appear insufficient phenomenon;

Equipped with preliminary unloading device, eliminate the hydraulic impact.



2. Oil tank is equipped with a high efficiency condenser (cooler), which can keep the machine working normally for 10-12 hours continuously.









3. Use two-way floating pressure adding system, ensure the uniform density of blocks, make sure the high density of blocks;

The block hole part adopt core pulling cylinder, make the hole edge smoothly and good looking.



4. Hydraulic cylinder are made of thick-wall seamless high strength alloy, In wall was honing by raw sandpaper and fine sandpaper by honing machine, ensure the cylinder in wall reach mirror surface,then make sure the good using performance.







5. Equip mechnical position limitation, not only ensure the perfect outlook of pressed material also ensure the high quality.

6. Adopt advanced fast device, small calorific value, high productivity, durable and energy saving (around 3.5 blocks per minute), the speed will be faster, enlarge the motor and pump.



7. Hopper and Discharge outlet are all 316L stainless steel.

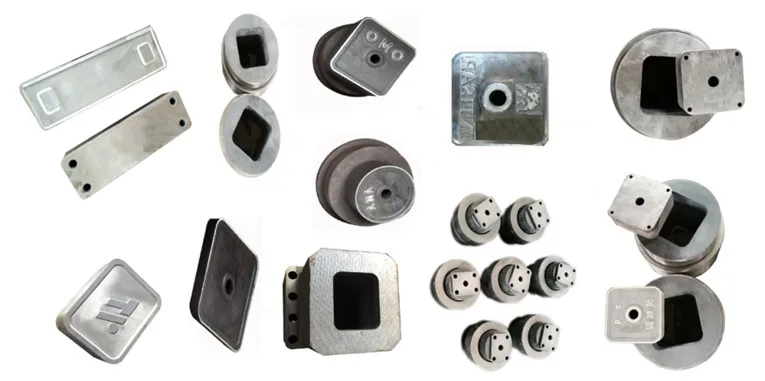

 8. The mold is made by mold steel after quenched processing, and mold steel is made of Cr12 alloy steel, 45 mold steel, Mo and Vanadium steel. These make our molds are more strong and durable.

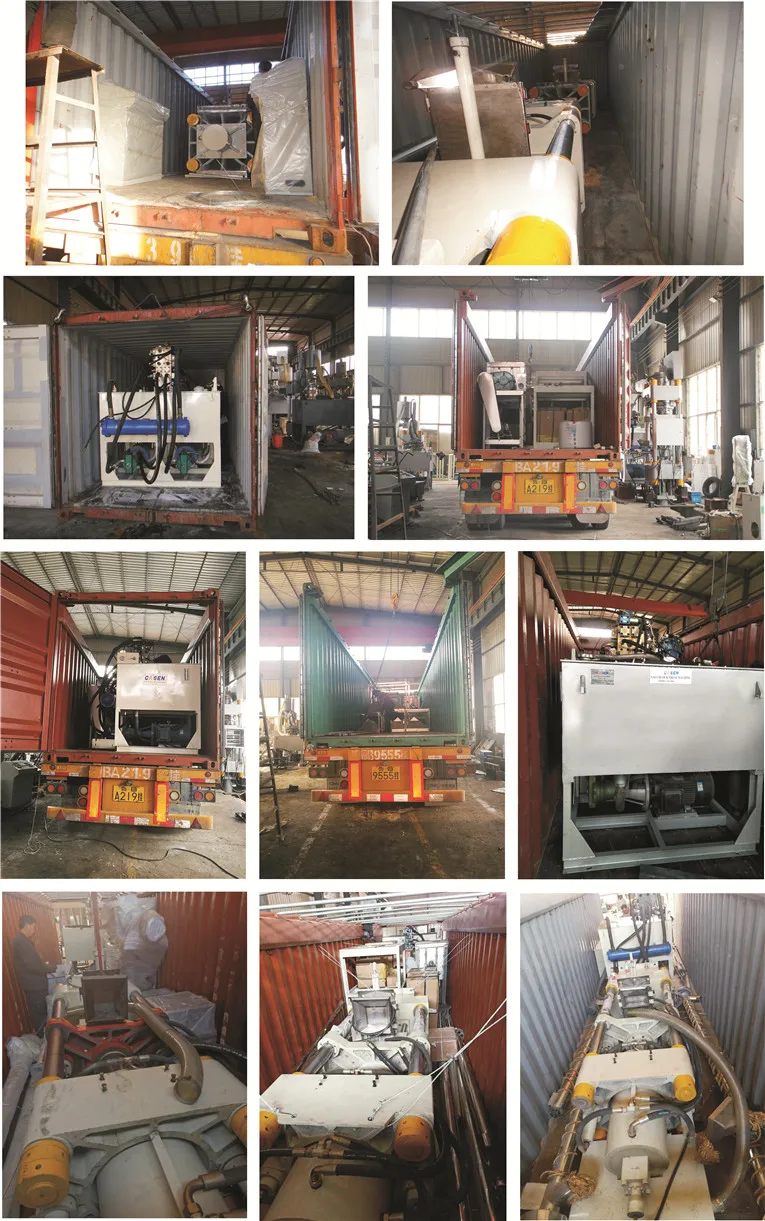

Shipment of Salt Block Press Machine









 Exhibition Show





Feedback of After Sale Service





Welcome to contact us.
