Radioland Long Range Hc 05 CC2640BLE 5.0 Pcb Module Beacon Made In China

Product Overview

Description

Cheap Wholesale New Design iBeacon IBeacon Ble 5.0 Beacon CC2640

MOLD	NRF51822	NRF52832	CC254X	CC2640	CC2640-X1
Chipest	Nordic	Nordic	Ti	Ti	Ti
BLE	4.0	5.0	4.0	5.0	5.0
Power Supply	2.0-3.3V	2.0-3.3V	2.0-3.3V	2.0-3.3V	2.0~3.0V
Output Power	4dBm	4dBm	0dBm	5dBm	5dBm
Broadcast interval	1S(adjustable)	1S(adjustable)	1S(adjustable)	1S(adjustable)	1S(adjustable)
TX Current	13mA	13mA	24mA	9.1mA	9.1mA
average current	50uA	50uA	80uA	40uA	40uA
Standby Current	3.1uA	3.1uA	3.1uA	1.5uA	1.5uA
Distance	>50m	>50m	>50m	>60m	>60m
Diameter thickness	2.4cm*4.5mm	2.4cm*4.5mm	2.4cm*4.5mm	30*10mm                       (with case)	75*26mm (with pedestal)
Battery	CR2032	CR2032	CR2032	CR2032	2*AA ALKALINE
Life Time	6 month	6 month	4 month	8 month	Five Years
Waterpoof	No	No	No	No	Yes
Sensor Optional	Yes	Yes	Yes	Yes	No



View:

The CC2640 beacon module fully supports the single mode Low Energy operation, and the output power can support class 2. The module provides the ability to either put your entire application into the integrated ARM Cortex M3 microcontroller, or use the module in Network Processor mode in conjunction with the microcontroller of your choice. RF Core’s dedicated ARM

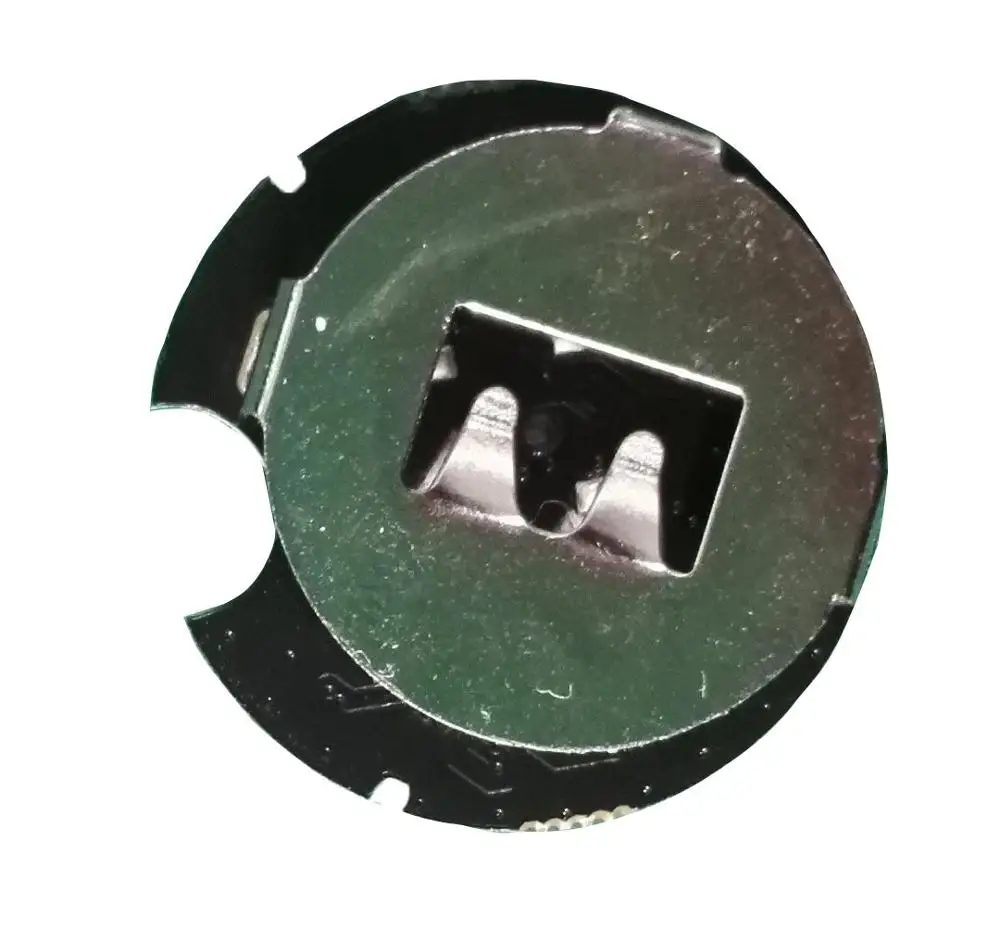

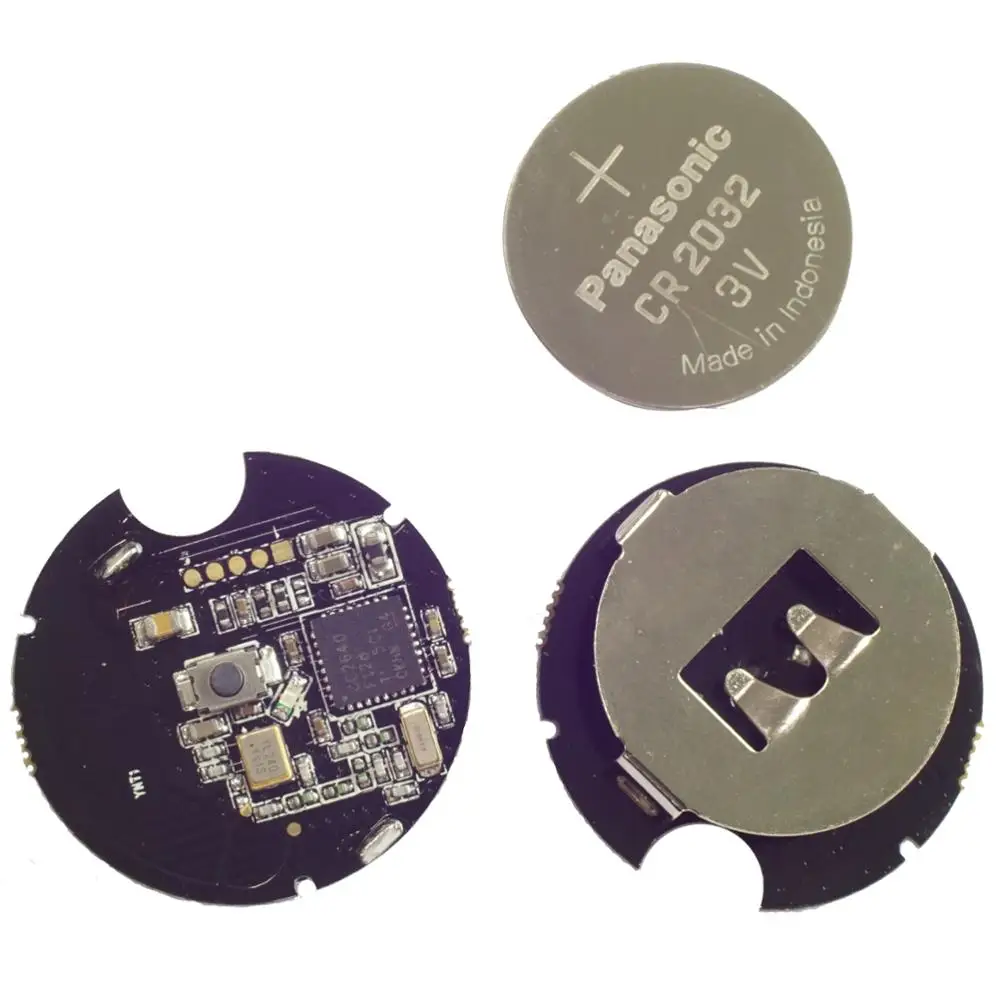

Cortex M0 improves system performance and frees up FLASH memory for custom applications.The beacon with battery shrapnel in its back,and easy to test with a button battery CR2032

iBeacon Description

Run standalone as iBeacon, External host is not required.
 Application for advertisement and location.
Support customize your own iBeacon configuration including UUID etc.

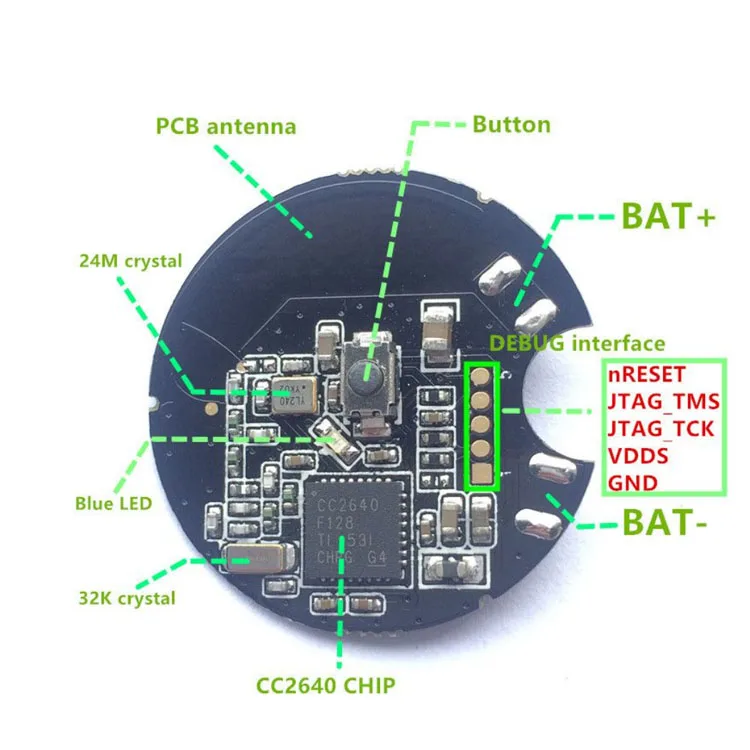

Built in JTAG port for customized other application firmware as a standalone
system.

Application

Indoor navigation
mobile payment
in-store promotions specialist
flow analysis

ITEM	TEST	REQUIREMENT REMARKS
Voltage supply	1.8-3.8V	DC
Center frequency	2400-2483.5MHz	Programmable
Frequency error	±50KHz
Modulation	O-QPSK
MaxOutput power	5dBm	Programmable
Receiving sensitivity	-97dBm	High gain Mode
Receiving current	5.9mA
Transmitting current	9.1mA	TX Power 5dBm
Sleep consumption At power mode2	1uA	Sleep Timer ON
Sleep consumption At power mode3	0.1uA
Transmit distance	>60M	BER<0.1%
Antenna	50ohm
