Product Overview

Description

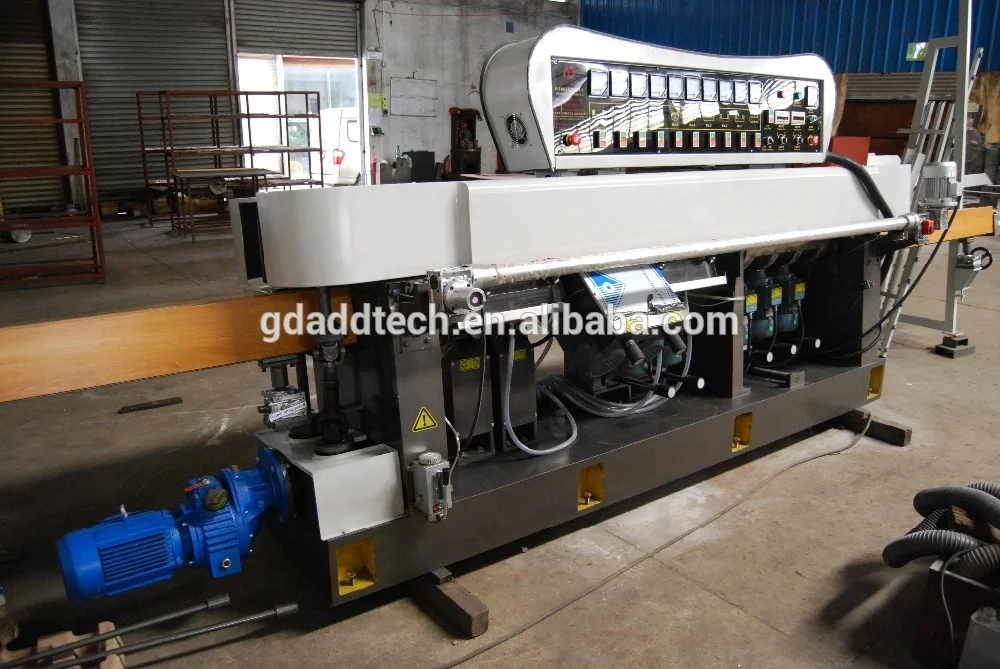

  ADZM9325-45° Glass Edging Machine

 I. INTRODUCTION:

• Using PLC to control glass processing thickness, angle and height.
• The coarse grinding, fine grinding, chamfering and polishing can be finished at one time.
• The #1-#3grinders can be swung 0~45° as request to grinding straight edge with angle 45°.
• Working speed and working load can be adjusted smoothly by continuously variable mechanism transmission.
• Adjust front rail to match different glass thickness.
• The machine is equipped with automatic clamping system and voltage stabilizing system.
• With easy operation, high precision and efficiency, this machine becomes one of indispensable equipment  for glass procession.

II. TECHNICAL SPECIFICATIONS:



voltage	Power	Min size	Max size
380v/50Hz	19.5kw	80x80mm	3000x3000mm
Glass thickness	Feeding speed	Weight of machine	Overall Size(LxWxH)
3-25mm	0.5-5m/min	3000kg	6600x1000x2500mm





1).GRINDING WHEEL CONFIGURATION:

#s	Wheels	Spec.	Grit
#1	Diamond	Ø150x12	100
#2	Resin	Ø150x12	240
#3	10S60	Ø150x12
#4	10S40	Ø150x70
#5	X3000	Ø150x70
#6	Resin	Ø130x12	240
#8	Resin	Ø130x60	240
#7	10S40	Ø130x12
#9	10S40	Ø130x60







III.MACHINE DETAILS:

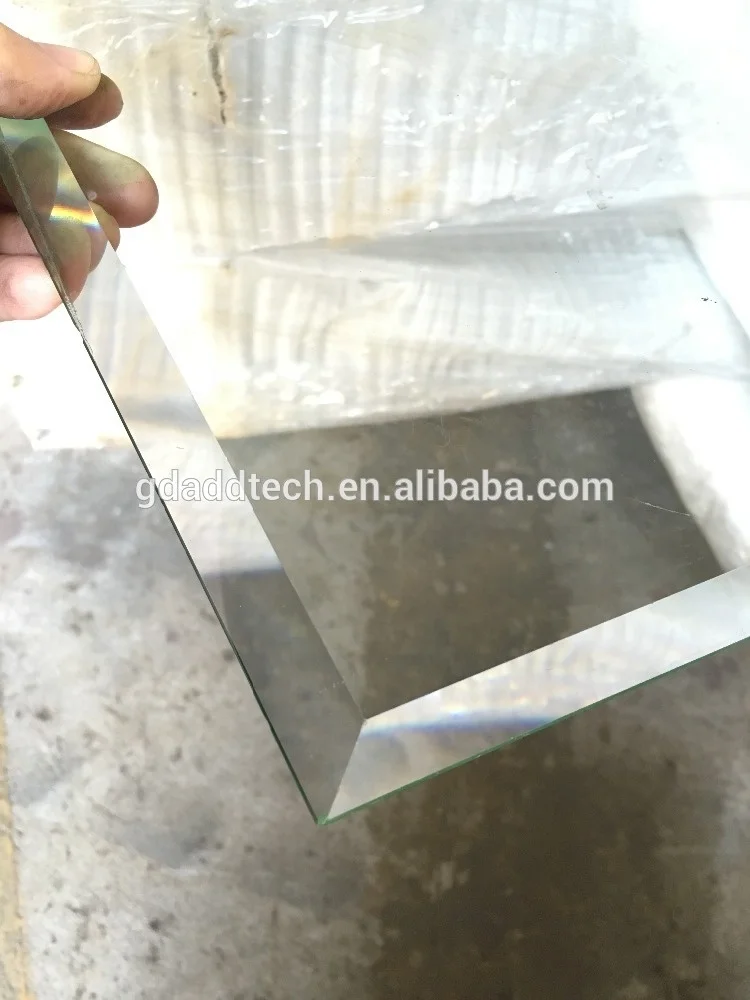

Glass Effect





1. CE machine & CE certification

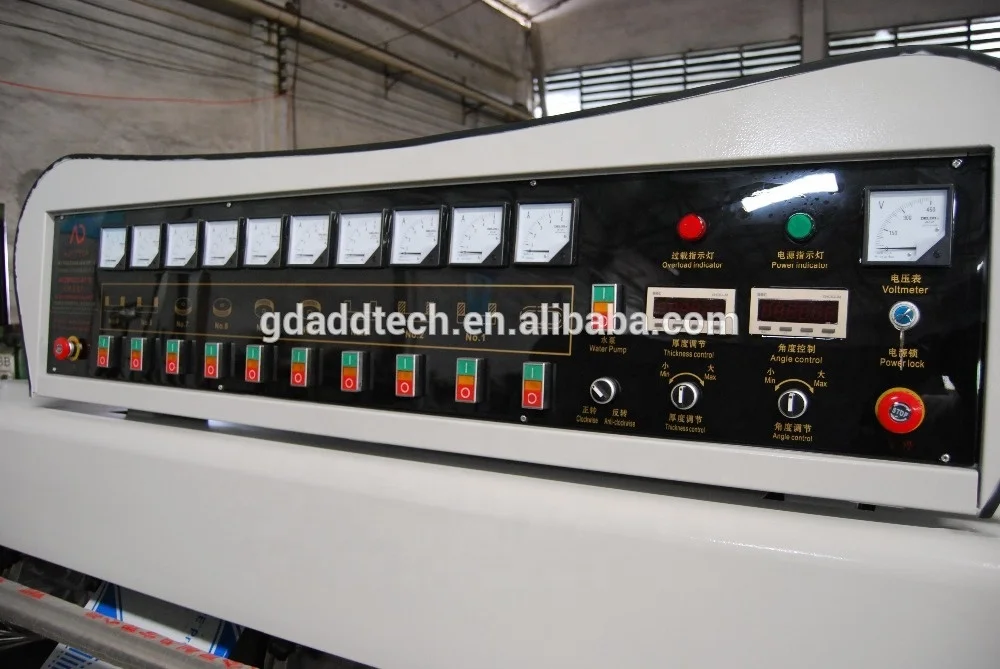

  PLC control system and digital displayer available;



2. Heavy duty foundation & beams: cast steel,annealing treatment;



3. Electric device: SIEMENS, Schneider or Delixi electrical optional;



4. ABB, JINGLONG,  motor optional.

380V/50Hz, 380V/60Hz, 220V/60Hz, 400V/50Hz, 415V/50Hz, optional;

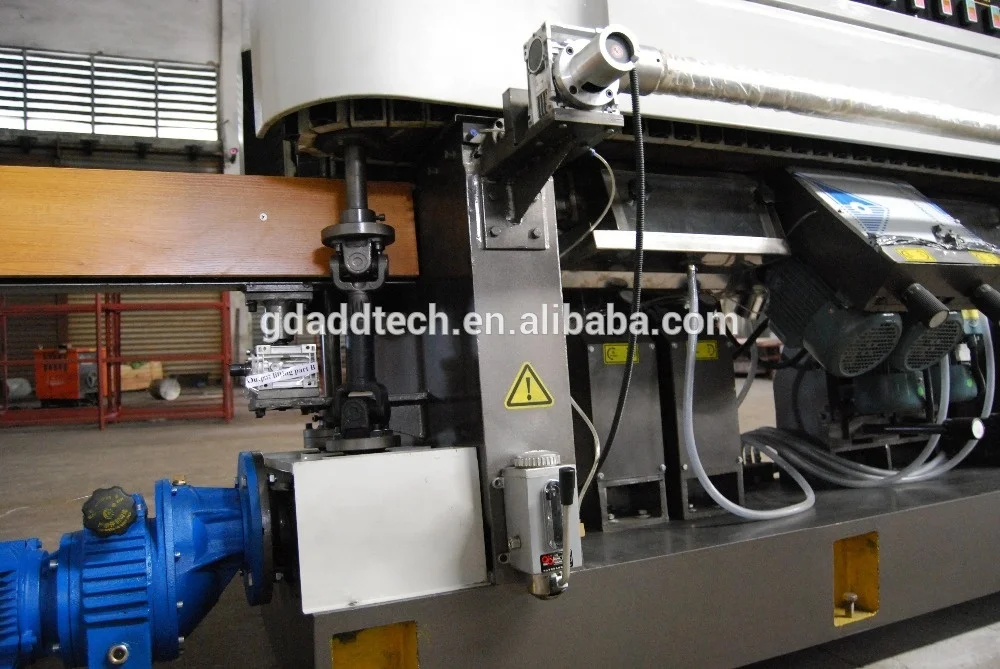

5. Thicken chain transmission system, can loading 600kg big size thick glass;

  Beveling machine equipt synchronous belt PU chain transmission system



6.  Various high quality import grinding wheels.

Suit for grind mirror, mosica,  spell mirror,Low-e glass, float glass, laminated glass, tempered glass etc,

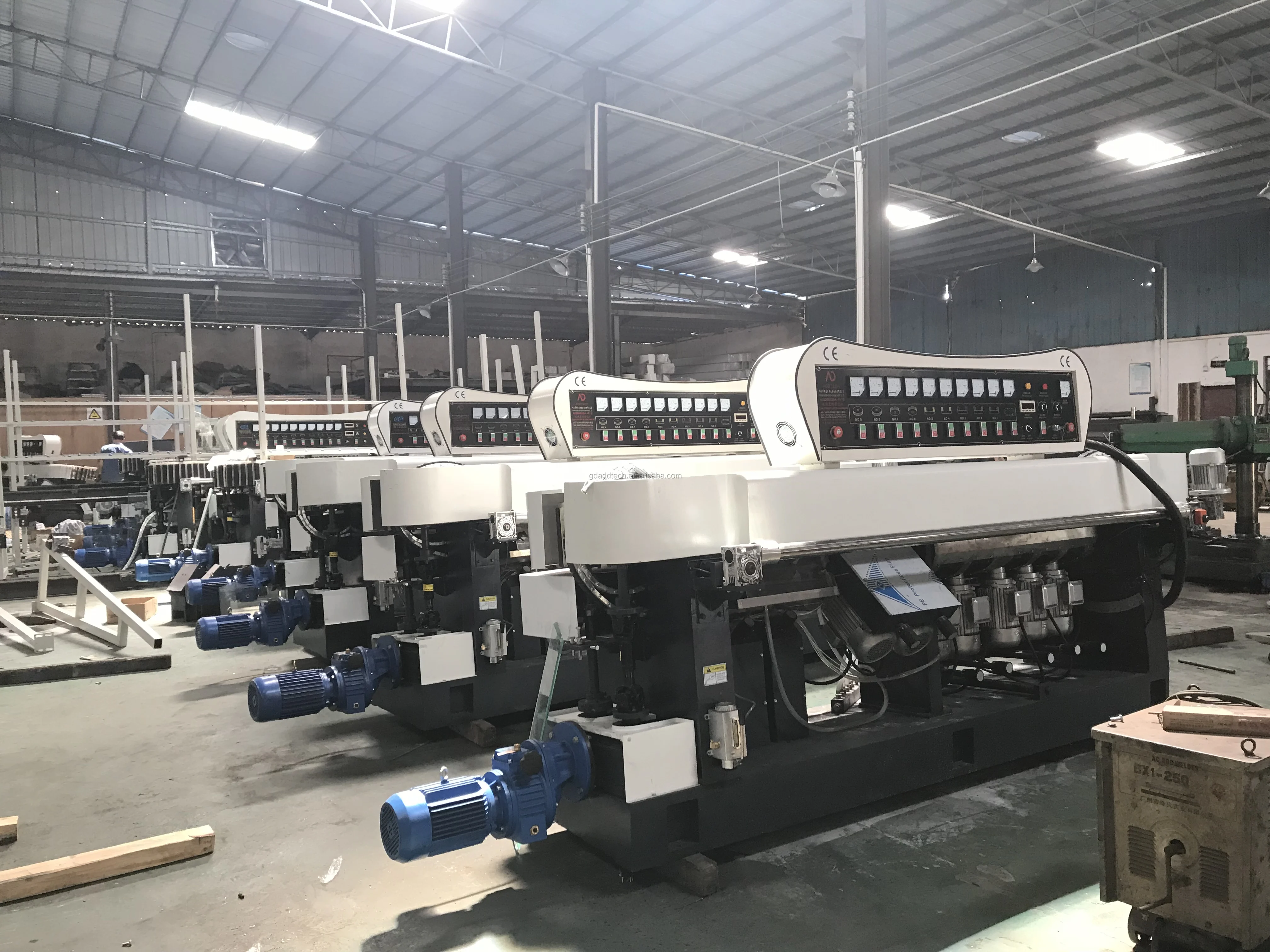

IIII.WORK SHOP





IIIII.OUR SERVICES



Engineers available to service machinery oversea;

Oversea third-party support available;

OEM/ODM available.



IIIIIII.PACKING & SHIPPING





IIIIIII.ADDTECH BEST SELLAR



IIIIIIII.COMPANY INFORMATION .

ADDTECH GLASS MACHINERY CO., LTD. Was established in 2007.

We are a professional manufacture which handling the deep-processed equipments of glass.
The  main products include: Glass Straight Line Edging Machine, Beveling Machine, Round Machine,
Glass Washing Machine, Irregular Glass Grinding Machine, Glass Drilling Machine etc..

We are supplying the high quality products plus with best service.

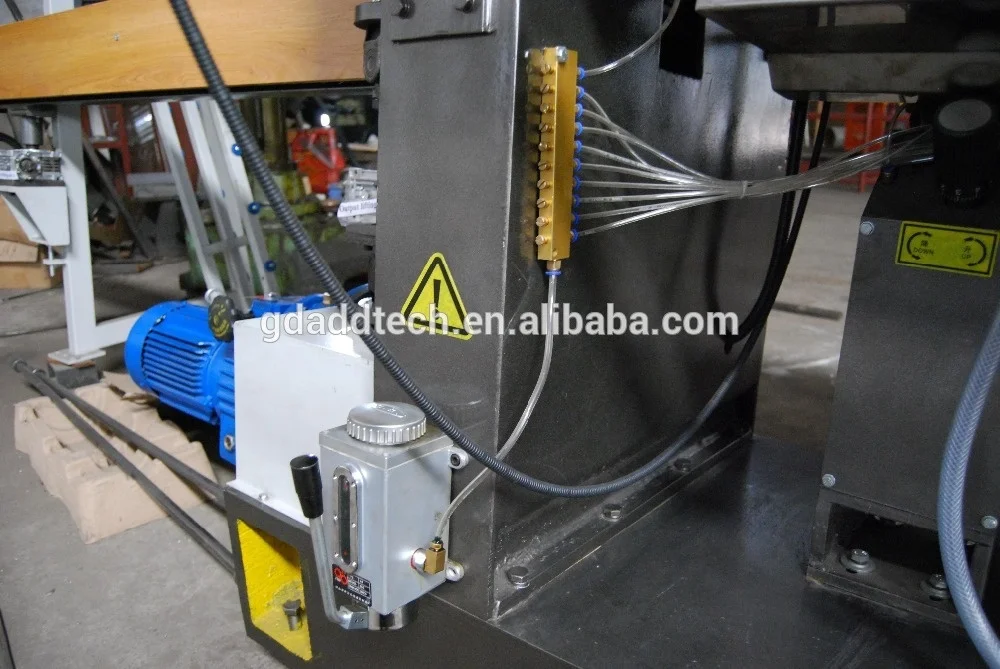

The automatic oil lubrication of pulling plate is our particular innovation, it is great helpful to improve
stability and maintainability.

We are looking forward to be a valuable and strategic partner of you company, to help you thirve in the
deep processed of glass industry.
