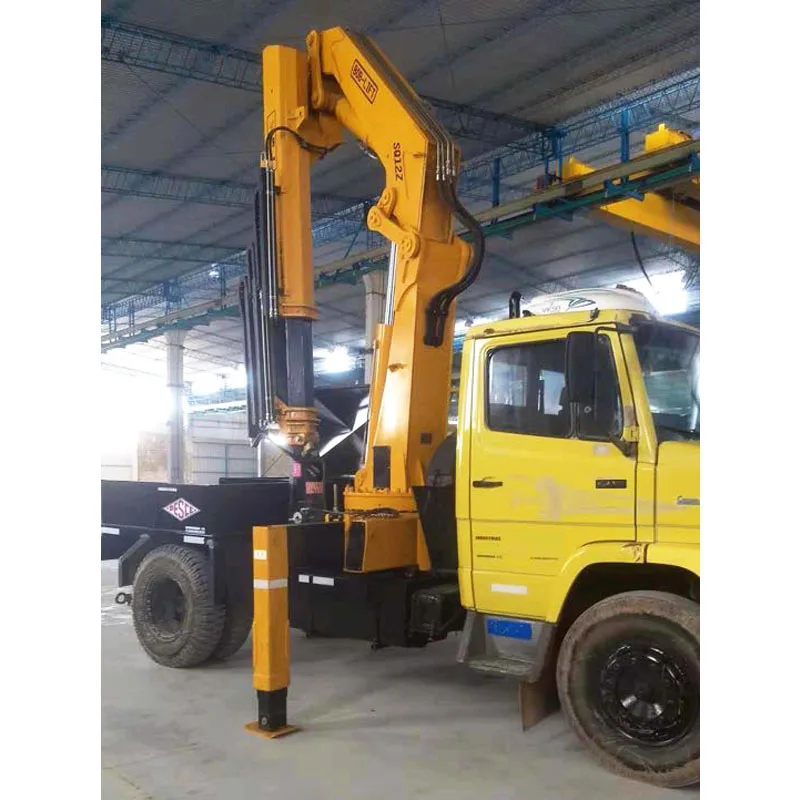

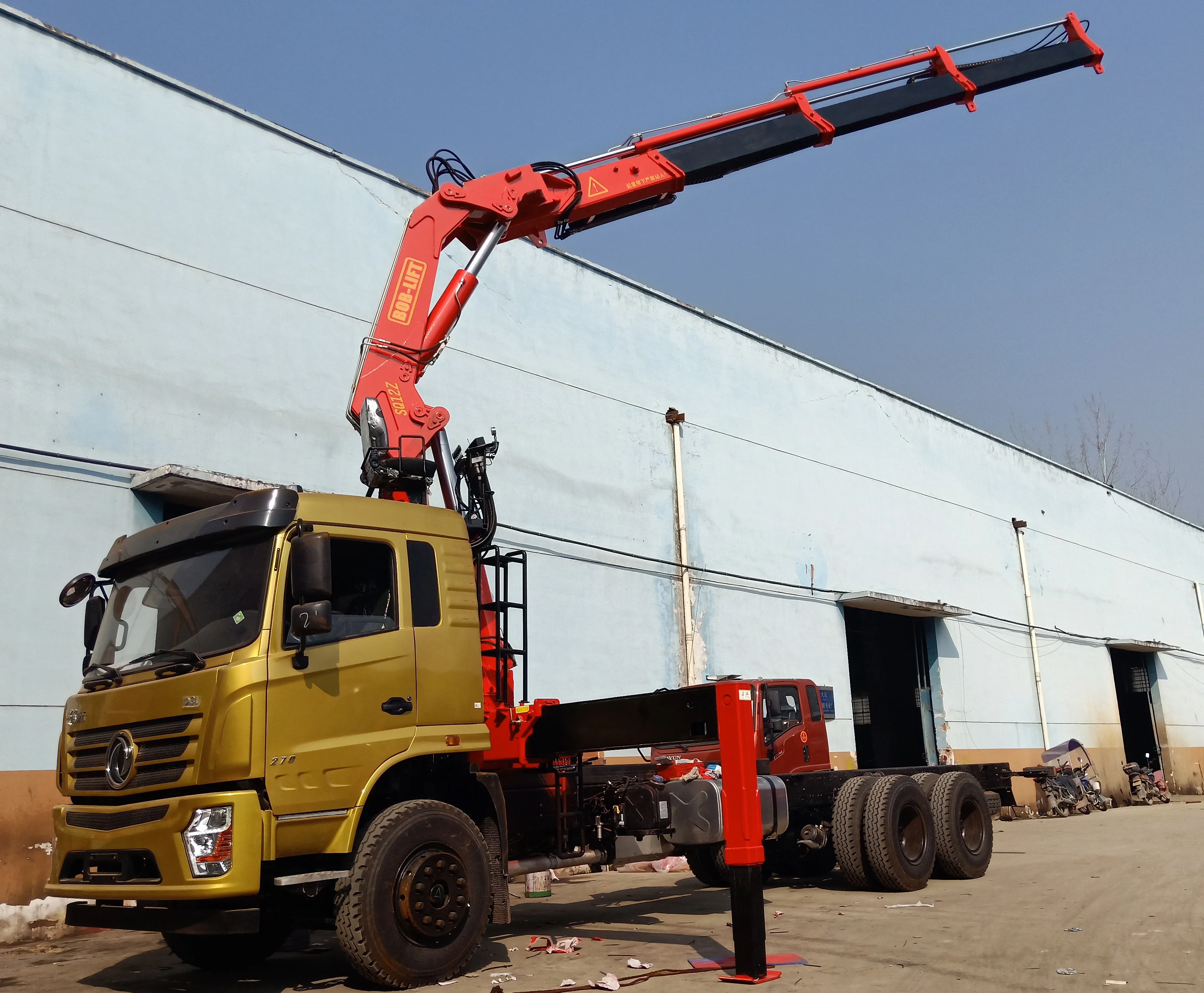

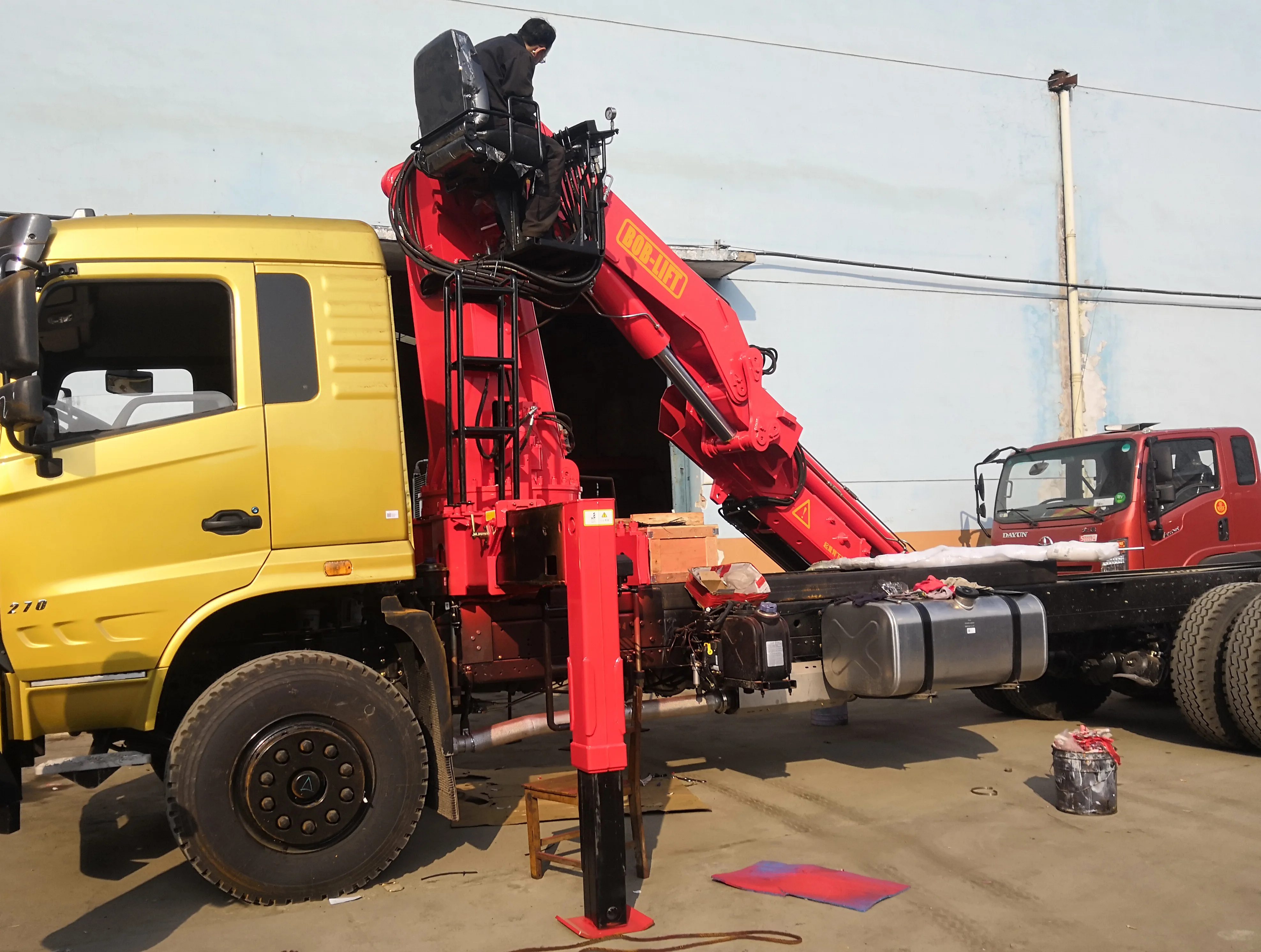

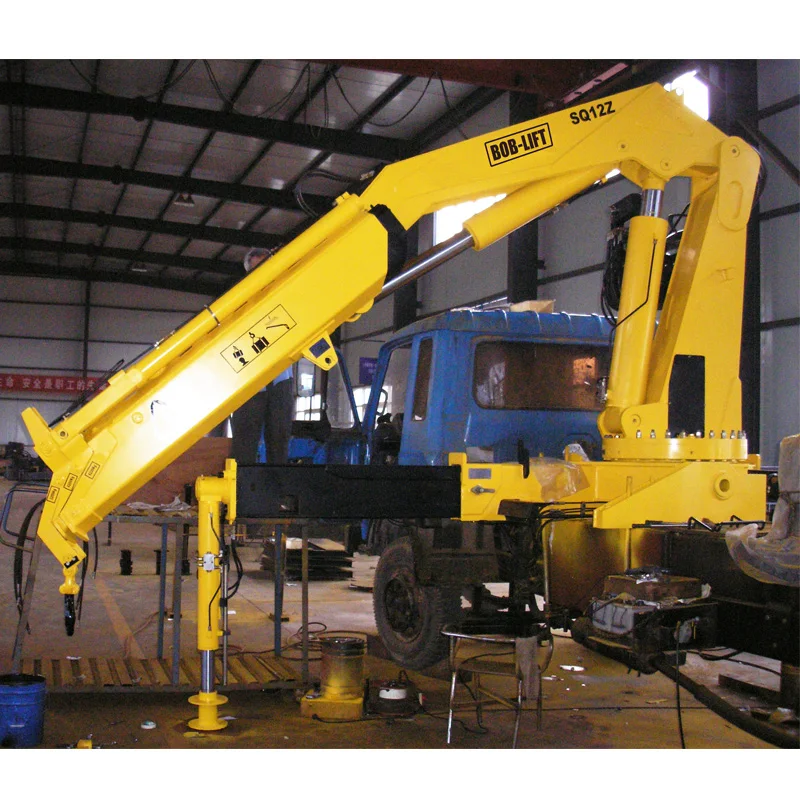

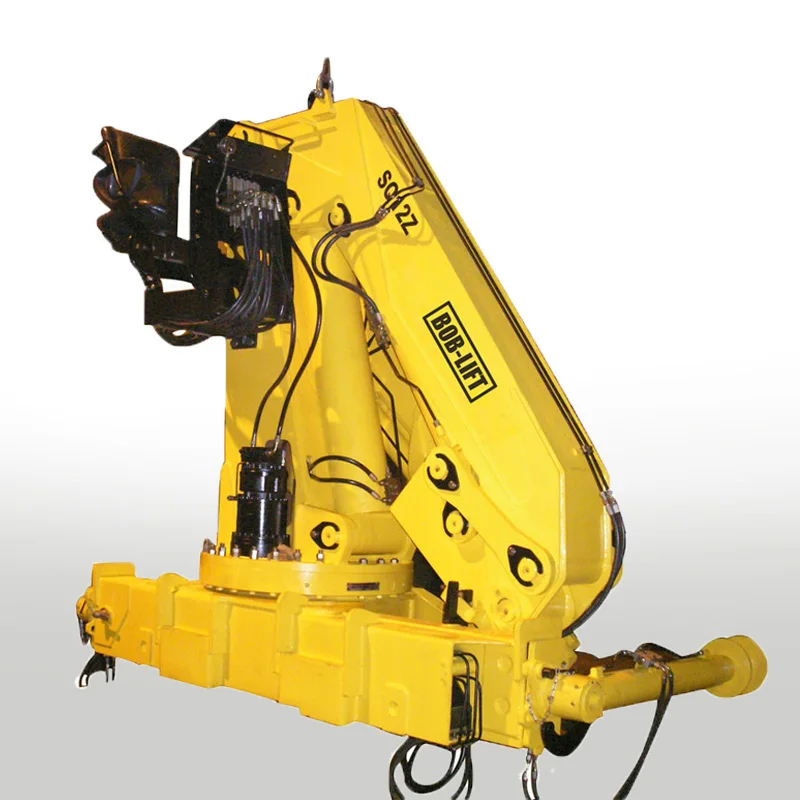

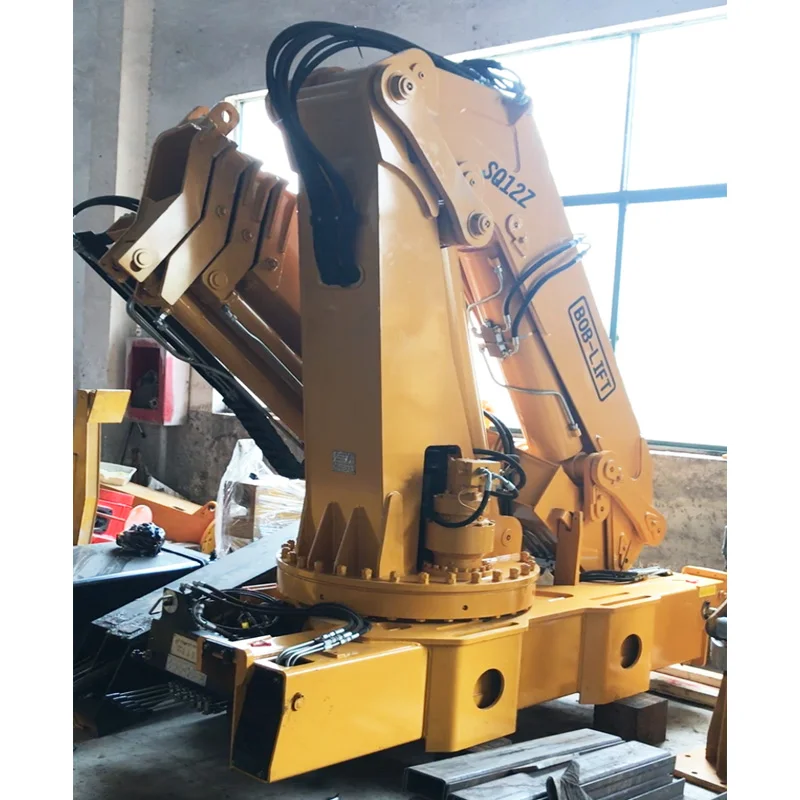

12 Ton Hydraulic Crane Remote Control Truck Mounted crane Knuckle Boom Portable Lift Crane for Sale SQ12ZA3
- Category: >>>
- Supplier: Xuzhou Bob-Lift Construction Machinery Co. Ltd.
Share on (60552070328):
Product Overview
Description
Technical Parameter
Item | Unit | SQ5SA2 |
Max Lifting Capacity | Ton | 12 |
Max Lifting Moment | Ton.m | 27 |
Recommend Power | KW | 30 |
Hydraulic System Flow | L/min | 55 |
Hydraulic System Pressure | MPa | 28 |
Oil Tank Capacity | L | 160 |
Installation Space | mm | 1400 |
Self Weight | kg | 3950 |
Rotation Angle | ° | 360 |
Product Introduction
Truck Mounted Crane Advantage.
1. Advanced development & analysis make sure the reliable design.

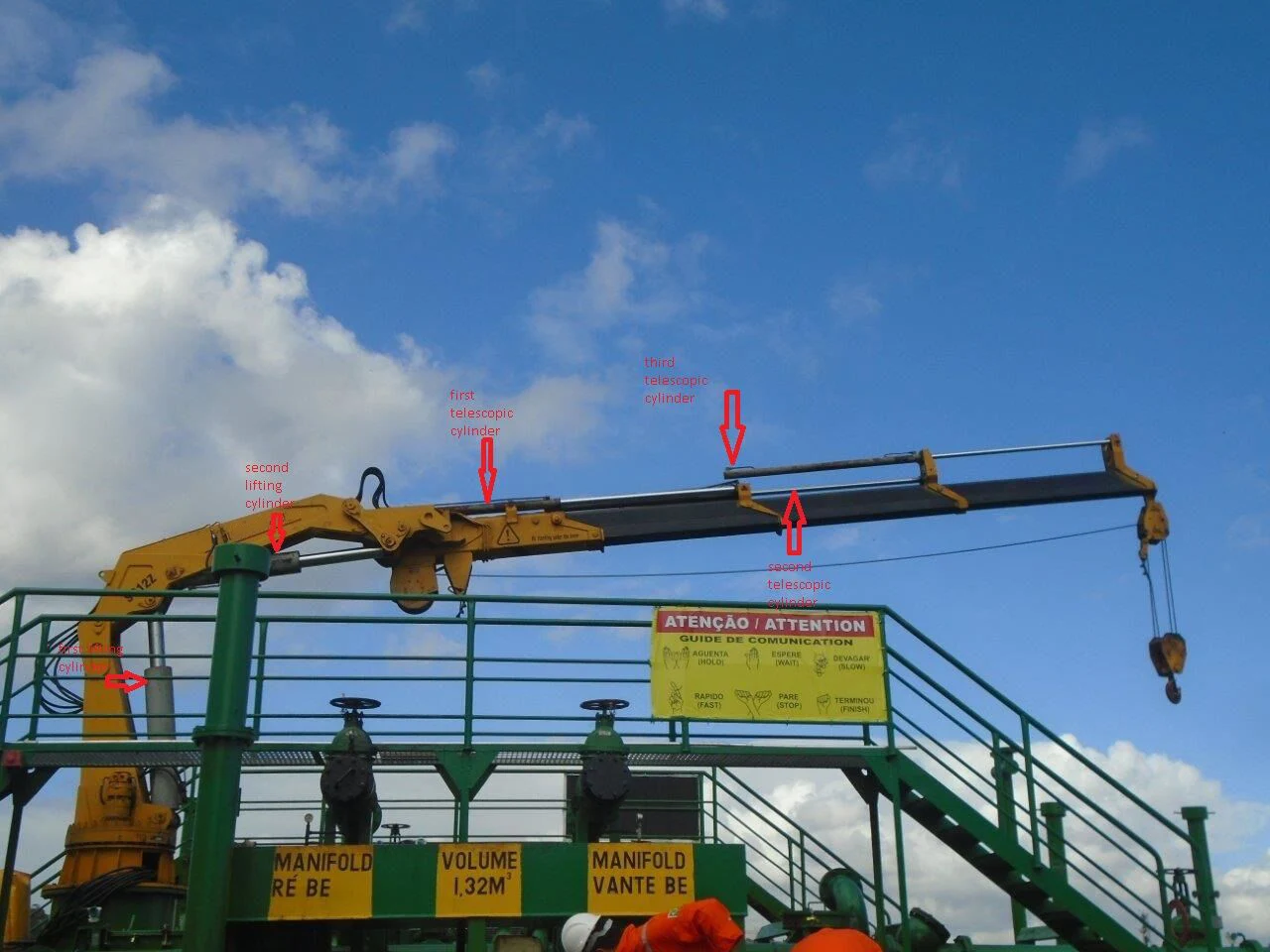

2. Using two-section telescopic cylinder design, one of the cylinders push the second large boom, another cylinder push the rest
of the telescopic boom by the pulley block and wirerope. To ensure that the crane has strong lifting capacity in the middle
distance and effectively protect the wire rope in the boom.
2. Using two-section telescopic cylinder design, one of the cylinders push the second large boom, another cylinder push the rest
of the telescopic boom by the pulley block and wirerope. To ensure that the crane has strong lifting capacity in the middle
distance and effectively protect the wire rope in the boom.
Design capability items：
1. The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
2. The boom interface is made of strong steel plate, and the U-shaped arm is used for the crane above 8T, which makes the cross-section bending resistance stronger.
2. The boom interface is made of strong steel plate, and the U-shaped arm is used for the crane above 8T, which makes the cross-section bending resistance stronger.
Truck Mounted Crane Advantage.
1. The crane above 6.3T adopts square legs, which can better protect the cylinder.
2. Compact boom head and tail design, make the boom length to reach maximum, prolong the working life of the crane.
3. The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system.
Lifting mechanism hydraulic winch relies on disc spring and friction brake, stable and reliable, efficient, low noise, small calorific value; Rely on hydraulic balanced valves balancing weights when falling, greatly improve product reliability.
Please Consult For Other Parameters
Hot Sale Machinery
BOB-LIFT Production R&D
BOB-LIFT Company
FAQ
1) How many years of your factory?
We have 16 years production and nearly 10 years experience, we exported to more than 50 countries & regions.
2) Which kind of payment you can be accepted?
2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.
3) How about the delivery time?
3) How about the delivery time?
20-40 working days after received 30% T/T or L/C.
4) What's your warranty?
4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.
5) What's your MOQ?
5) What's your MOQ?
MOQ: 1 set
6) Can you accept OEM service?
6) Can you accept OEM service?
Yes for sure my friend.
7) Optional Attachment?
7) Optional Attachment?
Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs
