Автоматическая упаковочная машина для кофе и чая с внутренним мешком и конвертом

Product Overview

Description

automatic tea Packaging / tea packing machine with inner bag and envelope



Feature:

Teabag packing machine Model DXDC8I packs single chamber teabags with thread and tag, then it counts and puts teabags into box automaticlly.  It is an automatic precision machine use for packing broken tea  into small bags and realize fully automatic procedure including ration filling, heat-sealing of tea bag, pasting thread, linking tag, envelope sealing, dividing groups and counting tea bag

Technical data:

1) Output:	120bags/minute
2) Max. dosage:	8cm3
3) Bag dimensions:	62.5 x 50mm
4) Tag dimensions:	28 x 24mm
5) Thread length:	210mm
6) Packing in boxes:	a) 25, 50, 100
	b) 30, 60
	c) 20, 40
7) Power supply:	AC 380V
8) Total power:	1.25kW
9) Weight:	640kg
10) Overall dimensions:	1.7 x 1.1 x 2.1m



Packing:
1pc/carton
Carton dimensions: 1.22 x 1.14 x 196.7m

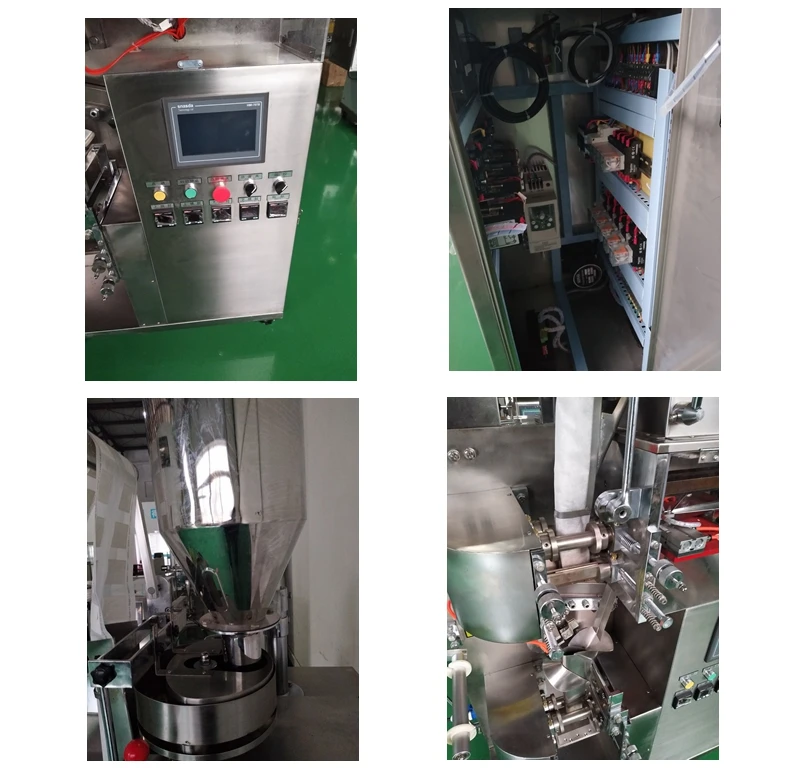

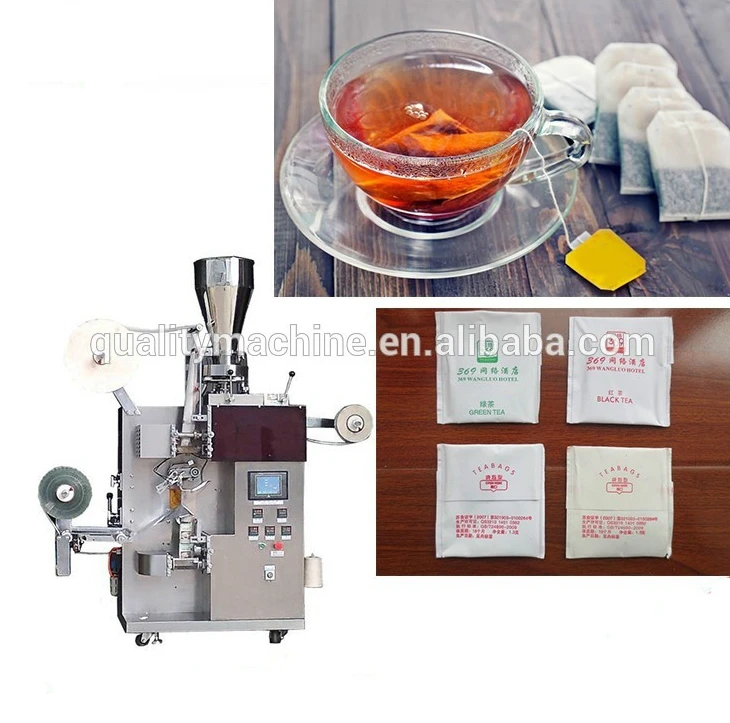

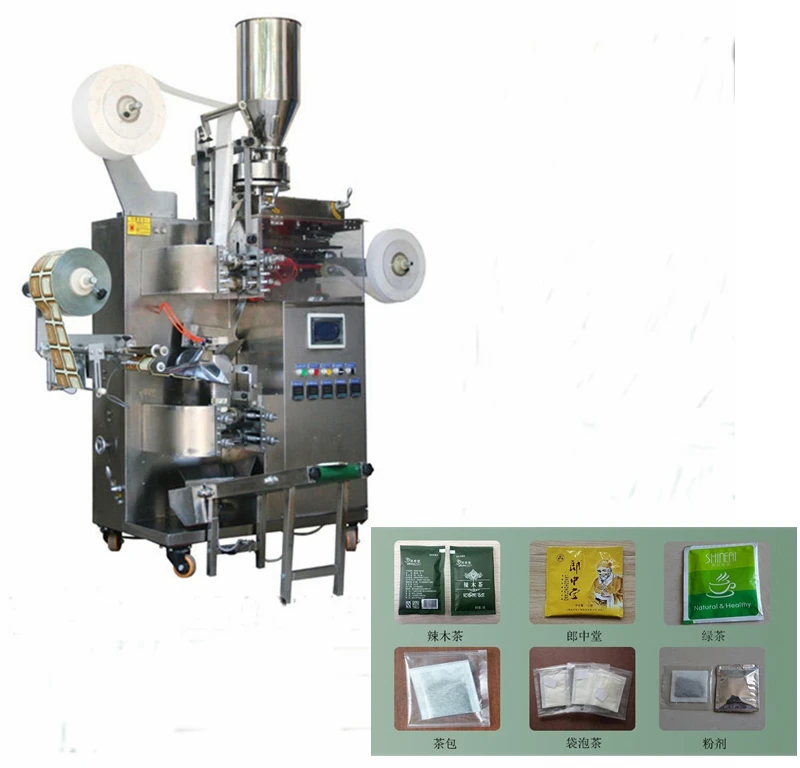

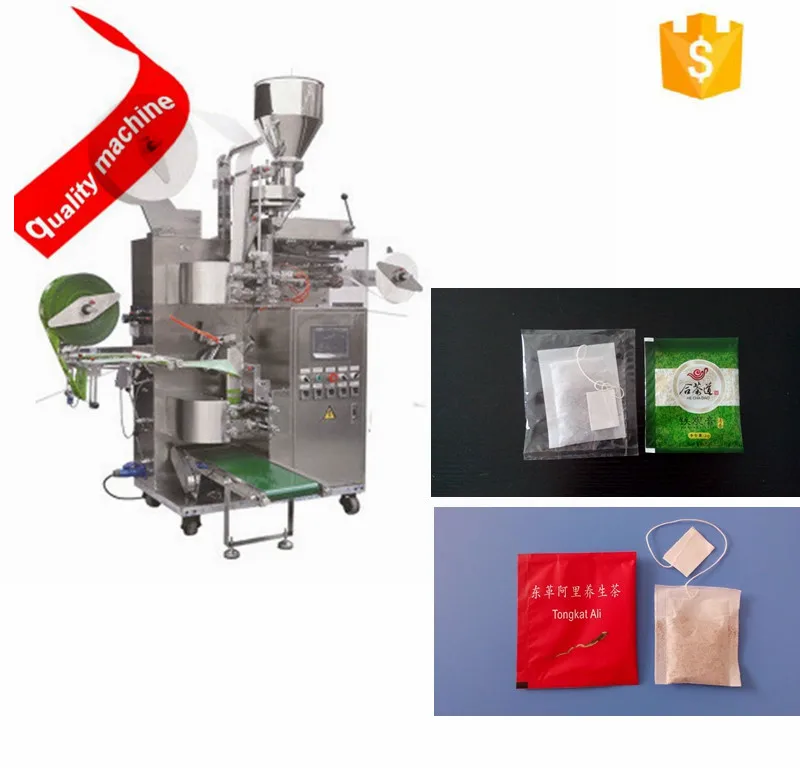

Picture of automatic tea Packaging / tea packing machine with inner bag and envelope
