Shotcrete Tunnel Lining Concrete Spraying Machine

Product Overview

Description

Product Introduction of Shotcrete Tunnel Lining Concrete Spraying Machine

Quality First 12 Years Export Experience Prove Excellent Wet Shotcrete Machine/Gunite Machine For Construction--The most thing we must make sure is durable and easy maintance,the cheif engineer of our design department have studied in Germany ,so he got the spirit of reanson and exact.That's why our custormers can trust on us and our productzmwm06
 Application:

Shot Blasting Concrete are mainly used for railway and highway, subterranean basement walls, Seismic reinforcing/ retrofitting of buildings, channels, shear Walls, retaining Walls, bridge retrofits, architectural concrete, mining, tunnel, culvert, subway, hydropower engineering(such as tunnels,dams and pools) and underground excavation engineering etc. It has many obvious advantages such as simple structures, easy operation and convenient after sales service and very long serviceable life etc.

Main Parameter of Shotcrete Tunnel Lining Concrete Spraying Machine

Item No.	PZ-5
Output:	5m3/h
Max. convey dis:	Horizontal:200m Vertical: 20m
Water cement ratio:	≤0.4
Max. Aggregate. Size:	20mm
Hose inner size:	51mm
Operating air pressure:	0.4~0.6MPa
Air consumption:	7-8 m3/min
Motor power:	Y132-6-5.5kw
Rotor  Speed	11r/min
Rotor Volume	9L
Rotor  diameter	438mm
Voltages:	380V or as your request
Dimension:	1280x700x1280
Net Weight:	600KGS
Wheel:	Nylon wheel ;Rubber wheel ;skid wheel ;Rail whee

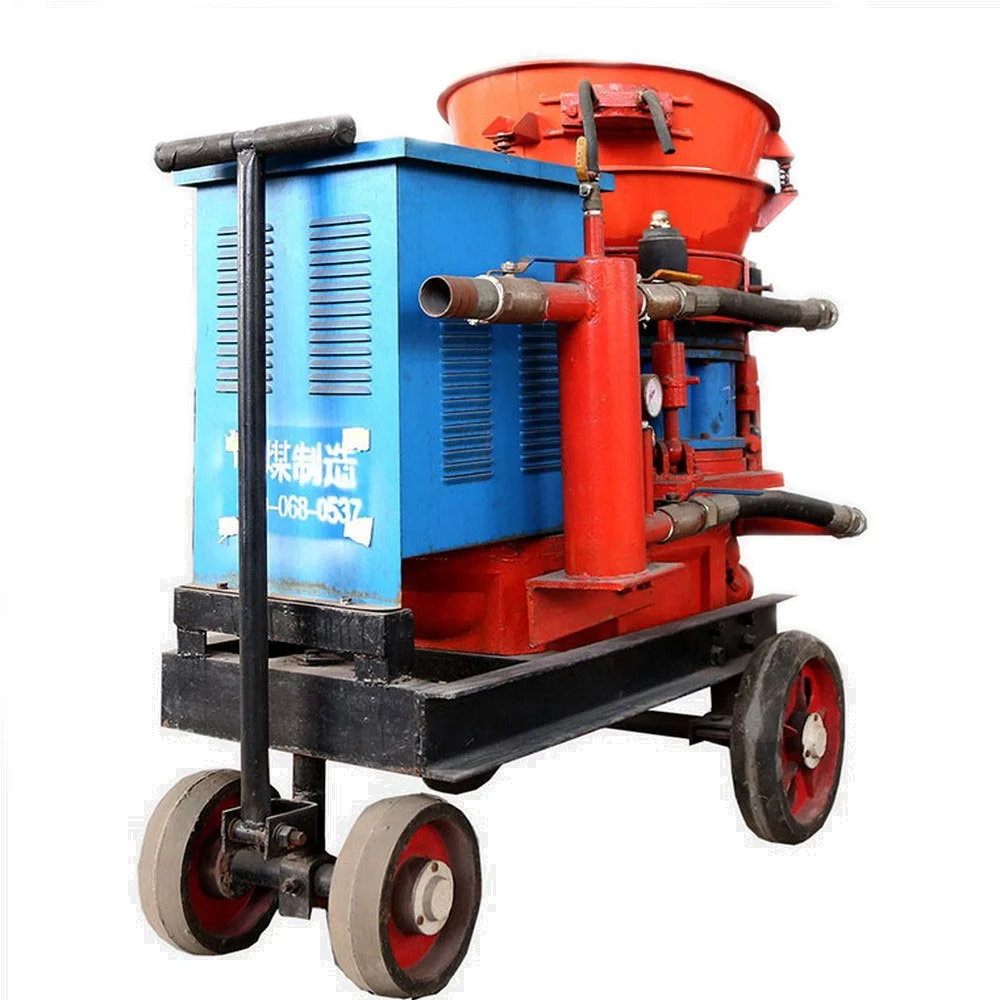

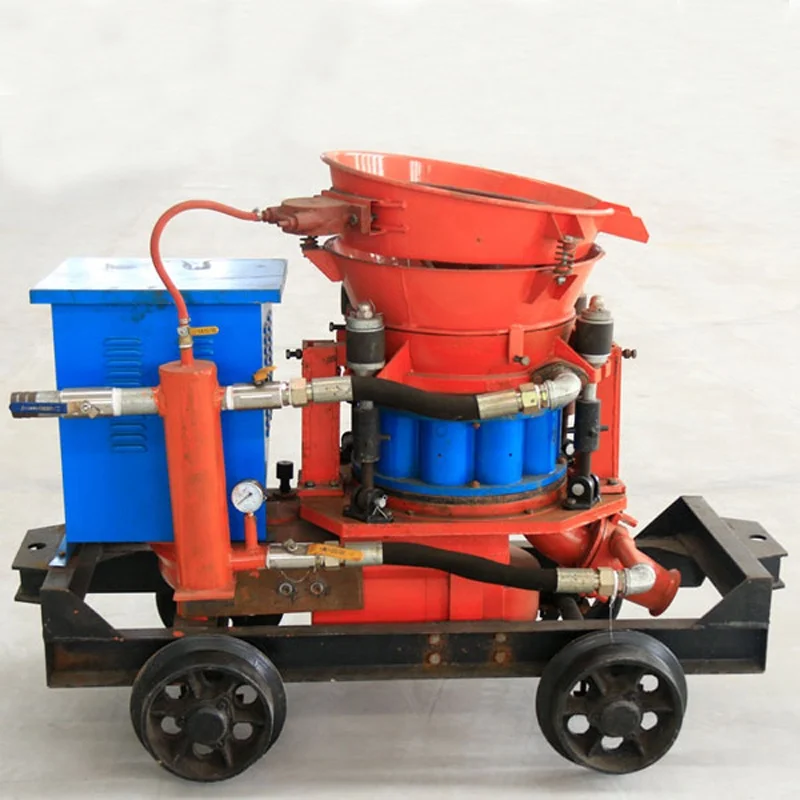

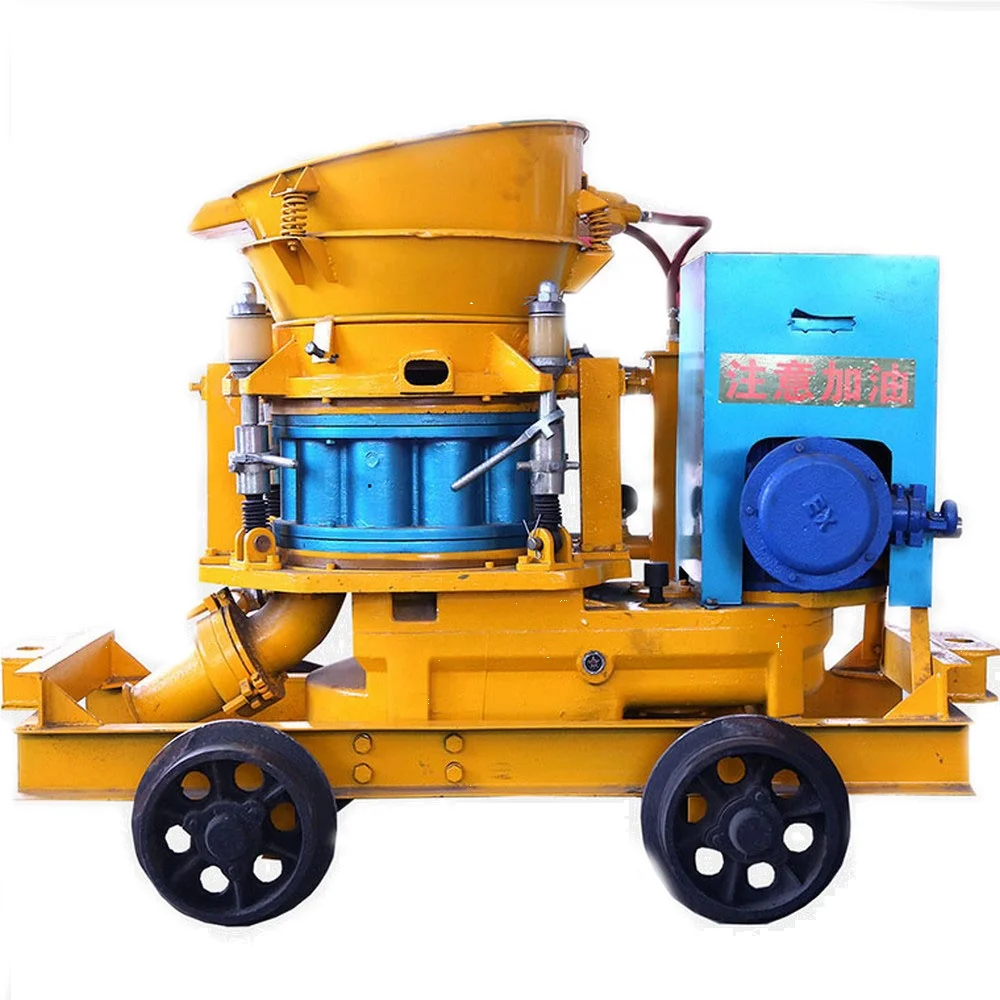

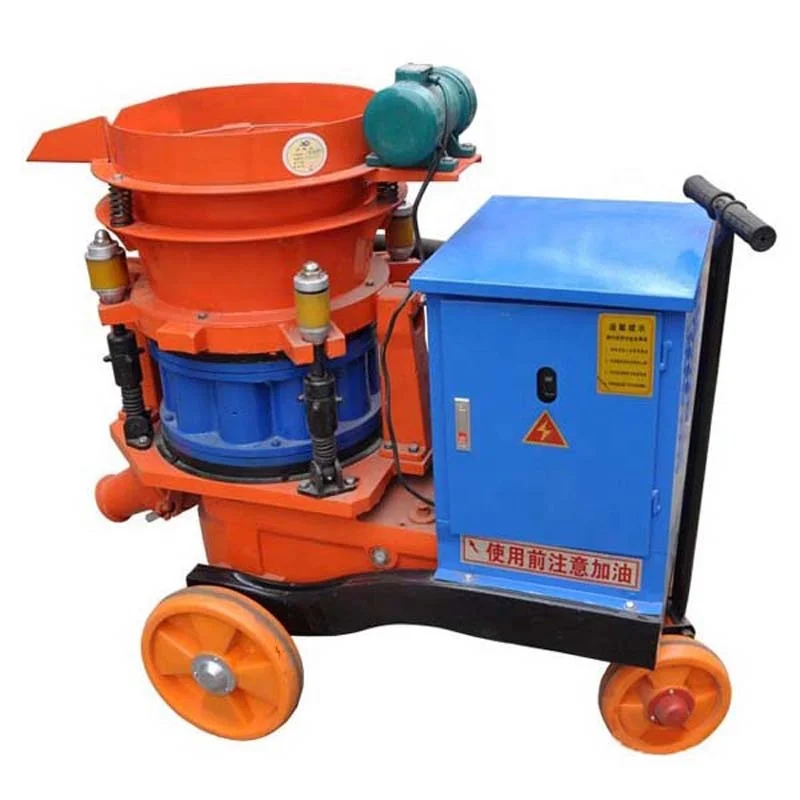

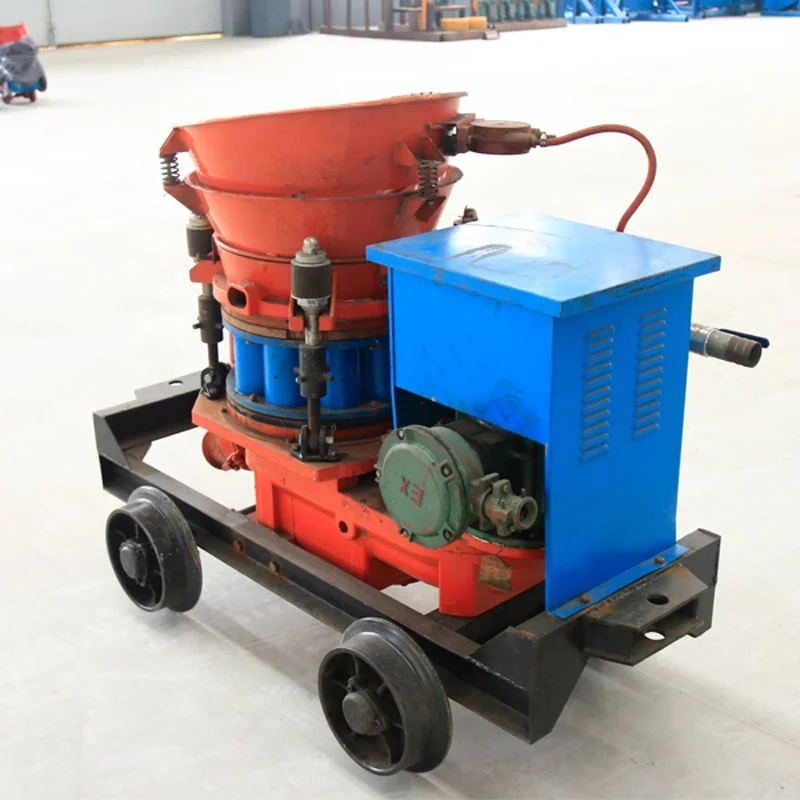

Figure Photos of Shotcrete Tunnel Lining Concrete Spraying Machine
