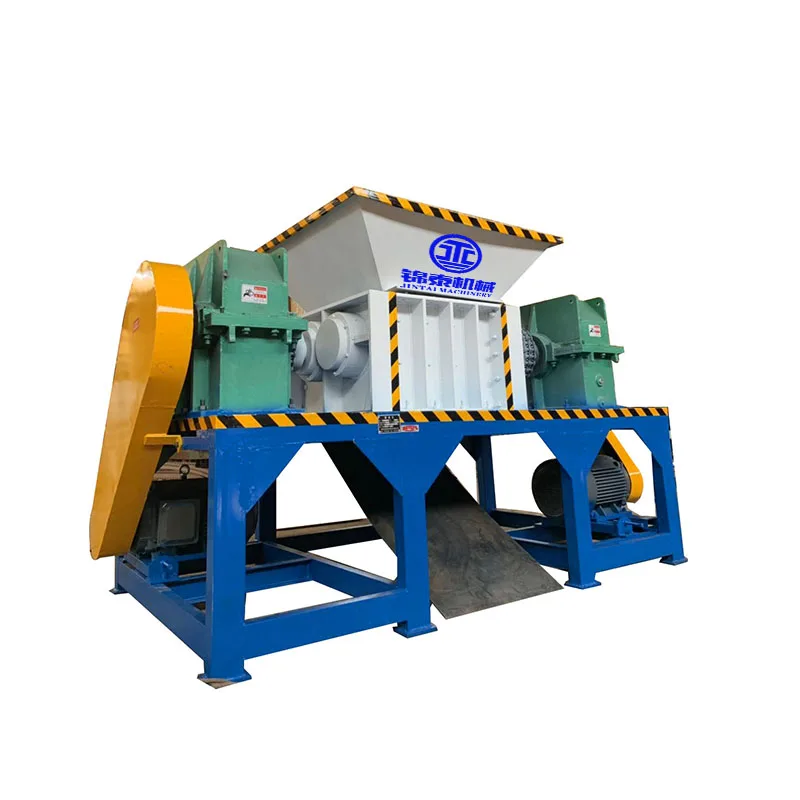

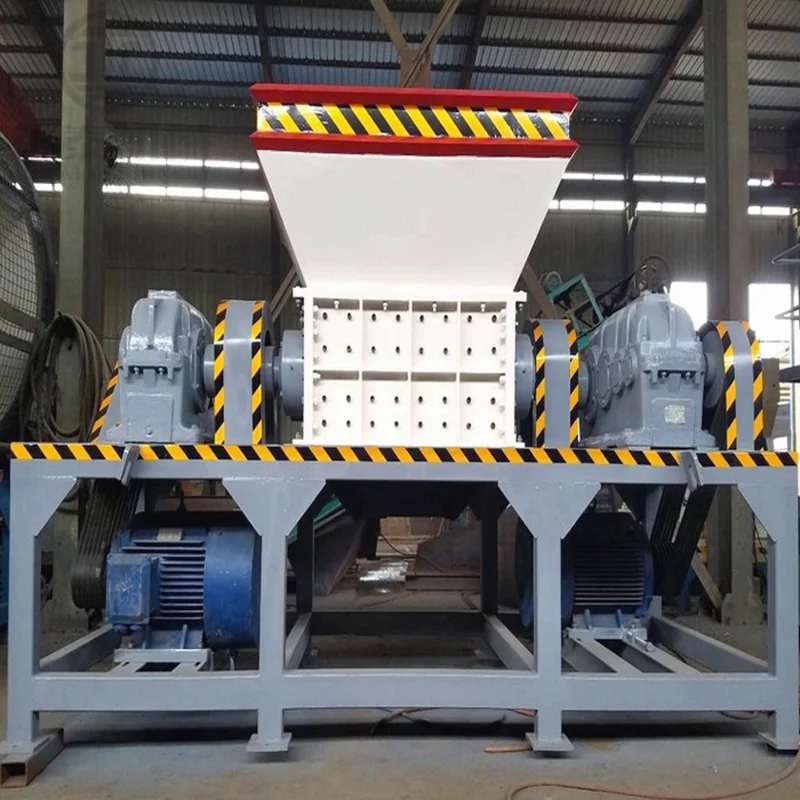

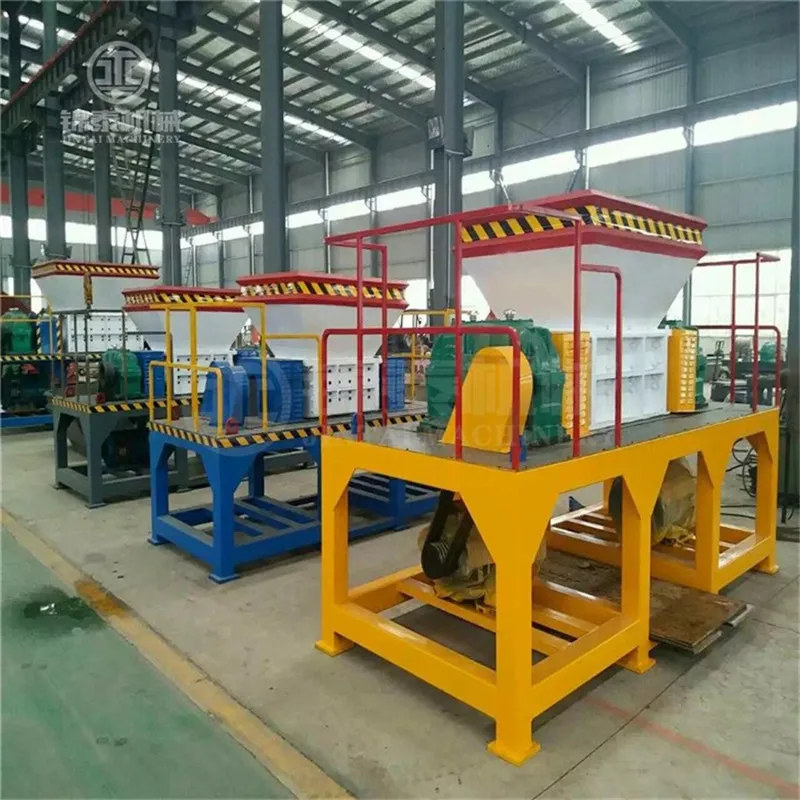

shredder machine introduction:
The widely used plastic bottles crushing shredder small waste glass recycling machine for sale uses two sets of cutter disks made of fine alloy steel to cut each other so that all kinds of soft and hard materials are crushed. The main shredder materials include plastic package barrel, rubber wheel, basket materials, huge rolls of films, huge batch of package plastic films, huge batch of package bags, rolled films, paper, fiber, wood, etc. This machine is high in productivity, low in energy consumption, low in noise.
shredder machine advantage:
1.This product may shred big blocks of materials,basket materials,pipes,plates,wood,wheel and huge rolls of films,which are hard to be shredded on a single shaft shredder.
2.The outer frame is made of super thick plates with mixed structure after intensified processing, equipped with powerful hexagonal rotation axis with wide angles and huge-diameter inlet so that huge raw materials may be put inside and crushed.
3.The rotary cutter has unique design in terms of thickness. This kind of crushing machine is sharp and keen enough to finish shredding work efficiently.
4.With PLC control, in case that there are too many processing materials, forward/reserve operation and stop function can be activated to ensure operating security.
5.Operation is in low speed with low noise and low powder discharge during operation.
6.The blade is made of special alloy steel,which is hard and durable.
shredder machine working principle:
shredder machine technical parameter:
Model | Dimension (mm) | Shredder chamber dimension(mm) | Blade diameter (mm) | Blade thickness (mm) | Fixed blade (pcs) | Power (kw) | Weight (kg) |
JT-500 | 2800×1300×1850 | 500×480 | 200 | 20 | 24 | 11×2 | 2200 |
JT-800 | 3000×1300×1850 | 800×480 | 200 | 20 | 40 | 22×2 | 2500 |
JT-1000 | 3300×1900×2200 | 1000×690 | 300 | 40 | 24 | 30×2 | 5200 |
JT-1200 | 3600×2000×2200 | 1200×690 | 300 | 40 | 30 | 37×2 | 6400 |
JT-1500 | 4180×2100×2400 | 1500×850 | 550 | 50/75 | 30/20 | 45×2 | 9000 |
JT-1800 | 5800×2400×3300 | 1800×1206 | 550 | 50/75 | 36/24 | 55×2 | 13600 |
JT-2000 | 6400×2700×3500 | 2000×1490 | 600 | 50/75 | 40/26 | 90×2 | 20100 |
JT-2500 | 7500×3200×3800 | 2500×1800 | 600 | 75/100 | 32/24 | 110×2 | 25000 |
JT-3000 | 8600×3500×4000 | 3000×1800 | 600 | 75/100 | 40/30 | 132×2 | 31000 |
Remarks:
1.the claw number, diameter and the thickness of the blade is decided to the crushing material and the discharging size.
2.the machine capacity is decided to the different crushing material and the discharging size.
Shredder machine applications:
-Tyre: car tire,Debeaded Truck Tires
-Computer hard disk
-Scrap WEEE Products – Copy machine,Printer etc.
-Hollow plastic containers: Drums, buckets, barrels, Tubs etc.
-Wood: Pallets, Crates etc
-Film, Woven bags
-Metal: Copper, Aluminum, Lead
Gongyi Jintai Trading Co., Ltd. is located in Gongyi, Zhengzhou City, Henan Province. Our company has more than 20 years history.Our main product: screw oil press machine, hydraulic oil press machine, jaw crusher, ore mining crusher, metal crusher, cans crusher, double shaft shredder, widely used plastic bottles crushing shredder small waste glass recycling machine for sale and so on.
Our factory strictly abide by quality first, customer supreme principle is willing to provide warm and thoughtful pre-sale services, like market analysis, investment planning, site design, raw material formula and after-sales service. We can assist in the installation, debugging and training operators for free.
Our machine all choose advanced technology,which has exported to more than 30 countries.We not only provide high quality equipment, but also can offer the best after-sale service.

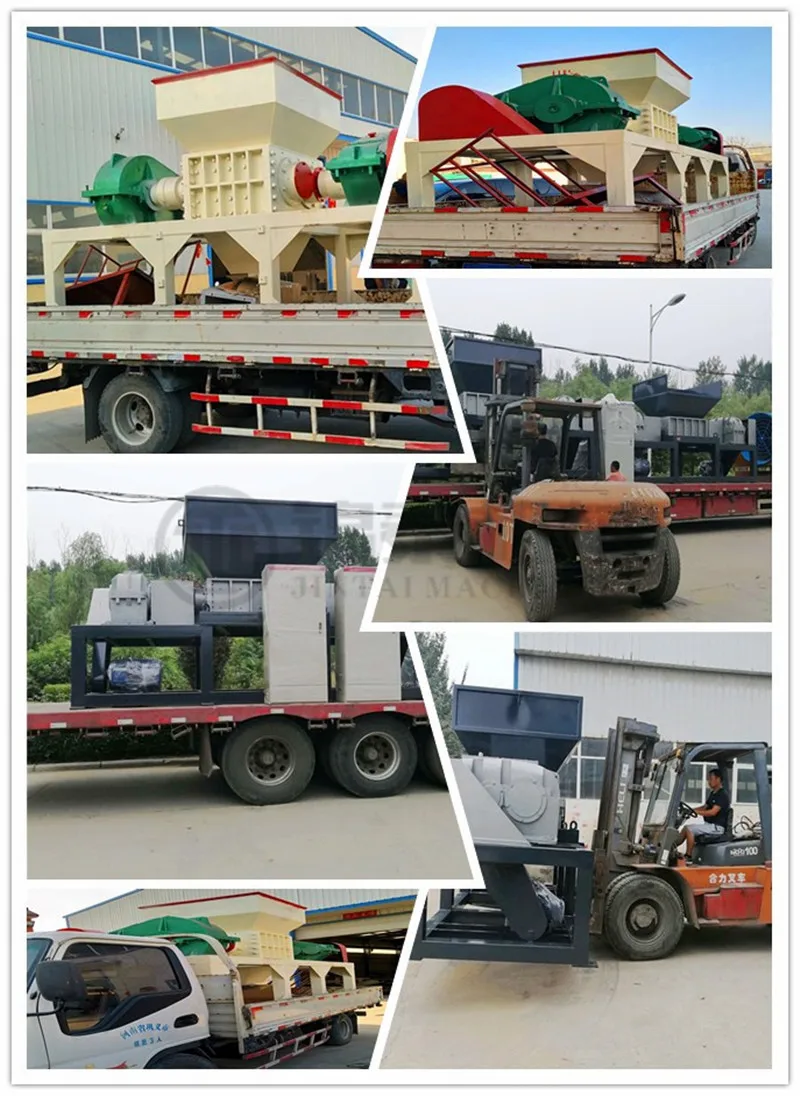

1.Package
All the widely used plastic bottles crushing shredder small waste glass recycling machine for sale is packed by standard plywood case, outer reinforced by the steel strip.Or as your actual requests.
2.Shipment
Shipment are arranged usually within 15 working days after payment, by standard shipping container as your actual order quantity.(20FCL,40FCL,40HQ)
After-sales service
Jintai can provide turkey service for customers, such as engineering consultation, engineering design, equipment manufacturing, packing & transportation, installation & commissioning personnel training etc.
About Training
Jintai machinery could offer excellent facilities and comfortable environment and training services to different customers. The training should include product training, safety training, operation training, maintenance know-how, technical know-how training, and regulations training, etc. All of the training is customized to fulfill every customer’s expectations. Training programs can be conducted in our workshop, or at customer’s site.
About Installation and Commissioning
Jintai is able to guide the overall installation of whole set production line, including crushing production line and cement equipment production line, etc., which will allow you to start the normal operation of equipment immediately. After installation,we will make inspection of the whole machine commissioning and operation condition and provide you testing data report of installation.
1,Do you provide the installation service after ordering your machines?
As for the single machine, we provide the users instruction. As for the production line,we provide the professional construction drawing, and arrange the engineer guide the user install the machines.Help the user train the skilled workders.
2,Can you be sure the wearing parts supply in future?
We promise to provide the wearing parts to user in future.
3,How about the warranty of our machines?
Our production line, and single machine's warranty is 1 year.
4,Do you allow us to visit your factory for try some machines?
We warmly welcome the clients to come to our factory for trying each machine.
