Shrink sleeve Center Sealing Machine (ZHZ 300)
- Category: >>>
- Supplier: Ruian Xincheng Zhongtai Packaging Machinery Co. Ltd.
Share on (60553524583):
Product Overview
Description
Product Description
Shrink Label Glue Sealing Machine, PVC, PET, PETG sleeve sealing machine (300mm)
Direction for use
使用说明
. CHARACTERISTIC
Model ZHZ-300 High Speed Reel-shaper is specially used in folding film material (such as PET, PVC. etc) into reel-shaped packing
material.
This machine equipped with PLC control the machine, 2 inverter, 1 glue pump, etc.
Model ZHZ-300 High Speed Reel-shaper is specially used in folding film material (such as PET, PVC. etc) into reel-shaped packing
material.
This machine equipped with PLC control the machine, 2 inverter, 1 glue pump, etc.
Model | 300mm |
Width of Unwinding | 620mm |
Diameter of Unwinding | 600mm |
Diameter of Rewinding | 700mm |
Min. Sealing size | 60mm |
Max. Sealing size | 300mm |
Max speed of Working | 300m/min |
Max speed of Machine | 330m/min |
Voltage of Whole Machine | 220V/50HZ |
Dimension of Whole Machine | 2500x1300x1300mm |

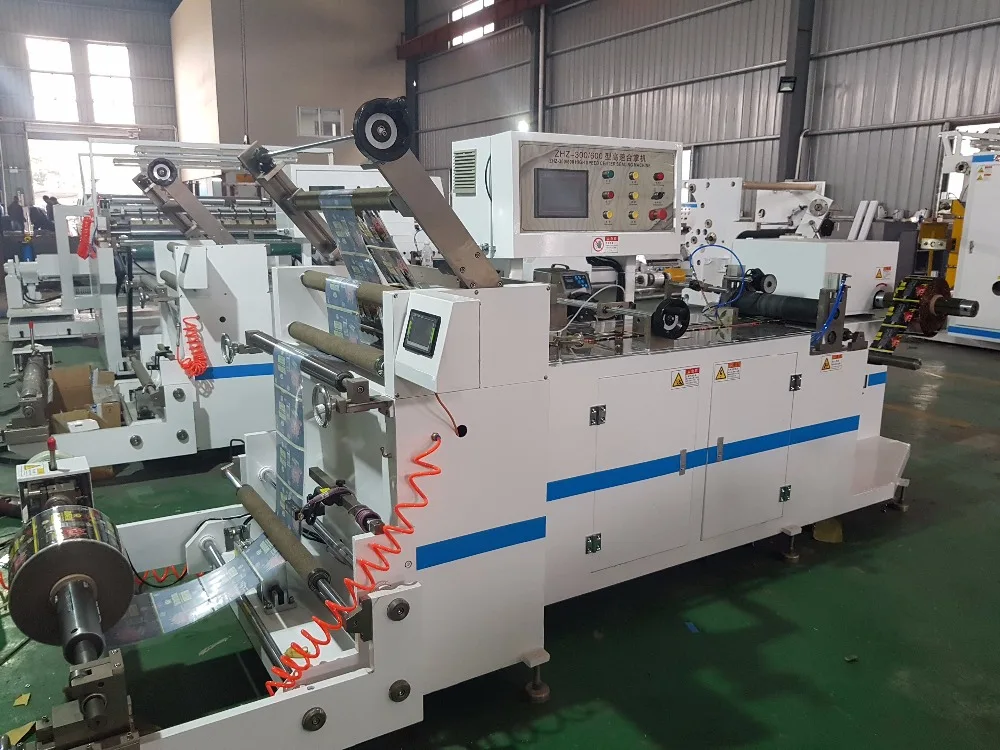

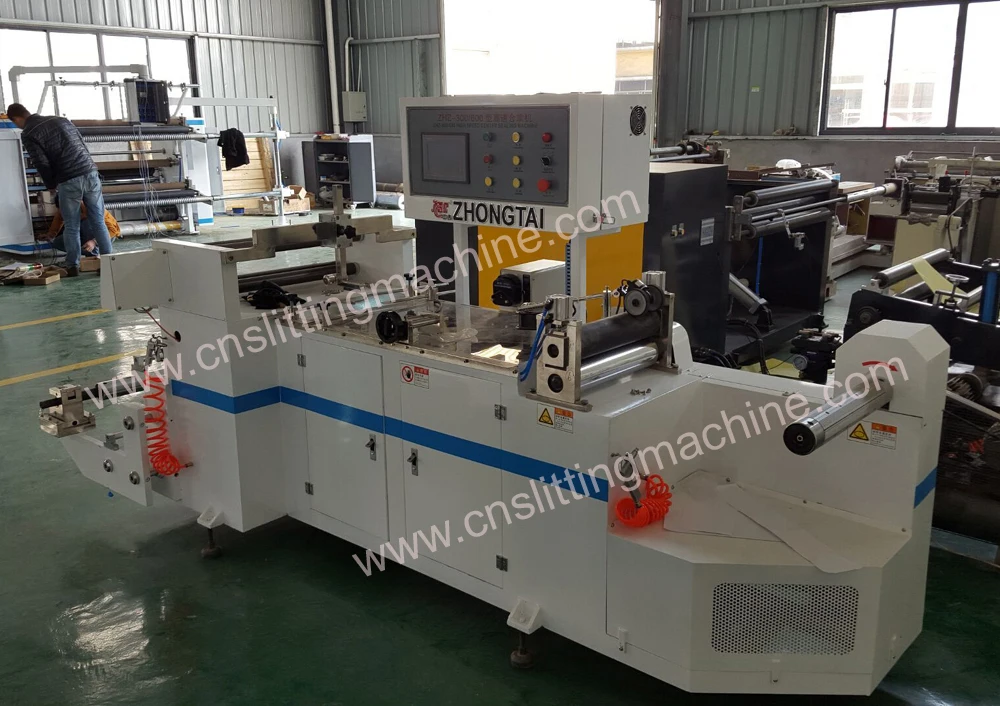

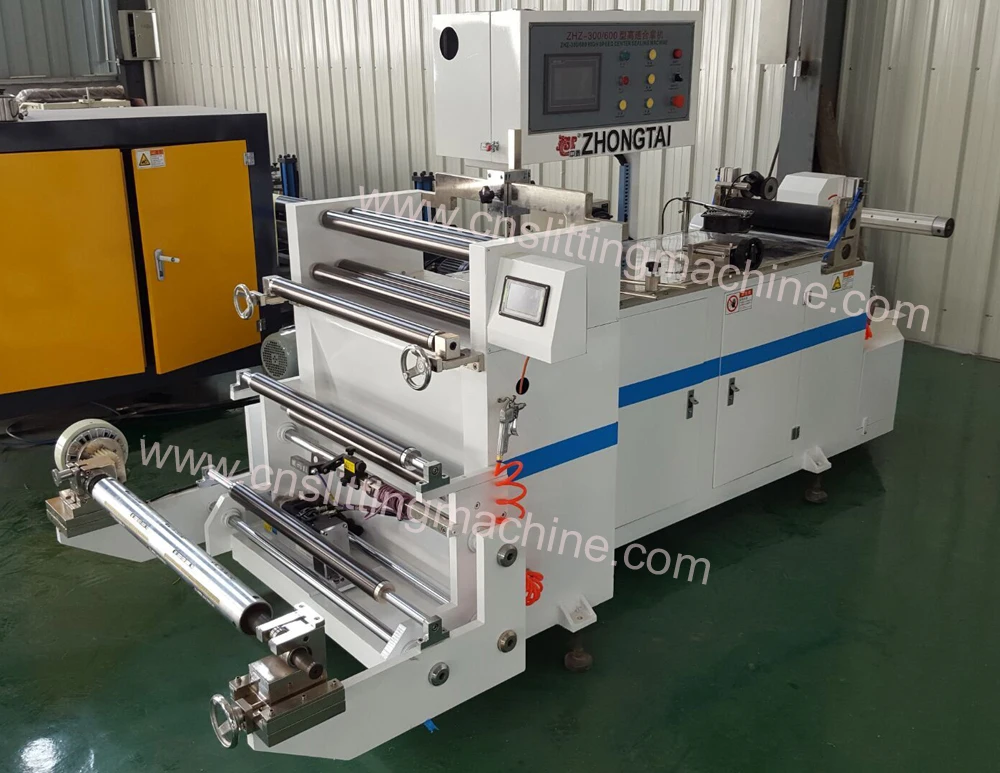

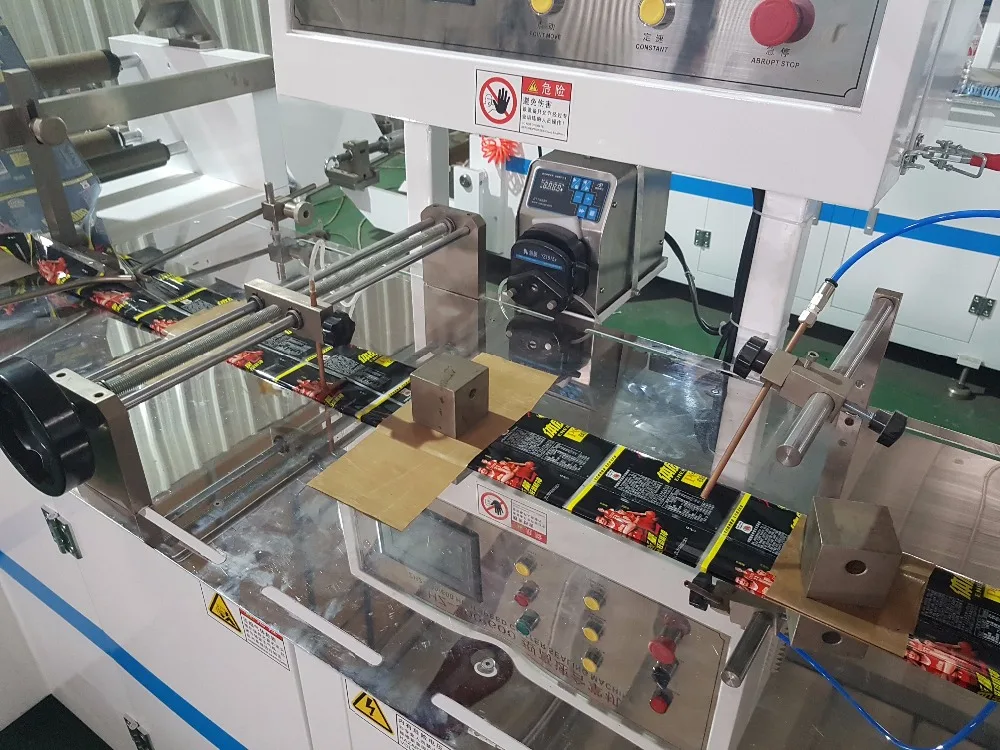

Detailed Images
Related Products
Company Introduction
Product Description
Shrink Label Glue Sealing Machine, PVC, PET, PETG sleeve sealing machine (300mm)
Direction for use
使用说明
1)Stable and heavy-duty frame for high speed operation of 300n/min.
2) Adjustable forming plate creates efficient operation.
3) Auto solvent feeding control.
4) Auto tension control for unwind/rewind unit to maintain the optimun tension.
5) Imported brand EPC device, precision 0.1mm.
6) Accurate product width.
7) Cantilevered rewind/unwind shaft for fast roll changeover.
8) PLC with color touch screen control system.
9) Needle type gluing method, work with glue pump and PLC.
10) Rewind oscillation control to produce high quality rolls.
11) Static eliminator is adopted before rewinder.
12) 4 Pieces of Servo motors to ensure good performance.
2) Adjustable forming plate creates efficient operation.
3) Auto solvent feeding control.
4) Auto tension control for unwind/rewind unit to maintain the optimun tension.
5) Imported brand EPC device, precision 0.1mm.
6) Accurate product width.
7) Cantilevered rewind/unwind shaft for fast roll changeover.
8) PLC with color touch screen control system.
9) Needle type gluing method, work with glue pump and PLC.
10) Rewind oscillation control to produce high quality rolls.
11) Static eliminator is adopted before rewinder.
12) 4 Pieces of Servo motors to ensure good performance.
Model | 300mm |
Width of Unwinding | 620mm |
Diameter of Unwinding | 600mm |
Diameter of Rewinding | 700mm |
Min. Sealing size | 60mm |
Max. Sealing size | 300mm |
Max speed of Working | 300m/min |
Max speed of Machine | 330m/min |
Voltage of Whole Machine | 220V/50HZ |
Dimension of Whole Machine | 2500x1300x1300mm |
