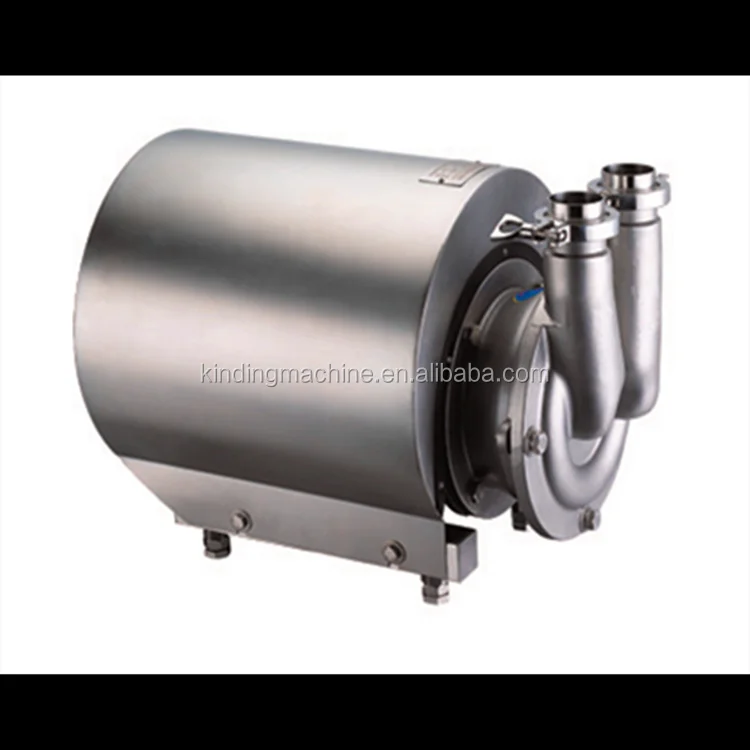

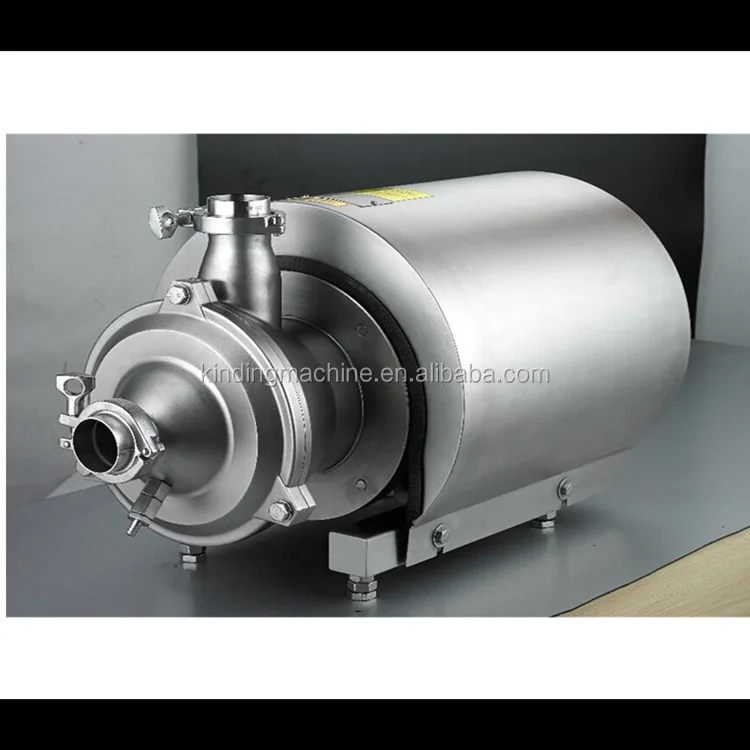

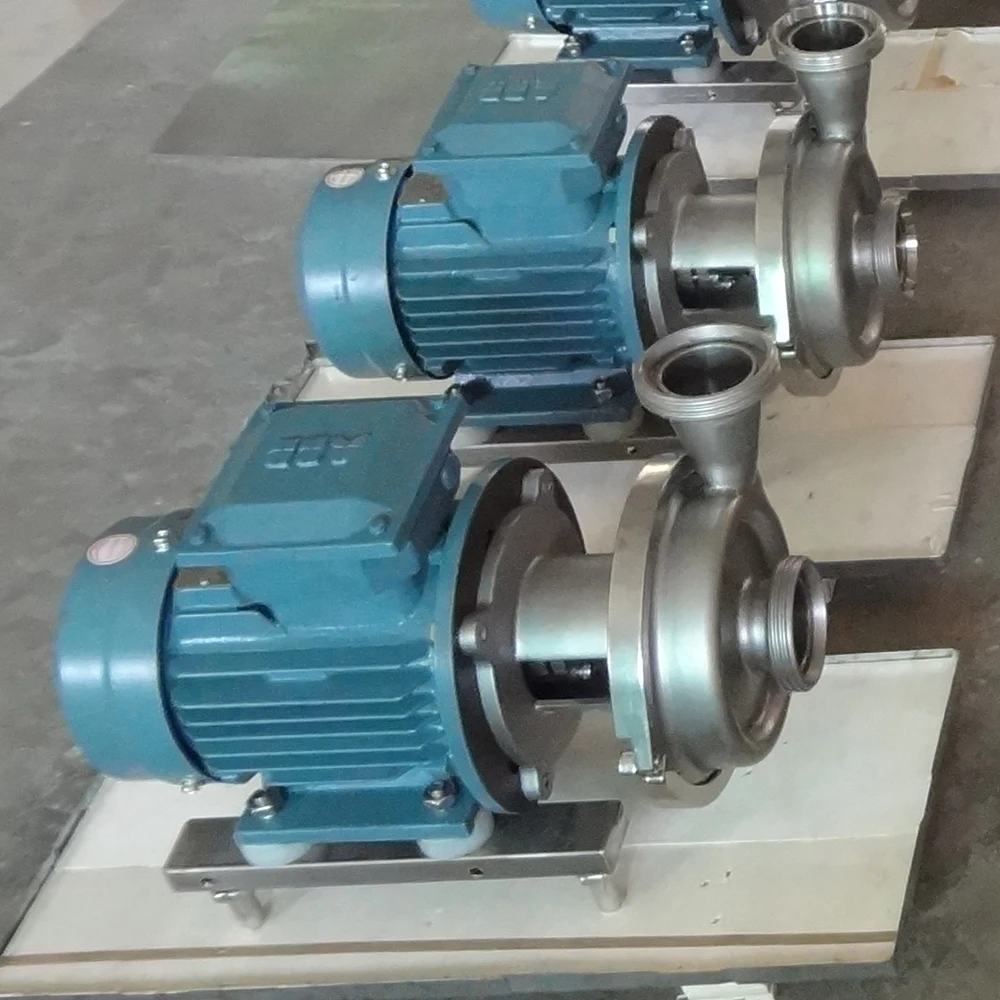

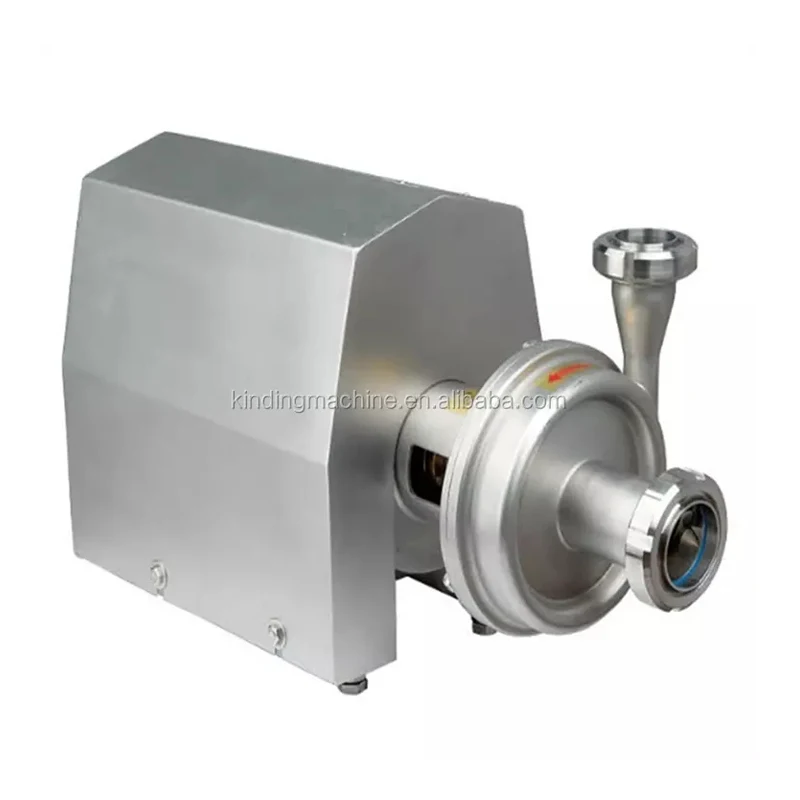

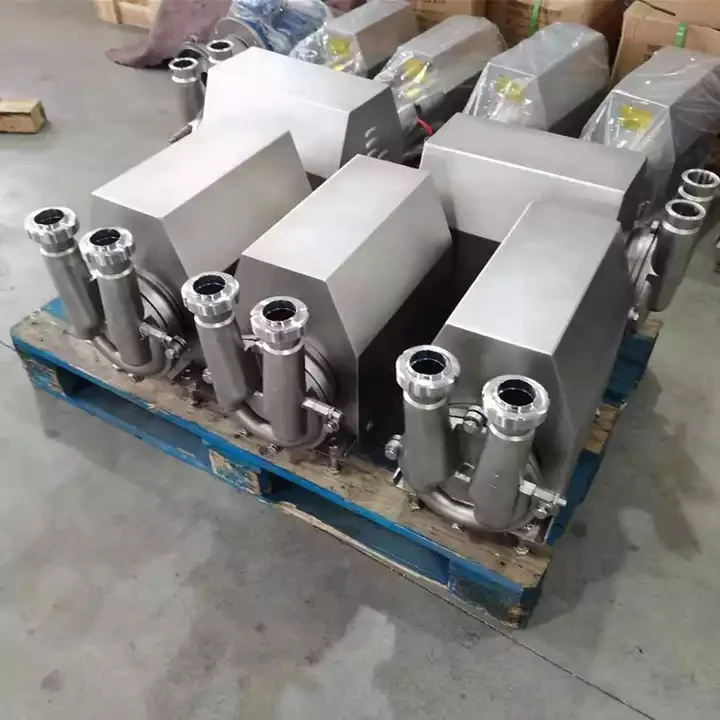

Food grade cip return pump sanitary liquid ring centrifugal pump for CIP cleaning
- Category: >>>
- Supplier: Wenzhou Kinding Machinery Co. Ltd.
Share on (60554288108):
Product Overview
Description
Products Description
The self priming pump is mainly used to deal with the convey of gas-bearing materials. So it is widely used in the occassions that the liquid level is instable, and the liquid level is lower than that of inlet to draw the material, and also used as reture in the CIP system. And it is the necessary convey equipment in the food, chemical, pharmacy, field.
Specifications | 10T-30T, 2.2KW-7.5KW |
Material | The part contact with medium：AISI316L stainless steel Other parts：AISI304 stainless steel The sealing contact with medium：EPDM |
Standards | DIN, SMS |
Impeller | Open type impeller, there is no dead end |
Operate condition | Health centrifugal pump is a few horizontal transport of high and low level, is not the self-priming type. |
Surface treatment | The part contact with mdedium is polished, and other partis glass painted and sand blasted |
Max inlet pressure | 0.5MPa |
Temperature range | -10℃--140℃(EPDM) |
Flushed shaft mechanical sealing | water pressure: Max 0.1MPa water lift: 0.25-0.5L/min |
The explosion-proof motor also available
It with excellent electric performance, and with low niose, low vibration, the protection grade is IP55, insulation grade is F.
Operate involtage：
≤3Kw, 220-240V/380-420V, △/Y
≤3Kw, 220-240V/380-420V, △/Y
>3Kw, 380-420V/660-690V, △/Y
Requency：50Hz/60Hz
Working method: continuous(SI）
Rotate speed: 2900r/min
Product wetted steel parts: Acidresistant steel AISI 316L(AISI304)
Other steel parts: Stainless ateel AISI 304
Outside surface: Matt treatment
Inside surface: Bright
Product wetted seals: EPDM rubber
Other steel parts: Stainless ateel AISI 304
Outside surface: Matt treatment
Inside surface: Bright
Product wetted seals: EPDM rubber
Model | Flow | Sucking | Power | Inlet/Outlet |
CIP-04 | 4T | 6m | 2.2KW | 2"/1.5” |
CIP-08 | 7T | 6m | 3KW | 2”/2” |
CIP-10 | 10T | 8m | 4KW | 2.5”/2” |
CIP-20 | 20T | 8m | 5.5KW | 2.5”/2.5” |
CIP-30 | 30T | 8m | 7.5KW | 3”/2.5” |
Our Company
Wenzhou Kinding Machinery co.,Ltd is located at a beautiful and traffic-convenient Longwan district of Wenzhou city, ,mainly engaged in developing,manufacturing,installation and techanical service in food, beverage, biology, pharmacy, chemical industry fields. We have advantage in producing high quality stainless steel equipment, such as fruit pulping machine, sanitary centrifugal pump, rotary lobe pump, high shear pump, etc. The enterprise has passed ISO9001:2008, our products are made of SUS304, SUS316 and SUS316L, conforming to sanitary standard stated in GMP specification.
Our Certifications
Best stainless
Design material according to customer ' s requirement, test all the raw material to confirm SS304, SS304L, SS316, SS316L.
Package and Shipping
FAQ
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight for the fittings.
Q4: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Mobile/Whatsapp: +86 15058983705 . Skype: hyq5871 . QQ: 1783023369.
