     1ton Induction Metal Melting Furnace

       Melt Large Steel Furnace



Melt Large Steel Furnace Applications:

Intermediate frequency induction metal melting furnace is used for melting steel , cast iron , copper , aluminum , brass and non-ferrous metals , after melting , the metal liquid.



Induction Melt Large Steel Furnace Advantage:

♣  fast speed melting,

♣  save energy;

♣ less burnt loss;

♣ pure molten liquid;

♣ no air pollution





 Induction Metal Melting furnace's aluminum frame:

For small metal melting furnace ,aluminum furnace shell will be adopted ;while for furnace with large loading capacity,we will use steel furnace shell to make sure furnace strong .

steel shell furnace is equipped with magnetic yoke which can shield and reduce magnet leakage and prevent furnace body from over-heating, to improve efficiency and sustain the induction coil.



Furnace with aluminun shell                                           Furnace with steel shell

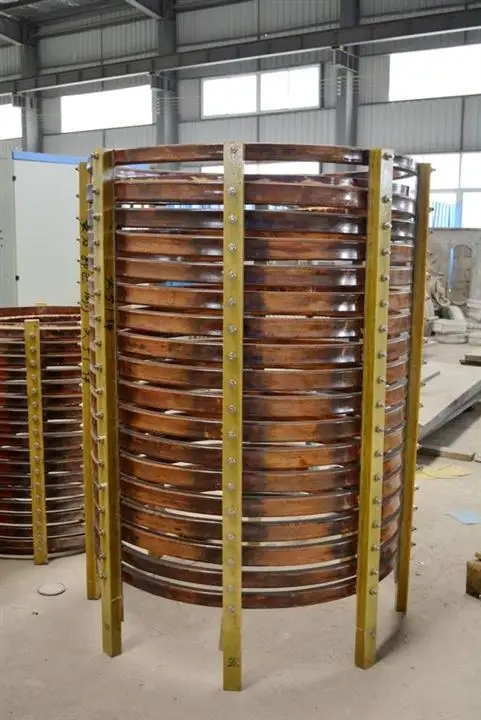

Copper Inductor of melt large steel furnace

inductor of large steel melt furnace are double paralleled winded with prolonged coil to make sure the half capacity of furnace molten liquid can be heated by full load power output which will improve overall efficiency. Cooling system is equipped along with the induction coil prolong the lining life.









Technical parameter of Induction Steel Melt Furnace :

Model	Loading  capacity(kg)	IF power (kw)	supply  voltage(V)	IF-FRE (Hz)	Melting Rate(kg/h)	Power consumption (KWh/kg)	Rated power of  transformer(KVA)
GW-0.05	50	45	380/400	1000	45	0.56	63
GW-0.1	100	85	380/400	1000	85	0.56	100
GW-0.15	150	135	380/400	1000	125	0.55	160
GW-0.25	250	250	380/400	1000	200	0.55	250
GW-0.35	350	300	380/400	1000	300	0.67	315
GW-0.5	500	400	380/400	1000	350	0.67	400
GW-0.75	750	500	380/400	1000	500	0.67	500
GW-1	1000	800	380/400	1000	800	0.67	800
GW-1.5	1500	1000	660	500	1200	0.61	1000
GW-2	2000	1250	660	500	1600	0.61	1250
GW-3	3000	1600	660	500	2400	0.61	2000
GW-4	4000	2300	660	500	3200	0.6	2500
GW-5	5000	3000	950	300	4500	0.6	3150
GW-6	6000	3300	950	300	5400	0.6	3500
GW-10	10000	3900	950	300	9000	0.56	4000

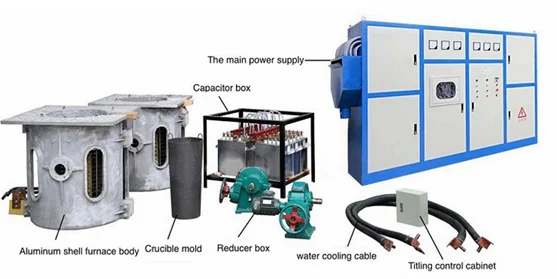

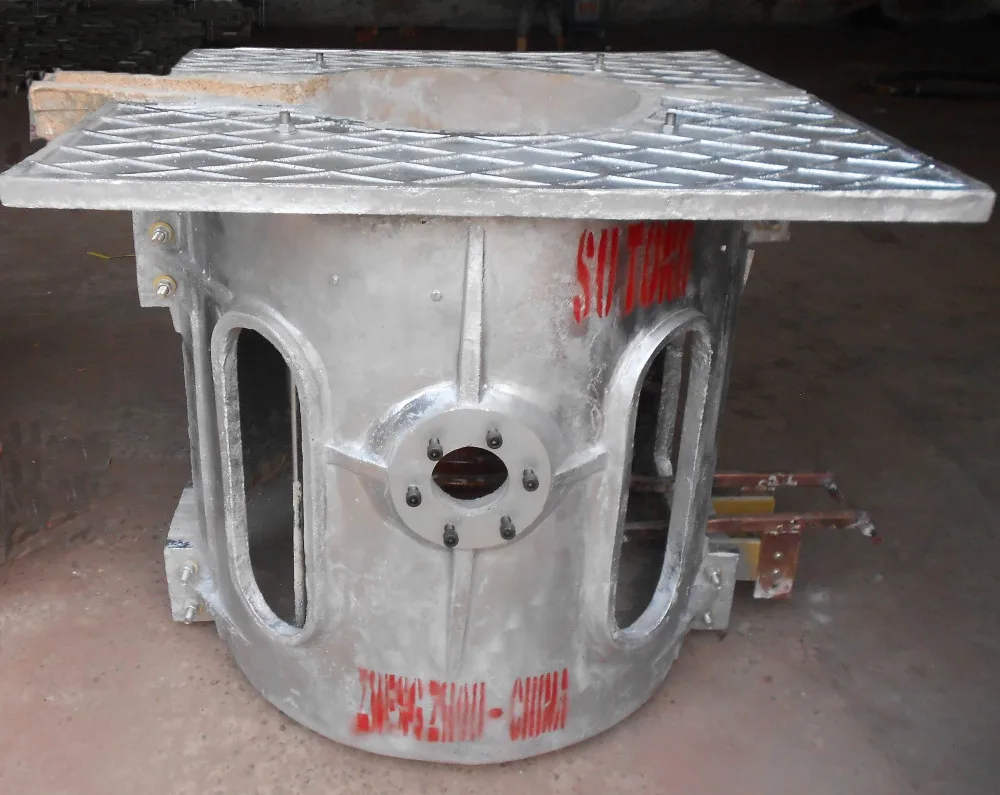

 Inductoin Metal Melting Furnace -- Furnace Body (melting pot ):

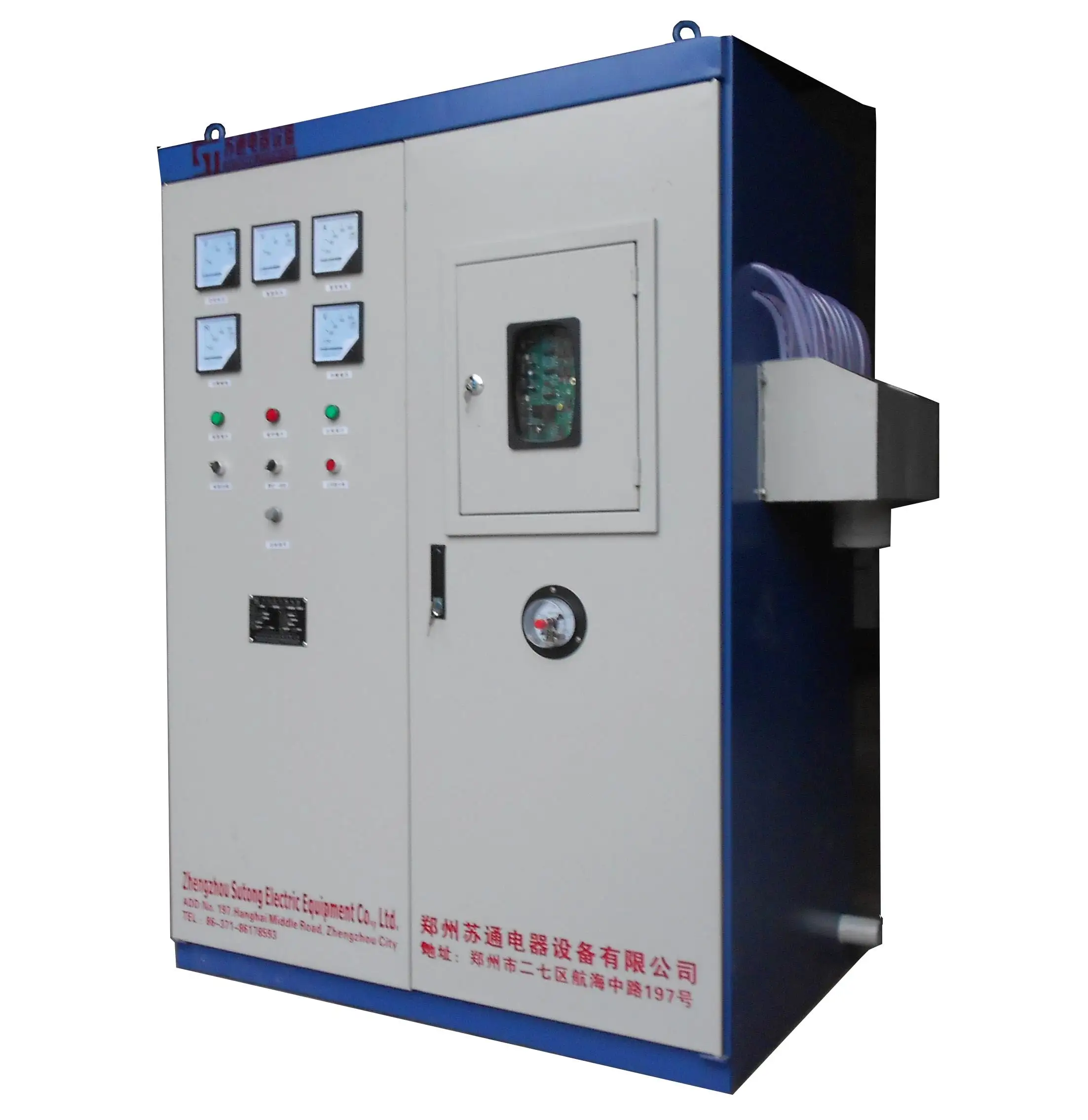

1ton Induction Metal Melting Furnace---Power Control Cabinet:

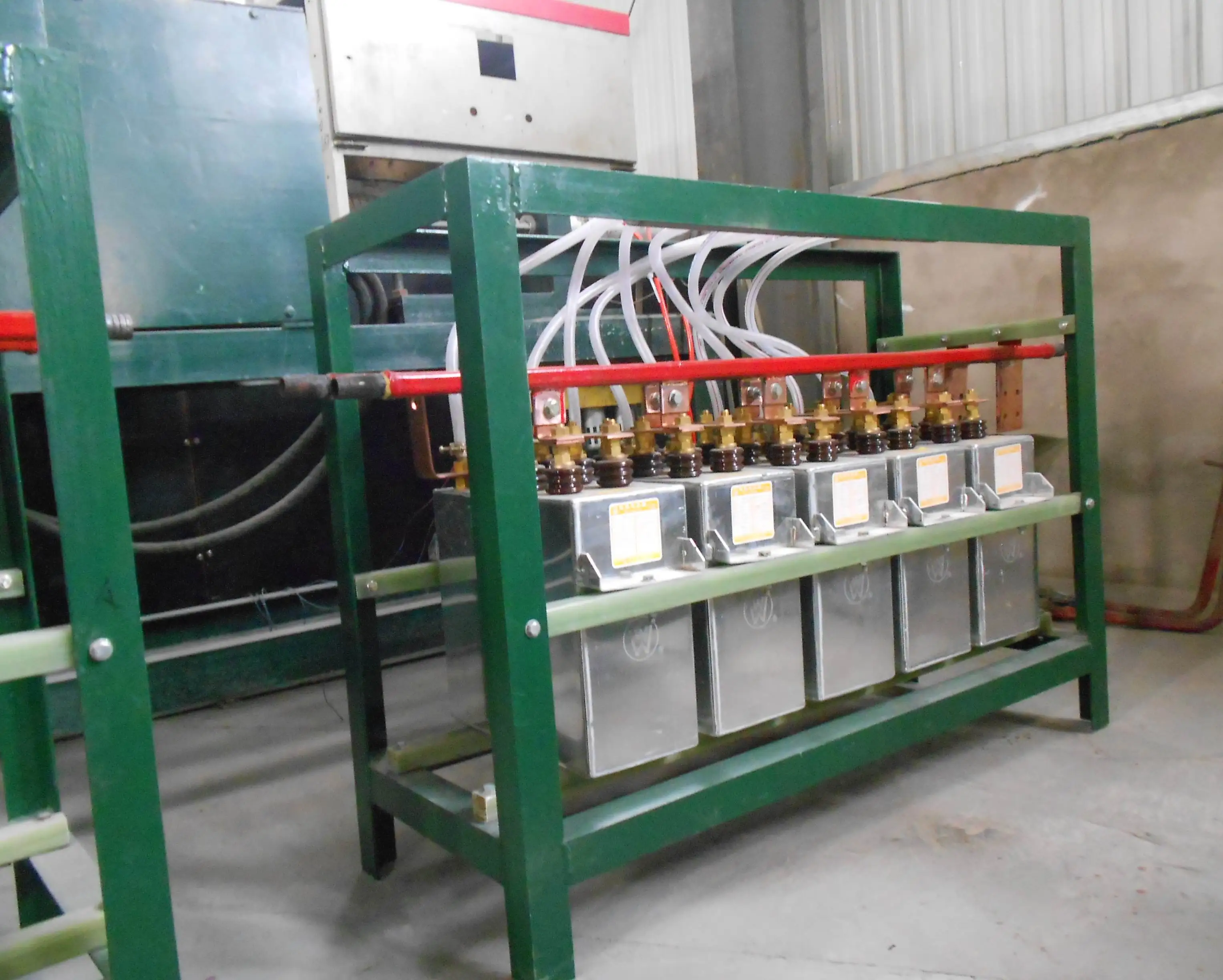

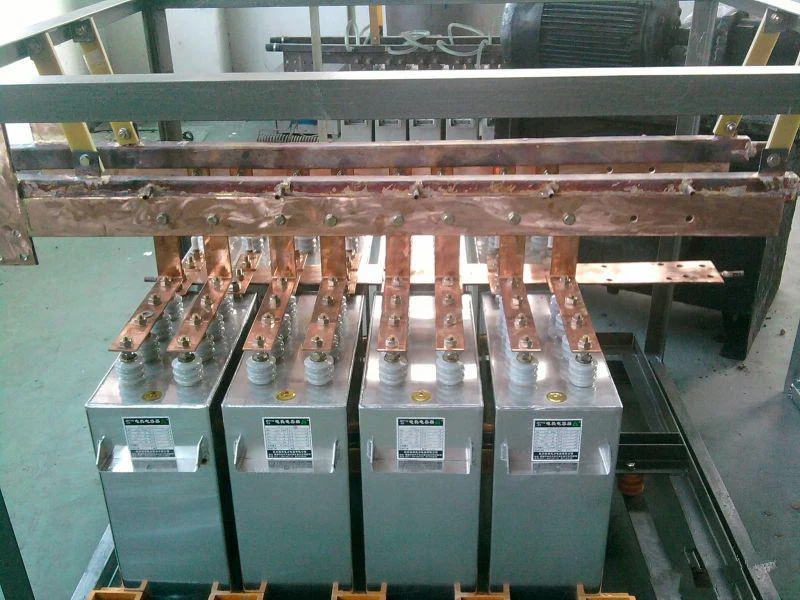

Induction Large Steel Melt Furnace --- Compensation Capacitor Bank :





Induction Large Steel Melt Furnace--Discharge system and cooling system:

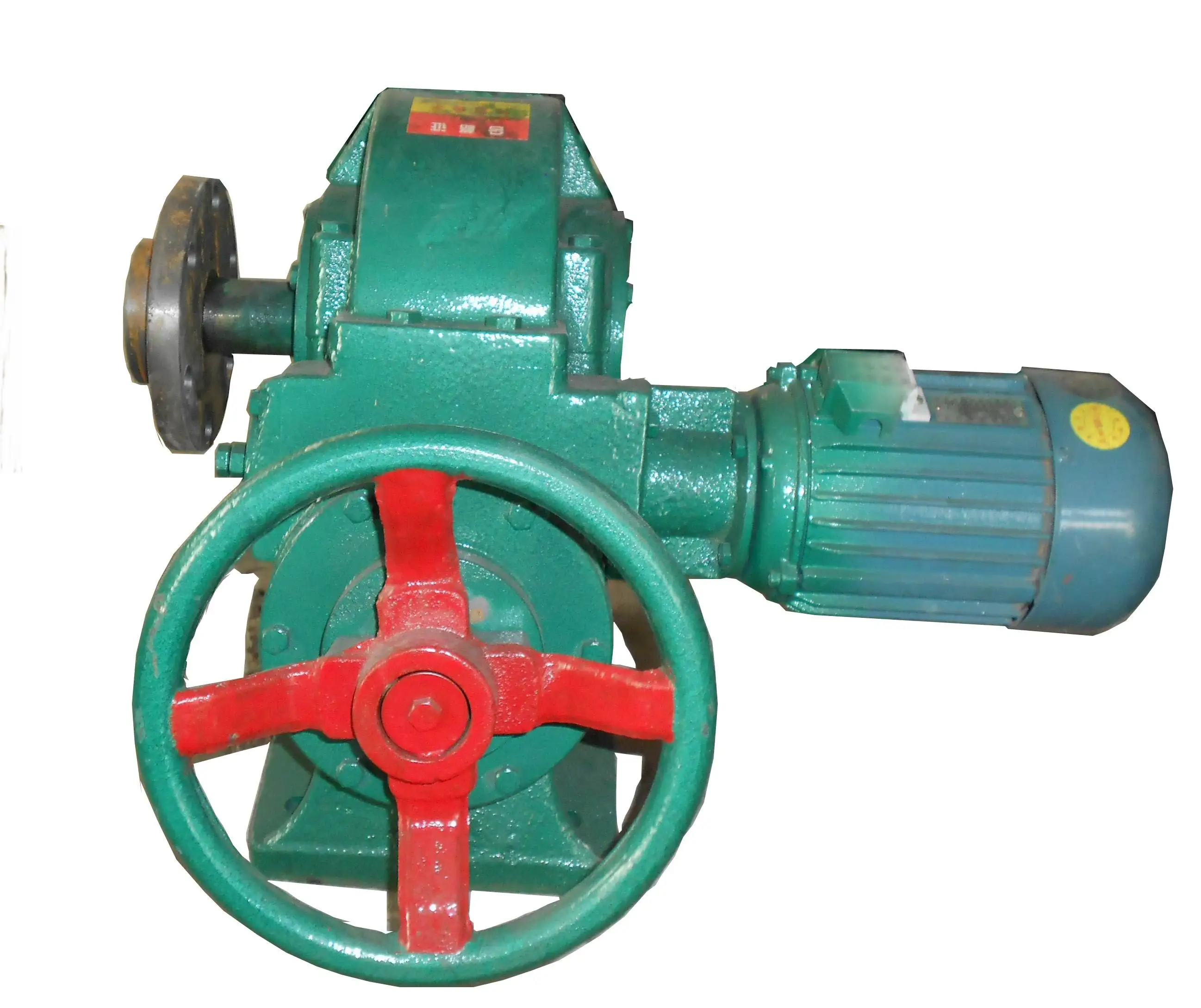

Reduction gear for liquid discharge

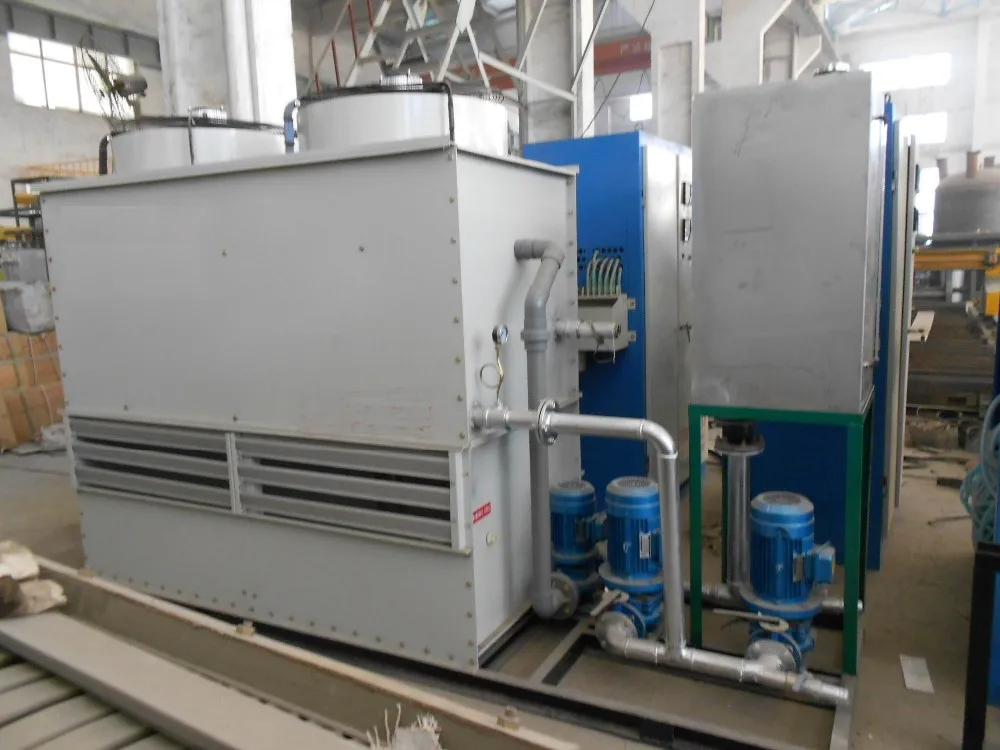

 Cooling tower :

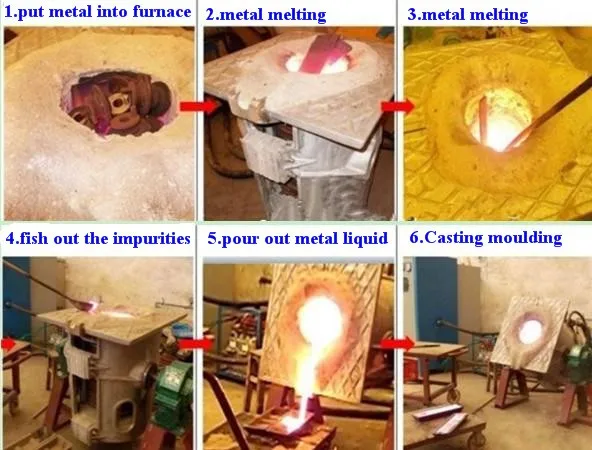

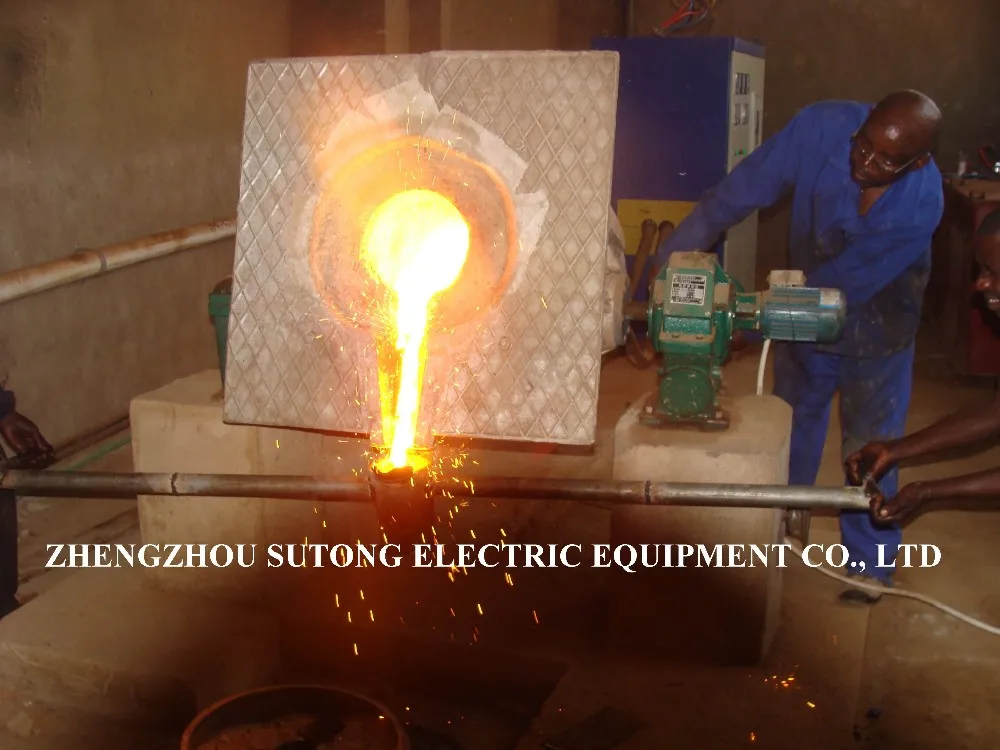

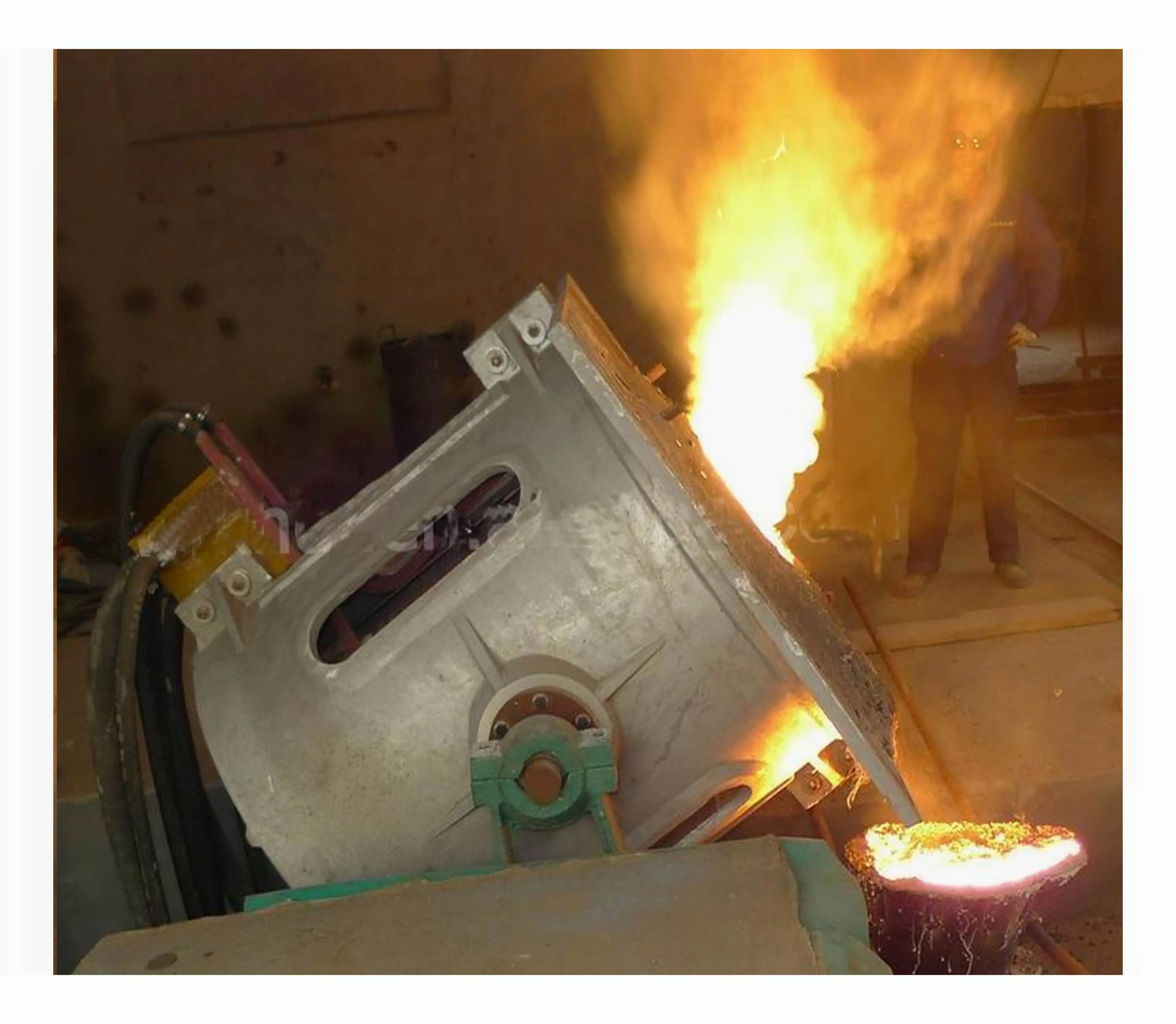

Induction Large Steel Melt Furnace--Metal melt process:
