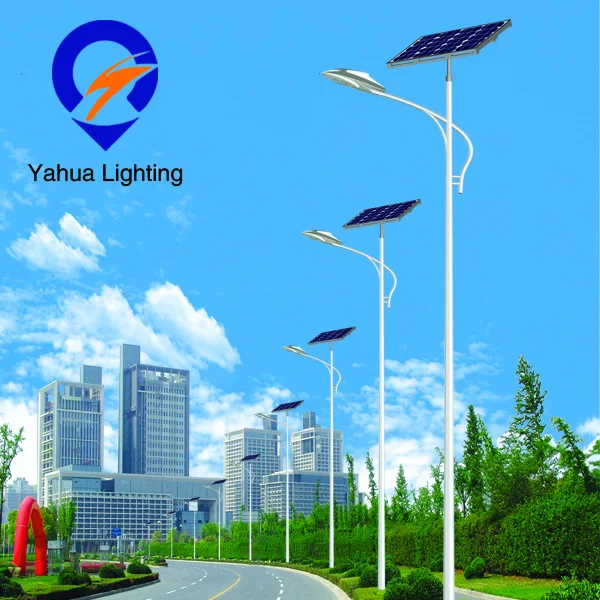

Green power solar panel systems 100 watt solar led street light
- Category: >>>
- Supplier: Shaanxi Yahua Lighting Electric Equipment Co. Ltd.
Share on (60554646331):
Product Overview
Description
Green power solar panel systems 100 watt solar led street light
Yahua Lighting SOLAR power street light design should know below answers:
First:
1).the power of your required LED light?
2).the height of the pole?
3).how many hours/night the light can work?
Second:
If you have no idea on the above question, we could design for you,
please inform us:
1). What’s the width of road?
2). What’s your request on the power of the light source?
The end:
Please choose your favorite model from our website or the catalogue.
What's the technical parameter of led solar street light?
Brife specification for 6m height 30w led solar street light
| Part Name & Lifespan | Technical Specification |
Solar Panel Lifespan: 20~25 years | 120W *1 Mono solar panel. High Efficiency. A-class Adding Aluminum Frame, Tempered Glass. |
Light source: High Power LED Lifespan: More than 50000-100000Hrs | 30w LED, White Color, 3000LM,5600K, IP65 High Power, High Brightness |
Intelligent Solar Controller Lifespan:5-10 years | 10A/12V, IP68. Automatic Light and Time Control Over-charging/discharging Protection Reverse-connection Protection Switch on Automatically with Light Sensor; Switch off after designed Hours later |
Gelled Battery Lifespan: 5~8 years | 120Ah/12V*1, Gelled battery, Sealed Type. Deep cycle. Maintenance Free |
Lamp Housing: Lifespan: More than 20 years | Die-casted Aluminum, IP65 High transmittance & Density toughened glass |
Pole: Lifespan: More than 20 years | 6M Height, Steel, Hot-Dip Galvanized. With Arm, Bracket, Flange, Fittings, Cable, Etc Resistant to Wind: ≥150KM/H, |
| Battery Box: | Engineering Plastic,Burying Type Battery |

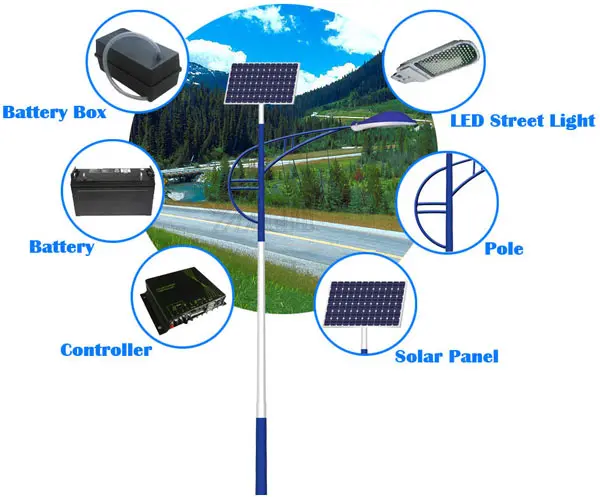

Components for led solar street light
Solar street lights consist of 5 main parts:

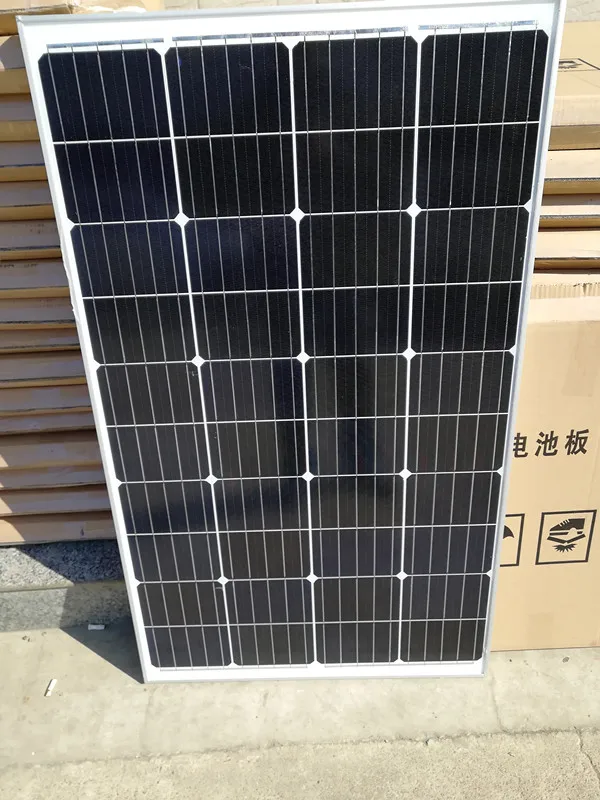

1. Solar Panel The solar panel is one of the most important parts of solar street lights, as the solar panel will convert solar energy into electricity. There are 2 types of solar panel: mono-crystalline and poly-crystalline. Conversion rate of mono-crystalline solar panel is much higher than poly-crystalline.Solar panel are varies from wattage systems.
2. Lighting Fixture . LED is usually used as lighting source of modern solar street light, as the LED will provide much higher Lumens with lower energy consumption. The energy consumption of LED fixture is at least 50% lower than HPS fixture which is widely used as lighting source in Traditional street lights. LEDs lack of warm up time also allows for use of motion detectors for additional efficiency gains.
3. Rechargeable Battery Battery will store the electricity from solar panel during the day and provide energy to the fixture during night. The life cycle of the battery is very important to the lifetime of the light and the capacity of the battery will affect the backup days of the lights. There are usually 2 types of batteries: Gel Cell Deep Cycle Battery and Lead Acid Battery and many more.

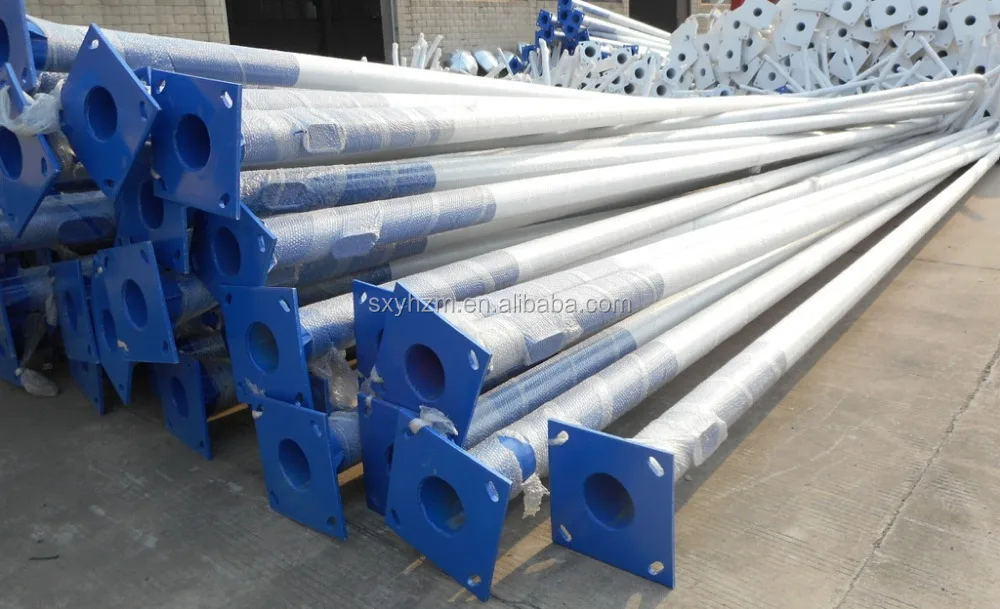

4. Pole Strong Poles are necessary to all street lights, especially to solar street lights as there are often components mounted on the top of the pole: fixtures, panels and sometimes batteries. However, in some newer designs, the PV panels and all electronics are integrated in the pole itself. Wind resistance is also a factor.

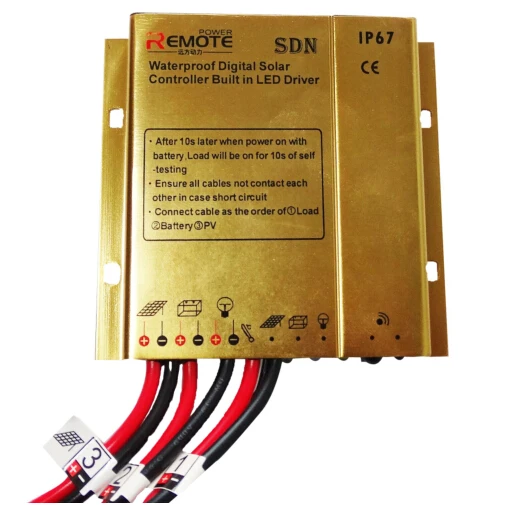

5.Soalr controller Intelligent Solar Controller description,Automatic Light & Time Controlling System;Switch on Automatically with Light Sensor; Switch off after designed Hours later
Work Principle for Led solar street light
1. LED solar street light relies on solar energy, which is clean, endless and environment-friendly.
2. The system is mainly composed of solar panel, light source, controller and battery.
3. In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. At night or rainy or cloudy condition, the battery shall supply power for normal lighting.
4. The controller can judge the brightness of daylight and automatically switch on the light.The whole process is operating in completely automatic mode, without human action.
Application for led solar street light
Packaging and Shipping for led solar street light

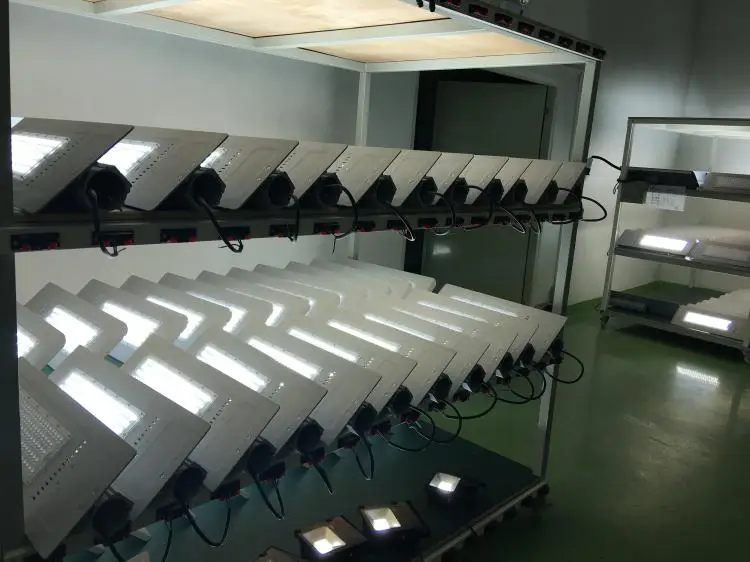

Our company and Certification
FAQ
FAQ
Q: You are a factory, trading company or a third party?
A: We are a factory / manufacturer for solar LED street light and LED lighting.
Q: Where is your factory located?
A: Our factory is located in Xi'an city in Shaanxi province.
Q: What is your minimum quantity for solar street light price, can you send me sample?
A: We are honored to offer you samples. Our minimum ordered quantity is 1 set
Q: How does your factory do regarding quality control?
A: Polar Lighting will always regard the quality for solar LED street light as the most important thing. As a supplier with ISO9001 ISO14001, TUV, CE, ROHS certificate, our solar street light price will go through around 30 tests before being sent.
Q: What’s the warranty of your LED lights?
A: We have the warranty of 3 or 5 years for our LED flood lighting.
