Yangtze China Top high efficiency panel solar in china FOB Shanghai Ningbo guangzhou tianjin yiwu qingdao
- Category: >>>
- Supplier: Hefei Yangtze Solar Power Co. Ltd.
Share on (60554871230):
Product Overview
Description
Product Description

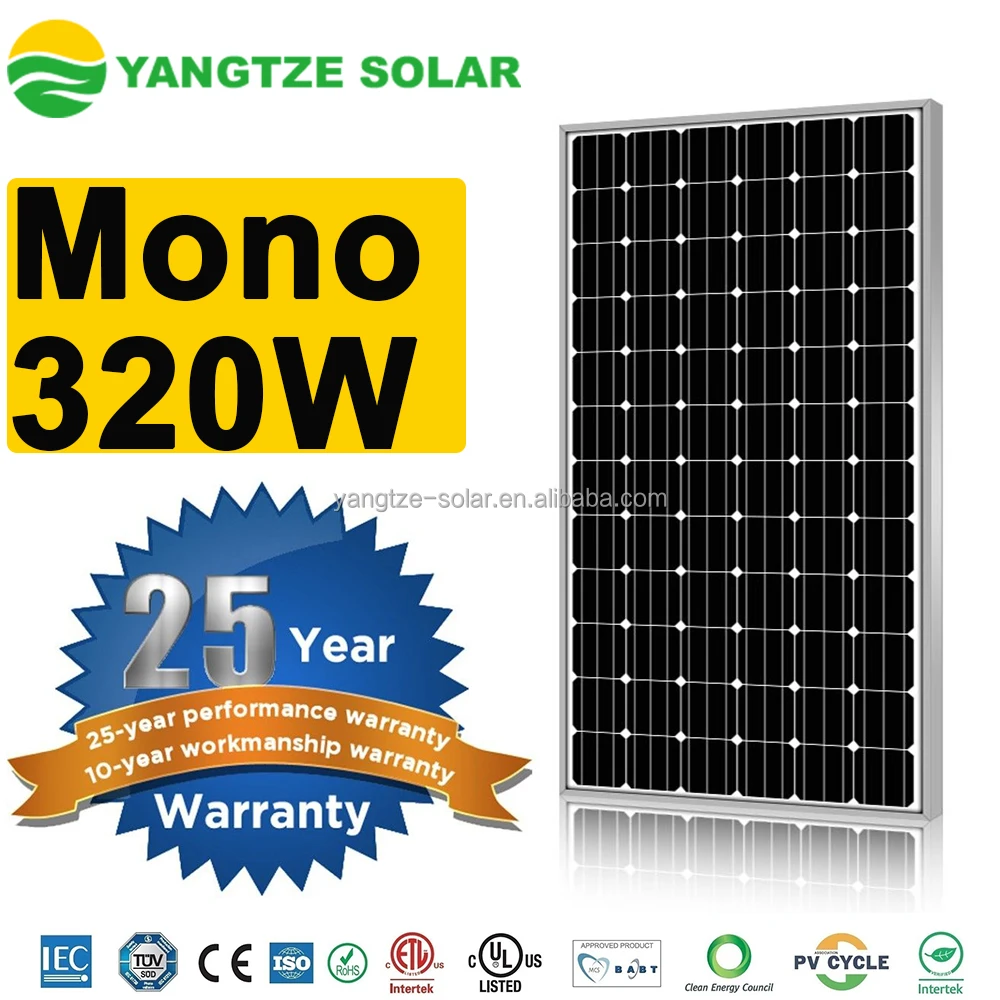

China Top high efficiency panel solar in china
| Model | YS290M-72 | YS300M-72 | YS305M-72 | YS310M-72 | YS315M-72 | YS320M-72 | YS325M-72 |
| Rated Maximum Power at STC | 290W | 300W | 305W | 310W | 315W | 320W | 325W |
| Maximum Power Voltage (Vmp) | 35.7V | 36.2V | 36.4V | 36.8V | 37.1V | 37.4V | 37.8V |
| Maximum Power Current (Imp) | 8.12A | 8.35A | 8.41A | 8.46A | 8.53A | 8.59A | 8.64A |
| Open Circuit Voltage ( Voc) | 44.7V | 45.2V | 45.5V | 45.9V | 46.1V | 46.4V | 46.6V |
| Short Circuit Current (Isc) | 8.65A | 8.77A | 8.81A | 8.85A | 8.92A | 8.98A | 9.03A |
| Module Efficiency | 15.02% | 15.54% | 15.79% | 16.05% | 16.31% | 16.57% | 16.83% |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | |||||||
| Mechanical Parameters | |||||||
| Cell Type | Mono-crystalline 156x156mm (6inch) | ||||||
| No. of Cells | 72 (6x12) | ||||||
| Dimension | 1956x990x40/45/50mm | ||||||
| Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | ||||||
| Junction Box | IP65&IP67 Rated | ||||||

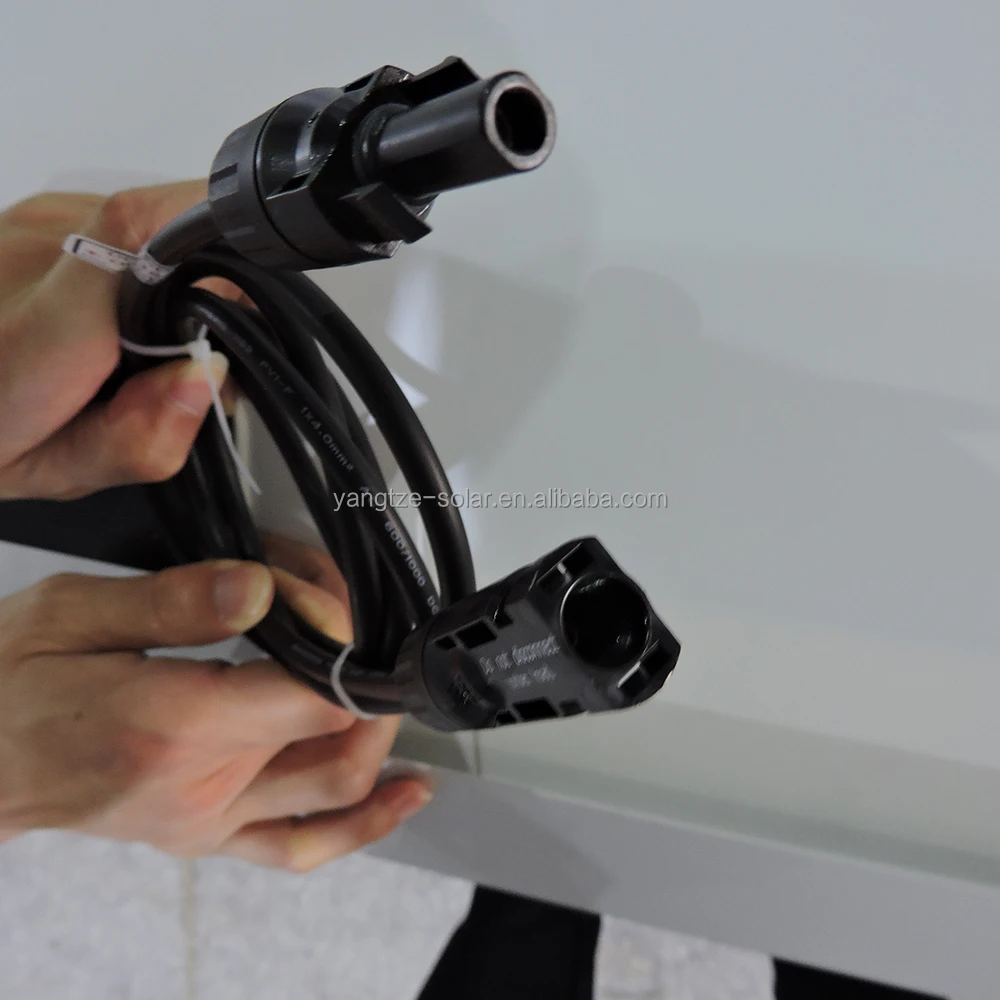

| Output Cable | Section Size: 4mm² , Length: 900mm | ||||||
| Frame | Anodized Aluminum Alloy | ||||||
| No. of Bypass Diodes | 3&6 | ||||||
| Connector | MC4 Compatible | ||||||
| Working Conditions | |||||||
| Maximum System Voltage | DC 1000V(IEC) / 1500V(IEC) / 600V(UL) | ||||||
| Operating Temperature | -40°c~+85°c | ||||||
| Maximum Series Fuse | 15A | ||||||
| NOCT | 45±2°c | ||||||
| Application Class | Class A | ||||||
| Temperature Coefficient | |||||||
| Temperature Coefficient of Pmax | -0.40%/°c | ||||||
| Temperature Coefficient of Voc | -0.30%/°c | ||||||
| Temperature Coefficient of Isc | +0.05%/°c | ||||||

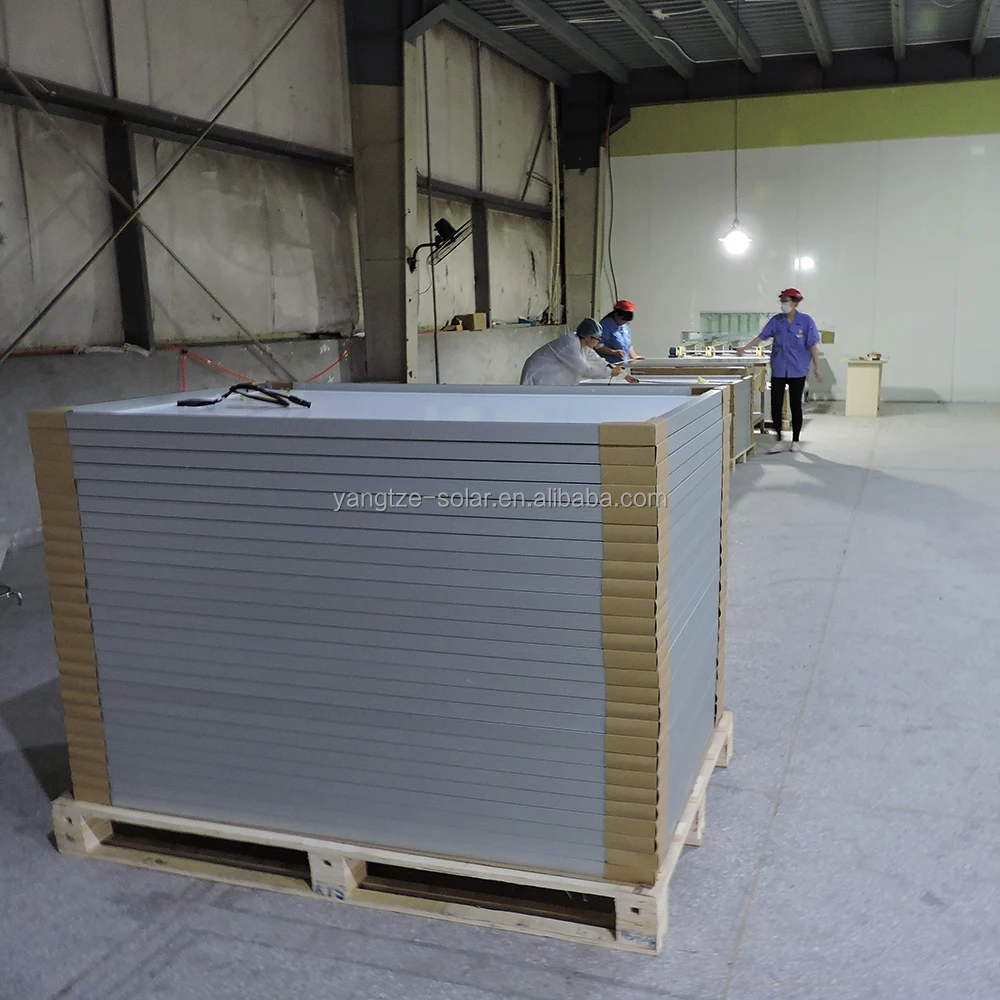

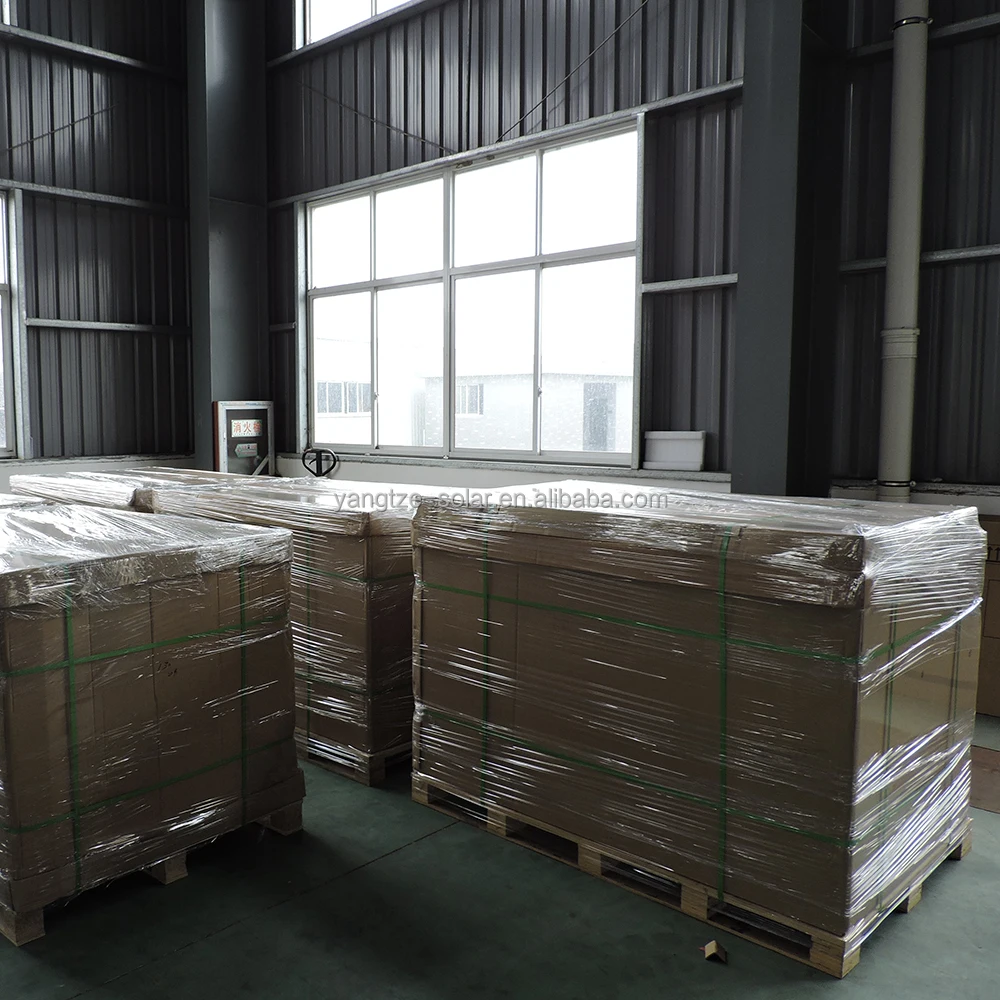

Packaging & Shipping

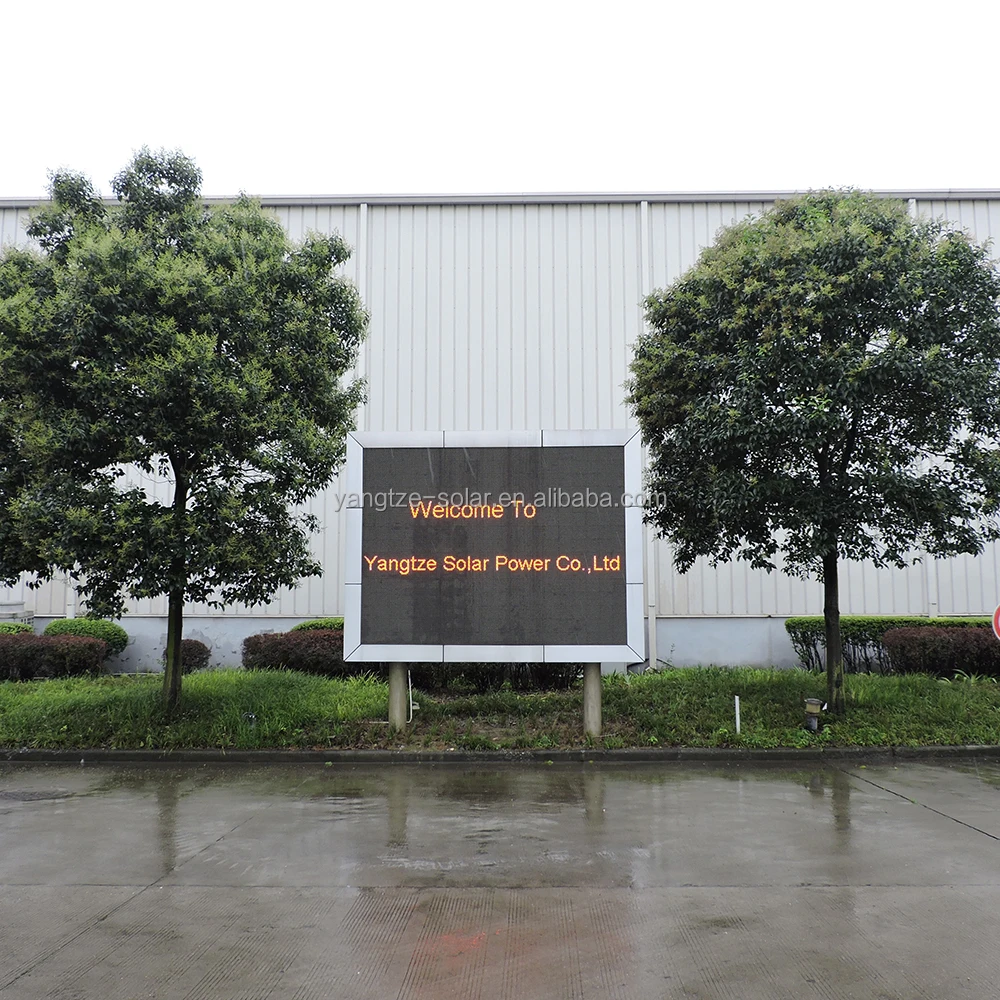

Company Information
♦ Founded in 1994 , 300MW solar panel production capacity , millions of battery, charge controller and inverter production capacity
♦ Three factories , solar panel factory , battery factory , solar charge controller and inverter factory
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) , CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
Battery Certificates
Related Products
You May be interested ! Please click the related products .
Mono 500w Mono 380w Mono 360w Poly 340w
LiFePO4 12V 200Ah LiFePO4 48V 200Ah Gel 12V 200Ah Gel 12V 250Ah
