vertical straight line Glass Edging Machine/ Glass Polishing Machine with PLC control

Product Overview

Description

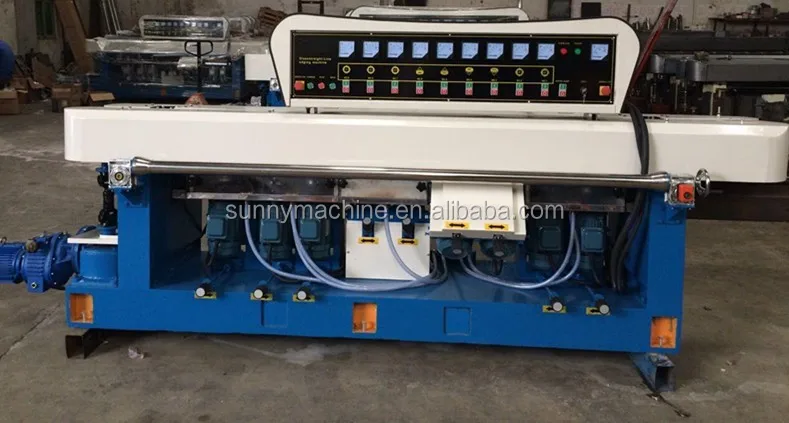

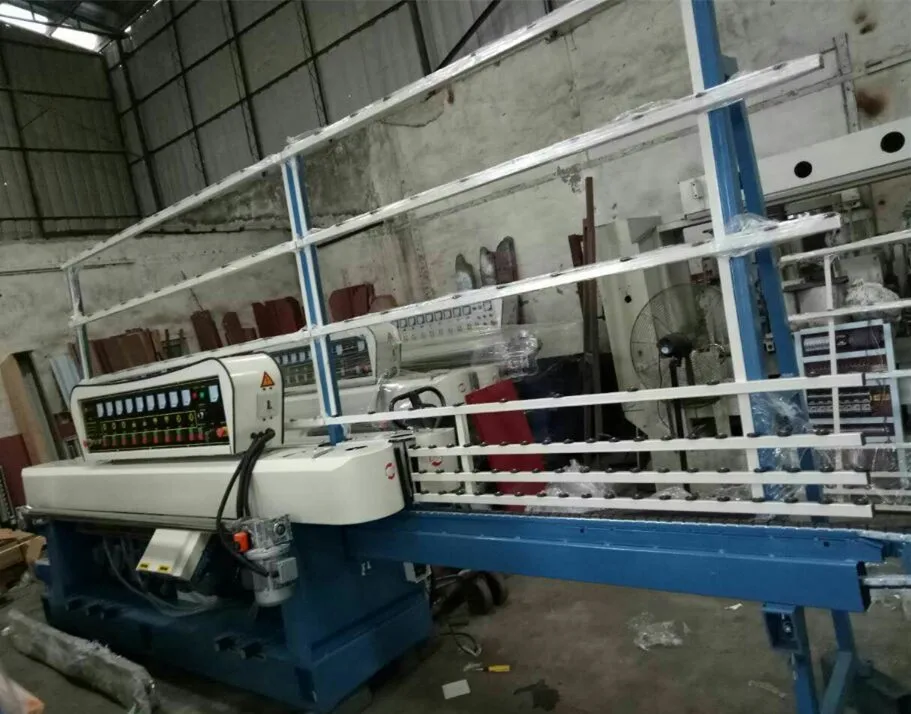

SZM9328 Vertical Straight-line Glass Edging Machine/ Glass Polishing Machine

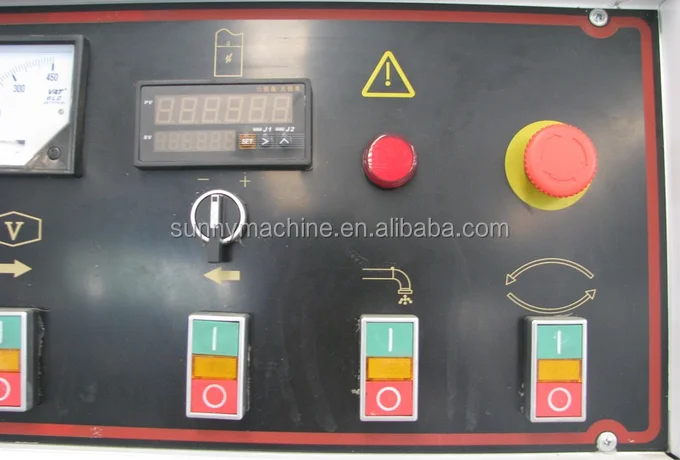

1.PLC and Digital Display are optional

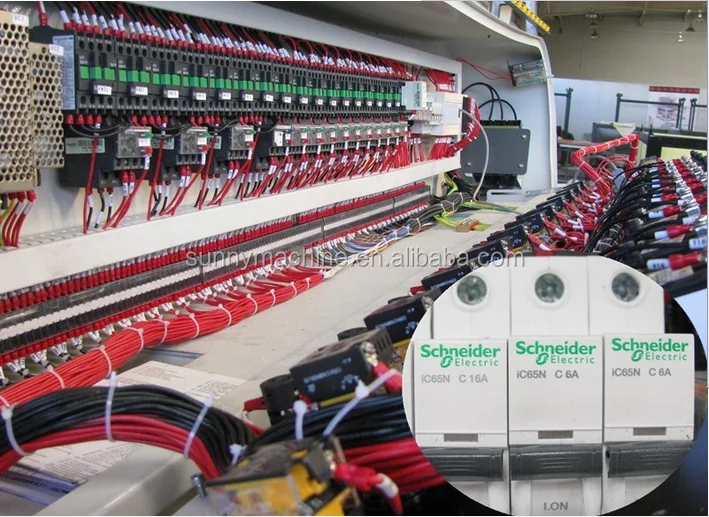

 2.SIMENS PLC control system, Schneider electical compents



 3.Variable Frequency motor for driving and the speed can be adjusted on touch screen.

4.The machine's base, beam and base of spindles are made of excellent cast iron and all the cast and steel parts are treated by tempering.

5.The input and output adopt Synchrounous rise and lower to make grindingvolume adjustment easy and convenient.





6.This machine isprofessional fro flat edging with 45 degree arrissing.Rough grinding, fine

grinding and polishing can be finished by one pass. The processing edge as shiny and bright as glass surface. It can polish ordinary flat glass and laminated glass.







Other machiness for  Vertical Insulating Glass Production Line

Model	Max.Glass Size	Min.Glass Size	Glass Thickness	Power	Weight	Dimension
LBZ2500	2500*3000mm	300*500mm	3-50mm	25Kw	8000Kg	22000*2000*3380mm
LBZ2200	2200*3000mm	300*500mm	3-50mm	25Kw	6500Kg	20000*2000*3000mm
LBZ2000	2000*2500mm	300*500mm	3-50mm	20Kw	6000Kg	14000*1680*2800mm
LBZ1800	1800*2500mm	300*500mm	3-50mm	20Kw	5000Kg	14000*1680*2600mm
LBZ1800G	1800*2500mm	300*500mm	3-50mm	12.8Kw	4800Kg	13500*1680*2600mm
LBZ1600	1600*2000mm	300*500mm	3-25mm	13.59Kw	4000Kg	12000*1250*2600mm



Above is the normallyed used size we produce, also we can make specially according to you requirements.



4. Remarks

Pkg: Each PC In Wooden Cases

Terms: Freight On Board (FOBQingdao)

From Qingdao, China To_______,

Delivery Time: During 30 Days After We Receive Your First Payment

Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and the rest 70% is effected while delivering the goods



5. Trademark: SUNNY



Guarantee & Aftersales service:



 1)Guarantee the complete machine for one year, except the consumable parts.



 2) 24hour technical support by email or calling.



 3) User-friendly english manual for machine using and maintaining.
