permanent magnetic alternator/PMA

Product Overview

Description

1.  Rare earth permanent magnetic for rotor.

2.  100%COPPER wire winding for stator.

3.  Brushless and easy maintaince.

4.  Digital inverter to insure stable voltage and frequency.

5.  High efficiency and can save 20% fuel than normal generator.

6. Also this new design CT alternator is more compact and it can help you to save sea freight.

7. Reliable quality, 100% warranty, variable speed but stable frequency and voltage.



Model	PM-10
Rated voltage	as to customer
Rated current	45(A)
Rated power	10(KW) at 2100rpm or other seed
Speed	1800-2100(R/M)
Freqyency	medium frequency
Stator	100% copper winding
Rotor	Rare earth permanent magnetic
GW	22.3(Kg)
NW	19.8(Kg)
Foot	232×108(MM)
Height of center	146(MM)
screw	M12
Axis dimeter	38(MM)
Packing	223×391×292(MM)
Marks	INVERTER is for optional

100% copper winding

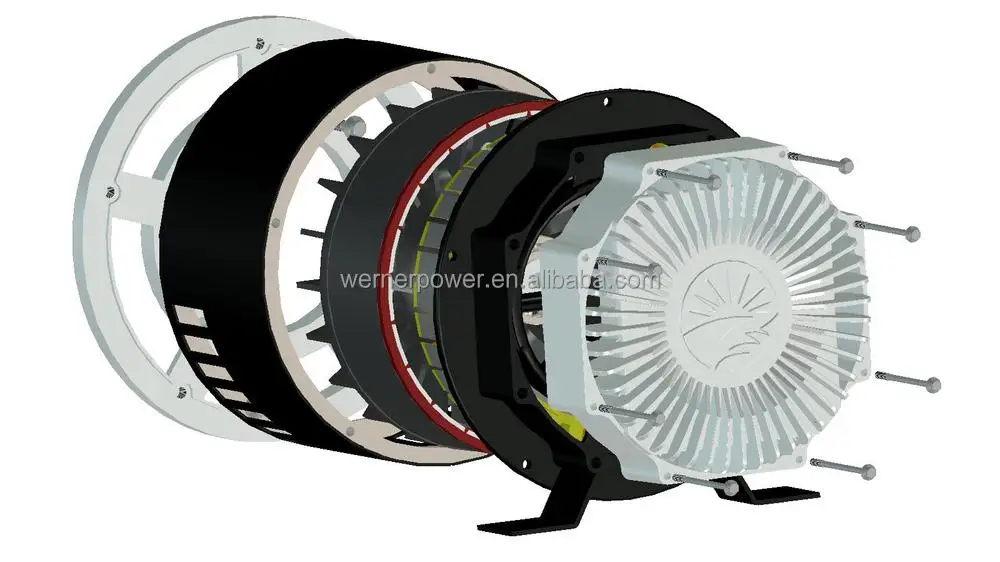

structure
