Auto Glass Tempering Furnace

Category: Glass Processing Machinery >>>
Supplier: Luoyang,Gangxin,Glass,Technology,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

GangXin Glass Processing Machinery/ Double Curved Bend Glass Tempering Furnace

Product Application

GX—SQ Series Double Curve Bending Glass Tempering Furnace is the new product of Gangxin Cooperation，mainly used in producing glass for back，side window and skylight windows，furniture，architectural decoration etc. All the double curve tempered glass is available.

\t Model	\t Thickness(mm)	\t Max size(mm)	\t Min glass radius(mm)	\t Max Glass Depth(mm)	\t Precision	\t Capacity (Batch/h)
\t GX-SQ1509	\t 3.5-6	\t 1500*900	\t 100	\t 120	\t ≤2	\t 48-50
\t GX-SQ1608	\t 3.5-6	\t 1600*800	\t 100	\t 120	\t ≤2	\t 48-50
\t GX-SQ1710	\t 4-6	\t 1700*1000	\t 100	\t 120	\t ≤3	\t 48-50
\t GX-SQ2010	\t 4-6	\t 2000*1000	\t 200	\t 100	\t ≤2	\t 48-50
\t GX-SQ2213	\t 5-6	\t 2200*1300	\t 300	\t 350	\t ≤2	\t 28-30

Main Features

1. Mold formed under high temperature accuracy and surface of glass is smooth and perfect.

2. Manufacturing of mold is simple and low costs, easy and convenient for changing mold.

3. Completely auto-control and self-checking, comfortable user interface, software for two positions and three positions production.

4. Powerful control system: Large capacity for parameters storage, modification parameters online, servo-control, quickly and exactly.

5. Advanced Quenching: Adjustable quenching section, which is convenient and avaiable for full range of glass types. which could be connected with hard rollers bending section or flat quenching section.

Certifications

Detailed Images

Machine Parts

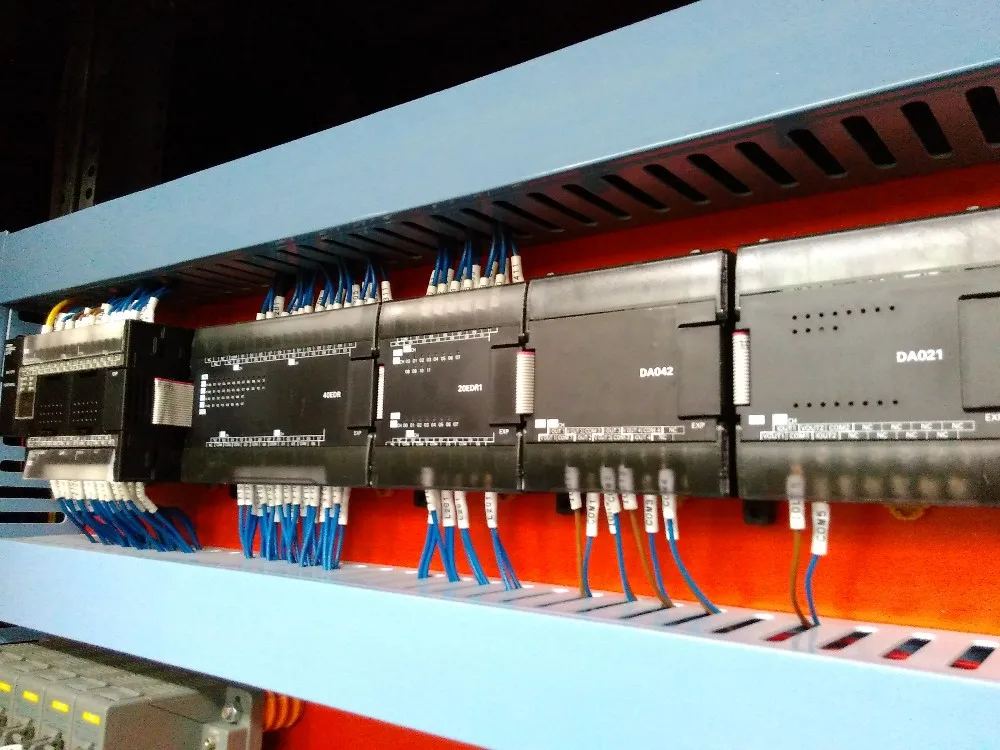

Name: PLC

Brand: Omron

Original: China

Main Features

Name: Ceramic roller
Brand: Vesuvius
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
