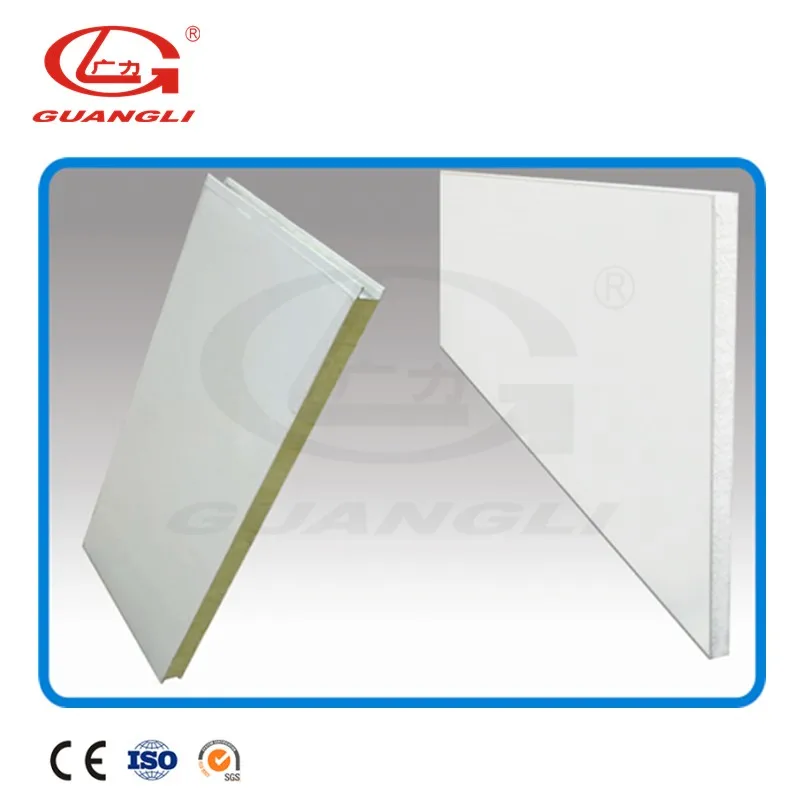

--Wall panel: sandwich style, δ=50mm, Polystyrene ,rock wool is optional.
--Door: 3 pcs of front door without aluminum side cover.
1pcs of emergency door with pressure lock.
--Exhaust fan: 1 unit of 5.5kw unilatcral centrifugal fan.
--Exhaust duct: 3m straight ducts, one 90° bend, and one 60° bend.
--Filtration: mounted at the rear wall panel.
--Roof filter: 2 pcs of filter, mounted above support frame,
which is made of steel and powder coated.
--Upper light: 8 sets, 4*40w per set.

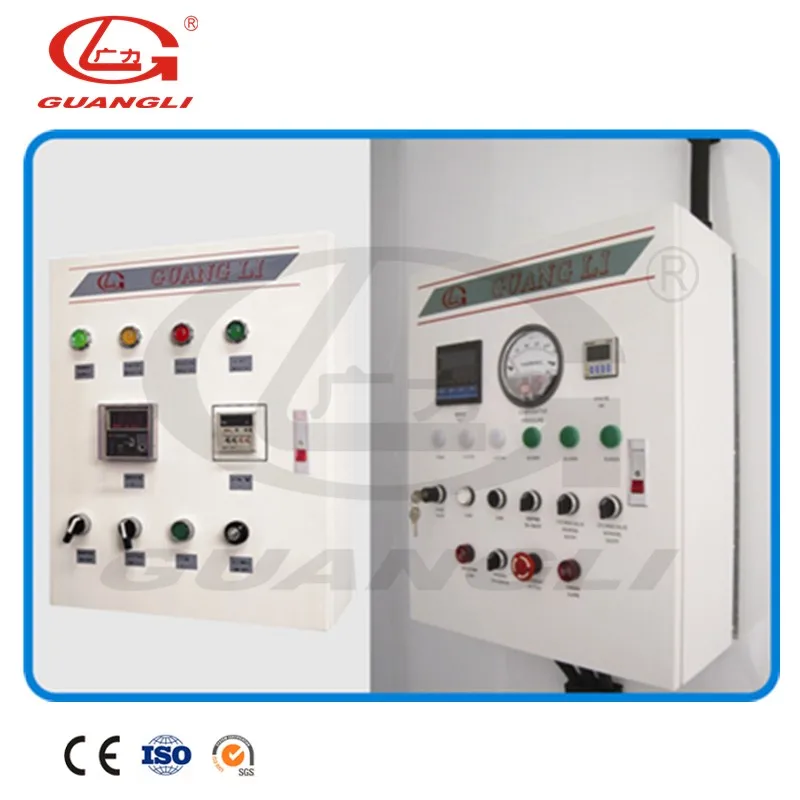

--Control box: components made in china, overload, overheat,
phase-lacking protection, straight driven motor.

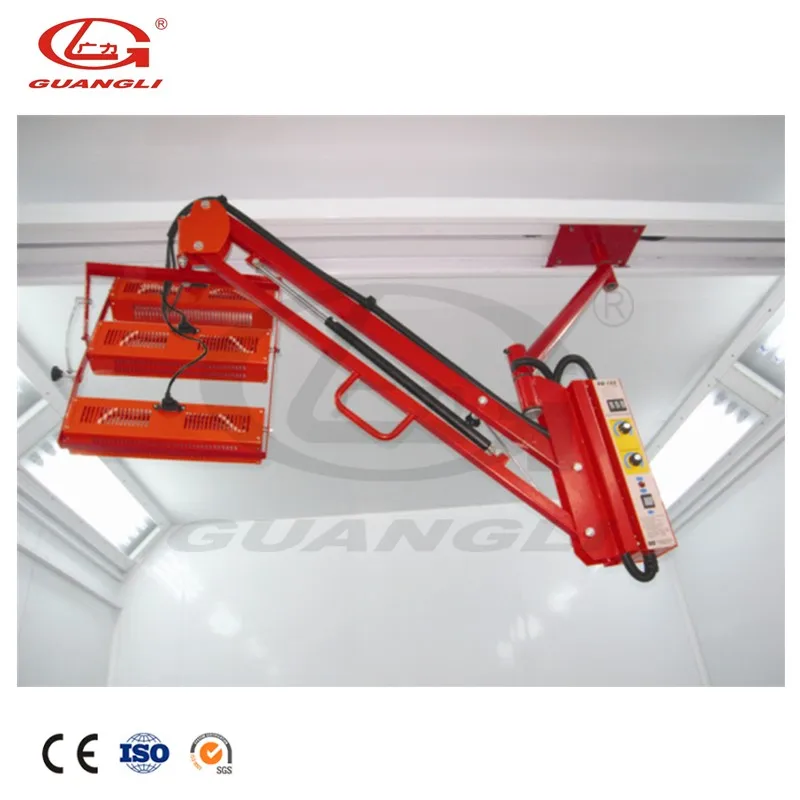

--Omni- directional movable infrared light as optional.
| Technical Specifications | GL1-CE |
| External size(m) | 8.1×4.0×3.2 |
| Internal size(m) | 6.9×3.9×2.7 |
| Door width(m) | 3.0 |
| Door height(m) | 2.66 |
| Air flow (m3/h) | 18000 |
| Inside on-load air speed(m/s) | 0.25-0.3 |
| Power (kw) | 7 |
| Vehical suited | Saloon car |

GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift manufacturer in China for more than 20 years technical and production experience.
Founded in 1994, Guangli started to build our own enterprise headquarters and new factory in 2005, which covers 58000M³of grounding area and 36000M³of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.
