12v mini 2 port reverse poe switch with 1 fiber sc uplink
- Category: >>>
- Supplier: Shenzhen Cc Tech Co. Ltd.
Share on (60555680225):
Product Overview
Description
Product Description

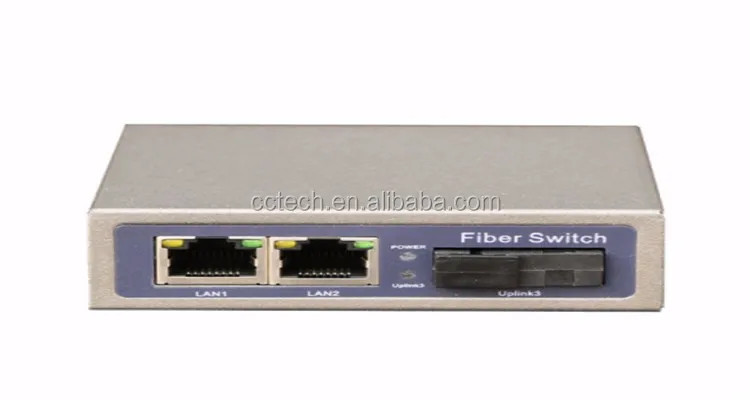

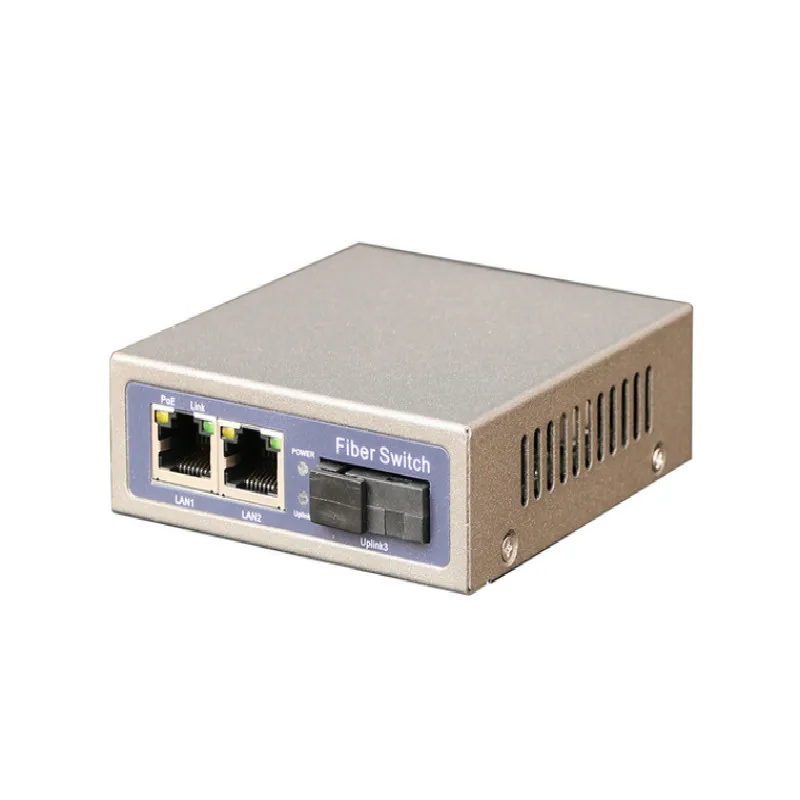

12v mini 2 port reverse poe switch with 1 fiber sc uplink

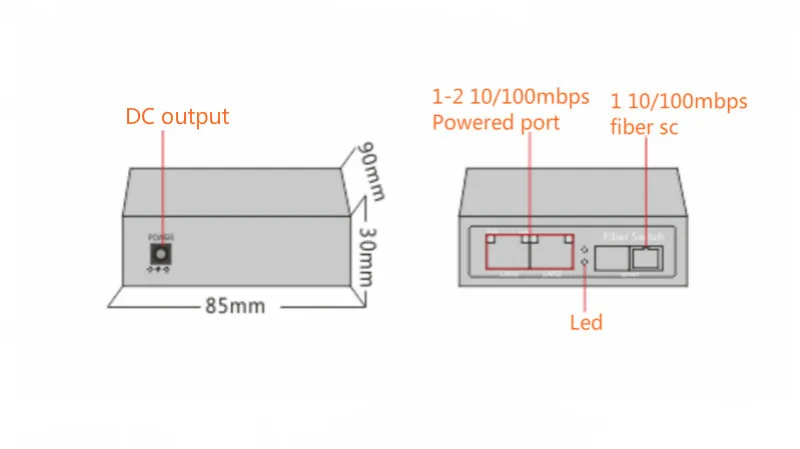

SW-03GMFG is a high quality mini 2 port reverse POE switch.It provides 2 10/100mbps auto-sensing rj45 reverse POE PD ports,powered pin support both 12+/36- and 45+/78-,12-57v passive POE in.DC output 12v(2a max).
In addition,there is a 100mbps fiber sc port,extending network distance efficiently.

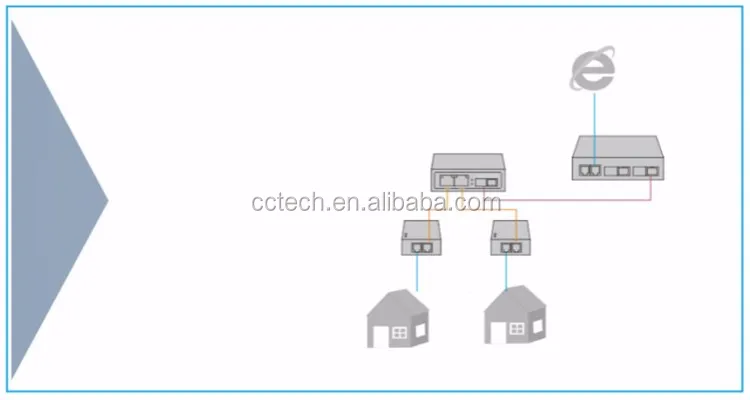

It's widely used to for ISP ONU deployment project.
Features
1,2FE powered POE+1FE Fiber sc.
2,Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3x.
3,Flow Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
4,Auto MDI/MDIX.
5,Upstream port lightning protection.
6,POE in 12-57V passive POE
7,Store-and-forward.
8,All ports support wire speed store-and-forward, jumbo frame transmission.
9,Unmanaged,no need configuration
10,LED indicators monitor working status,supporting simple trouble shooting
11,desktop/wall-mounted metal housing case

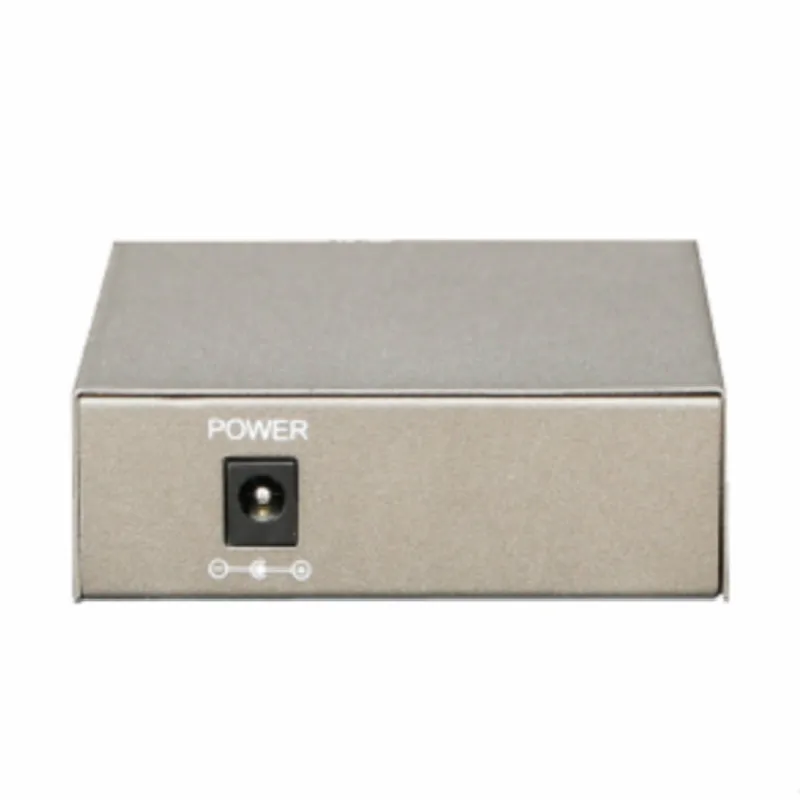

12,DC output 12v 2a(max)
It's widely used to for ISP ONU deployment project.
Features
1,2FE powered POE+1FE Fiber sc.
2,Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3x.
3,Flow Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
4,Auto MDI/MDIX.
5,Upstream port lightning protection.
6,POE in 12-57V passive POE
7,Store-and-forward.
8,All ports support wire speed store-and-forward, jumbo frame transmission.
9,Unmanaged,no need configuration
10,LED indicators monitor working status,supporting simple trouble shooting
11,desktop/wall-mounted metal housing case
12,DC output 12v 2a(max)
