ISP 159 Pneumatic Pipe Chamfering Machine Pipe End Deburring Machine
ISP-159 Pneumatic Pipe Chamfering Machine Pipe End Deburring Machine
ISP-159 Pneumatic Pipe Chamfering Machine Pipe End Deburring Machine
ISP-159 Pneumatic Pipe Chamfering Machine Pipe End Deburring Machine
ISP-159 Pneumatic Pipe Chamfering Machine Pipe End Deburring Machine
ISP-159 Pneumatic Pipe Chamfering Machine Pipe End Deburring Machine
ISP-159 Pneumatic Pipe Chamfering Machine Pipe End Deburring Machine

ISP 159 Pneumatic Pipe Chamfering Machine Pipe End Deburring Machine

Share on (60555784215):


Price:

Quantity:


Product Overview

Description


 Product Name:

ISP-159 Pneumatic Pipe Chamfering Machine Pipe End Deburring Machine

Product Description



Products Description for Portable Pipe Beveling Machine With Pneumatic Driven





ISP Series is ID-Mounted pipe beveling machine. With the advantages: Easy operation, Light Weight, Adraw nut is tightened, Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. It's can work with various material pipe, beveling angle as per your required. This machine could driven by both Electric and Pneumatic.



 Below Technical Specifications for Pneumatic Type stainless steel tube polishing Machine :

ModelWorking Range (ID-OD)Wall ThicknessRotation SpeedAir pressureAir Consumption
ISP-30Φ18-301/2''-3/4''≤1560r/min0.6MPa900 L/min
ISP--80Φ28-891''-3''≤1550r/min0.6MPa900 L/min
ISP--120Φ40-1201 1/4''-4''≤1538r/min0.6MPa900 L/min
ISP--159Φ65-1592 1/2''-5''≤2035r/min0.6MPa1000 L/min
ISP--252-1Φ80-2733''-10''≤2016r/min0.6MPa1000 L/min
ISP--252-2Φ80-273≤7516r/min0.6MPa1000 L/min
ISP--352-1Φ150-3566''-14''≤2014r/min0.6MPa1200 L/min
ISP--352-2Φ150-356≤7514r/min0.6MPa1200 L/min
ISP--426-1Φ273-42610''-16''≤2012r/min0.7MPa1500 L/min
ISP--426-2Φ273-426≤7512r/min0.7MPa1500 L/min
ISP--630-1Φ300-63012''-24''≤2010r/min0.7MPa1500 L/min
ISP--630-2Φ300-630≤7510r/min0.7MPa1500 L/min
ISP--850-1Φ490-85024''-34''≤209r/min0.7MPa1500 L/min
ISP--850-2Φ490-850≤759r/min0.7MPa1500 L/min

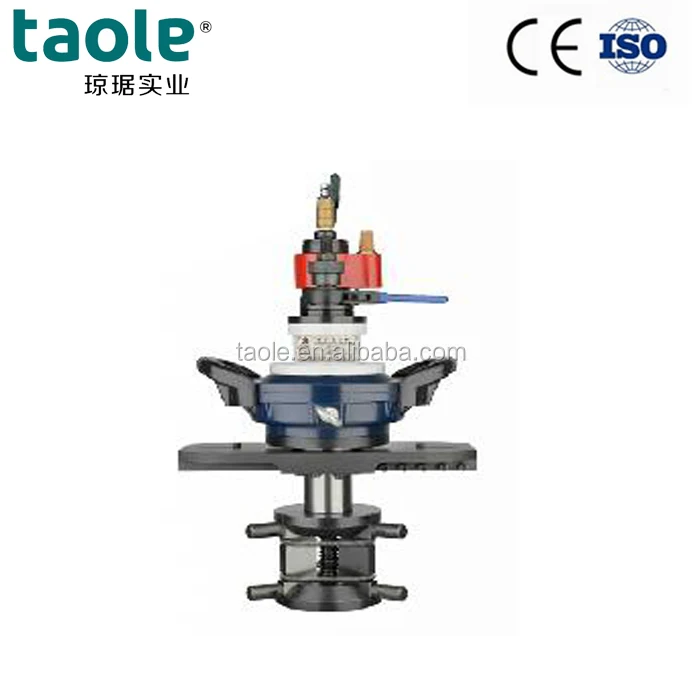

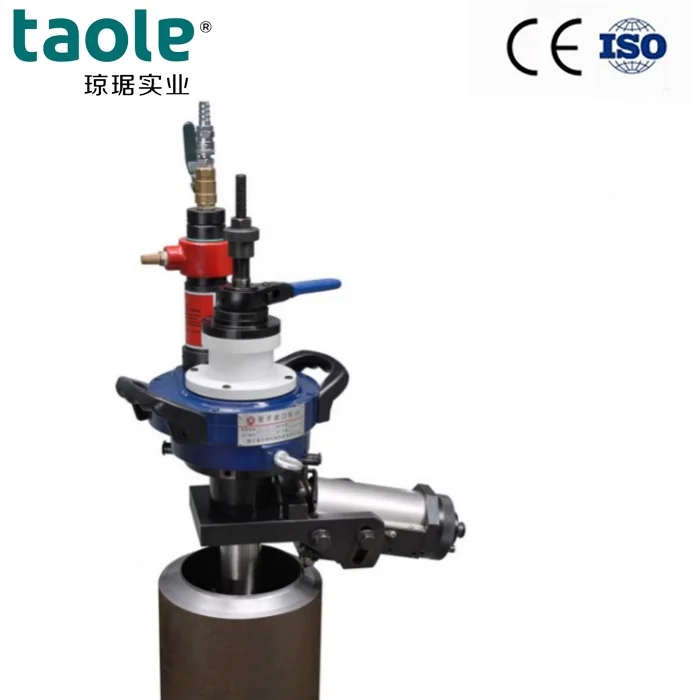

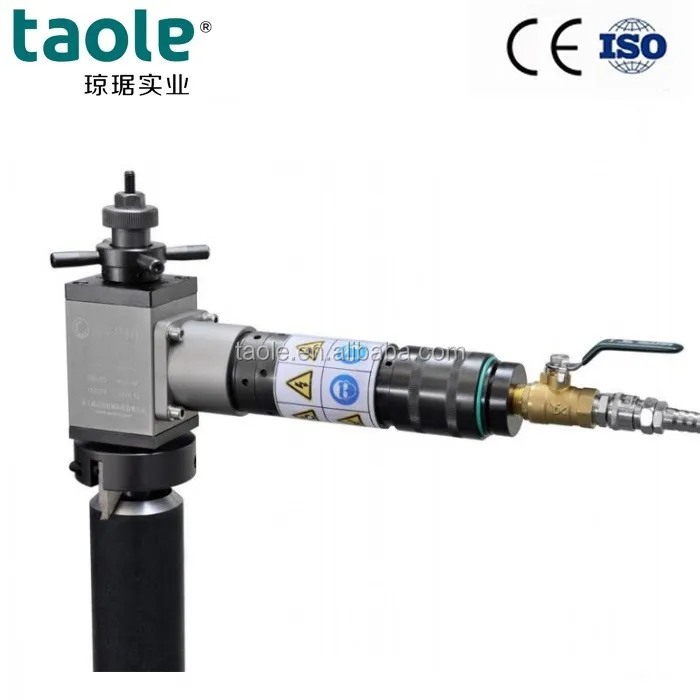

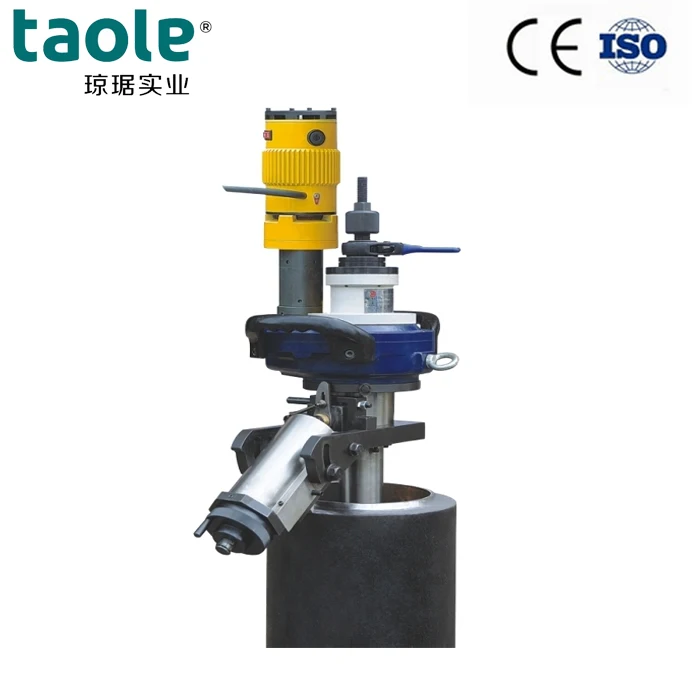

 Real Pictures:

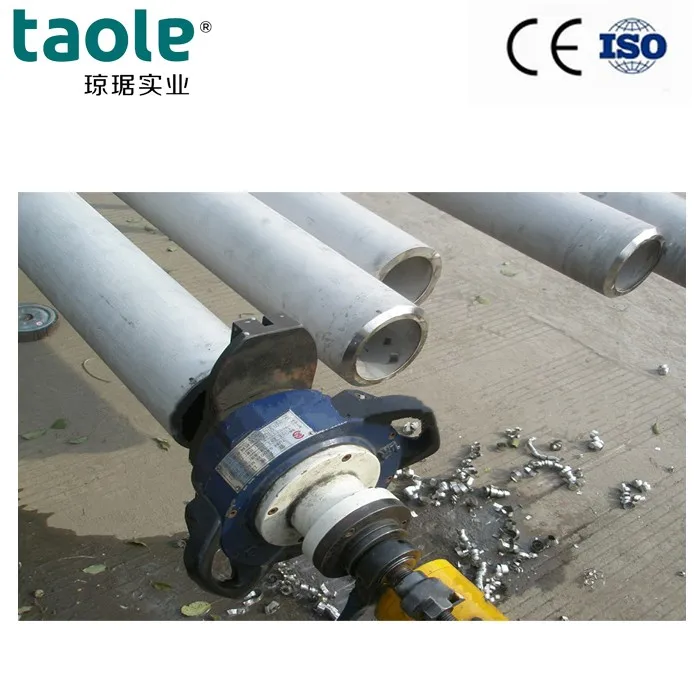

Processing Reference from Customer Site:

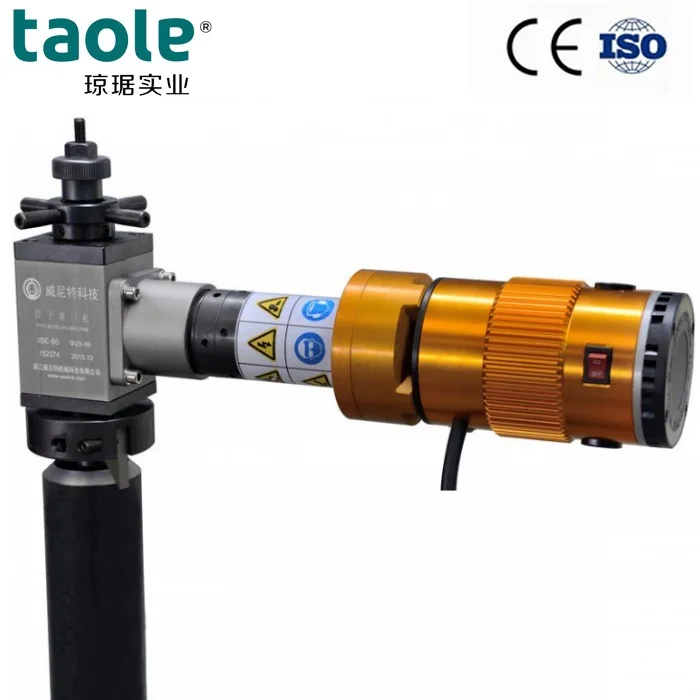

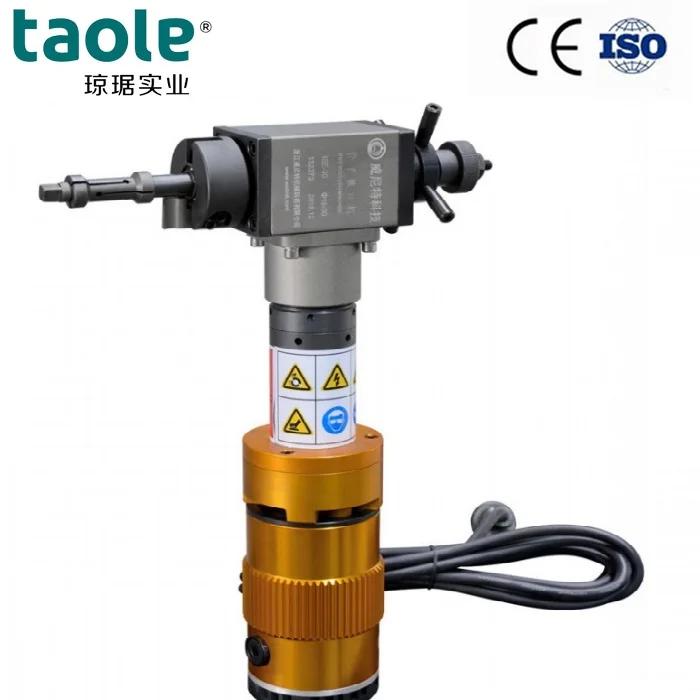

Note: Below link for anther type machine available driven by Electric / Pneumatic/ Hydraulic)
