aluminum mechanical accelerator pedal gas pedal

Product Overview

Description

[Model TCF11 Floor Mounted Pedal]

Description:                            Applications:                              Features:

TCF Series Electronic                • Trucks                                         • Unique non-contact sensor
Floor Mounted                            • Buses                                          • Simple and robust
Industrial Pedal Foot Control      • Construction Equipment             • Small angular movement to
                                                    • Farm Equipment                             give full range of output
                                                    • Material Handling Equipment     • Compatible with all
                                                                                                            popular electronic engine
                                                                                                             management systems
                                                                                                           • Designed to meet specific
                                                                                                              customer requirements


[Foot Control Industrial]

Our electronic foot pedals are designed primarily for the control of modern diesel and gasoline powered vehicles having sophisticated electronic managements systems. The versatility of their design also makes them well suited for controlling electric vehicles and modern hydraulic systems.
The electronic accelerator pedals is based around a unique non-contact angular displacement sensor. This innovative sensor design has resulted in development of simple and reliable pedal assemblies that can be easily incorporated into virtually any type of vehicle. The sensor is available with a wide range of different signal outputs and is compatible with most electronic engine management systems in use today.

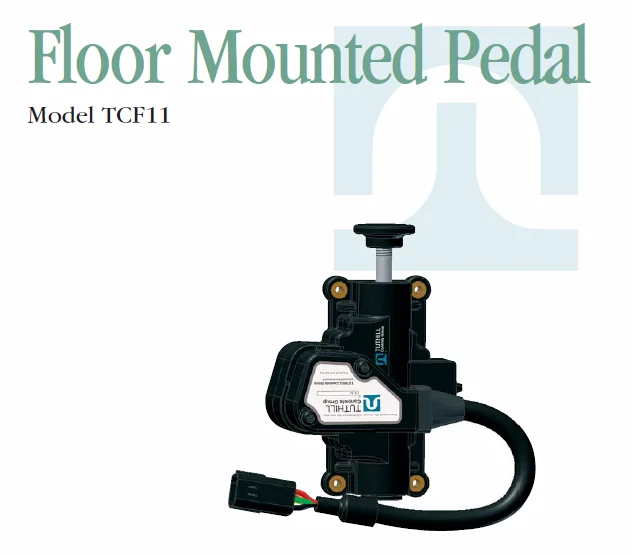

[Floor Mounted Pedal]

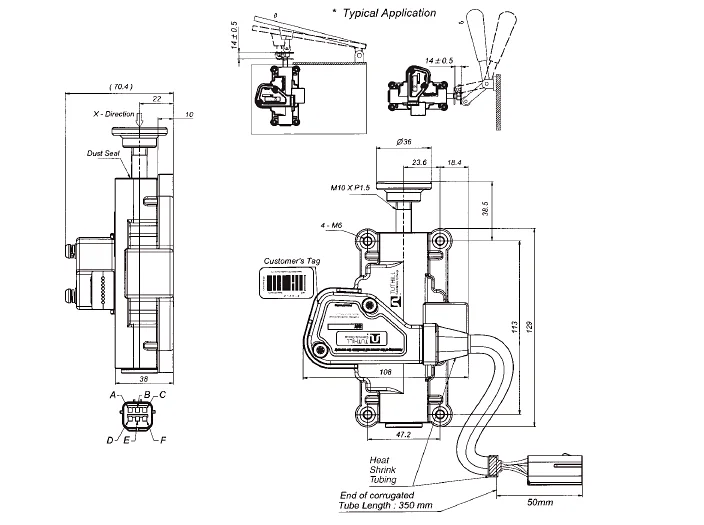

Model TCF11





           All dimensions are in millimeters



[Our Services]
If you are interested in our products,please tell us which model,quality you want to order.
A performa invoice will be made for your order.
We will deliver the product ASAP when we receive your payment.

Please contact us without hesitation, we are pleased to welcome to you!!!
