HFSecurity HF A5 5 inch Touch Screen Biometric Access Control Fingerprint Attendance Machine Free sdk
- Category: Fingerprint Attendance >>>
- Supplier: Chongqing Huifan Technology Co. Ltd.
Share on (60556346721):
Product Overview
Description
Product Introduction

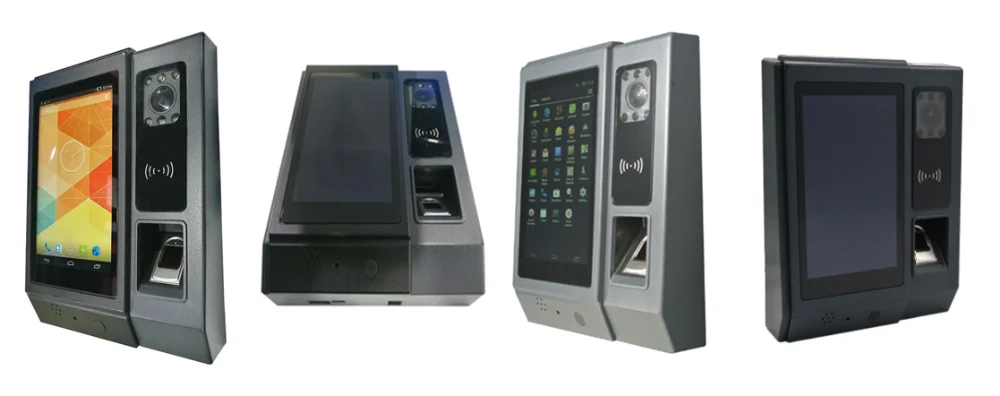

HF A5 5 inch Touch Screen Biometric Access Control Fingerprint Attendance Machine
Specification
HF-A5 is one of best selling Android time attendance and access control device in HFSecurity. 5" touch screen, communication by Ethernet, 3G,WIFI and bluetooth, with fingerprint and RFID card recognition. You can check real time data in software, also we will offer free SDK for further development and 3rd part access control door lock function. It's widely use for company, government, banking, education, etc
Futures:
● Android 6.0 embedded operating system.
● Capacitance fingerprint scanner, Support TrueSafe fingerprint identification.
● Communication with GPRS/GSM, 3G,EDGE, WIFI, Bluetooth. Optional 4G
● Read Type A/B NFC standard card
● 2.0 mega pixels professional camera for face recognition

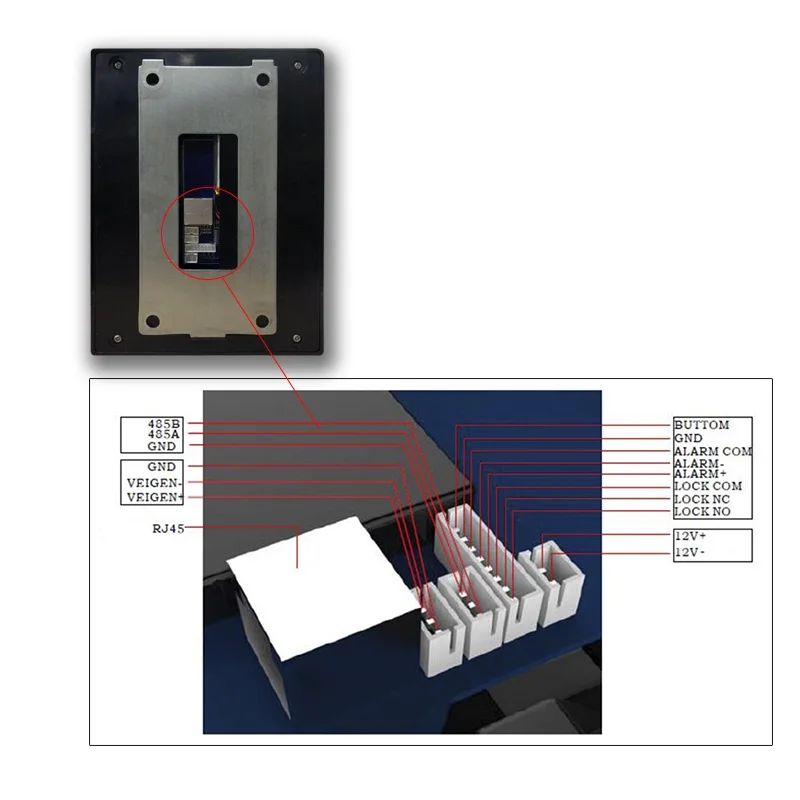

● 3rd party access control function
● Capacitance fingerprint scanner, Support TrueSafe fingerprint identification.
● Communication with GPRS/GSM, 3G,EDGE, WIFI, Bluetooth. Optional 4G
● Read Type A/B NFC standard card
● 2.0 mega pixels professional camera for face recognition
● 3rd party access control function
Hardware | ||

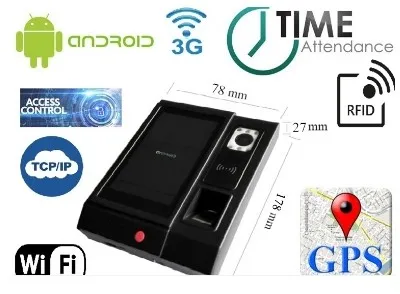

Device Dimension | 175(L)×78(W)×27(H)(mm) | |
RAM/ROM | 1GB / 8GB | |
Storage Capacity | 8G can add 32GB SD card | |
WIFI/Bluetooth | Yes | |
TCP/IP | Yes, also support POE ( Power over Ethernet） | |
GPS | support for A-GPS | |
Bar-code | Support one-dimensional, two-dimensional bar code (optional) | |
RFID Card | Supports 125KHZ ID card, and 13.56MHZ Mifare/NFC Card | |
Front Camera | 2.0 Mega ( Infrared Camera can be developed as face recognition） | |
Screen | 5.0 inches, 1280*720; Optional protection screen glass | |
OTA function | Support ( Can update firmware & app remotely via OTA function ) | |
Battery | Lithium-polymer battery 4000mah, 3.7v | |
Operating temperature range | -20 ° C to + 70 ° C | |
Operating Humidity | 0-95% | |
Working humidity | 0-95% | |
Certification | CE, ISO9001, GSM TAC certificated | |

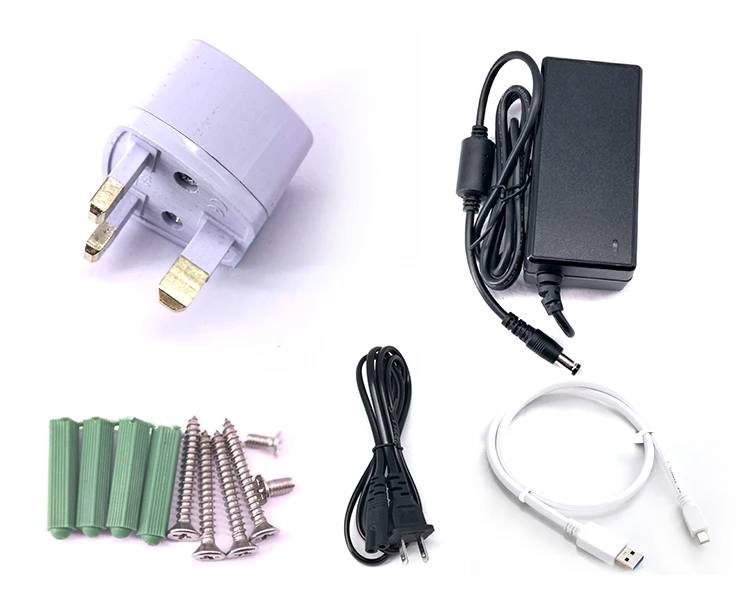

Package Accessories | Device bag, Screw driver, adapter, USB cable | |
Software | ||
OS | Standard Android 6.0 | |
Processor | Quad-core 1.5GHz | |
SDK | For free, come with sample package | |
Time Attendance & Access Control | Support with demo software | |
Extra support | Launcher APP for free ( Only allow to use the specific app, user cannot access other settings/apps on devices) | |
ODM logo | ||

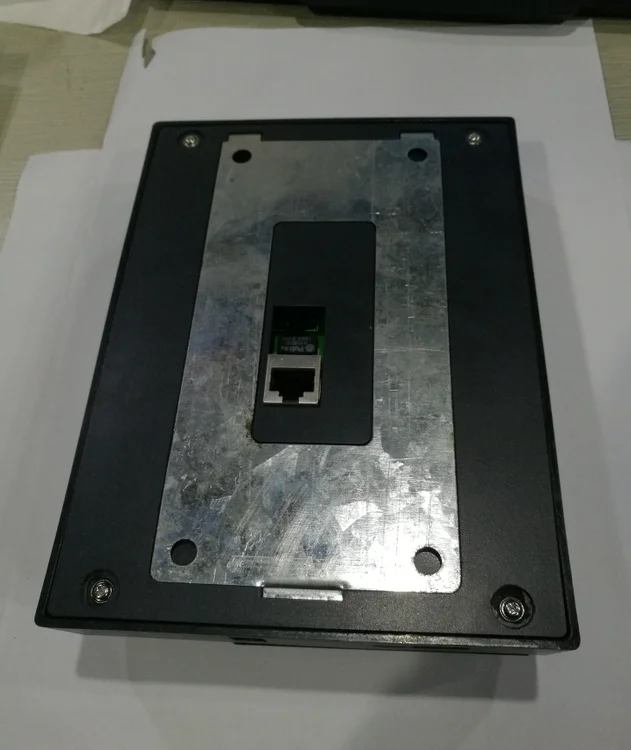

Can optional wall-mounted metal box | ||
Fingerprint Sensor | ||
Image Size | 256 * 288 pixel | |
Image Resolution | 500DPI | |
Image Standard | BMP, JPG, WSQ | |
Fingerprint Standard | Support ISO 19794-2 & ANSI378 template standard | |
Communication | ||
2G: GSM CDMA 850/900/1800/1900 MHz; | ||
3G: WCDMA 2100/1900/900/850MHz ( Can do customization according to clients country details) | ||
WIFI/Bluetooth | Yes | |
TCP/IP | Ethernet (TCP/IP) connection | |

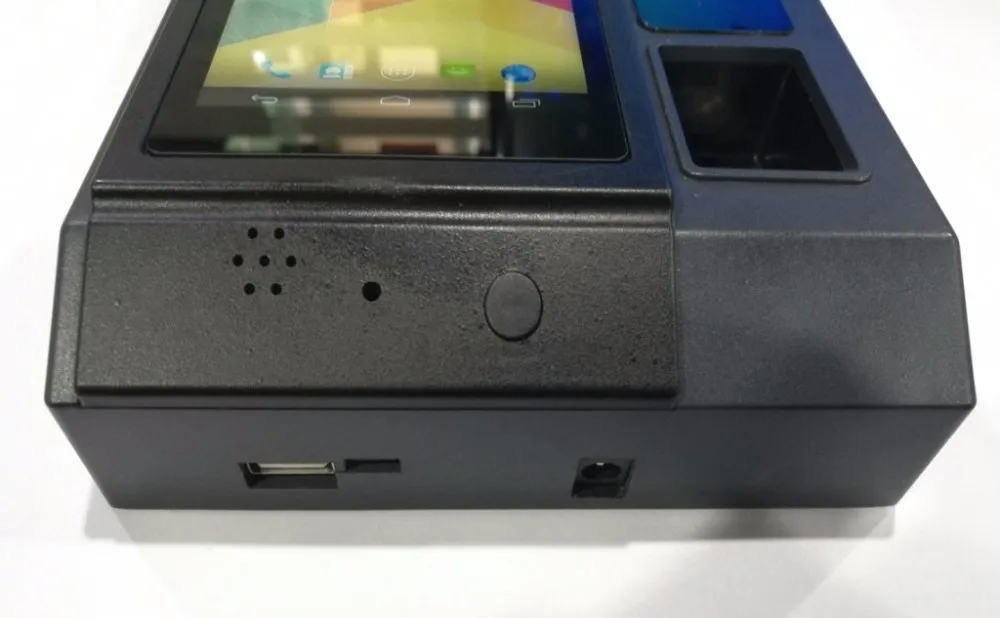

Pictures

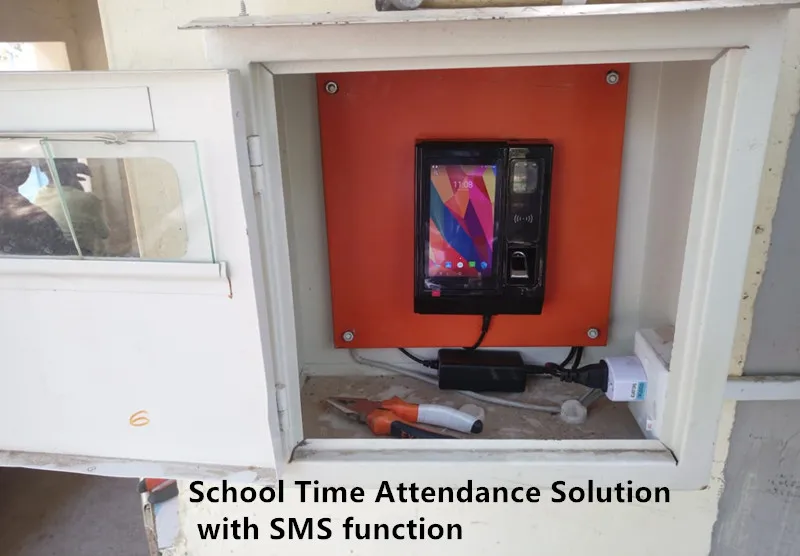

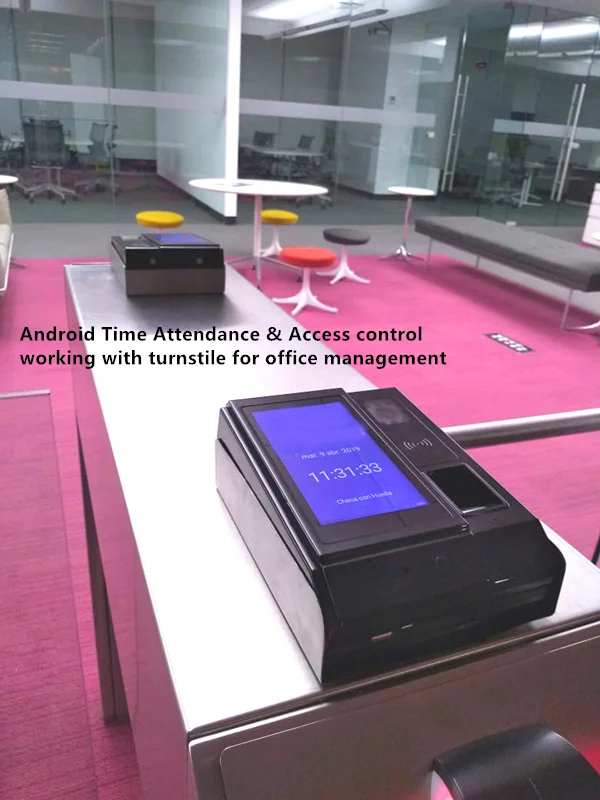

Applications
Software

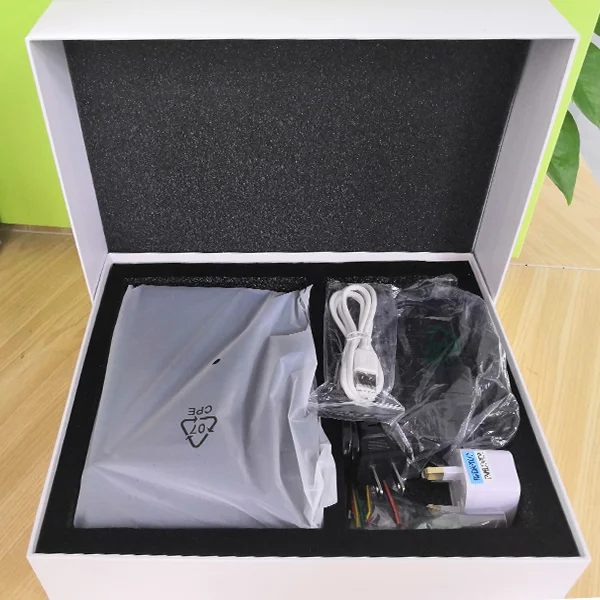

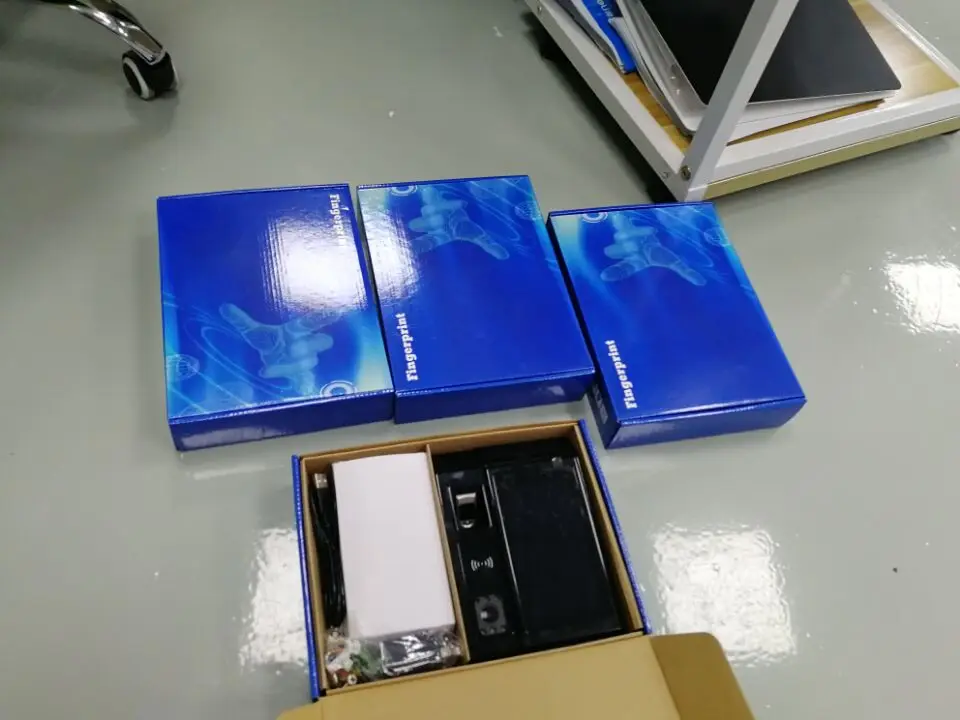

Package
FAQ
F:Do you offer warranty for the device?
Q:Yes,we offer one year warranty,also life soan technical support
F:What is your MOQ of this fingerprint attendance system?
Q:MOQ is 1pcs
F:What is your payment term?Q:Paypal,T/T(Bank Transfer),Western
Union,Cash,Visa and Credit Card
Union,Cash,Visa and Credit Card
F:How to get software and SDK?
Q:Software and SDK is free.Will send download link after you place order.
