High accuracy alloy steel hydraulic circle hole punch and shearing machine
- Category: >>>
- Supplier: Maanshan Gilde CNC Machine Tool Co. Ltd.
Share on (60556683496):
Product Overview
Description
Product Description
High accuracy alloy steel hydraulic circle hole punch and shearing machine
Video of the machine:
Function of iron worker:
Parameter:
Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 |
Punching Pressure(T) | 60 | 90 | 115 | 145 | 200 |
Max cutting thickness(mm) | 16 | 20 | 25 | 30 | 40 |
Plate strength(N/mm²) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
Angle of shear(°) | 7 | 8 | 8 | 8 | 8 |
Shearing size of one stroke(mm) | 16x250 8x400 | 20x330 10x480 | 25x330 16x600 | 30x335 20x600 | 40x335 30x600 |
Ram stroke(mm) | 80 | 80 | 80 | 80 | 100 |
Stroke times(per min) | 12-28 | 18-30 | 9-18 | 8-16 | 8-16 |
Throat depth(mm) | 300 | 355 | 400 | 600 | 600 |
Punch depth(mm) | 16 | 20 | 25 | 28 | 30 |
Max punching diameter(mm) | 25 | 30 | 35 | 38 | 40 |
Main power(kw) | 7.5 | 7.5 | 7.5 | 11 | 18.5 |
Overall dimensions(L*W*H)(mm) | 1700x750x1800 | 1950x900x1950 | 2355x960x2090 | 2800x1100 x2500 | 2800x1100x2500 |
Weight(kg) | 1800 | 2200 | 4800 | 6200 | 9200 |
| Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | |
Round bar | 45 | 50 | 60 | 65 | 70 | |
Square bar | 40x40 | 50x50 | 50x50 | 55x55 | 60x60 | |
Equal angle | 90°shearing | 125x125x12 | 140x140x12 | 160x160x14 | 180x180x16 | 200x200x18 |
| 45°shearing | 70x70x8 | 70x70x10 | 80x80x7 | 80x80x10 | 80x80x10 |
T-Bar | 90°shearing | 120x120x12 | 140x70x12 | 160x160x14 | 180x180x16 | 200x200x18 |
| 45°shearing | 60x60x8 | 70x70x10 | 80x80x10 | 80x80x10 | 80x80x10 |
I-Bar | 126x74x5 | 200x102x9 | 200x102x9 | 280x124x10.5 | 280x124x10.5 | |
Channel | 126x53x5.5 | 160x60x6.5 | 200x75x9 | 280x86x11.5 | 300x89x11.5 | |

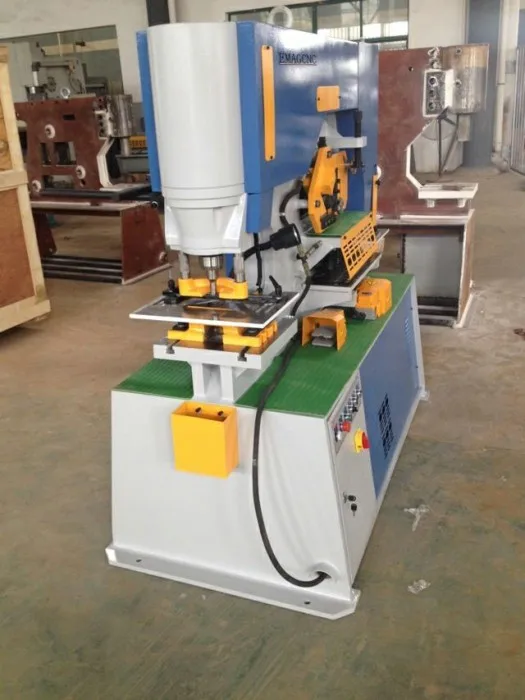

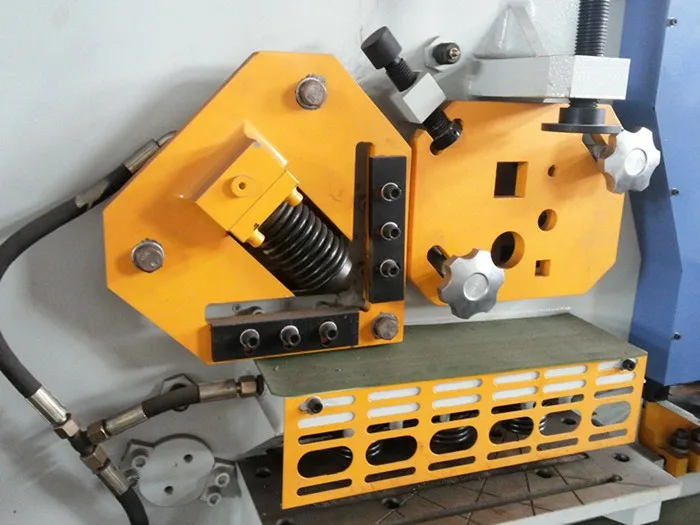

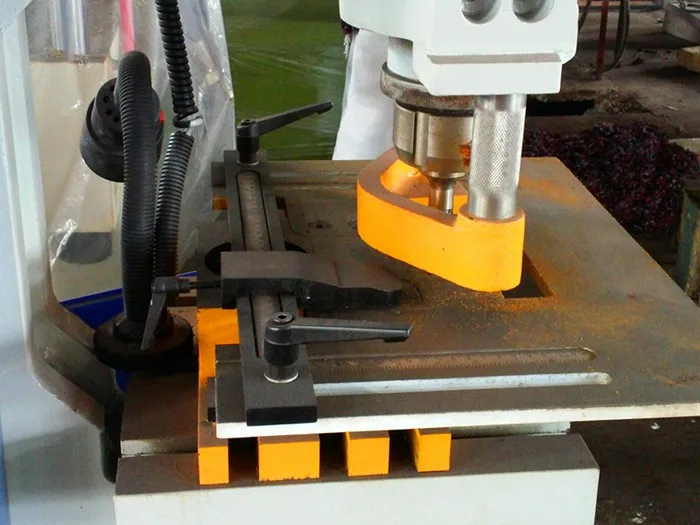

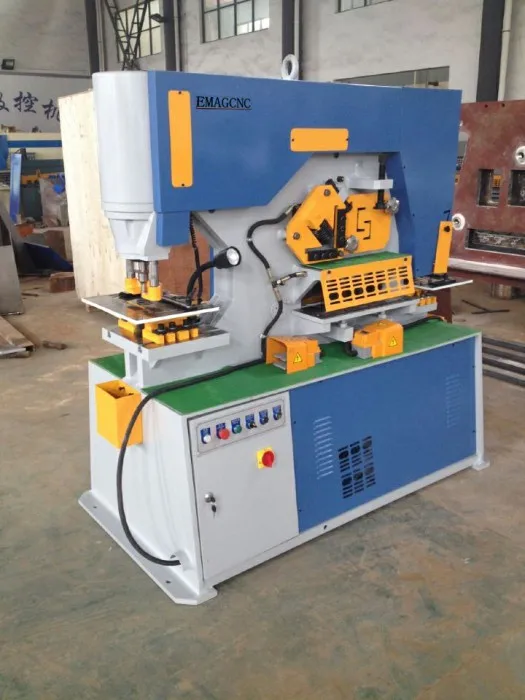

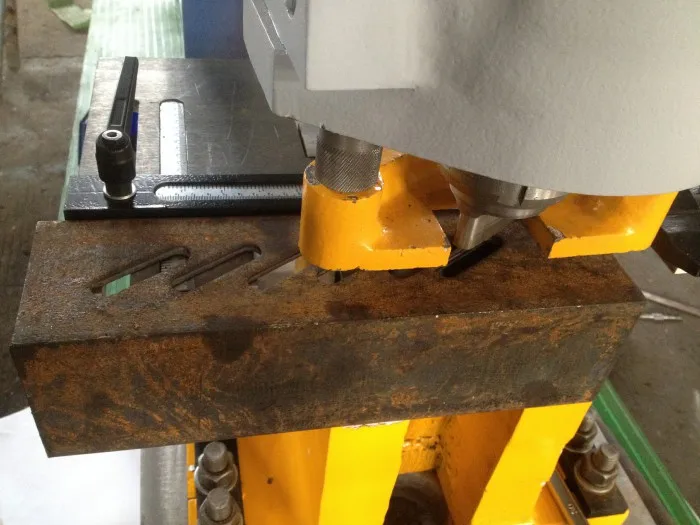

Product Pictures
Packaging Shipping
Company introduction
machine, plate rolling machine, press machine and so on.
OUR FACTORY:
Our Service
Our Service: __________________________________________________________
1.Installation Service
We dispatch technician to customer's factory for installation and preoperation of machines. (Customers only need to pay for the airfare and hotel expense.)
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines. ( Customers only need to pay for the airfare and hotel expense.)
3.Quality Guarantee
We arrange a final test before shipment. We will make shipments after making sure machine is in the best performance.
Machine warranty is 3 years.
FAQ
FAQ: ________________________________________________________________
Q1. Are you a factory or trading company?
A: We are a professional machine manufacturer.
Q2. How to choose the machine, any information I need to offer?
A: the thickness, width and the material of the plate you process will be needed.
Q3. Where is your factory located? How can I visit there?
A: Our factory is located in Maanshan city Anhui Province (next to Shanghai), China.You can fly to Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
