Ultra Chrome A05 Slurry Pump Impeller
- Category: >>>
- Supplier: Shijiazhuang Naipu Pump Co. Ltd.
Share on (60556974985):
Product Overview
Description

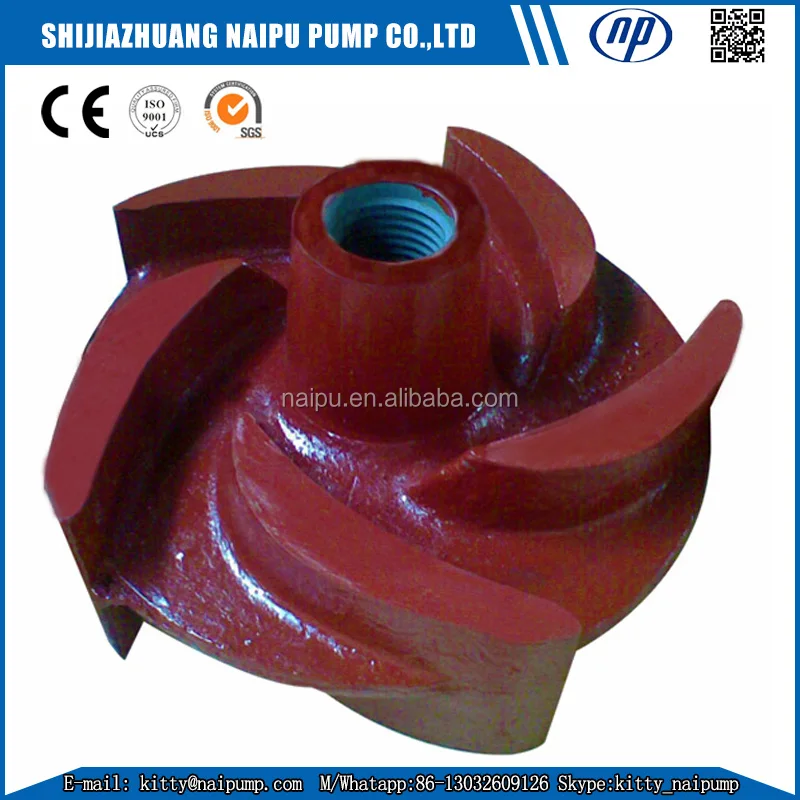

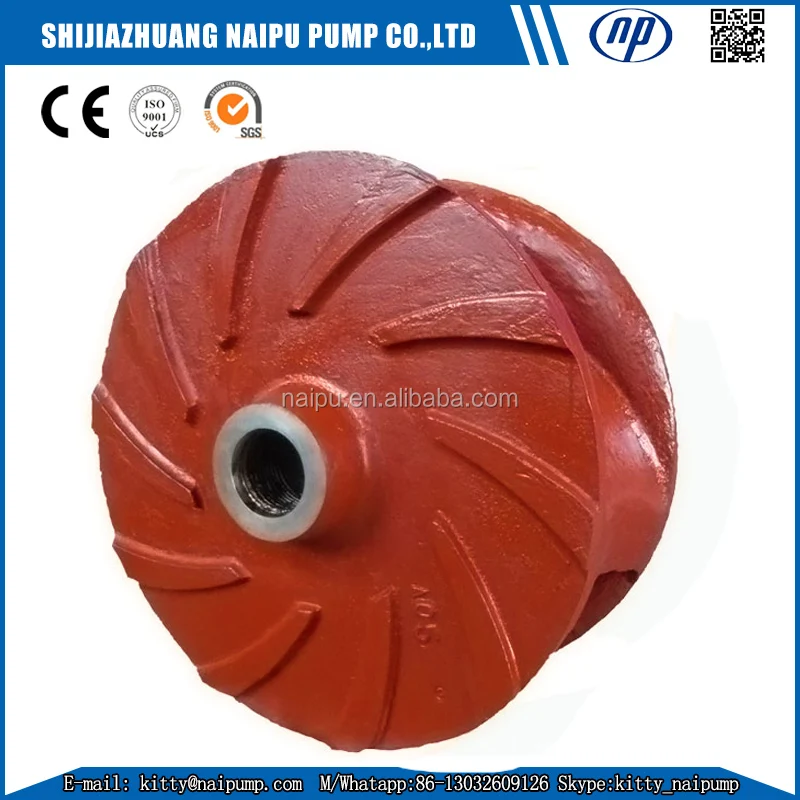

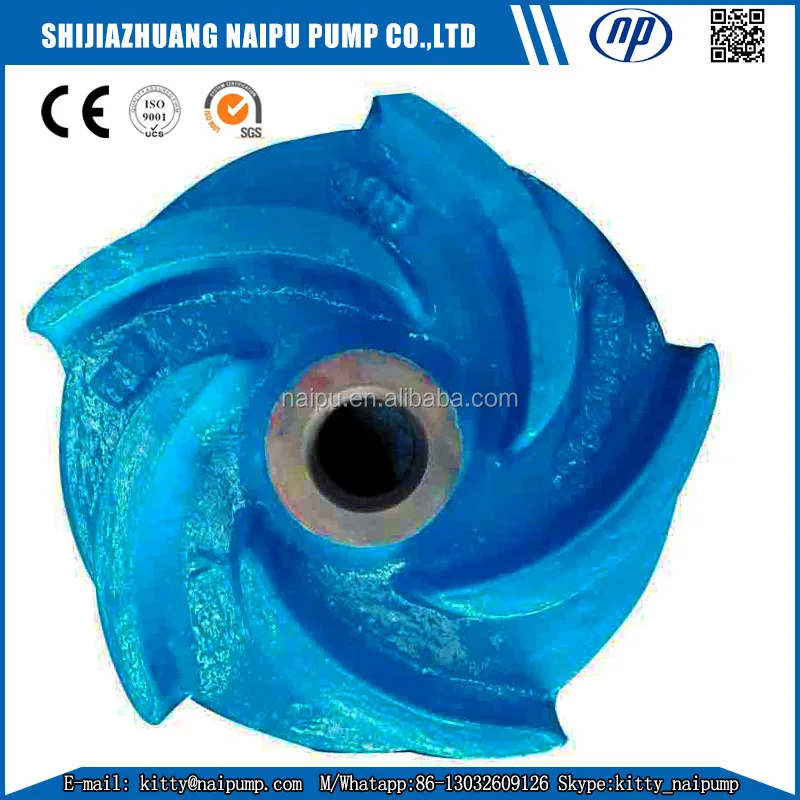

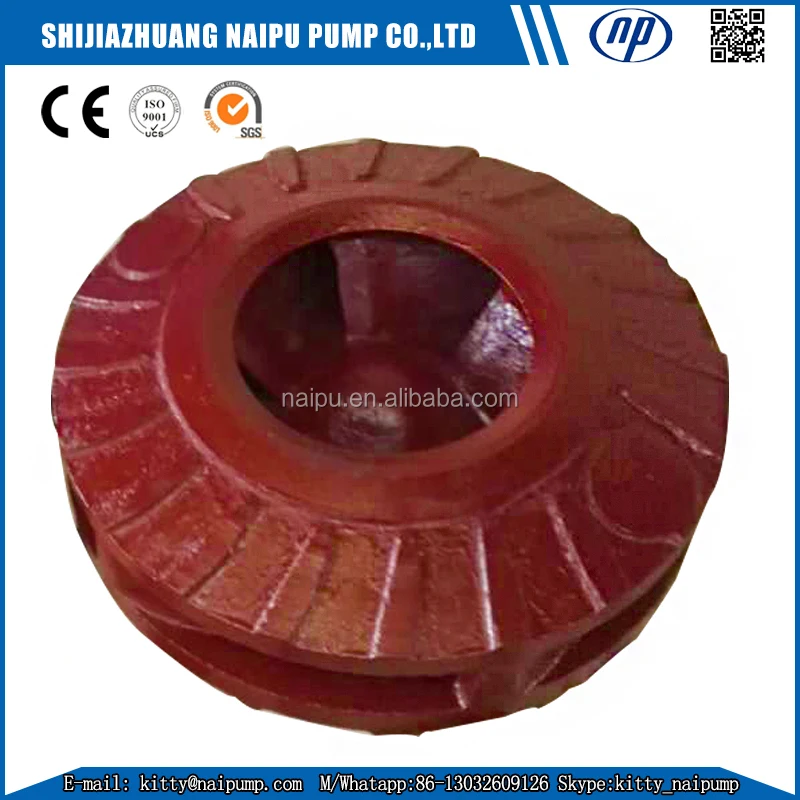

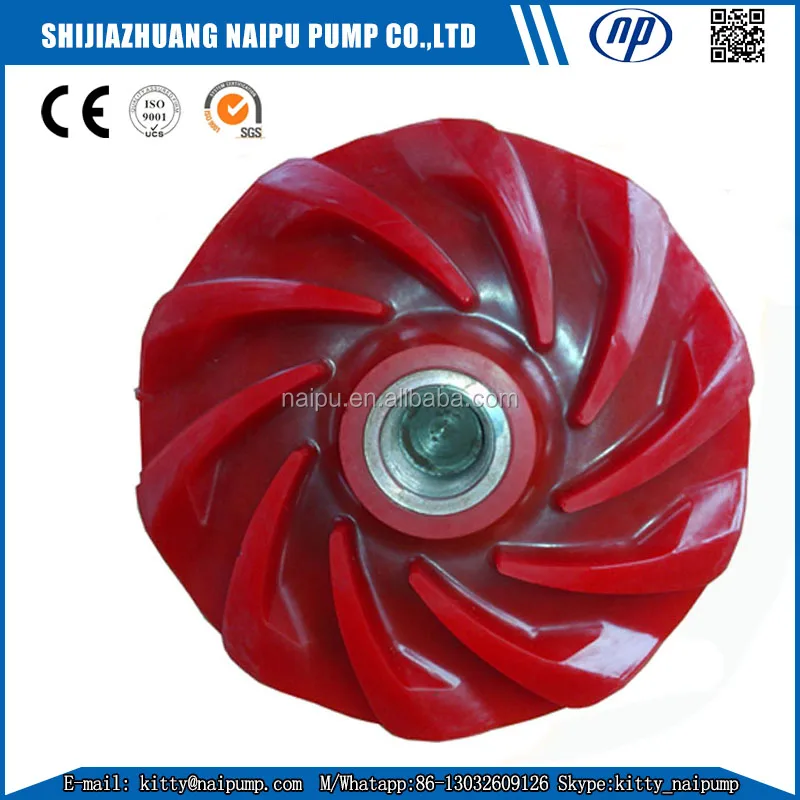

Ultrachrome A05 Slurry Pump Impeller
Welcome to join us to be our agent or distributor!
What We can do ?
1. Slurry pump and slurry pump spare parts
2. OEM for other pump parts and machine casting parts according the drawing or sample.
Product Description
Wear resistant cast alloys are used for slurry pump liners and impellers where conditions are not suited to rubber, such as with coarse or sharp edged particles, or on duties having high impeller peripheral velocities or high operating temperatures.
Naipu Impeller is one of the most important parts of slurry pump. When impeller is rotating, the slurry pump could meet the requirements of the equipment. However, it is a component, which is worn out very easily. Therefore, for long service life of the impeller, the material plays an important role here.Naipu pump offers the two solutions for this problem. We choose the white iron, high chrome (27%) for the strong abrasive slurries, also with the sharp particles. For the corrosive slurries with blunt particles, we recommend the natural rubber.

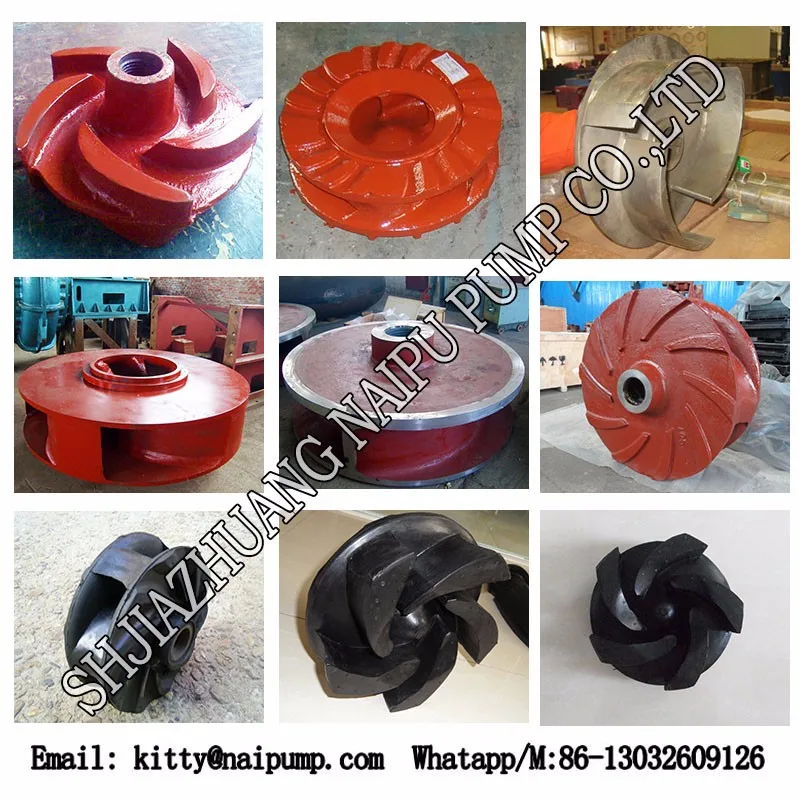

Impeller Material : ultrachrome A05 , A07, A49, A33, A51, A61, Hastelloy C , and etc

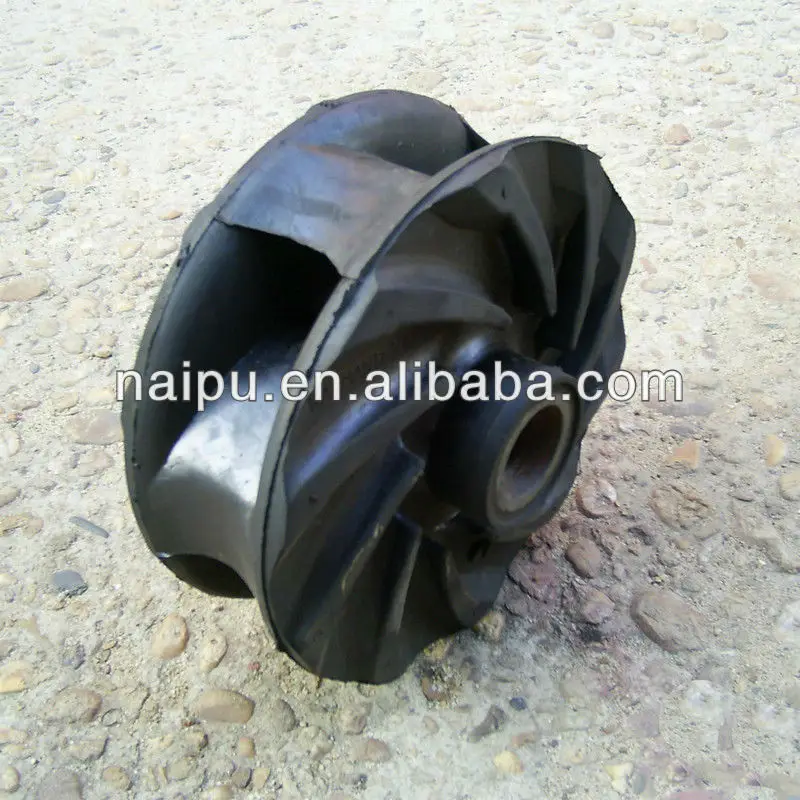

Rubber NR55 , R33, R08, R26, R38, S12, s21, s42, S31, and etc
Slurry Pump Impeller interchangeable with NAH Slurry Pump Code
1.5/1B-NAH Slurry Pump code: B1127
2/1.5 B-NAH Slurry Pump code: B15127
3/2 C-NAH Slurry Pump code: C2147
4/3 C-NAH Slurry Pump code: D3147
4/3 D-NAH Slurry Pump code: D3147
6/4 D-NAH Slurry Pump code: E4147
6/4 E-NAH Slurry Pump code: E4147

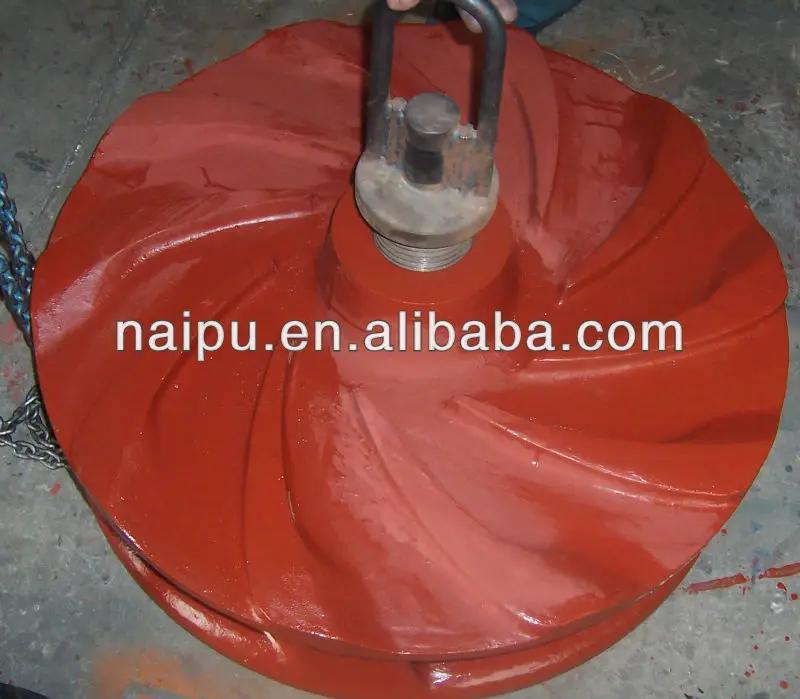

8/6 E-NAH Slurry Pump code: F6147
8/6 F-NAH Slurry Pump code: F6147
10/8 F-NAH Slurry Pump code: F8147
10/8 ST-NAH Slurry Pump code: G8147
12/10 ST-NAH Slurry Pump code: G10147
14/12 ST-NAH Slurry Pump code: G12147
Slurry Pump Impeller interchangeable with SP Series Vertical Slurry Pump
40PV-SP Vertical Slurry Pump impeller code: SP4206
65QV-SP Vertical Slurry Pump impeller code: SP65206
100RV-SP Vertical Slurry Pump impeller code: SP10206
150SV-SP Vertical Slurry Pump impeller code: SP15206
200SV-SP Vertical Slurry Pump impeller code: SP20206
Gravel Pump Impeller interchangeable with G Series Sand Gravel Pump
6/4D-G Sand Gravel Pump impeller code: DG4137
8/6E-G Sand Gravel Pump impeller code: EG6137
10/8F-G Sand Gravel Pump impeller code: FG8137
12/10G-G Sand Gravel Pump impeller code: FG10137
14/12G-G Sand Gravel Pump impeller code: GG12137
Company Information
ShiJiaZhuang NaiPu Pump Co.,Ltd , Is one of professional factory of slurry pump, sand gravel pump , dredging pump , Water pump and spare parts .
NaiPu Pump is devoted to pump solution industry for more than 30 years!
The Pumps are widely used in in metallurgy, mining, Nonmetallic Mining, Coal, Energy
resources, Sand mining, Dredging, Environmental protection, Petrochemical engineering, Flue gas desulfurization and other industrial departments.
The Pumps are exported to USA, Canada, Germany, Russia , Australia, South Asia, North America, South Africa, and etc , up to more than sixty countries.

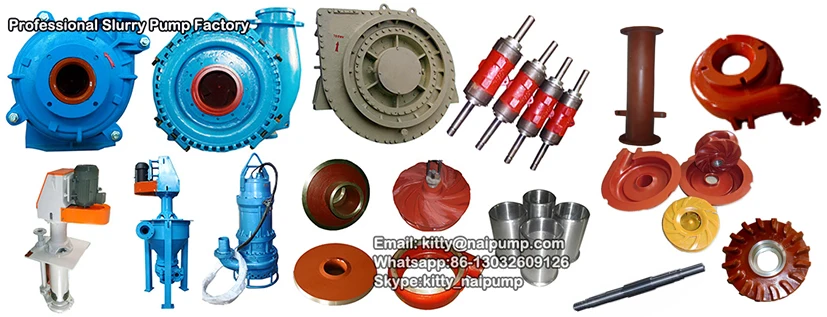

NaiPu Main products
1. NAH , HH L Horizontal Slurry Pump
2. SP Vertical sump pump
3. ZJQ Submersible slurry pump
4. G Horizontal sand gravel pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF Vertical Froth Pump
8 .AHF Horizontal Froth Pump
9. TL(R) Desulphurization Pump
10.Clean Water Pump
11. OEM Casting machinery wear parts
Slurry Pump Model
Main Slurry Pump Parts : Impeller , Volute Liner , Casing , ThroatBush, Frame Plate Liner Insert , Cover Plate , Frame Plate, Pump Liner Expeller , Expeller Ring ,Stuffing Box , Expeller , Pump Shaft , shaft sleeve, Shaft Spacer, Bearing Assembly , Base, Stuffing Box, Gland Assembly, Bearing Housing , Lantern Ring , pump discharge pipe , flange , and so on.
OEM Service
We can produce Wear parts according to drawing or sample as customer's requirement.
Production Flow
Model Workshop --casting Work Shop-- Machining workshop--assembly workshop--stockage, Welcome to visit us.
Factory Name | Shijiazhuang NaiPu Pump Co.,Ltd |
Manufacturer or Trading Company | Manufacturer |
Workshop | Foundry, Machining, Assembly |
Year the company was established | 2007.01.10 |
Number of employees | 162 |
Designed capacity of factory | 3,000.T Resin Sand 2500T Lost Foam Casting 500T |
Factory area in m2 | 330,000m2 |
Does the factory record rejects. If so what is the reported reject rate for past 12 months. | Yes, We record. the reported reject rate for past 12 months =7.6% |
Quality System Certification | ISO9001-2015 |
Types of Material the company produces | Ductile Iron Chrome Iron Alloy Steel Rubber |
Melting Equipment | Induction 2T X 2 |
Non destructive inspection equipment. | Ultrasonic testing equipment UT Dye penetrant testing PT |
typical products the foundry makes | Slurry Pump Wet End Parts Hydrocyclone Parts Wear resistant castings |
Minimum and maximum casting weight for each moulding system | Max. 6.0T , Min. 3Kg |
FAQ
1. What Products does naipu pump mainly produce ?
Naipu mainly Produce Slurry Pump , Gravel sand Pump , Dredging Pump, Centrifugal water pump and Spare Parts. Not only Pump parts , but also others wear casting parts if there is drawing or sample.
2. Is Naipu direct factory or trader?
Naipu own mould factory , foundry workshop, Machining Workshop, and Assembly workshop. Welcome to visit the factory anytime.
3. The Min MQQ
The MQQ is one pcs spare parts.
4. What information is required for quotes?
If you need the spare parts , we need to know the parts Code and material .
If you need the whole pump set , we need to know the usage ? the flow ,head, and SG , Corrosive or not ? the more details the better.
5. How about the Delivery Time.
For standard spare parts we have stock. they can delivery within3-7days.
For pump , usually take 10-15 days.
Delivery time will depend on the products your ordered.
Contact Us
ShiJiaZhuang NaiPu Pump Co.,Ltd
Contact person : kitty Liu
Skype: kitty_naipump
Email: kitty at naipump.com
Mobile /whatapp: +86-13032609126
Shijiazhuang, Headquarters
Add. : No. 368, Xinshi North Road, Shijiazhuang, Hebei Province, China
Welcome to contact us for more details about Ultra Chrome A05 Slurry Pump Impeller
