Boutum speakers professional 15 inch subwoofer box design
- Category: >>>
- Supplier: Guangzhou Marco Electronics & Technology Co. Limited
Share on (60557072736):
Product Overview
Description
Product Description
15 inch Subwoofer Speaker LS-500
LS-500 is a subwoofer use with PS-10, PS-12 with φ100mm 15in LF driver. Suitable for various of music reproduction. Recommended use with BOUTUM MK-121B built-in built-in points frequency mono amplifier.
Application
KTV, bar, night club, conference hall.
SPECS.
Rated Power: 400W
Component: LF1*15"(φ100mm Voice Coil)
Impedance: 8Ω
Sensitivity: 101dB
Max. SPL: 127dB
Freq. Response: 40-200Hz
Cabinet: 18mm plywood
DIM(W*D*H): 470x530x740mm
MEAS(W*D*H): 515x580x785mm
N.W: 40kg
G.W: 45kg
Other Product Parameters PS Series
| Name | PS-8 | PS-10 | PS-12 | PS-15 | PS-15Bass | PS-210 |
| Rated Power (W) | 200 | 250 | 300 | 400 | 350 | 320 |
| Component | 1x8"+φ34 | 1x10"+φ44 | 1x12"+φ44 | 1x15"+φ75 | 1x15" | 2x10"+4xφ50 |
| Impedance (Ω) | 8 | 8 | 8 | 8 | 8 | 4 |
| Dispersion ( °) | 100x50 | 100x50 | 100x50 | 100x50 | / | 120x100 |
| Snesitivity (dB) | 101 | 103 | 103 | 104 | 102 | 94 |
| Max. SPL (dB) | 122 | 127 | 127 | 128 | 127 | 110 |
| Freq. Response (Hz) | 80-19k | 70-18k | 65-18k | 45-19k | 40-200 | 50-18.5k |
| Cabinet | 15mm plywood | 15mm plywood | 15mm plywood | 15mm plywood | 15mm plywood | 15mm MDF+18mm plywood |
| Dim(WxDxH) (mm) | 261x219x421 | 326x277x515 | 375x313x568 | 449x375x691 | 415x434x675 | 416.5x414x609 |
| Meas(WxDxH) (mm) | 580x335x495 (2pcs) | 375x330x570 | 425x335x630 | 515x425x745 | 457x470x710 | 510x510x680 |
| N.W (kg) | 10.5 | 14.5 | 21.5 | 27.5 | 26 | 24 |
| G.W (kg) | 14 | 18 | 25 | 32.5 | 33 | 26 |

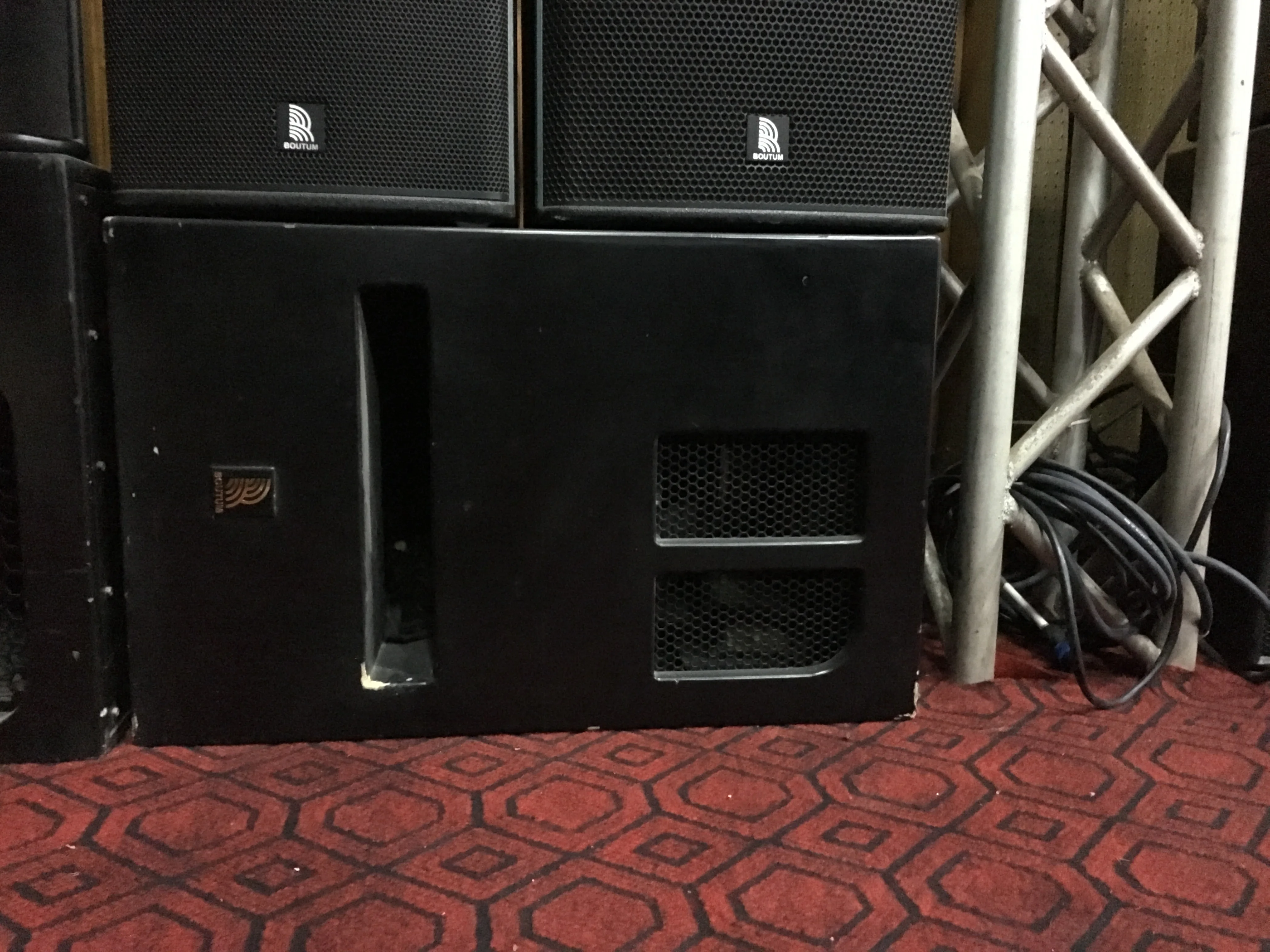

Pictures LS-500

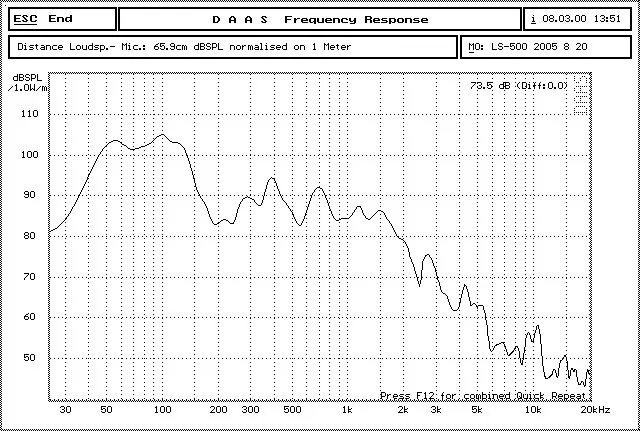

Freq. Response Curve LS-500
