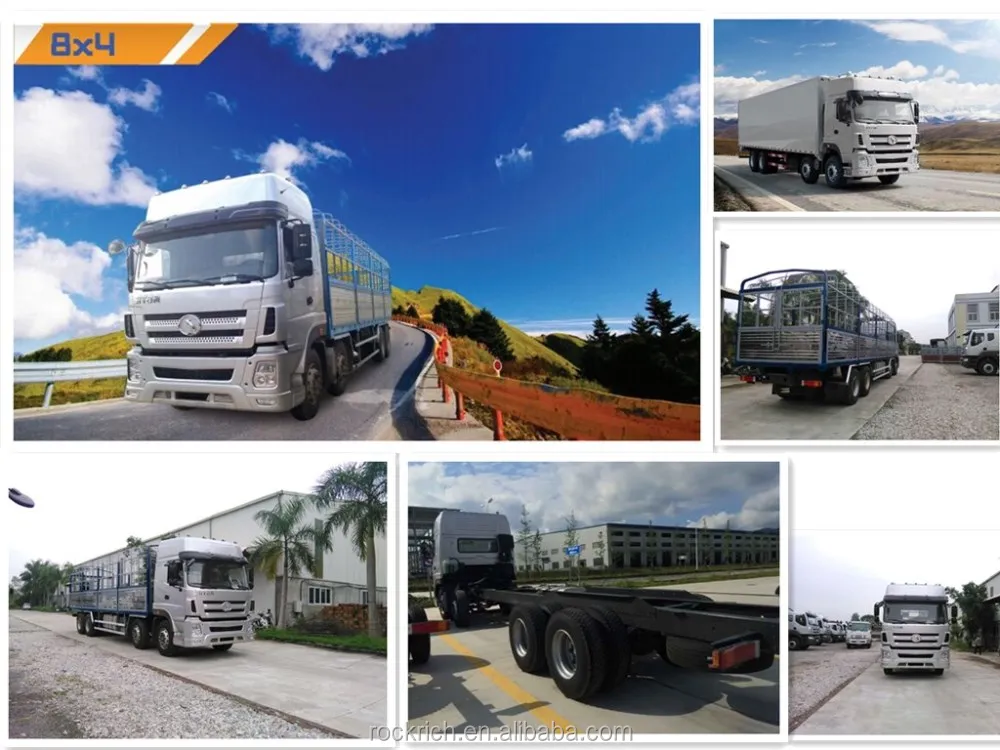

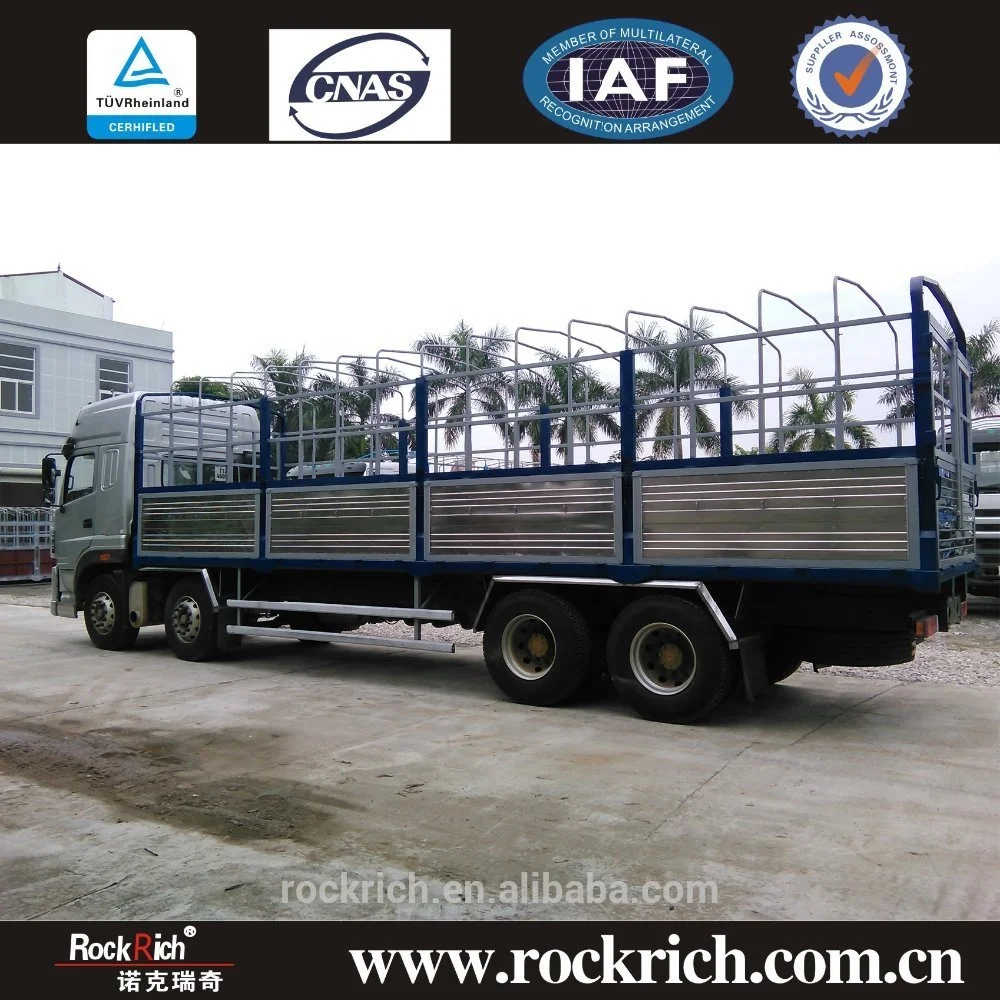

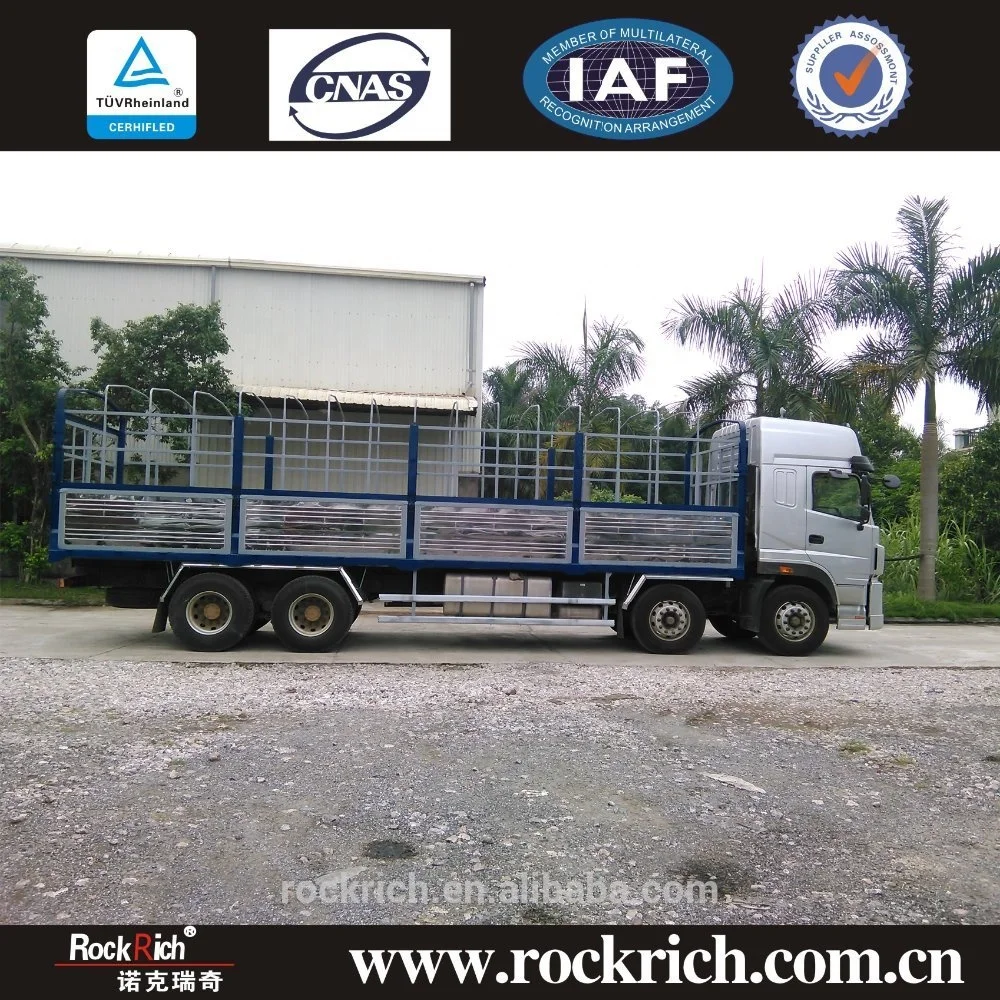

China brand Sitom 40 ton heavy duty lorry cargo truck price

Product Overview

Description

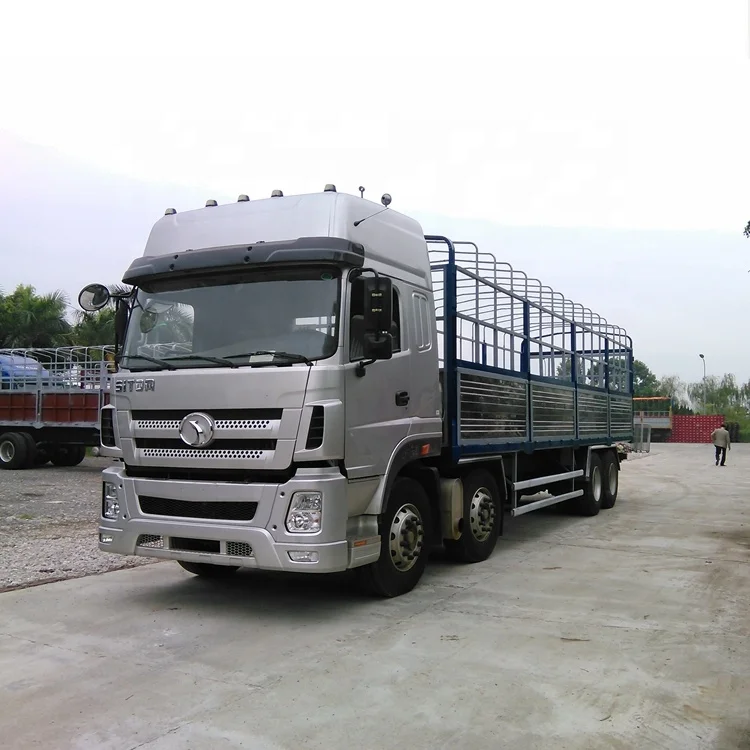

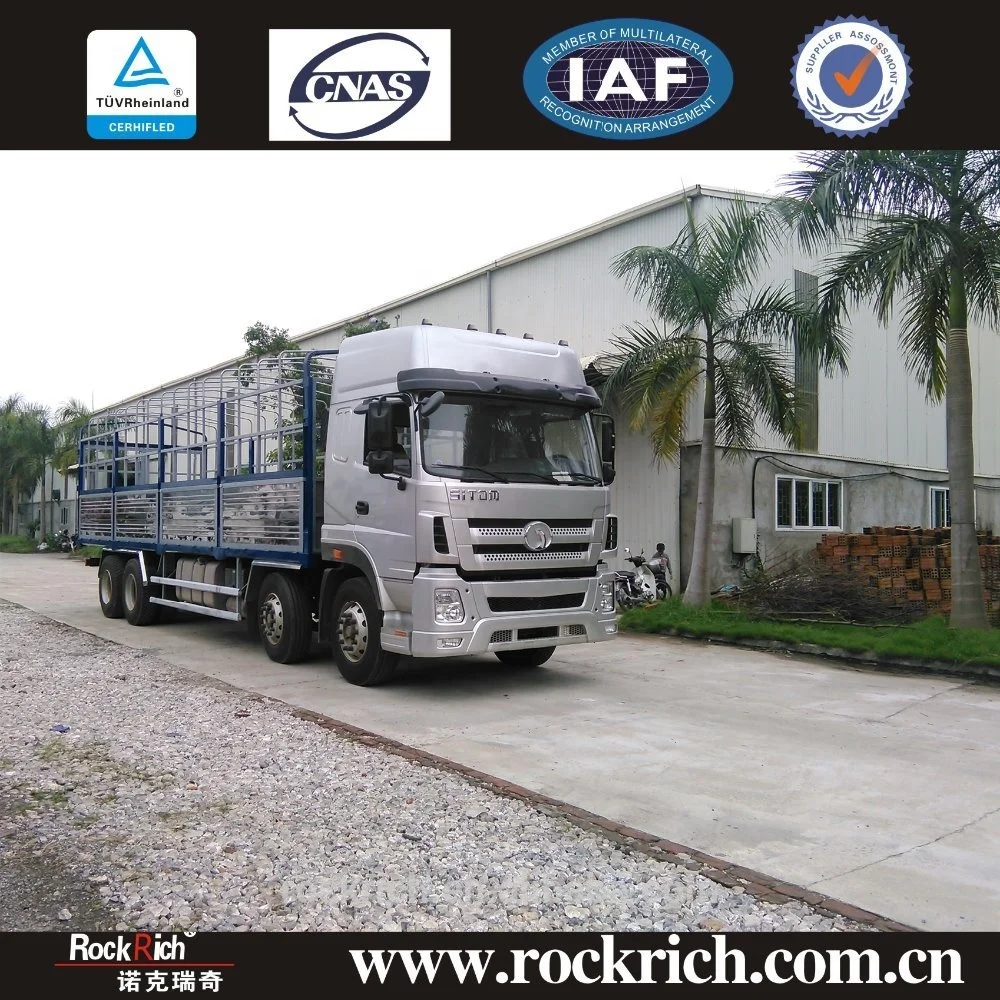

China brand Sitom 40 ton heavy duty lorry  cargo truck price





Default Specification

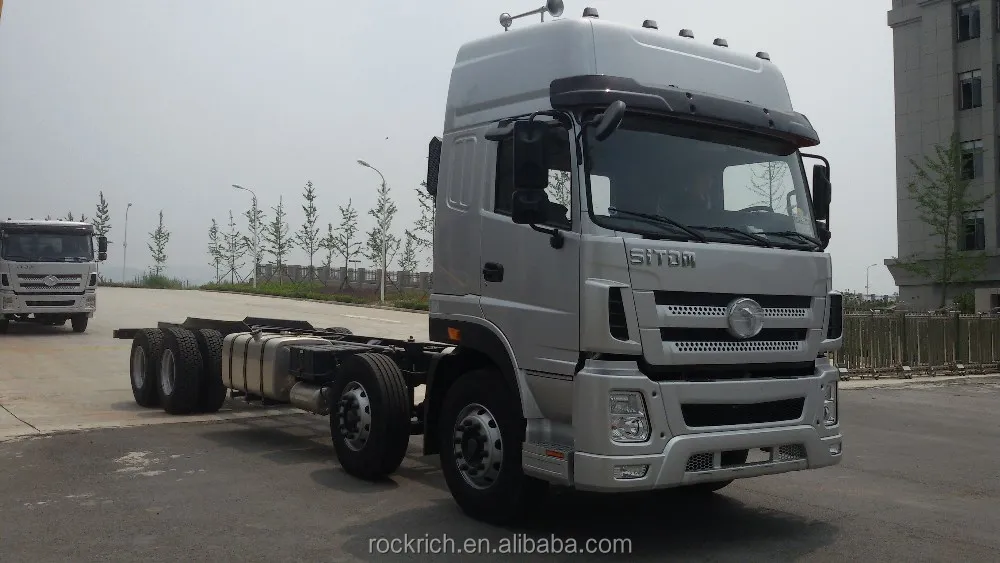

*The specification is only for chassis truck without any cargo box or modification
Overall Parameters
Truck model	STQ1316L9T6B3	Wheel base	1850mm+4500mm+1350mm
Rated loading capacity	31000kg	Overall dimension(L×W×H)	12060mm×2490mm×3250mm
Gross Vehicle Mass(GVM)	55000kg	Max economical speed	85km/h @ 1500rpm
Cabin
Cabin Model	T380 flat-roof LHD (1 sleeper)	Air Condition	with Merit Brand A/C
Engine
Brand @ Model	Yuchai @ YC6MK340-33	Intake way	Turbo inter-cooling
Rated power & speed	340HP (250KW) & 1900rpm	Max. torque	1550N.M
Engine type	in-line,4-stroke,water-cooled	Bore x Stroke	123mmx145mm
Displacement	6 cylinders,10.338L,diesel	Green Band	1100~1500RPM
Emission standard	Euro-Ⅲ	Fuel injection pump	Mechanical Pump
Gearbox
Brand @ Model	Fast·Fuller @ 12JS160TA
Type	Manual,12 forward gear,2 reverse gear,rated input torque 1600N.M
Gearbox ratio	Forward:12.10,9.41,7.31,5.71,4.46,3.48,2.71,2.11,1.64,1.28,1.00,0.78 Reverse:11.56,2.59
Chassis Frame & Suspension System
Chassis frame	P610L high strenth steel,frame breadth 300mm,double-deck(8mm+8mm)
Front axle	5T Dongfeng Dana 153 front axle x2
Rear axle	13T Dongfeng Dana 462 single-reduction rear axle x2,default ratio:4.44
Front suspension	Number/Thickness of leaf spring: 9/16mm
Rear suspension	Number/Thickness of leaf spring: 12/22mm
Bodyworks
Tire & Wheel Rim	12R22.5 aoelus tubeless tire x13
Fuel Tank	400L aluminium
Air Filter	Standard
Matchable Cargo Box & Modification
Cargo Box	Cargo box length of 9.6m

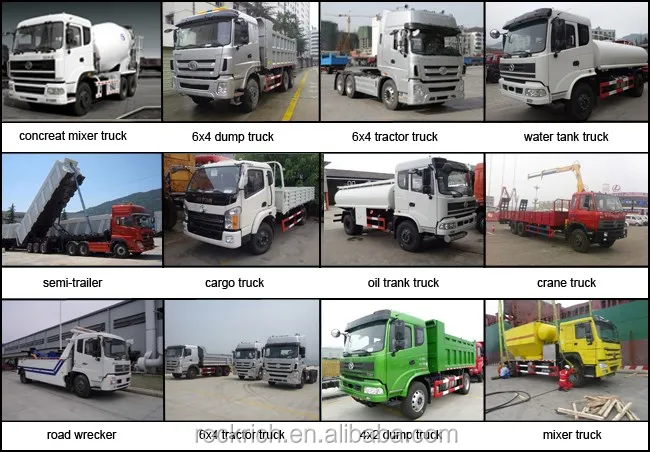

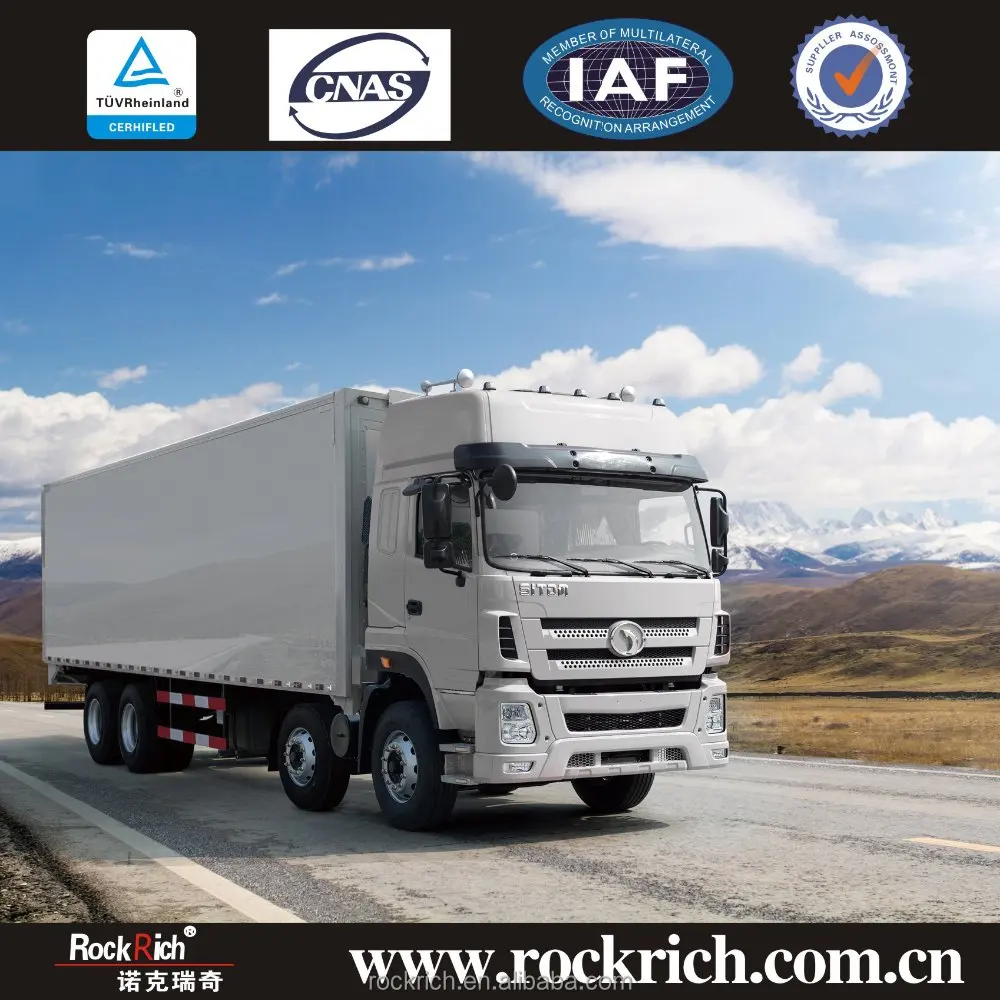

Modification	van,tanker,stake cargo box etc.
More Details
.installation sunshield, top light, three level stepping pedal, air suspension seat for driver,cabin with two point suspension
.camel brand battery
.4 aluminum alloy compressed air tanks
.high performance radiator
.export standard engine
.Merit brand A/C
.laminated glass windshield
.shot-blasting and anti-rust treatment for chassis frame
