63 Inches Automatic Hot Roll Lamination Hot Melt Adhesive Film Laminating Machine

Product Overview

Description

63 Inches Automatic Hot Roll Lamination Hot Melt Adhesive Film Laminating Machine

 63 Inches Automatic Hot Roll Lamination Hot Melt Adhesive Film Laminating Machine

The descriptions of the automatic hot roll laminator

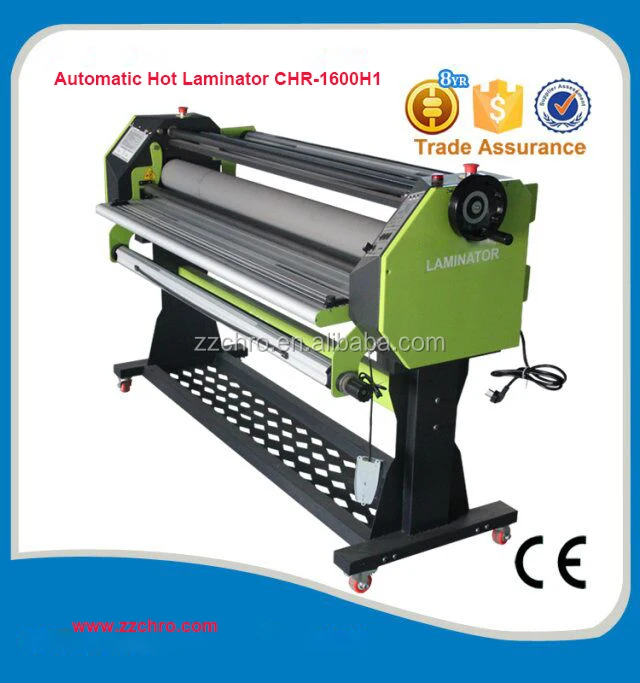

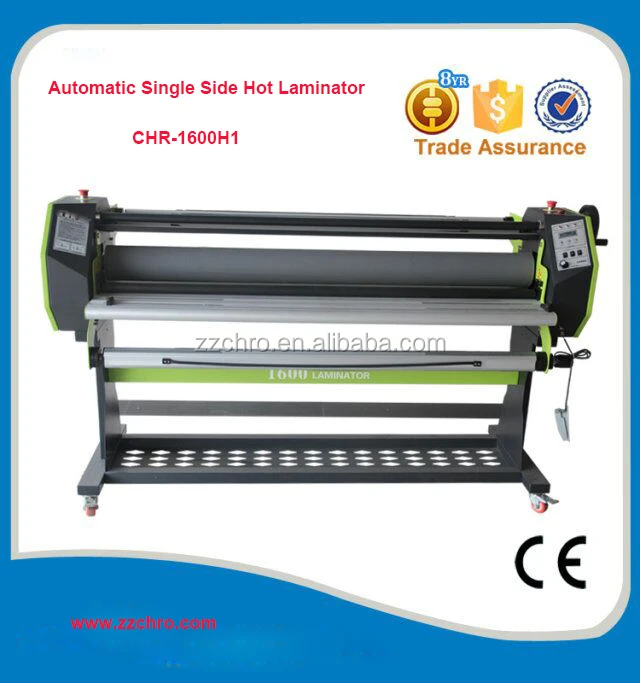

Model			CHR-1600H1
Width			1600mm
Max Thickness			25mm
Speed			0--8m/min
Temp Range			120℃
Lifting Way			Unilateral Linkage
Heating Way			infrared heating
Preheating Time			5-10min
Rated Input Power			0.8-1kw/h
Power			2200kw
Rated Input Voltage			110/220v 50/60Hz
Weight			230KG/180KG
Packing Size			215*80*74cm

63 Inches Automatic Hot Roll Lamination Hot Melt Adhesive Film Laminating Machine

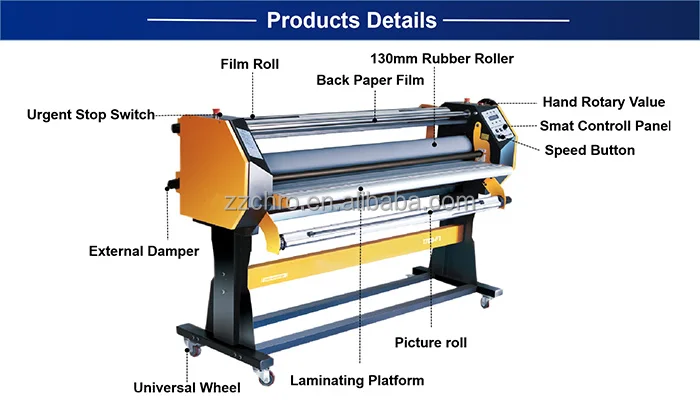

1.6m hot laminator for the laminating photo paper feature:

1.90W retarding moment motor
2.Turn-over aluminium alloy front working platform
3.130MM-diameter high-temperature resisting silica gel upper-roller
4.110MM-diameter anti-adhesive silica gel lower-roller
5.Automatic product rolling structure
6.Crinkle-resistant and anti-slided paper advancing structure(initiative)

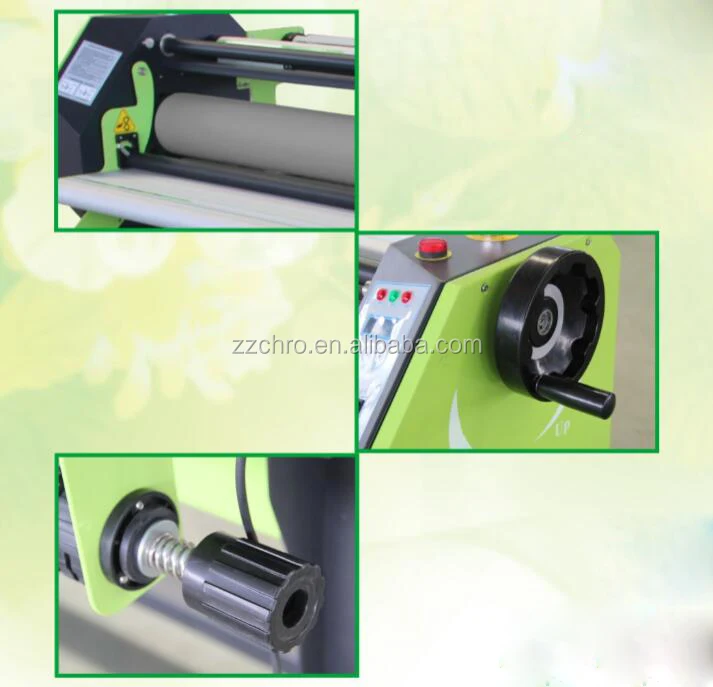

7.Unilateral balanced voltage controlled hand wheel
8.Non-contact infrared temp-measuring system
9.Pedal switch

 63 Inches Automatic Hot Roll Lamination Hot Melt Adhesive Film Laminating Machine



 63 Inches Automatic Hot Roll Lamination Hot Melt Adhesive Film Laminating Machine



Packing and Shipping:

Packaging and delivery
Delivery	Within 3-7 working days for production, we will arrange delivery after received the total payment.
Packing	Firstly, Packed hot lamination machine with plastic sheet for clearing and damp proofing.
	Secondly, Then put hot lamination machine in the plywood case for safety and clashing.
	Thirdly, Transport the plywood case into the container.



Warranty and Service:

1. One year free warranty, main parts are free of charge when problem happens during the

guarantee period, 6 months for the rollers.

2. Lifetime free maintenance service.

3. Free training course at our factory with professional engineer.

4. We provide consumable part at agent price when you need replacement.

5. We can provide door to door technical support to agents, if necessary.

Customers Feedback:

Products Certificates:

Our Factory:





Company information:

      Zhengzhou ChangRong Machinery Equipment Co.,Ltd was founded in 2006 with location in the center of China, Zhengzhou City. Our company is specialized in the supply of the advertising machinery equipment,In view of 15 years of rich experience in the field of advertising machinery and equipment, we can provide first-class product quality, first-class service and especially competitive price. Super research and design team together with the qualified products are the basis for us to maintain the long-term customer-supplier relationships.

      Our wide-ranging products include UV printers, Inkjet printers, Digital textile printers, Digital foil stamping machines, Laminators, Heat transfer machine, Cutting plotters and so on. With main export to more than 130 countries under areas in Southeast Asia, the Middle East, Africa, Europe and the Americas.

      Thanks to the good quality, superior service, on time delivery and competitive price, our products is very popular. Your valuable proposals and positive feedback is the drive for us to make continuous improvements to keep up with customers’ expectation in the field of advertising machinery and equipment.

     Our goal is to satisfy our customers and propose the best solution with products. We are convinced that choosing us means success. Let us work together for the better future.



Contact way:





Related Products You May Like:

If your want to learn more information for our 63 Inches Automatic Hot Roll Lamination Hot Melt Adhesive Film Laminating Machine,please feel free to contact us,we will reply you soon,thanks.
