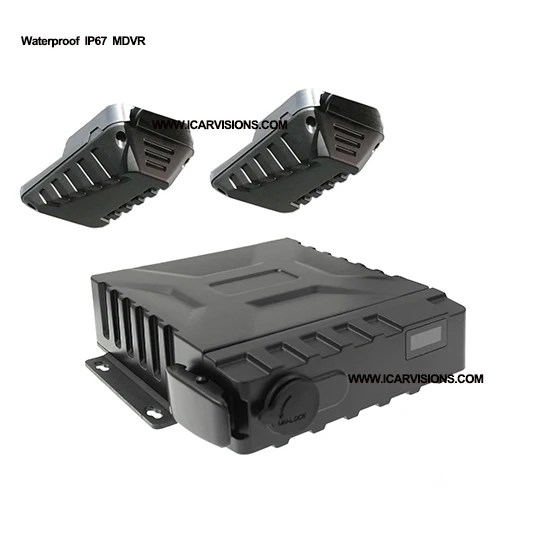

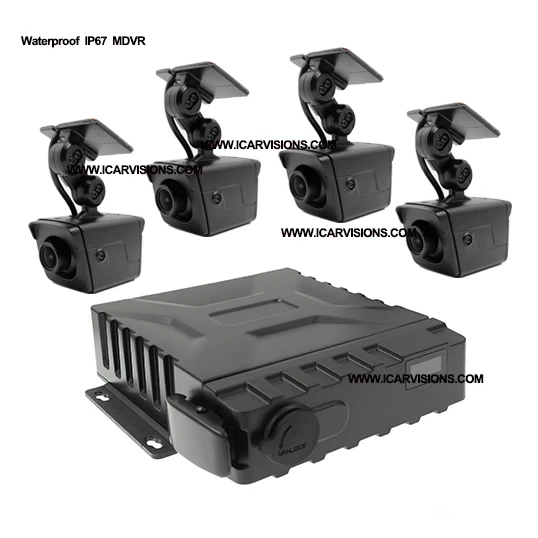

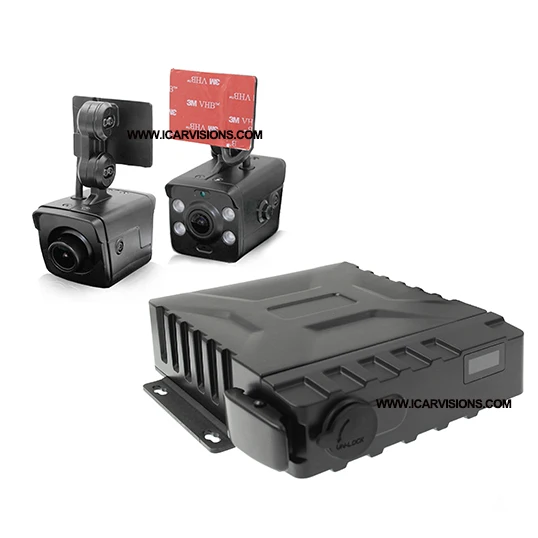

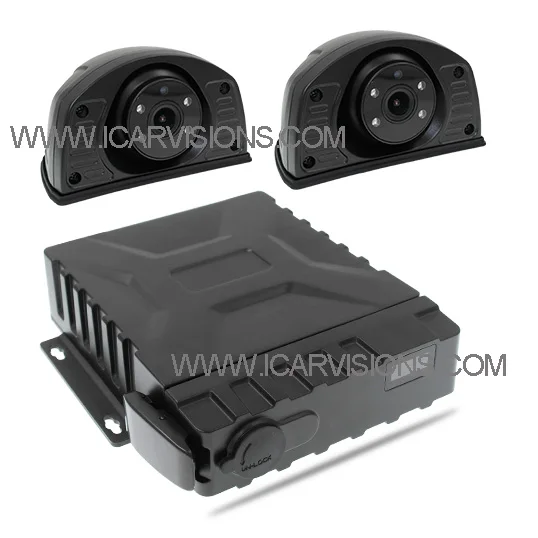

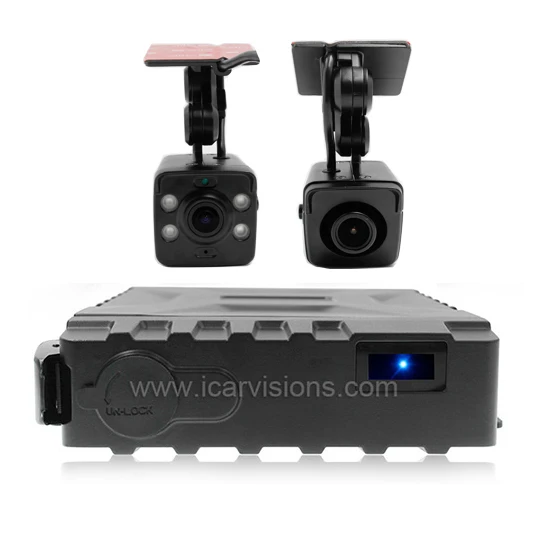

IP67 Waterproof MDVR SSD mobile DVR Vehicle recorder car black box GPS 4G 3G WIFI

Product Overview

Description

IP67 Waterproof MDVR SSD mobile DVR Vehicle recorder car black box GPS 4G 3G WIFI



Company Profile

ICARVISIONS(Shenzhen)Technology Co.,Ltd. is a global leader in designing, manufacturing and deploying innovative range of Mobile Digital Video Recorder (MDVR) and vehicle monitoring site solutions.



The company was established by a group of experts in wireless digital video vehicle monitoring system industry with more than 8 years experience. We develop our own exceptional core technology and sustainable R&D strength, specializing in hard disk Mobile DVR, SD card Mobile DVR, vehicular camera, 3G portable mobile monitoring system, monitoring software platform, inside Car Camera etc. Icarvisions products are so reliable and cost effective which are widely used in more than 40 countries and regions, such as Russia police car project, Latvia tour bus project, Australia taxi project, Canada tanker truck project and other projects.



Icarvisions shares the belief that things can always be done better for our customers. Our products and full service are all designed, manufactured and delivered with this in mind.



1.Product Introduction



Function JH0-GFW System Language English / Chinese Operation Interface Graphical User Interface(OSD menu) Password Security 2 Levels: Administrator & User Video Video Input A:Supports 4 channels CIF/HD1/D1/960H camera Video input B:Supports 4 channels 720P AHD camera Video input C:Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input D:Supports 1-CH 720P/1080P IPC + 4-CH 960H/D1/CIF Video input E:Supports 1-CH 720P/1080P IPC + 4-CH 720P AHD Video input Video Output 1 Channels (Rear Panel on RJ45&AV-OUT Port) Video Display Single picture, 1~5 pictures Signal System PAL / NTSC ( PAL@100 frame 720P/sec; NTSC@120 frame 720P/sec ) Image Compression H.264 Main profile Audio Audio Input 4 Channels Audio Output 1 Channel Record Format Synchronized A/V recording Recording & Storage Image Resolution  CIF / HD1 / D1 / 960H / 720P optional Video Coding ISO14496-10 Industry Standard Video Bit Rate CIF: 1536Kbps ~ 128Kbps, HD1/D1: 2048Kbps ~ 400Kbps, 960H: 2048Kbps ~ 400Kbps, 720P:4096Kbps ~ 400Kbps Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest) Audio Bit Rate 40Kbps Storage 1 SSD and 1 SD card  Alarm Alarm Input 4 Channels, Select Trigger for either less than 1VDC or greater than 5VDC Alarm Output 2 Channel, 12V output Communication Ports RS485 1 Port for communication or data usage RS232 1 Port for communication or data usage RJ45 Network 1 Port of RJ45, For connection to an IP camera with maximum of 1080P USB 1 Ports for USB 2.0, download video files & upgrade firmware Wireless Communication* 3G* 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal module 4G* 4G (TDD-LTE / FDD-LTE) optional module to match local cellular carrier Wi-Fi* Internal Wi-Fi 802.11b/g/n ( 2.4 /5.8 Ghz) optional GPS* Int'l Standard GPS Internal GPS module. Real-time geographic coordinates, speed information G-Sensor Internal G-Sensor Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates Software PC Playback A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR IVMS Wireless (require Wi-Fi or cellular Option)  real-time A/V monitoring, GPS, alarms, etc. Software Upgrade Local or Remotely Upgrade through the front USB2.0 or remotely via IVMS platform Voltage Input +8~+36V 8~36VDC    Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage  Voltage Output 12V 12V(+/-0.2V),Max 3A ACC Detection ≤4V Power-off ≥6V Power-on Video Input Resistance  75Ω 75Ω Video Output Voltage  2Vp-p 2VP-P CVBS output analog signal, screen input requires 75Ω resistance  I / O Port <1V  Low voltage trigger >5V  High voltage trigger Operational Temperature  -25℃~80℃ Install in well ventilated area, protected from moisture, heat, dust and vibration. Confined by SSD temperature also.



3. Model for option with 3G / 4G, GPS, WiFi modules optional, according to different demands. GPS: For map, location and route tracking 3G / 4G: For real-time video and monitoring  Wi-Fi: For automatically downloading video file

4. Certification

5. Accessories

Mobile DVR / Car DVR (with 3G, 4G, GPS, Wi-Fi) for vehicle real time monitoring, applied with car cameras used for vehicle monitoring in bus, taxi, school bus, truck, police car, tour bus, tanker truck, escort car etc. Operated with Client Software IVMS (Intelligent Vehicle Management Software) to realize fleet management online, and achieve a full range of car monitoring functions such as real time video & audio monitoring, GPS, car tracking, GEO-Fence, voice intercom, car temperature, alarms customized , driving route record, PTZ control, fuel volume detection, video search and download, generating repoorts, etc. APP <icarview> is available for mobile phones in Android and iOS system.   6.Cameras 7. Software 8. Factory
