International accuracy Winner 2000ZDE full automatic laser particle size Analyzer for resin particle size test

Product Overview

Description

30 Years Experience

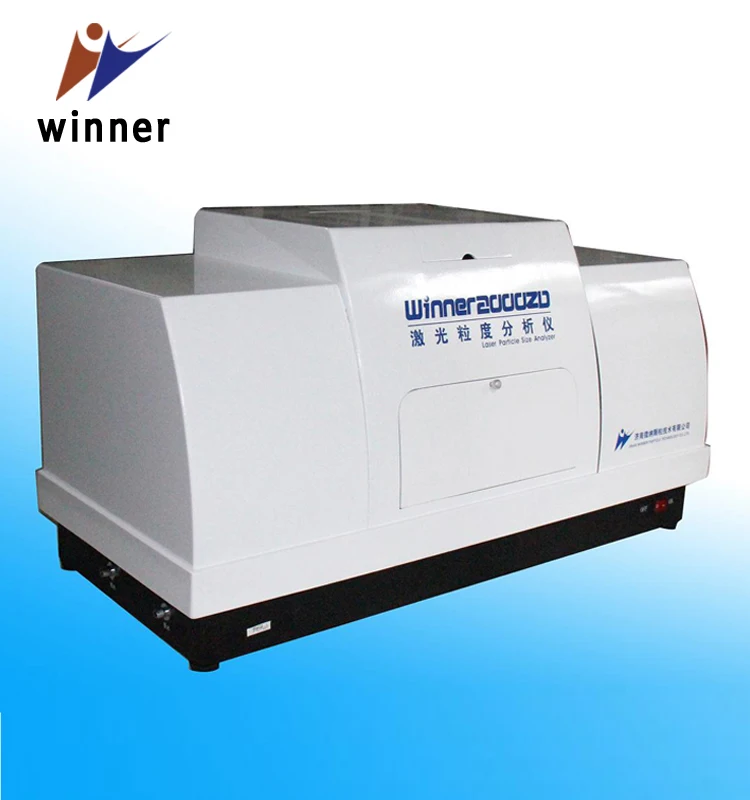

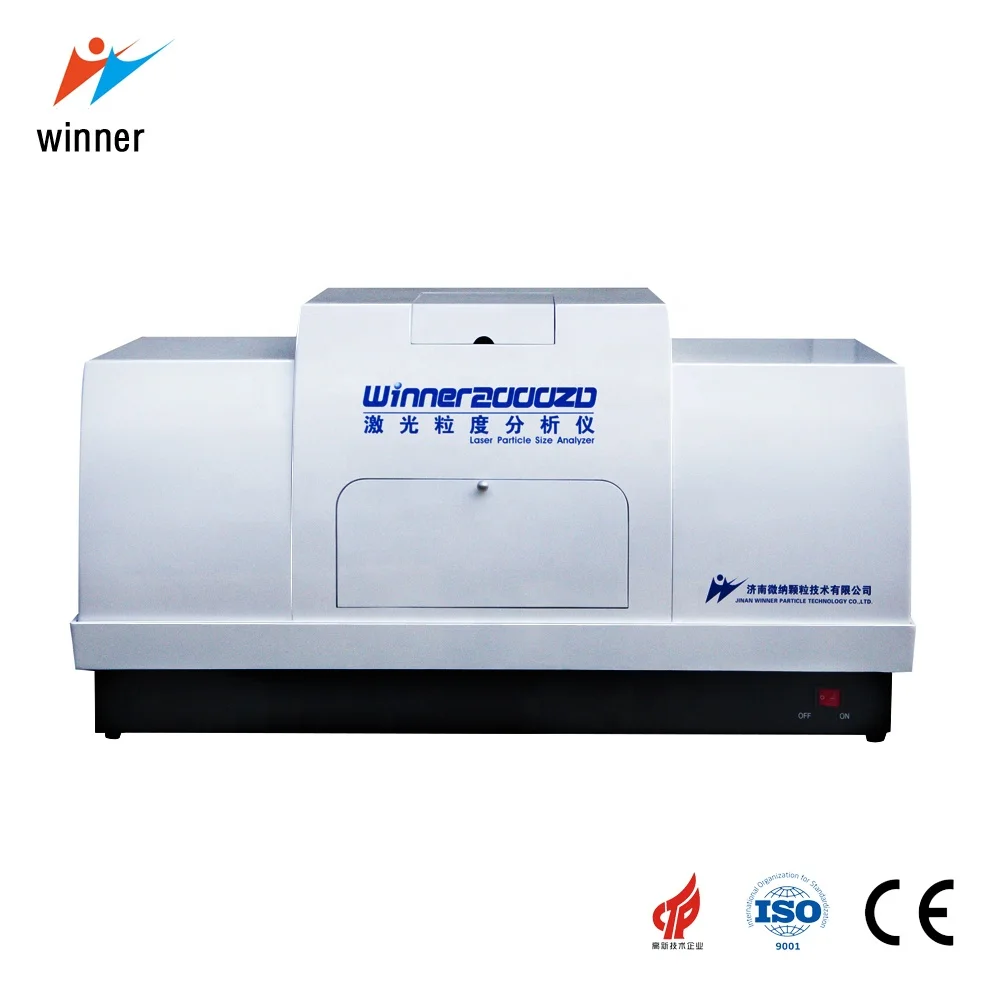

Winner 2000ZDE laser diffraction particle size Analyzer for resin material

Automatic operation

Automatic wet dispersion system

Measuring range 0.1-300 micron







 Winner2000ZDE is an intelligent laser particle size analyzer, perform auto test, auto alignment, auto water supply, auto drainage, auto bubble removing, auto ultrasonic dispersion, auto cleaning etc., really realize one-key operation. It adopt full built-in sampling system, effectively prevents large particles sedimentation problems in the circulation pipeline, ensure good accuracy. It adopts comprehensive Laser diffraction particle size measurement principle with highly sensitive ring photoelectric detector improving the test accuracy greatly, Original designed unconstrained free fitting software technology, a true reflection of the particle size distribution, to ensure truth and accuracy of the test results. Therefore especially suits the laboratories of enterprises, colleges and universities and research institutes to use.







Main Specification:



Model Name		Winner2000ZDE	Winner2000ZD(3 Gears)
Standard		ISO13320-1:1999, GB/T19077.1-2008, Q/JWN001-2009
Measuring Range		0.1-300μm	0.1-40μm /0.6-120μm/1-300μm
Channels Number		39	32×3
Accuracy		<1%   (National Standard Sample D50 )
Repeatability		<1%   (National Standard Sample D50 )
Light source		High performance He-Ne Laser (λ= 632.8nm,  P>2MW)
Dispersion  Method	Ultrasonic	Frequency:40KHz   Power:35W,   Time: ≥1S
	Stir	Revolutions Speed: 0-300RPM (Adjustable)
	Circulate	Rated Flow:8L/min    Rated Power:10W
	Sample Pool	Volume:350mL
	Micro- Sample Pool	Volume: 10mL ( Optional)
Operation Mode		Full automatic software control
Optical Calibration System		Full automatic
Test Speed		<2mins for each time
Volume		L88cm×W39cm×H46cm
Net Weight		41Kg
Warranty		2 years

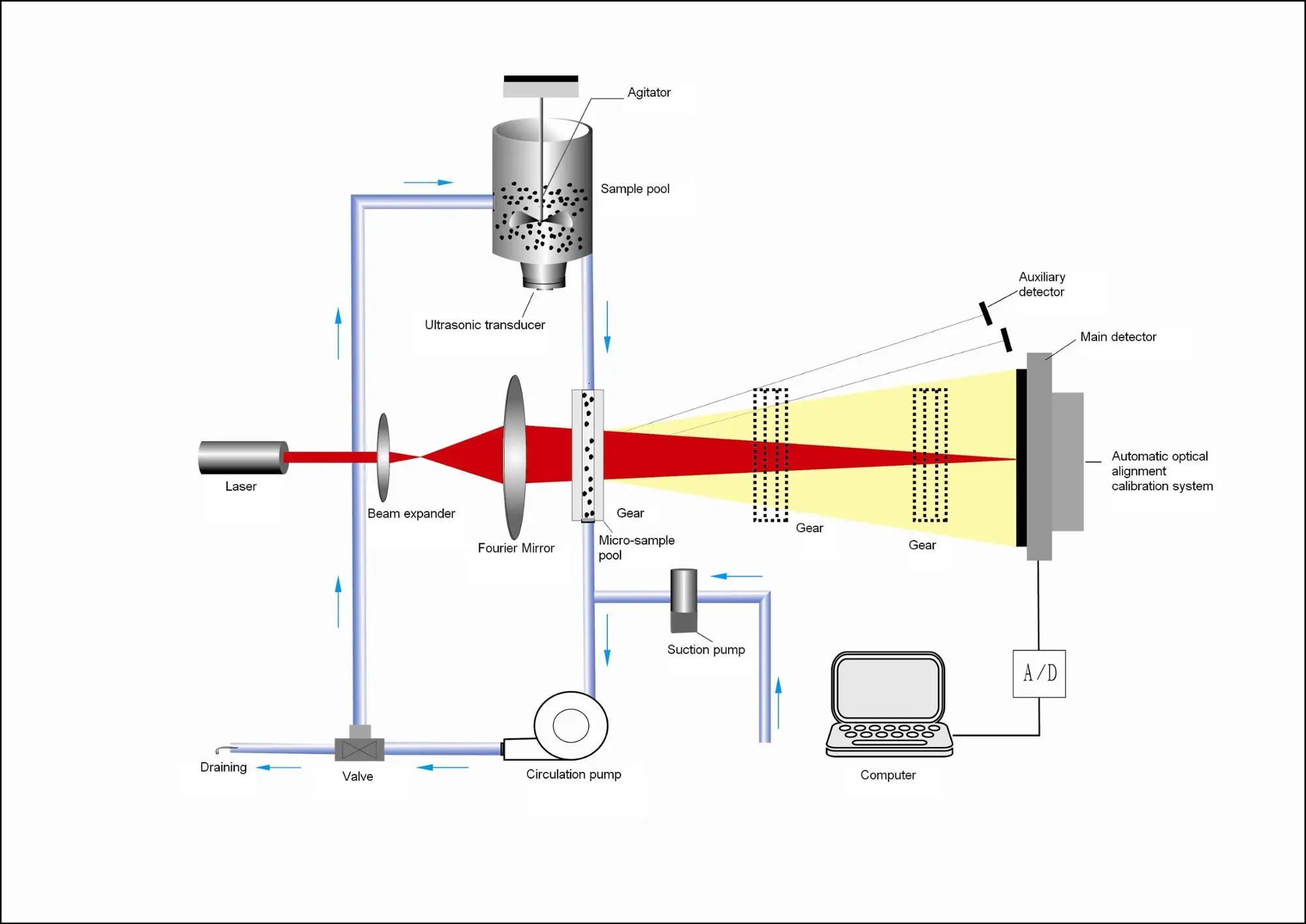

 Structure:







Main Features:

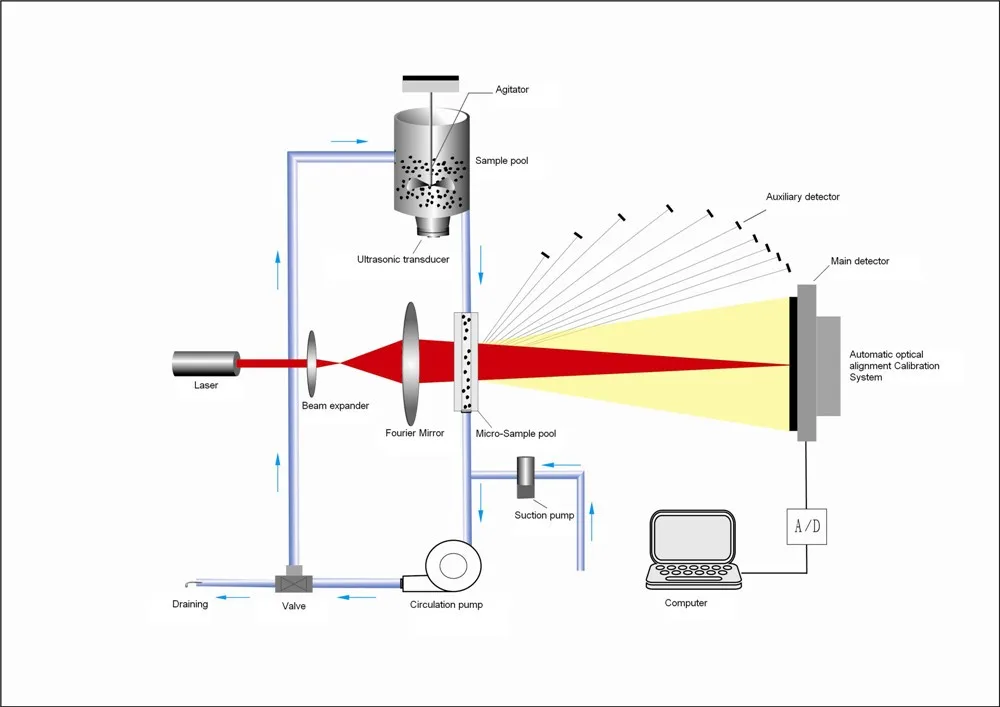

 Advanced design of light path: A patented technique of Fourier transform of converging light released the scattered light at large-scattering-angles from the restriction of the aperture of the Fourier lens. The focal length is reduced to enhance the resolution of the instrument.

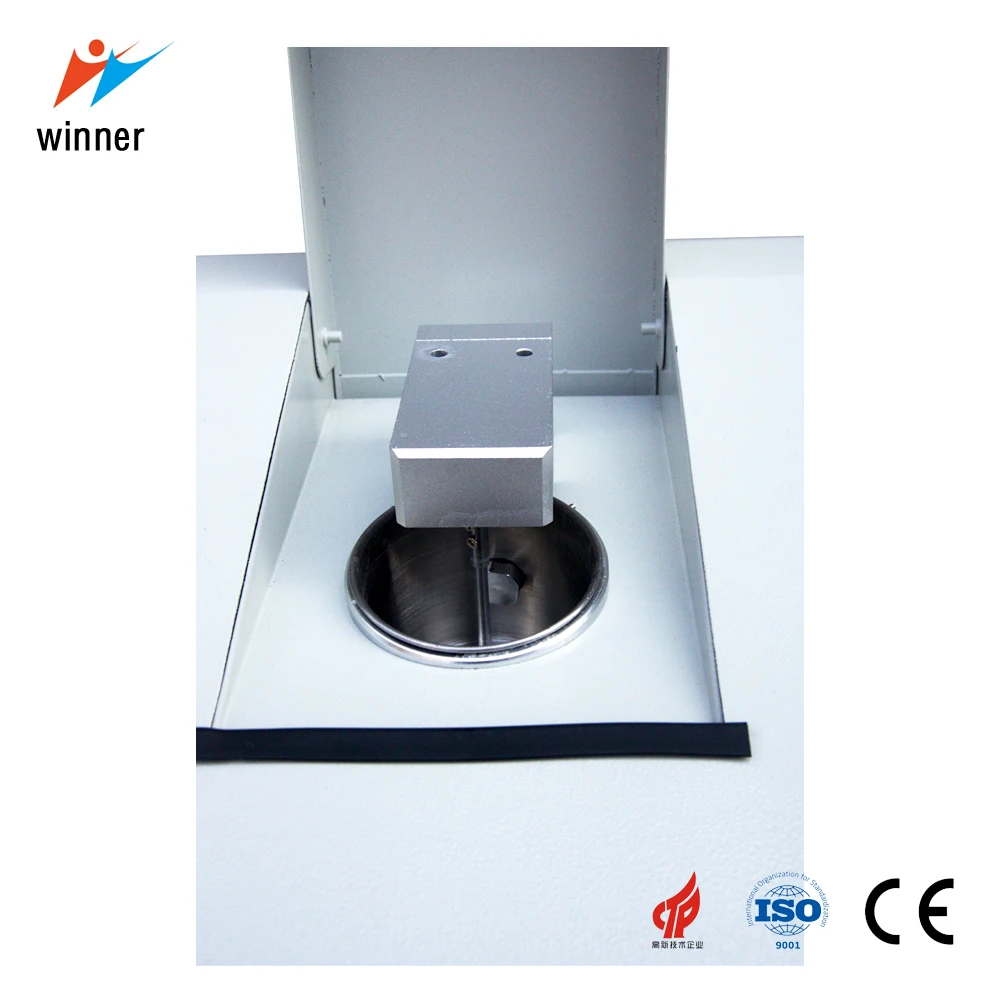

Built-in dispersing units: We carefully aligned the stirring set-up, the ultrasonic dispersing unit and the sample circulation pipes, and fixed them inside the instrument. Such a built-in design effectively prevents the inhomogeneous dispersion and sedimentation of big particles, which can be observed in the designs that these dispersing units are separated from the instruments, where the sample circulation pipes are therefore too long, The sample will be sufficiently dispersed.



Unconstrained fitting techniques: The particle analysis software uses a unique unconstrained data fitting technique that we developed to obtain data of unknown size distribution, this is particularly important for researchers.



Micro sample chamber (optional): The capacity of the sample chamber is as small as only 10ml. This helps with measuring expensive/precious samples, or samples difficult to be dispersed within medium.



Modern measurement control: Users can perform all measurement procedures by simply operating on the PC and have ideal results in a very short time.



User-friendly Operation:  manual mode and the automatic mode, freely choose, to measure according to the sample features. In some conditions (e.g. the sample have unknown features or there are special requirements for the measurements), users can make a test measurement in the manual mode first, and after having an idea of the sample features and the measurement conditions, measure the samples in the automatic mode.



Fully automatic light path alignment: A precise four phase hybrid stepping motor automatically aligns the optical path and can adjust it at any moment. This releases users from manual adjusting the optical path and improved accuracy and stability of the measurement results.



Quick measurements: set “ automatic” mode, all operation procedures are performed automatically,automatic water supply, automatic ultrasonic sample, stirring, circulation,background testing, sample testing,analysis , draining and cleaning, which significantly reduces the time for measurements, the full process only take 2 minutes.



Data analysis: Errors in the data are rejected and the measurement results are automatically processed. Manual data processing is not necessary and the output is more standard.
