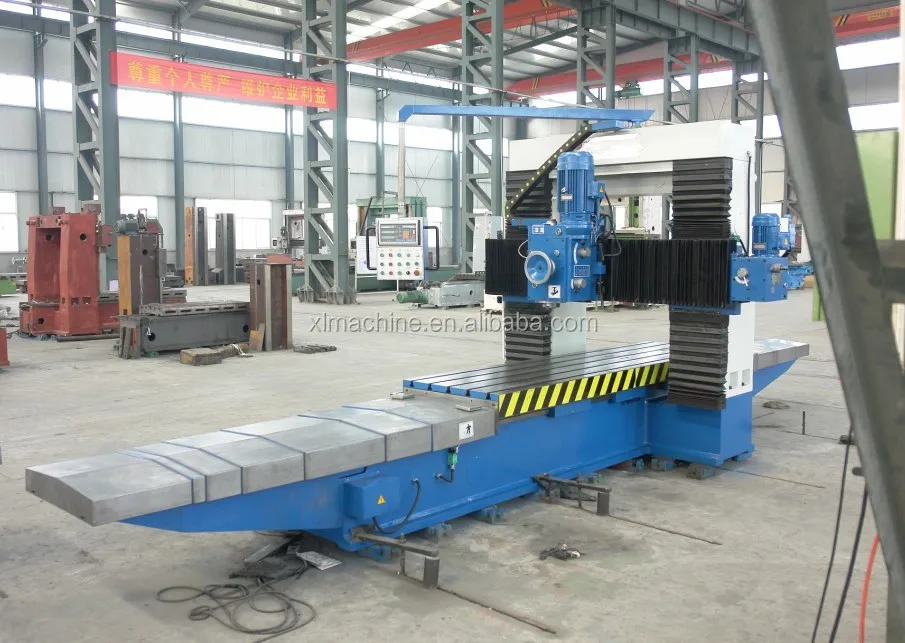

X2012 2m good quality gantry milling machine
- Category: >>>
- Supplier: Tengzhou XILI Machine Tool Co. LTD.
Share on (60557973458):
Product Overview
Description
X2012 2m good quality gantry milling machine
Specificaitons of This Series
X2010 X2012 X2014 Gantry milling machine with 2 heads
1 vertical milling head, 1 horizontal milling head
Specification | Unit | X2010 | X2012 | X2014 | ||||
Max. travel | Length | mm | 2000/3000/4000 | |||||
Width | mm | 1300 | 1400 | 1800 | ||||
Height | mm | 1000 | 1000/1200 | |||||
Distance between columns | mm | 1440 | 1600 | 1920 | ||||
Table size | Length | mm | 2000/3000/4000 | |||||
Width | mm | 1000 | 1250 | 1400 | ||||
Table feeding speed | feed | mm/min | 20-360 | 25-450 | ||||
rapid travel | mm/min | 1050 | 1300 | |||||
Spindle taper | 7:24, ISO50 | |||||||
Spindle speed step | r/min | 6 steps 82-505 | ||||||
Spindle swivel angle | ±35° | |||||||
Feed rate of milling head | mm | Along the cross rail:65/320/890Side milling head:50/265/730 | ||||||
Power of spindle motor | kw | 7.5 | ||||||
Power of table motor | kw | 4/5.5/7.5 | 5.5/7.5(3000/4000) | |||||
Overall size | Length | mm | 4550/7000/9000 | 5000/7000/9000 | ||||
Width | mm | 3200 | 3550 | |||||
Height | mm | 2550 | 2950/3150 | |||||
ITEM | UNIT | X2008 | ||
table size | mm | 2000*800 | 3000*800 | |
T-slots (No./width/pitch) | 5/22/160 | |||
max travel of table | mm | 2000 | 3000 | |
max width of workpiece allowed | mm | 1100 | ||
max height of workpiece allowed | mm | 800 | ||
spindle taper | 7:24 ISO50 | |||
spindle speed | rpm | 82-505 (6 speeds) | ||
spindle box swivel angle | ±35° | |||
spindle box vertical travel | mm | 350 | ||
table feed speed -X axis | mm/min | 0-1400 (stepless) | ||
spindle box feed speed (along beam) -Y axis | mm/min | 65/320/890 (3 speeds) | ||
beam move speed (vertical) -Z axis | mm/min | 429 | ||
max vertical torque | N.m | 790 | ||
spindle motor power | kw | 7.5 | ||
table motor power | kw | 4 | ||
max load | kg | 2000 | ||
machine overall size | mm | 4000*3000*2450 | 6000*3000*2450 | |
machine N.W. | kg | 5400 | 6100 | |
Our Company
Shandong XILI Machine Tool Co., Ltd. is located in Tengzhou City, Shandong Province.
We have nearly 30 years manufacturing history & more than 200 employees.
Our products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to visit us !
We have nearly 30 years manufacturing history & more than 200 employees.
Our products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to visit us !
Company is with CE, ISO certificates.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
Every year, we attend many exhibitions at home and abroad, including CIMES, CCMT, CANTON fair, EMO, Metalloobrabotka etc.
