CAPG PARALLEL GROOVE CLAMP
Instructions:
1)The CAPG parrallel groove clamps are designed to connect aluminium conductors and copper conductors.
2)Advanced foring technology enhances the mechanical strength of the clamp.
3)Special designed screw hole and arc shape of the body allow clamp to adjusts to different cable size on each side.
4)Materials of bolt and nut are optional depend on customer request. Options including Hot-dip galvanized steel and stainless steel.
5)Pressure pad is applied to achieve uniform pressure along the clamp.
| Item No. | Size(mm²) | Sort | Package(pcs) | Gross weight(kg) |

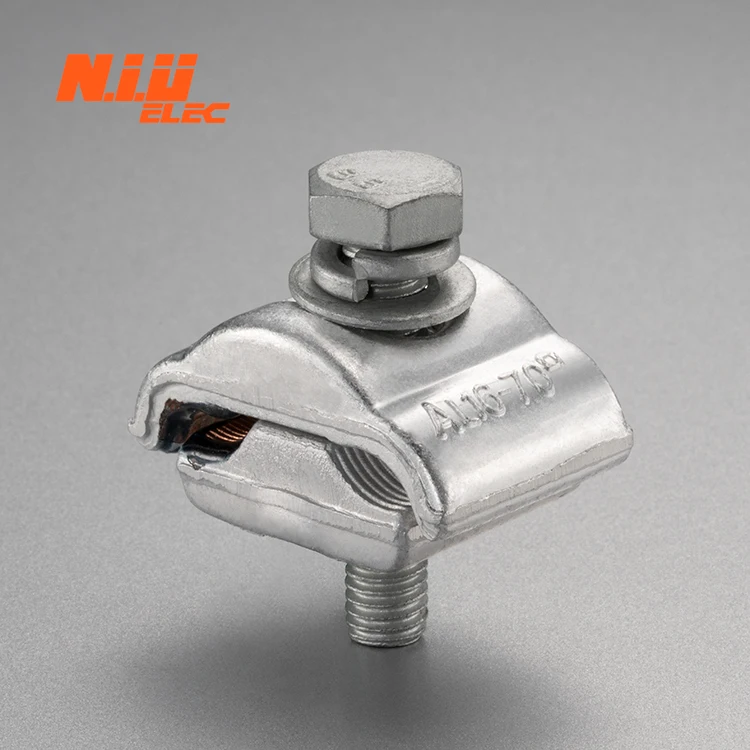

| CAPG-A1 | Cu 6-50 Al 16-70 | Single bolt | 240 | 16 |
| CAPG-A2 | Cu 10-95 Al 25-150 | Single bolt | 300 | 25 |

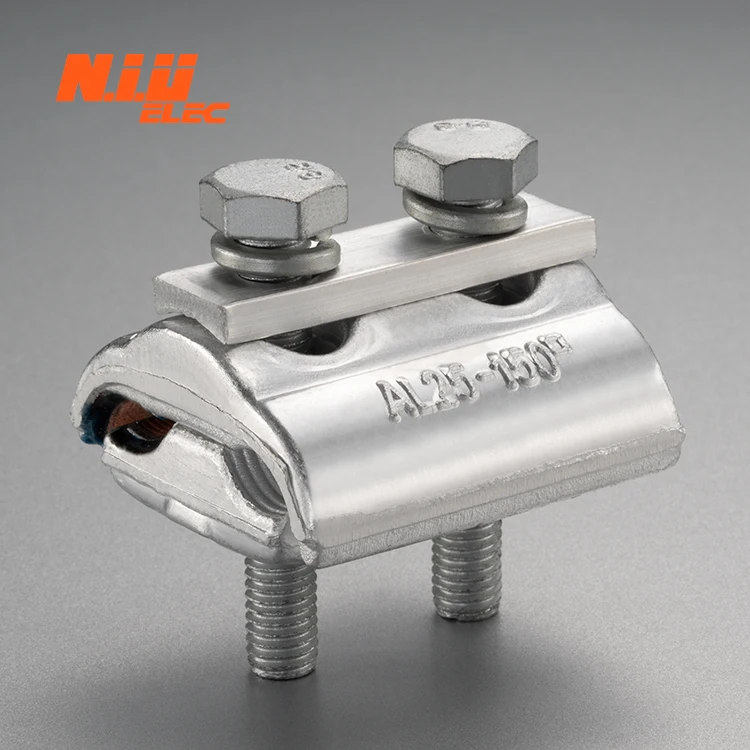

| CAPG-B1 | Cu 6-50 Al 16-70 | Double bolt | 200 | 23.5 |
| CAPG-B2 | Cu 10-95 Al 25-150 | Double bolt | 240 | 34.5 |
| CAPG-B3 | Cu 25-185 Al 35-240 | Double bolt | 120 | 35.5 |

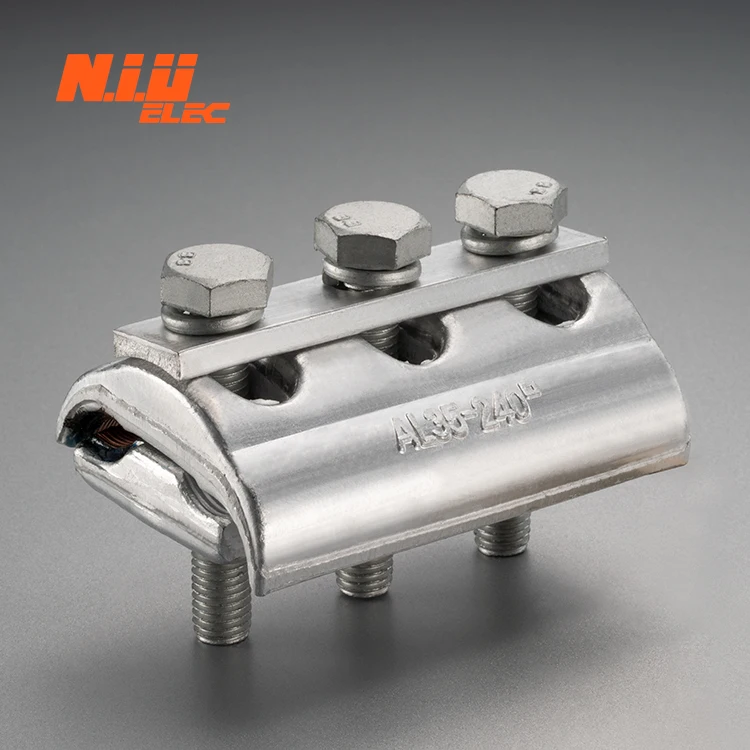

| CAPG-C1 | Cu 6-50 Al 16-70 | Tri-bolt | 150 | 25.5 |
| CAPG-C2 | Cu 10-95 Al 25-150 | Tri-bolt | 150 | 32 |
| CAPG-C3 | Cu 25-185 Al 35-240 | Tri-bolt | 64 | 27 |
| CAPG-C4 | Cu 35-240 Al 35-300 | Tri-bolt | 48 | 27.5 |
Shipping:
Port of Departure: Ningbo or Shanghai
Delivery Time: 15 days after receiving the payment
