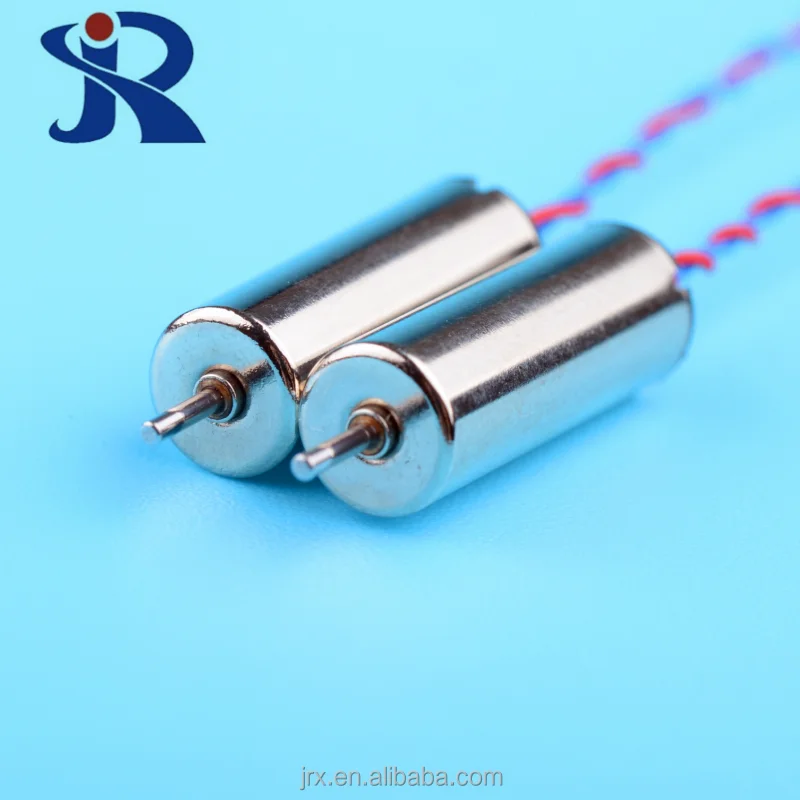

3.7v 55000rpm rc helicopter tail motor ,toy propeller motor 720
- Category: >>>
- Supplier: Yichang Flourishing Import & Export Trade Co. Ltd.
Share on (60558160248):
Product Overview
Description
Product Description
Product Application
Best Quality quadcopter motor ,3.7v rc helicopter tail motor ( JMM1651-720) is widely used for Aeromodelling, RC Toys, RC Car, RC Helicopter, Quadrocopter, Health protection equipment,Electric Toys, Toy Car, Toy Boat, Model Train, Toy Airplane, Dental equipment,Electric Shaver, Small Electric Fan, CPU Cooler Fan, Game Machine, Game Handle, Game Controller, etc.

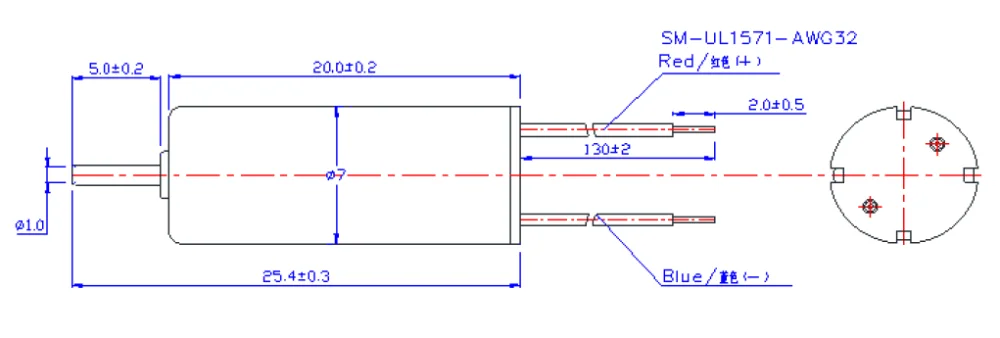

SPECIFICATIONS 7x20 MM HOLLOW CUP MOTOR FOR TOY HELICOPTER ( JMM1651-720) | ||||||
Model Size | Shaft diameter | mm | 1.0 | |||
Motor diameter | mm | 7.0 | ||||
Body length | mm | 20.0 | ||||
Main performance parameters | Rated voltage | V | 3.7 | |||
Speed (max. & min.) | r/min | 55000+_10% | ||||
Rated current | mA | 180 | ||||
Customize parts | Shaft length /Diameter | mm | 1.0 | |||
Wire length/Colour | mm/Red,Black,White | Customised | ||||
Rotation | CW/CCW | CW/CCW | ||||
Main Features
1) Energy-saving:High energy conversion efficiency,more than 70%.
2) Reliable Operational Stability: Operates quietly and quickly with high efficiency and low resistance.
3) Low Noise : Starting and braking quietly, running with low noise.
4) High Speed : The rpm can reach 4500~51000±10%.
5) Fast Response:Rapid starting and braking with fast response, mechanincal time constant is less than 28 milliseconds. Some can reach 10ms or less.
Detailed Images

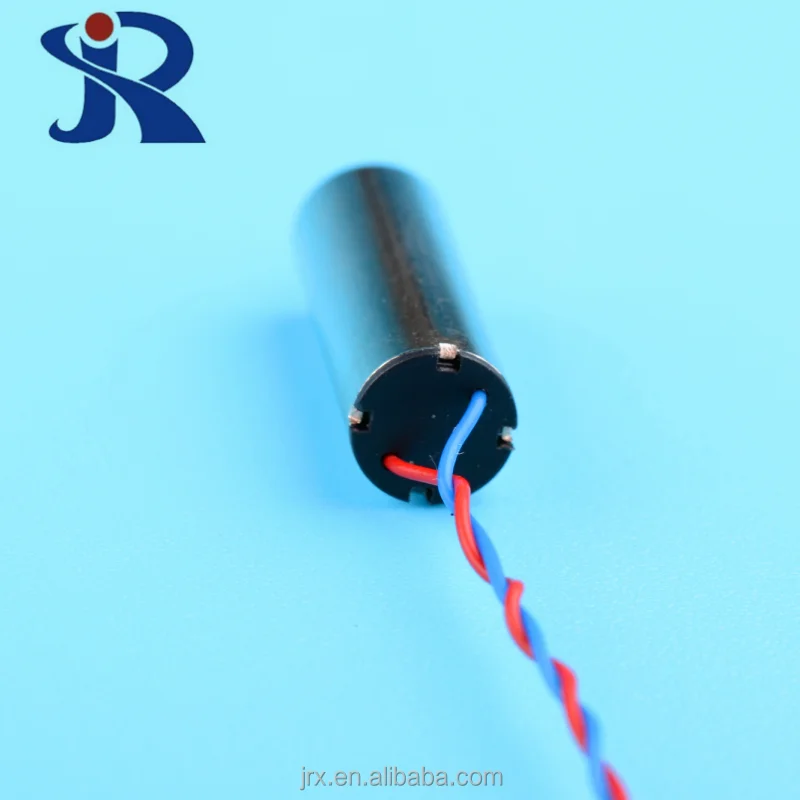

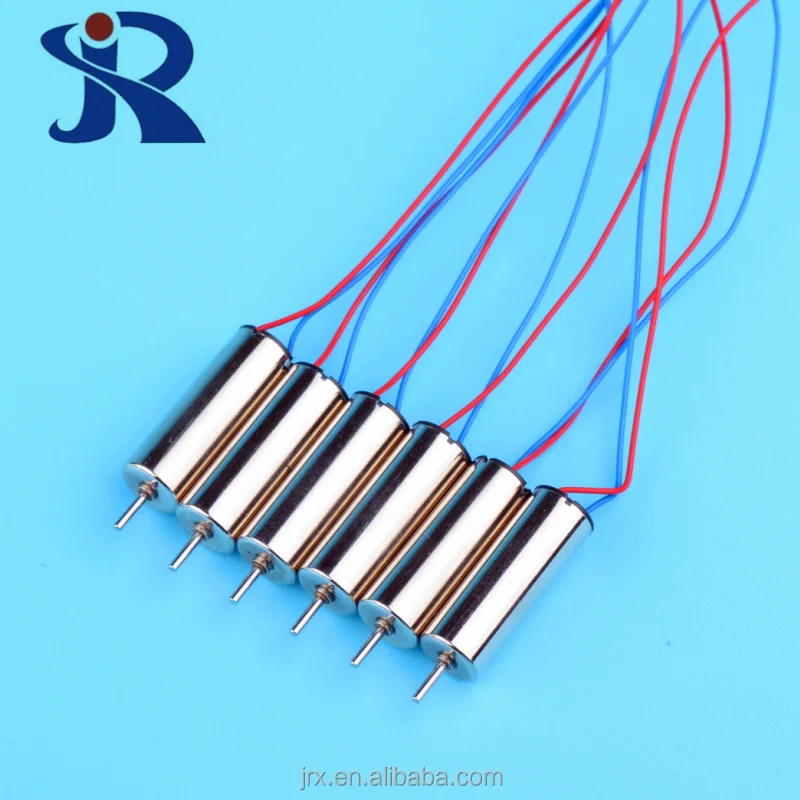

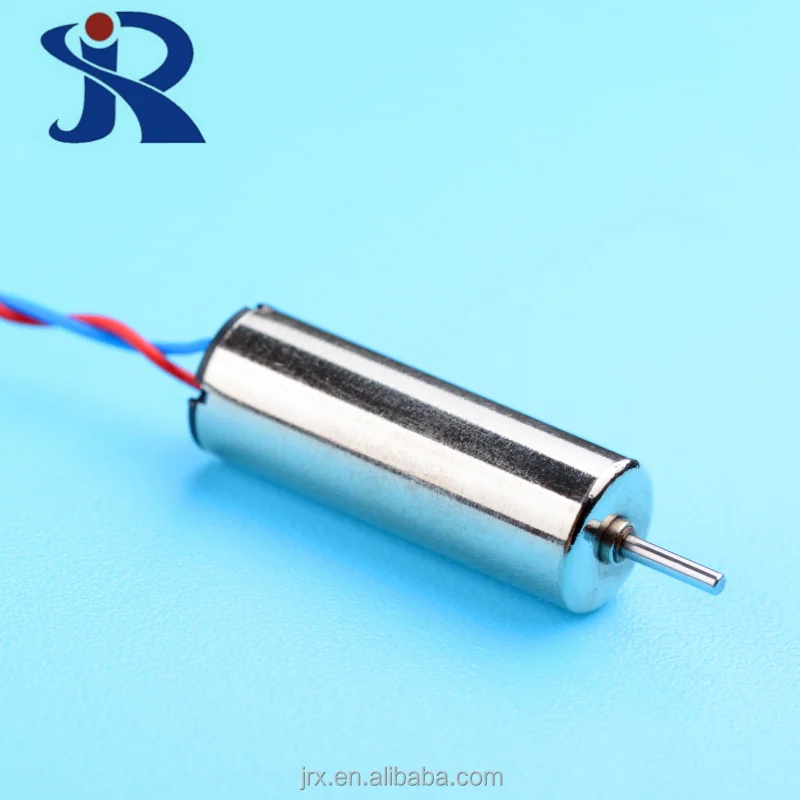

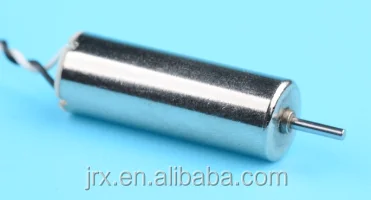

3.7v 55000 rpm 720coreless motor

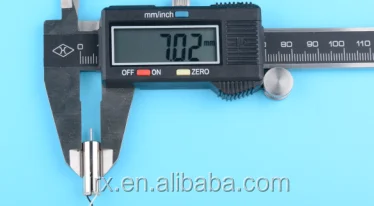

Diameter : 7mm

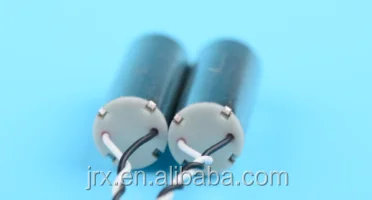

coreless motor 7mm

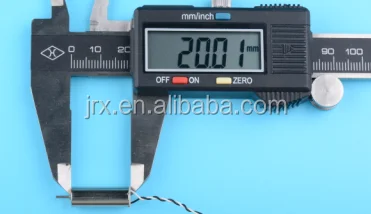

Housing length : 20mm

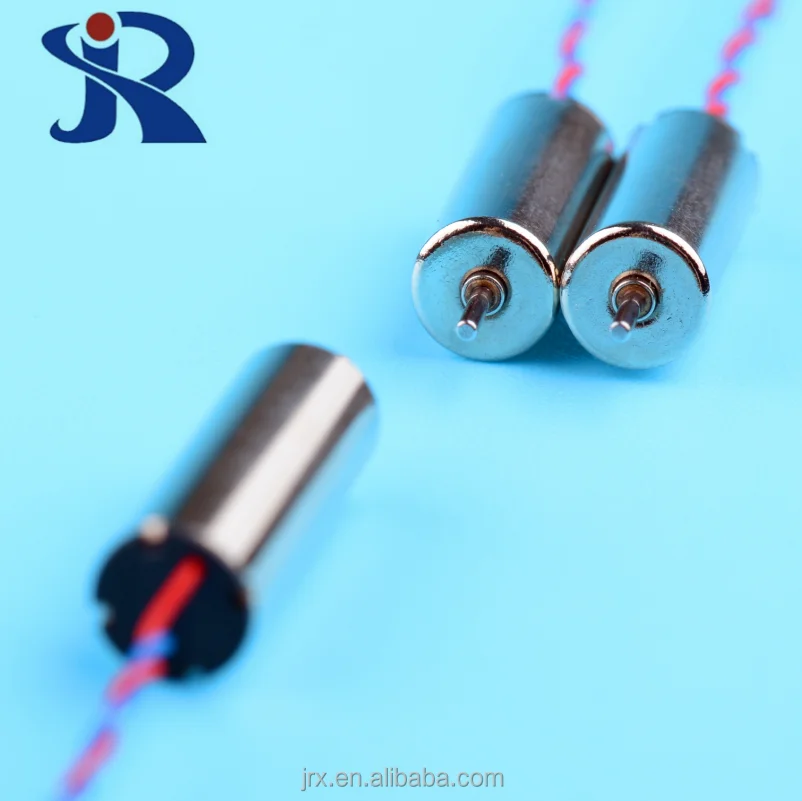

3.7v 55000 rpm 7X20mm coreless motor

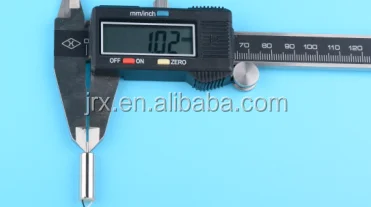

Shaft dia : 1.0mm
Shaft length can customised .

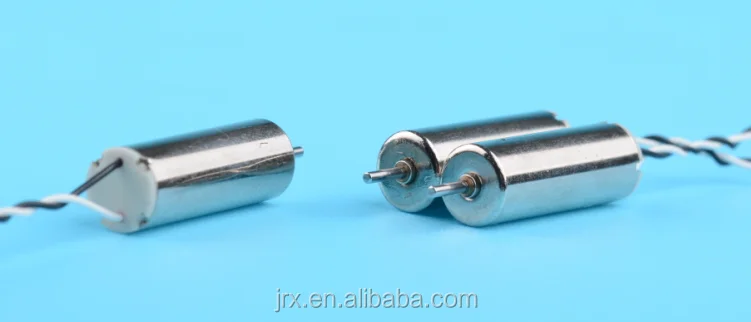

720 brush dc motor

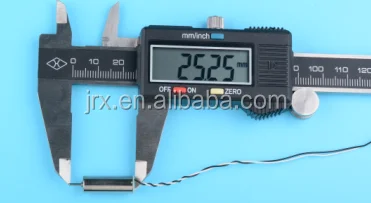

Total length : 25 mm
Domestic famous engines 720 mini dc motor for mini drone helicopter ,toy cars , Quadrocopter,RC Helicopter,
strong driving force, low consumption, high speed.
Packing & Delivery
Packaging For Samples | ||
Size | 175(L) * 95(W) * 75(H)(MM) | |
Weight | 0.5KG | |
Packaging Details | The normal package is foam box(Size: 175L*95W*75H), inner use plastic bag or pack it according to customers special request. | |
Packaging For Quantity | ||
Size | 510 (L) * 300 (W) * 300 (H) | |
Weight | 9.5KG | |
Packaging Details | The normal package is carton box(Size: 500L*300W*300H). Inner use plastic tray (Size:205L*165W*5H),or pack it according to customers special request. | |
Certifications
Our factory has passed SGS ,CE,ISO9001:2008
Quality Management System Certificate .
Related Products
3.7v Dia 8mm Housing Length 20mm DC Motor
100% Response Rate
3.7v Dia 6mm Housing Length 12mm DC Motor
100% Response Rate
3.7v Dia 7mm Housing Length 16mm DC Motor
100% Response Rate
Our Service
We can make motor according to your request designing motor ,voltage ,speed ,motor rotation CW or CCW ,shaft length ,wire length ,matched gear ,matched vibrator ,etc.
Pre-Sales Service
* Inquiry and consulting support,design new product .
* Sample testing support.
* View our Factory.
After-Sales Service
* Any questions can solved .
* Engineers available to service overseas.
FAQ
Q: Is there a MOQ for your motors?
A: Yes. The MOQ is 1,000pcs for different models after sample approval. But it's also okay for us to accept smaller lots like a few dozens, hundreds after sample approval.
Q: Could you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q: Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not .
