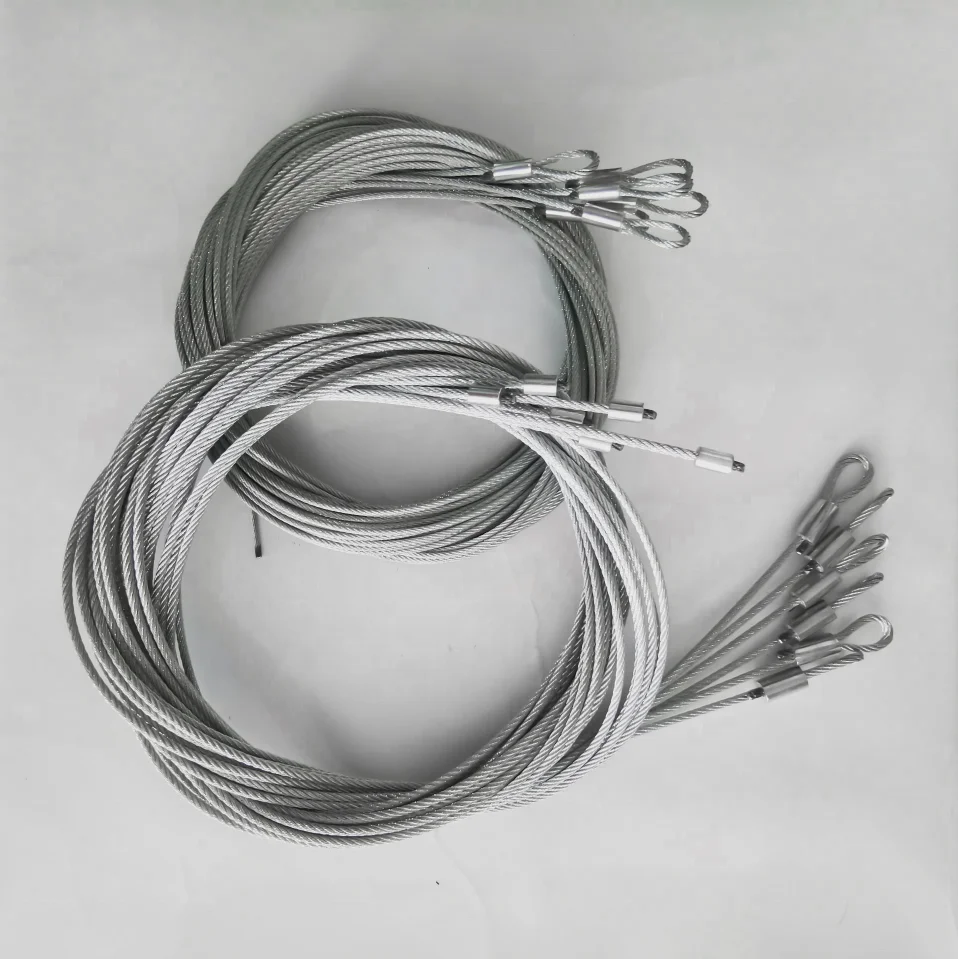

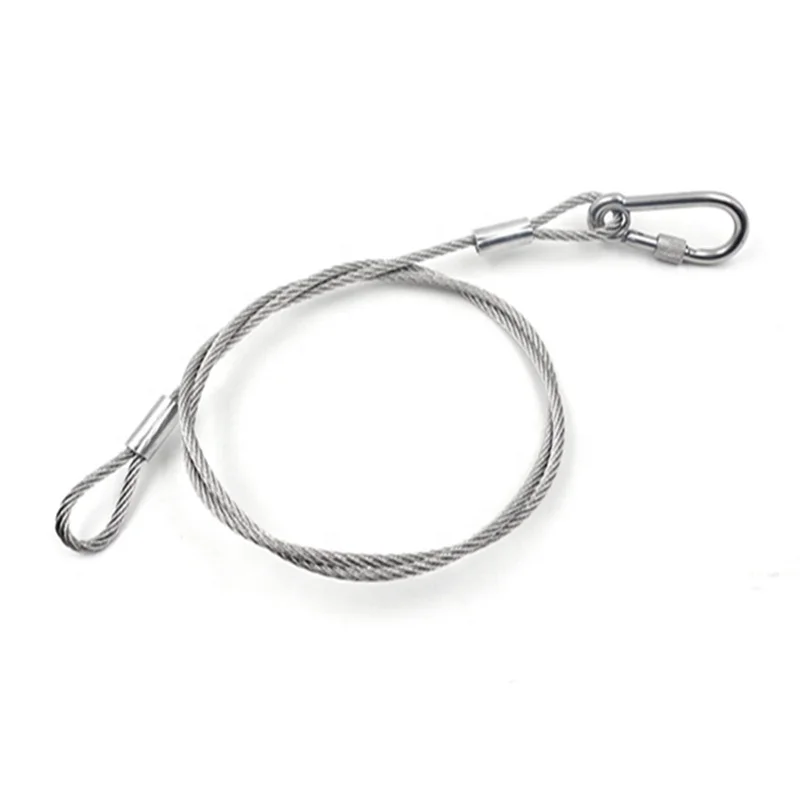

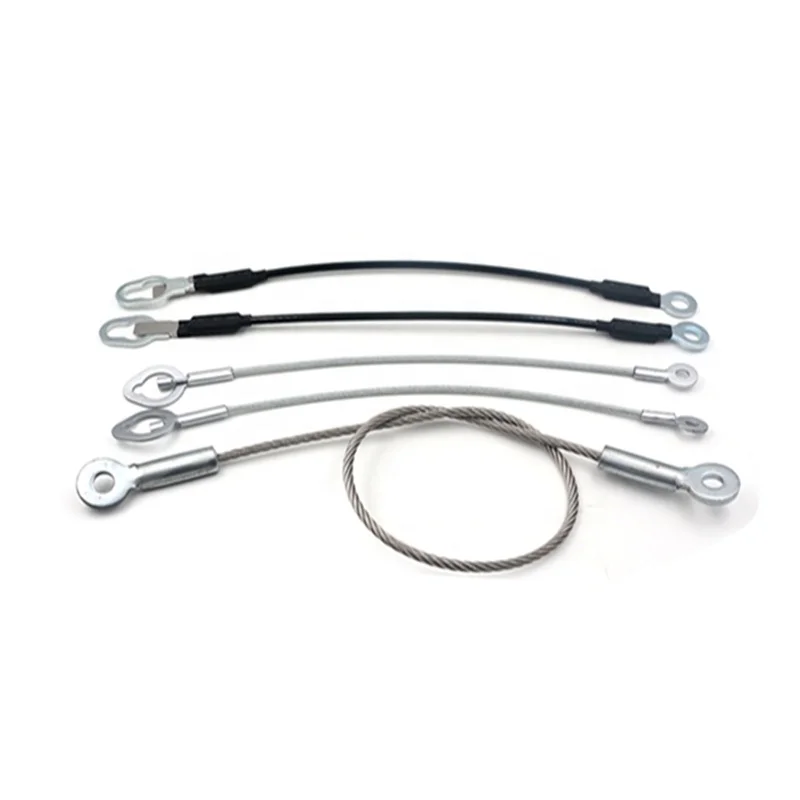

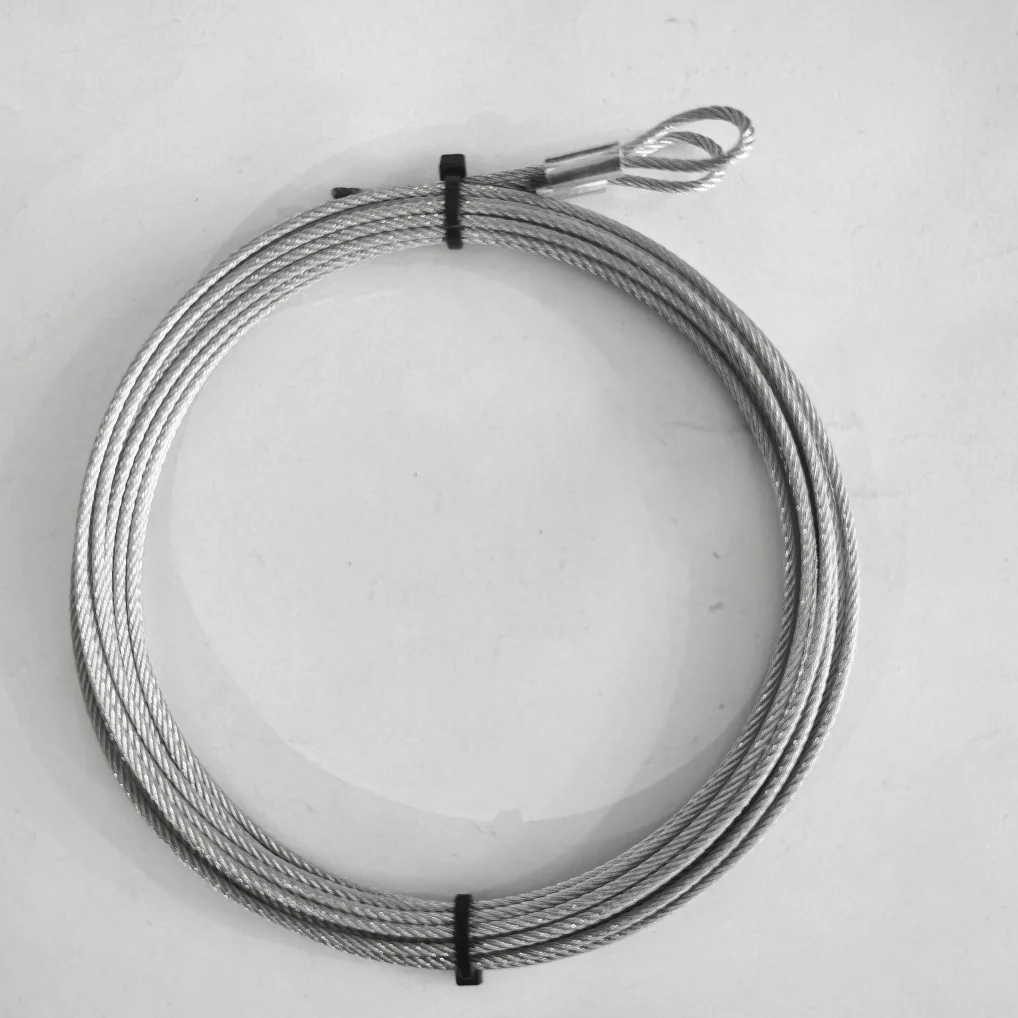

High carbon stainless steel wire with terminal snap hook for door
Company Information
1.company profile:
A professional wire assembly manufacture focus on research, development and selling. We can meet our customers' requirements by excellent R&D capability,advanced processing and testing equipment.
Our products are used widely on lighting, massage armchair,motorcycle,gym equipment,building,industrial fields, we are familiar with the standards, plus we have our own testing machines apply to each items we make. Rest assured that we have many different customers in the world.
why choose us
. All components are fully traceable and certified to ISO9001 standards
. certified with Safe Working Load and Minimum Breaking Load
. Proof loading to your criteria, with full test results and certification
. test equipment is routinely serviced.maintained &calibrated.
Etc. When designing a cable assembly, a number of factors need to be considered such as, work load, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter ,the greater the work load capacity and the less flexible it will be.
WARNING :Breaking strength should never be considered the rope's working load ,safety factor 5:1 ,Coating must be removed from installation area when attaching fittings
specification
Refer to the drawing as below:
All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost.
how to choose material:1stain1.1.1.
1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
Diameter
construction
weight(100m)
Minimum Breaking load(N)
1.0mm
1*19
0.495
950(95kg)
7*7
0.393
650 (65kg)
1.2mm
1*19
0.713
1440(144kg)
7*7
0.566
950(95kg)
1.5mm
1*19
1.114
2200(220kg)
7*7
0.884
1500(150kg)
1.8mm
1*19
1.604
3200(320kg)
7*7
1.273
2100(210kg)
2.0mm
1*19
1.98
3900(390kg)
7*7
1.527
2650(265kg)
2.4mm
1*19
2.851
5650(565kg)
7*7
2.264
3800(380)kg
2.5mm
1*19
3.094
6100(610kg)
7*7
2.381
4100(410kg)
3.2mm
7*7
4.024
6850(685kg)
7*19
3.901
6800(680kg)
3.8mm
7*19
5.675
9650(965kg)
7*7
5.502
9600(960kg)
4.0mm
7*19
6.609
12500(1250kg)
4.2mm
7*7
6.933
13000(1300kg)
4.5mm
7*7
7.958
13500(1350kg)
4.8mm
7*19
8.778
15300(1530kg)
6.0mm
7*19
8.716
23900(2390kg)
FAQ
1. How do you design a Cable Wire ?
Of course ,we have to know your application firstly and a number of factors have to be considered, such as work load, safety abrasion, environment ,cycle life, flexibility, cost, When we design the Cable Wire .
2. How to place an order?
We produce according to customers’ specifications,so you’d better give us complete information as specified below:
3. Are your products of good quality? How can I trust you?
Yes. We are a professional manufacturer of wire assemblies with 15 years producing experience in China .We have always been cooperating with domestic and overseas customers and partners with the first- class quality and service to make great achievements. If this is your first time to contact us, please trust us, we’ll not let you down.
4. What’s the lead time of my order?
It was largely depend on the size of your order .normally ,15days . if you are in urgent need of it ,we will try my best to met your requirement.
If there any thing else we could do for you please don't be hebsitate to contact us ! We are happy to reply within 24 hours ^^ . Thanks a lot
