Product Description

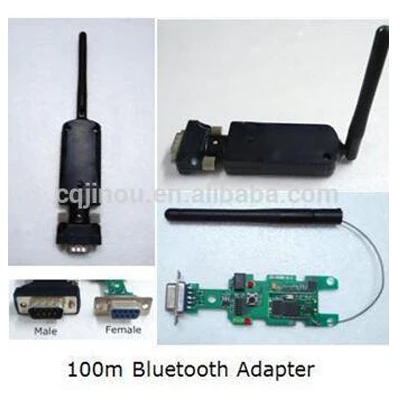

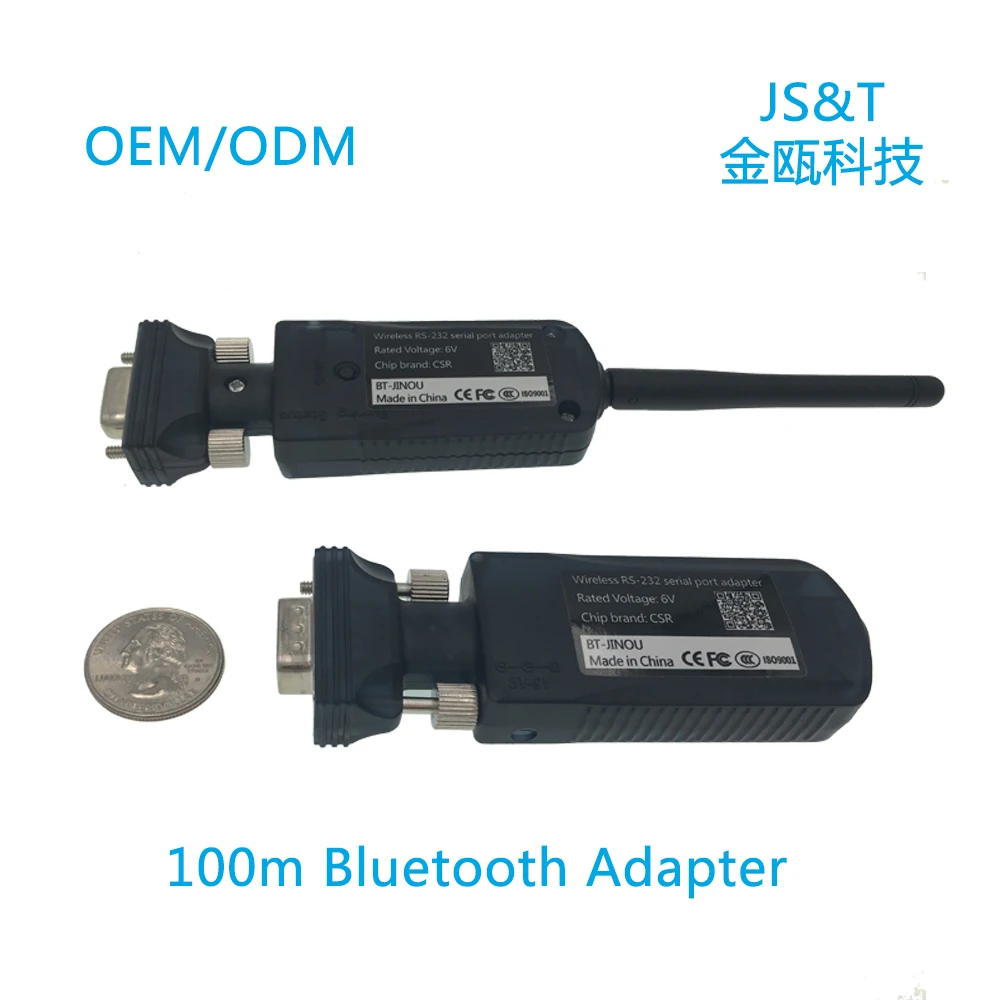

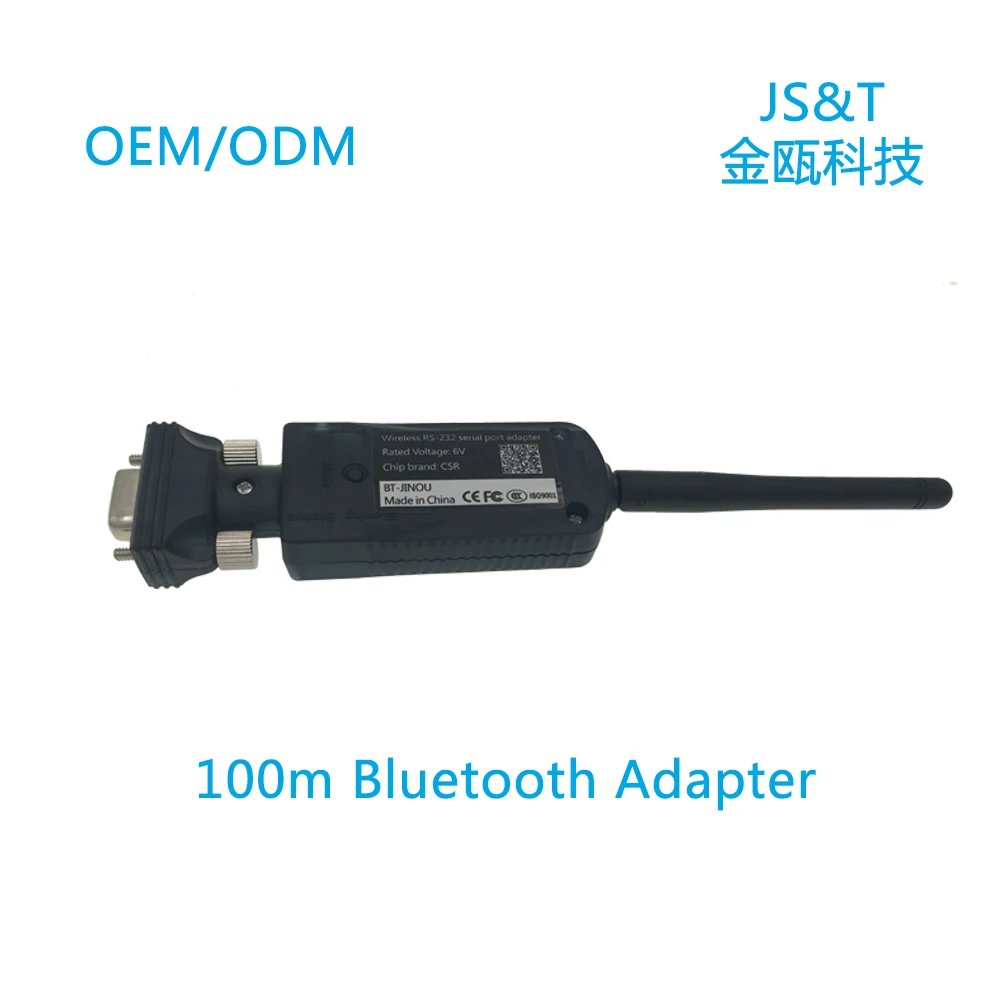

Bluetooth RS232 adapter

Bluetooth RS232 adapter can be applied to all kinds of home appliances, equipment (such as medical treatment equipment) and other electronic information products. As a cable replacement program, it can connect the single-chip processor or processor directly via using PnP mode to achieve the wireless data transmission among equipments transparently. Bluetooth RS232 adapter can be divided into Master device and Slave device which can be matched as one set. When the circuit of the Bluetooth RS232 adapter hardware is connected correctly and powered up, the master and slave device will establish a connection automatically and identify & memory each other. Then, the user's device can use the Bluetooth RS232 adapter as the same as using a serial cable.
Bluetooth RS232 adapter can be used independently as well, excluding using by match. When user's equipment equipped with a Slave Bluetooth RS232 adapter, other Bluetooth devices, such as Bluetooth PDA can search out this Bluetooth RS232 adapter and find out the services provided, and then establish connection and communicate with it through these services. For the communication of the users 'equipments, Bluetooth RS232 adapter can still be used as serial line.

Detailed Images

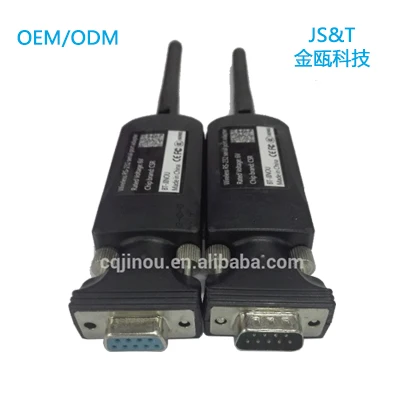

female

Bluetooth RS232 and RS485 Serial Adapter for 10M/100 Meter

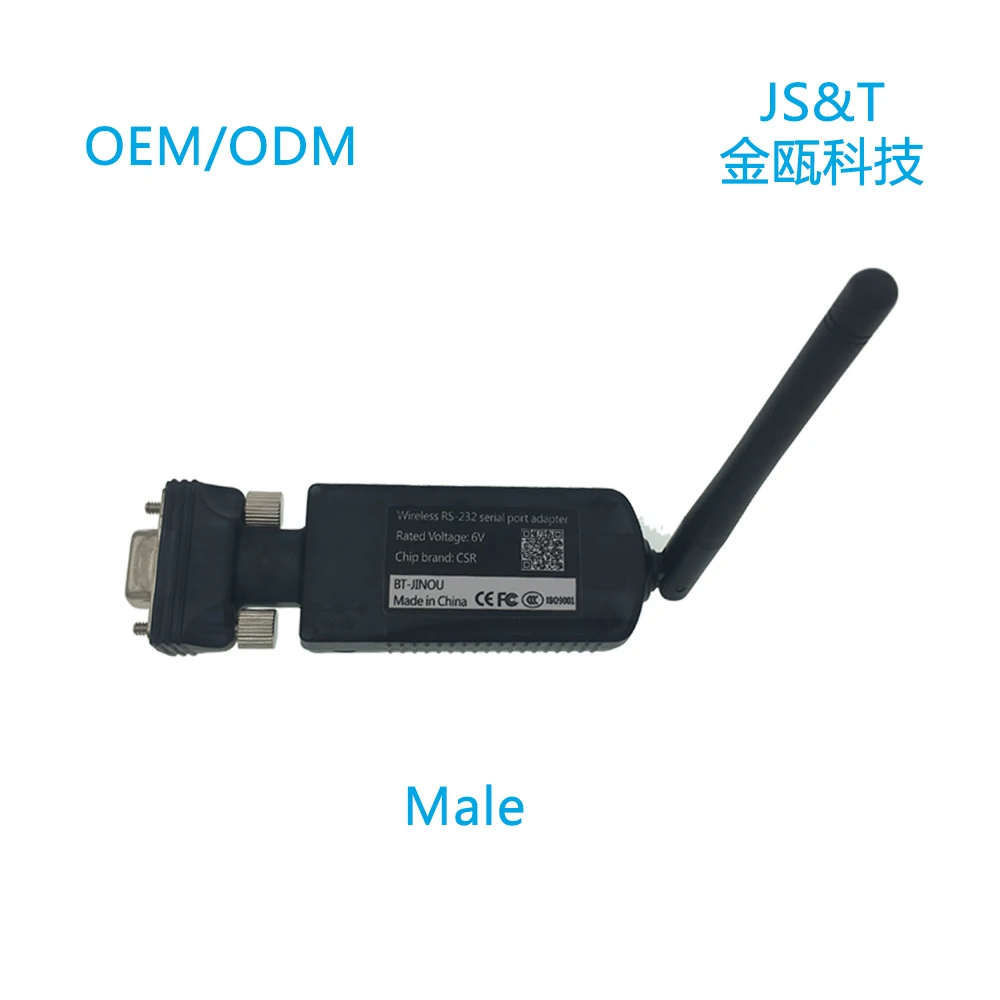

male

Bluetooth RS232 and RS485 Serial Adapter for 10M/100 Meter

famale

Bluetooth RS232 and RS485 Serial Adapter for 10M/100 Meter

male

Bluetooth RS232 and RS485 Serial Adapter for 10M/100 Meter

BLE 5.0

BLE 5.0 Serial Female Adapter 150M Class 1 for Remote Wireless Data Transfer

BLE 5.0 CAN

BLE 5.0 CAN Adapter 10M Female/Male Wireless Data Transmission






BLE USB Adapter

Bluetooth USB-Serial adapter bluetooth3.0 10M
CLASS 2 Standard

\t
Working Frequency
\t
ISM 2.400~2.483GHz
\t
Bluetooth Specification
\t
Bluetooth classical V3.0
\t
RF output power
\t
100m(Class 1 standard)
\t
Spread Spectrum
\t
FHSS
\t
Input Voltage
\t
6V
\t
Receiving sensitivity
\t
-92dBm
\t
Store temperature
\t
-40℃~+85℃
\t
Security
\t
Security certification, data encryption
\t
Connector
\t
DB9 socket(needle pattern or hole pattern)
\t
Safety standard
\t
AES 128bit
\t
Working Temperature
\t
0℃~+60℃
\t
Baud rate
\t
1.2K~1382.4Kbp ( up to3Mbps)
\t
Baud Rate
\t
9600bps (default), or 2.4k~115.2kbps
\t
Protocol
\t
LM, LC, L2cap, SDP, RFCOMM
\t
Support services
\t
Bluetooth serial protocol (Bluetooth Serial Port Profile)
\t
Communication Interface
\t
Standard RS232 five-wire serial mode(RxD, TxD, RTS, CTS, GND)
\t
Maximum connection number
\t
7 slave devices
