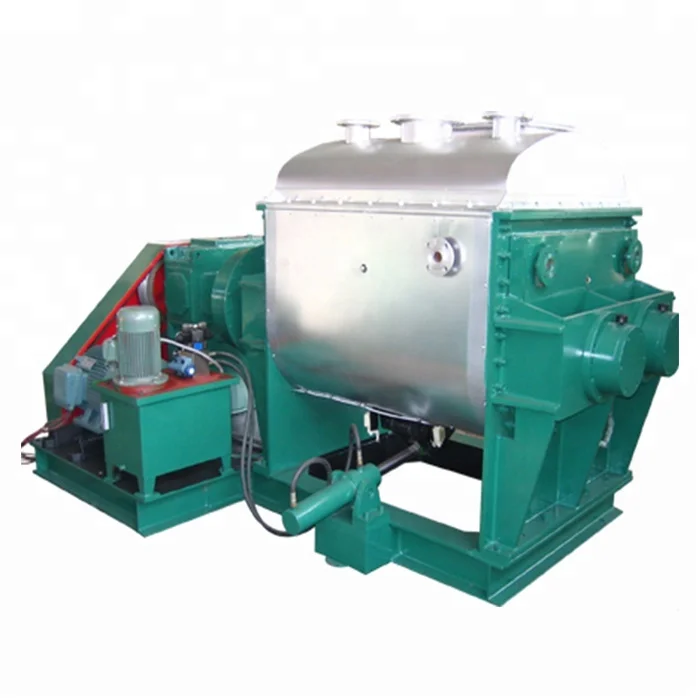

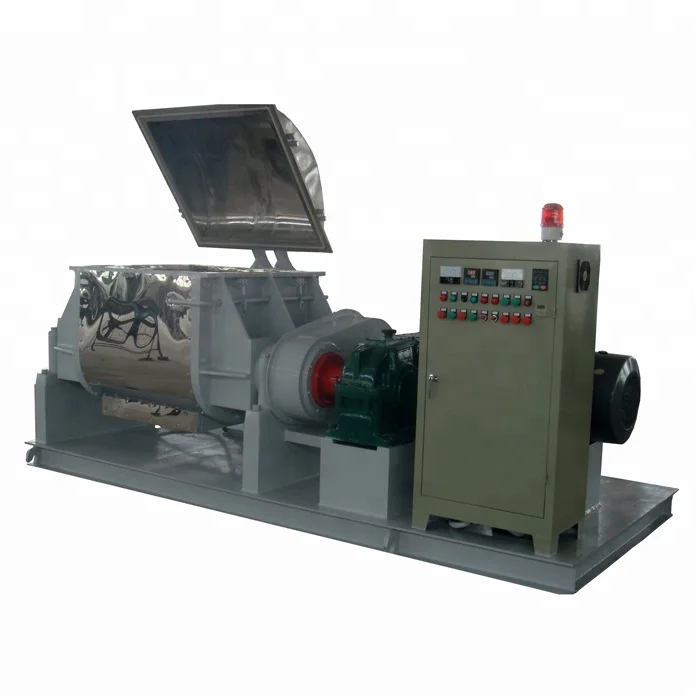

ceramic modeling clay mixing kneader machine

Product Overview

Description

The Technical Data for the modeling clay mixing kneader machine:



Type	Volume Capacity  (L)	Working Capacity(L)	Motor Power(KW)	Discharging methods	Heating method
NHJ-1L	1	0.6	0.75	Tank tilting,Ball valve,Screw  extruding	steam, eletric heating oil, hot water
NHJ-2L	2	1.2	0.75
NHJ-5L	5	3.0	1.5
NHJ-10L	10	6.0	2.2
NHJ-20L	20	12.0	3.0
NHJ-50L	50	30.0	3-5
NHJ-100L	100	60.0	5-7.5
NHJ-200L	200	120.0	7.5-11
NHJ-300L	300	180.0	11-15
NHJ-500L	500	300.0	15-22
NHJ-800L	800	480.0	22-40
NHJ-1000L	1000	600.0	40-45
NHJ-1500L	1500	900.0	30-55
NHJ-2000L	2200	1300.0	45-75
NHJ-3000L	3000	1800.0	55-90
NHJ-5000L	5000	3000.0	90-160
NHJ-8000L	8000	4800.0	110-200



The Features of the modeling clay mixing kneader machine:

1) Available models normal pressure, high pressure and vacuum, with touch part melted by stainless steel.

2) Temperature adjustment: heated by oil, steam or electricity, cooled by water.

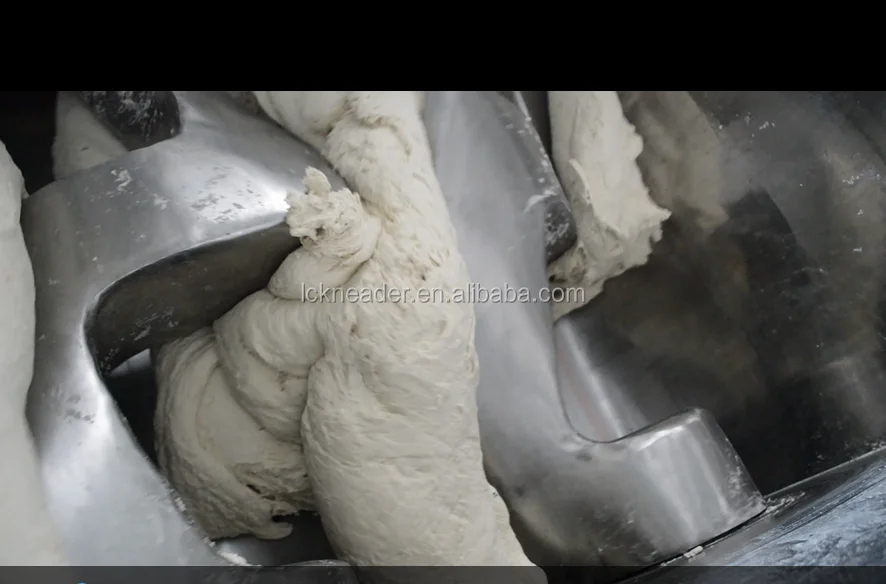

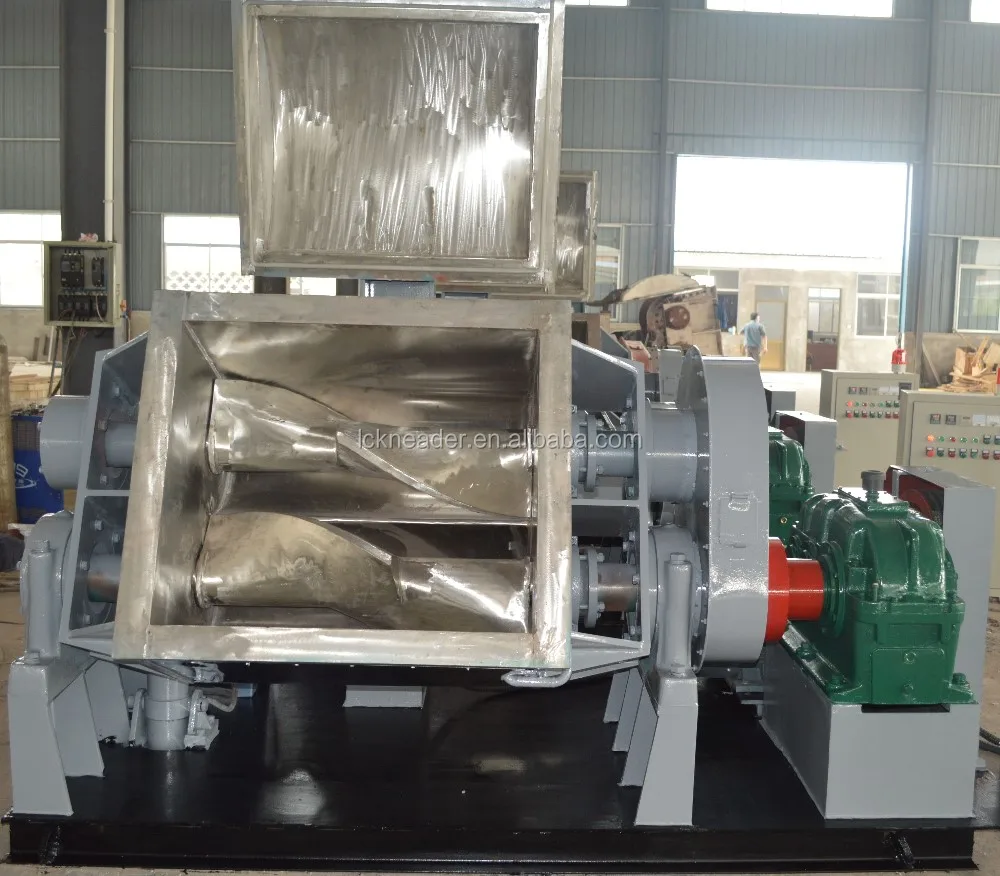

3) The blades made by cast steel, with Sigma or Z shape, whcich makes silicone rubber products stirred and mixed fully.

4) Discharge method: Tank-tilting, bottom pump and screw-extruding discharge.

5) The seal of shaft agitator is adopted with unique balance construction of vacuum box.

6) The cover is controlled by manual, mainly hydraulic system

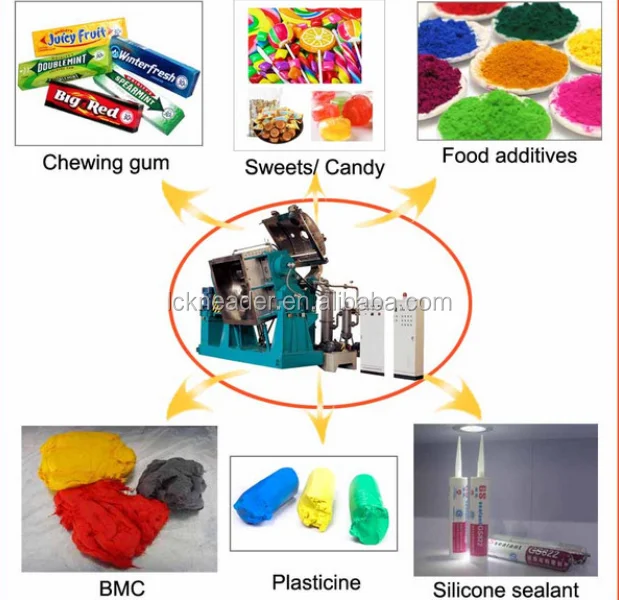

Application of the modeling clay mixing kneader machine:













Packing and Delivery of  Kneader machines for export

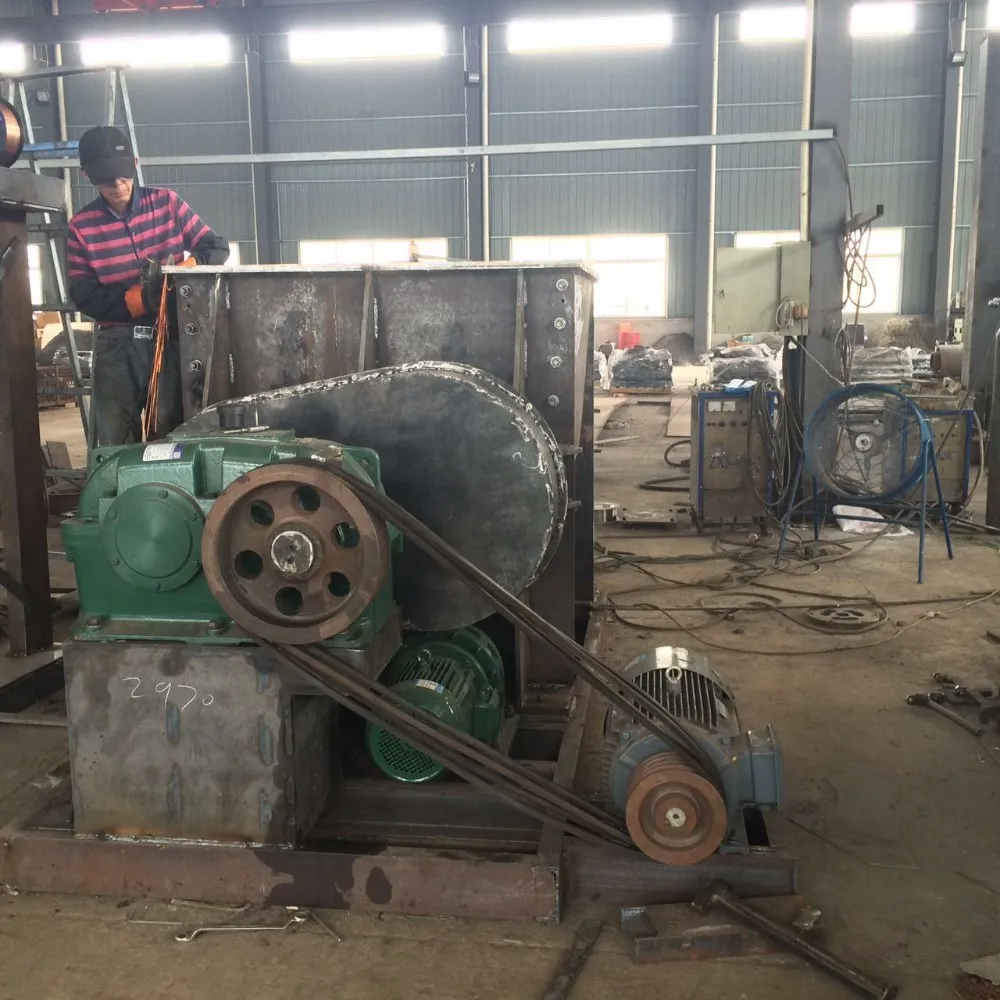

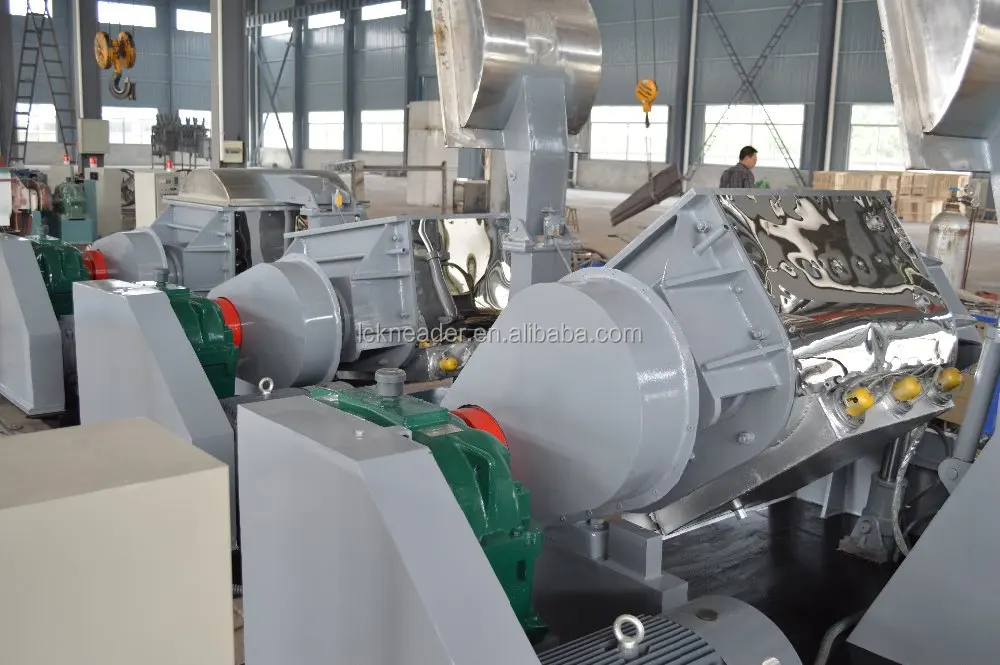

Overview in Working Site from factory









Company Information

Rugao City Lianchuang Kneader Machinery Co., Ltd, an enterprise integrating design, produce, sale and service of kneader, disperser and reactor tank/vessel mixer machines.Based on the advanced technology, craft and equipments, we have rich experience in manufacturing kneader/disperser/reactor production line to satisfy the various requirements of customers. Our products are widely applied to shear, squeeze, disperse, mix and knead the different grade viscous materials, such as the silicone rubber, silicone/acrylic sealant, adhesive and glue, paint & coating,  BMC/DMC, synthetic rubber, thermoplastics, electric powder, color master batch, compound stabilizer, pigment, glass sealant glue, pharmaceutical/medicine, food, cellulose CMC, pigment dyestuffs, high polymer material and plastic-based etc.

It is the principle in our company that " Customers first, Quality& Service is life, Research and Development is power" as well as "Integrity, pragmatic, innovative, refinement," is our goal, which is also what we keep instantly. We chase the management of “Scientific, Prudential, Practical and Creative”. Be steadfast in work and be diligent in life. We devoted to supplying the high-quality products and services for customer constantly!

We sincerely welcome new and old customers at home and abroad for visits and guidance, sincere cooperation and create brilliant future between each other.
