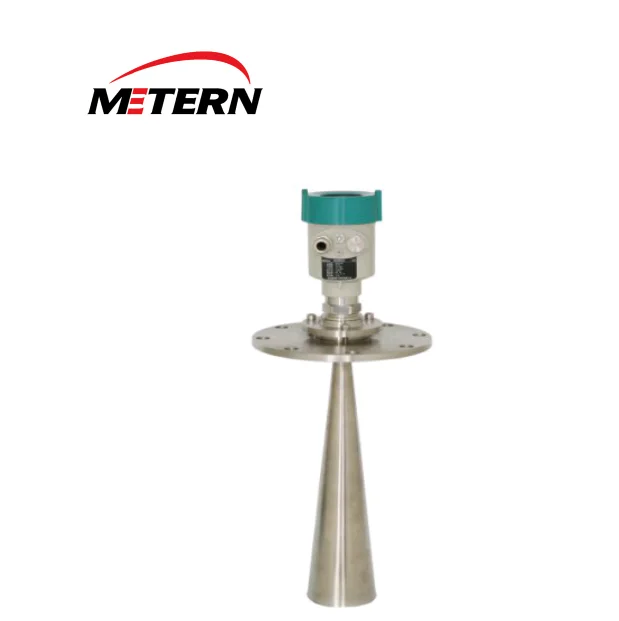

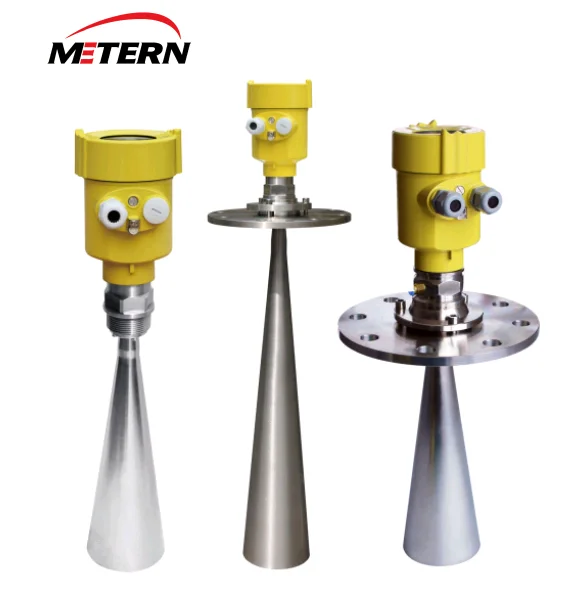

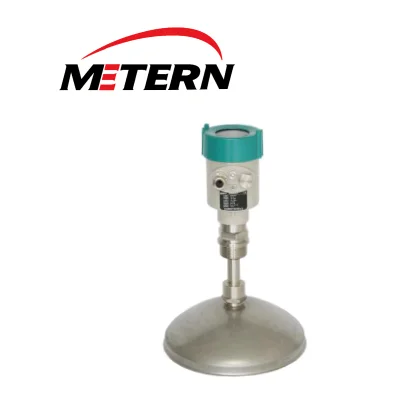

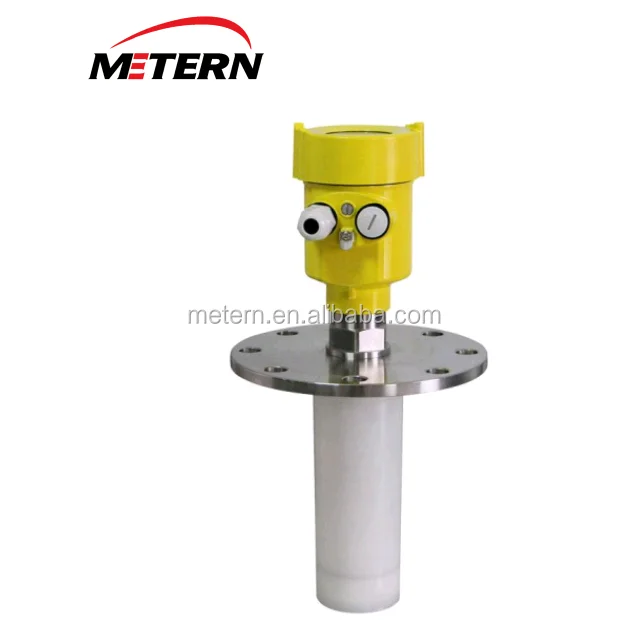

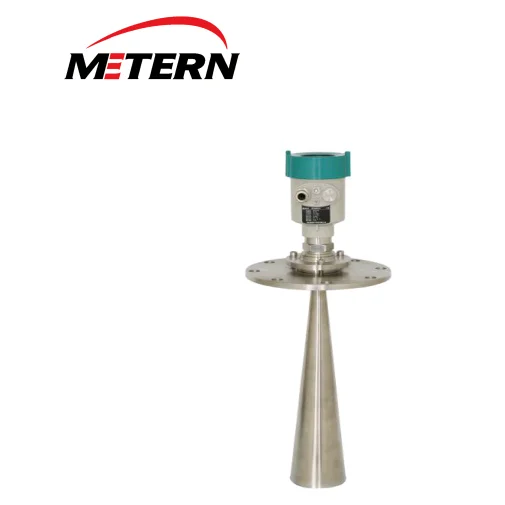

4 20 mA HART protocol guided wave radar level transmitter
- Category: >>>
- Supplier: Dalian Metern Measurement And Control System Co. Ltd.
Share on (60558766006):
Product Overview
Description
4-20 mA HART protocol guided wave radar
level transmitter
Product Description
Overview:
Guided wave radar is a gauge based on time stroke principle, the radar wave is running at speed of light, the running time can be converted to material level signal through electric components. The sensor emit high frequency impulse and transmit along the cable, when impulse meets the material surface, it reflects back and is received by receiver inside the gauge, and converts the distance signal to material level signal.

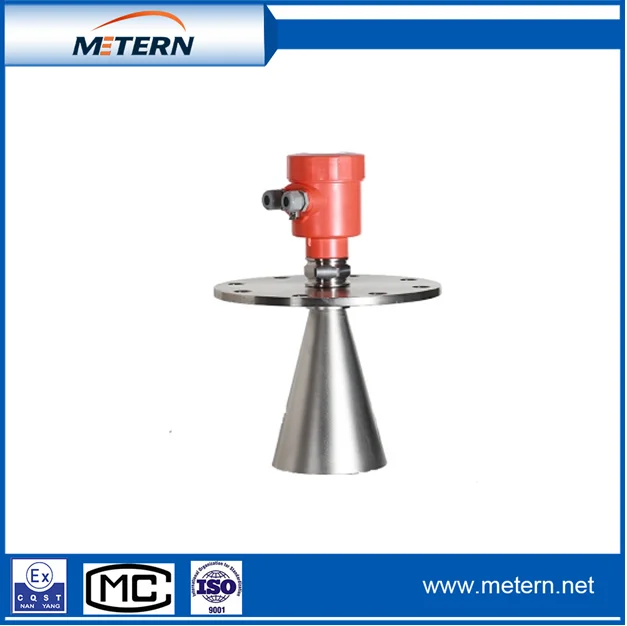

Digital 26 GHz Pulse radar level meter Specification
Guided wave radar is a gauge based on time stroke principle, the radar wave is running at speed of light, the running time can be converted to material level signal through electric components. The sensor emit high frequency impulse and transmit along the cable, when impulse meets the material surface, it reflects back and is received by receiver inside the gauge, and converts the distance signal to material level signal.
Digital 26 GHz Pulse radar level meter Specification
| Photo | |||
| Model | MTRD701 | MTRD702 | MTRD703 |
| Application | Liquid,solidgranules | Liquid,solidgranules | Liquid |
| Measuring range | 30m | 6m | 6m |
| Process connection | Screw,flange | Screw,flange | Screw,flange |
| Process temperature | -40~250℃ | -40~250℃ | -40~250℃ |
| Process pressure | -1.0~40bar | -1.0~40bar | -1.0~40bar |
| Accuracy | ±1mm | ±1mm | ±1mm |
| Frequency range | 100MHZ-1.8GHZ | 100MHZ-1.8GHZ | 100MHZ-1.8GHZ |
| Ex-proof | EXiaIICT6/IP68 | EXiaIICT6/IP68 | EXiaIICT6/IP68 |
| Signal output | 4~20mA/HART | 4~20mA/HART | 4~20mA/HART |
Certifications
Company Information
Be founded in 1998.
Registered capital: USD 10 million
Building area: 30000m2
Established R&D of Coriolis mass flow meter since 2005
Started production and sales of Coriolis mass flow meter since 2008
Products are exported to Italy, Spain, Belgium, Brazil, Colombia, Malaysia, ect.
Dalian Metern Measurement and Control System Co.,Ltd
No.33 Quannan Street, Bonded ares, Dalian, Liaoning, China, 116600
Tel: +86-411-87966566
Fax: +86-411-87180679
Website: //www.metern.net
