electric Mid drive engine 5KW 48V 72V 96V 5000W kit with programmable VEC controller

Product Overview

Description

electric Mid drive engine 5kW electric car kit air

cooling/water cooling 48v /72v /96v 5000W for motorcycle

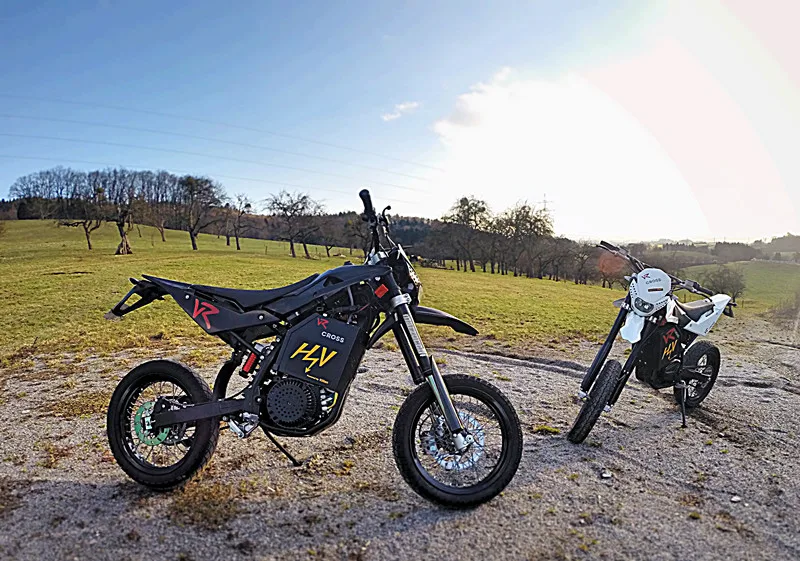

Electric Motorcycle Drive Solution Kits Drive Your Motorbike up to 100mph



Convert your gasoline powered motorcycle, scooter into electric version easily!

Clean, Quiet, Efficient, Light Weight, Monstrous Powerful, and Affordable.

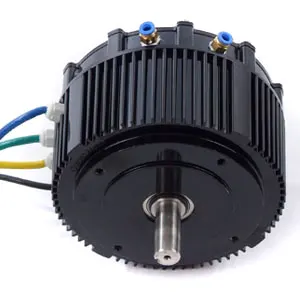

 5KW BLDC motor

Model: HPM5000 -- High Power BLDC Motor

1. Voltages: 48/72V/96v

2. Rated power: 5KW

3. Peak power: 10KW

4. Speed: 3000-6000rpm

5. Rated torque: 16 Nm

6. Peak torque: 48 Nm

7. Efficiency: >91%

9. Weight: Air cooling(10.8kg);Liquid cooling(11.35kg)

10. Cooling: air or liquid cooling

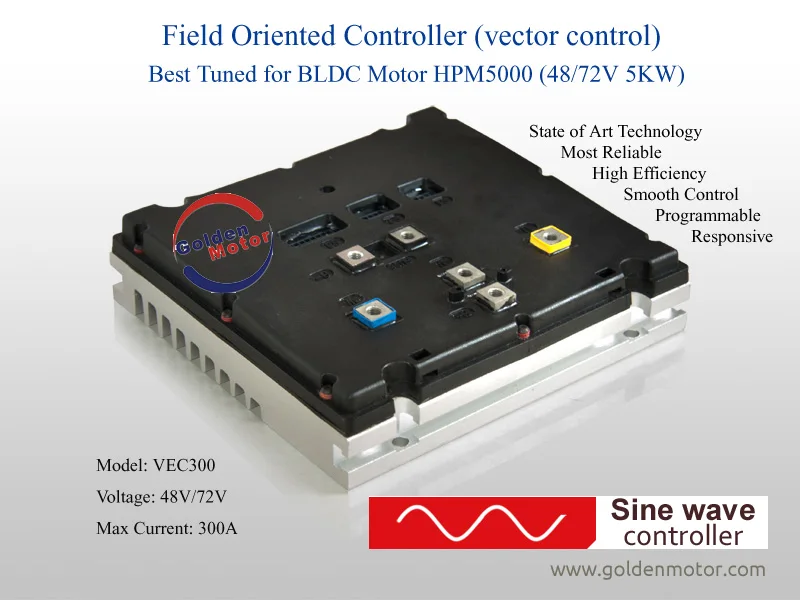

	Vector controller VEC300-true sine wave controller  Model: VEC300  Voltage:48V/72V/96V  Rated DC BUS current:30A~200A  Rated output power:1000~10000W  Motor control mode:FOC  Quiescent operation  current:20~40mA  Speed limit:Controlled by motor and configuration  Driving method:Direct torque control  Keyway size: 190mm(L) x 180mm(W) x 50mm(H)  Weight:2.5kg)
	Model: PI-400/VEC-FOC Controller Programming Kit  Easy Installation for PC/laptop  Easy USB Port Connection







Long working life (>20,000 hours)

Low noise, high torque

Excellent performance characteristics

High efficiency (>90%)

High reliability

Rated voltage : 48V-120 VDC

Rated power : 5KW

Rated speed: 2000-6000 rpm

Stepless speed control, dual-direction

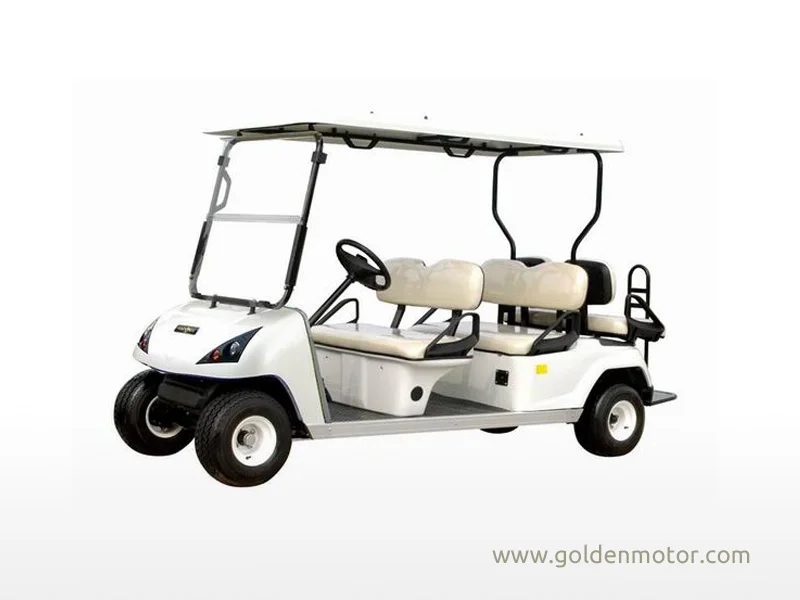

5KW BLDC motor will apply for the car ,motorcycle,golf cart,ATV and UTV and boat
