Diagonal Mono Layer Plastic Sheet Extruder Machine, Germany Extruder production line Machine Plastic

Product Overview

Description

Single-layer PP PS Sheet Plastic Extrusion Machine, Plastic Sheet Extrusion Line

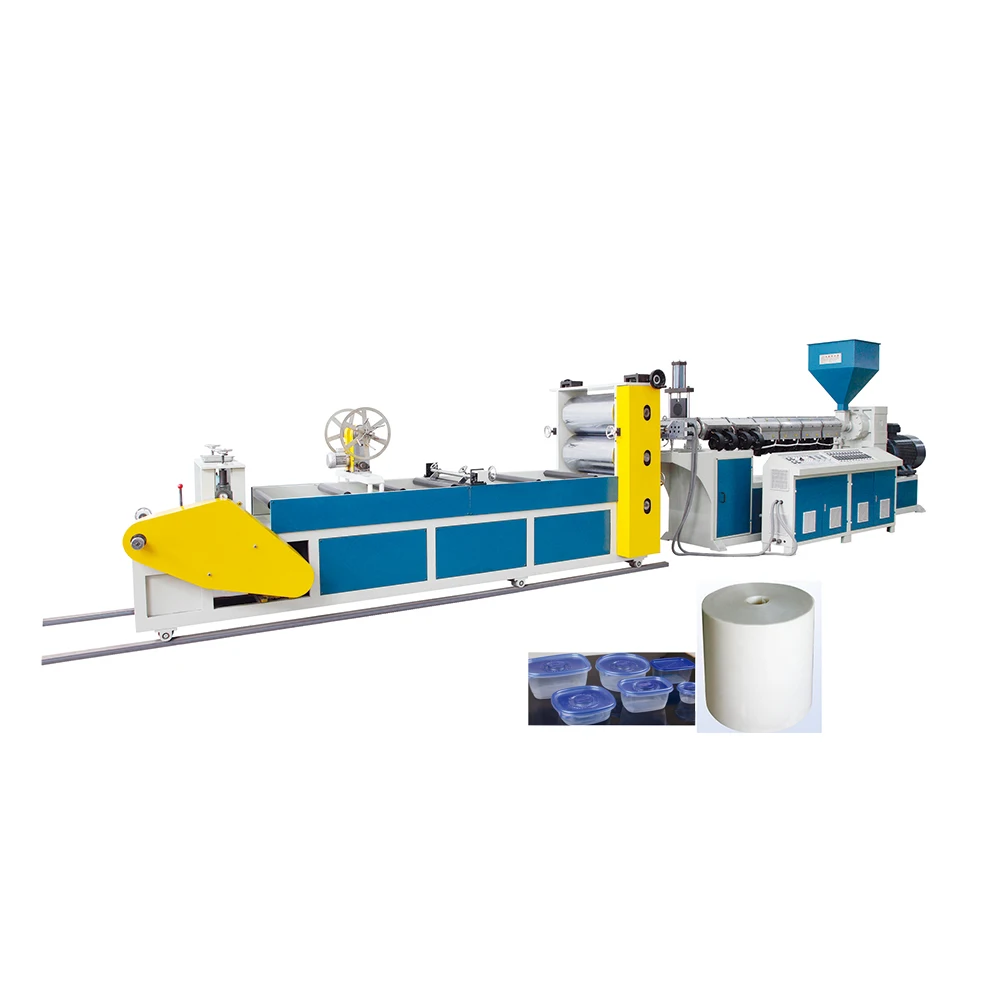

1,The Sheet Extrusion unit is a combination of Extruder,three roll calender,haul-off unit,winder(including waste sheet winder) and electric control cabinet.

2,The main parts, such as screw, barrel, screen exchanger, T-die adopt superior alloy steel (38CrMoAIA) with high hardness,  strong corrosions resistance and long operating life after nitrogen treatment.

3,The screw adopts big L/D Ratio,equal plasticization and high plasticizing capability.

4,Non-stop fast screen changer with double-sieve, controlled by hydraulic device, the operation is convenient and imporve the production efficiency,

5,The Calender, hual off unit and winder adopt integration design, fine appearance, convenient and fast installation and adjustment,

6,The machine frame adopts square steel,to make sure the machine works stably in high speed. The motor is connected with gear box directly,improve production efficiency and lower energy consumption.



Main Technical Parameters:

Model	FJL-PC-90-A/B	FJL-PC-100-A/B	FJL-PC-105-A/B	FJL-PC-110-A/B	FJL-PC-115-A/B	FJL-PC-120-A/B
Raw Material	PP,HIPS,PE
Sheet Thickness	0.3-2mm
Layer	1
Capacity	100kg/h	150kg/h	175kg/h	200kg/h	225kg/h	250kg/h
Screw Dia.	90mm	100mm	105mm	110mm	115mm	120mm
L/D Ratio	32:1
Roller Dia.	300mm	320mm	350mm	350mm	400mm	450mm
Main Motor Power	37kw	45kw	45kw	55kw	75kw	90kw
Overall Power	90kw	100kw	110kw	120kw	135kw	160kw
Weight	5.5T	6T	6.5T	7T	7.5T	8T
Power Supply	380V/50HZ/3P

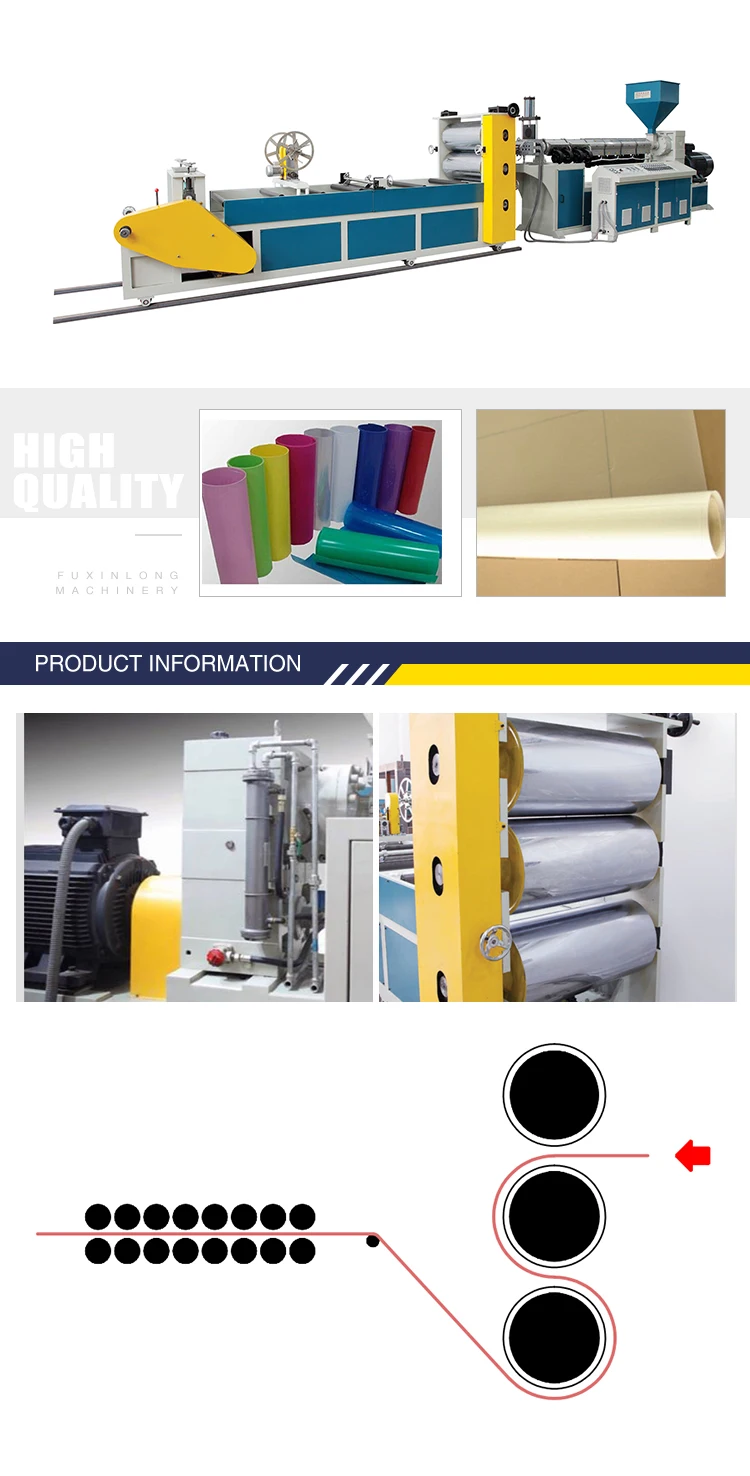

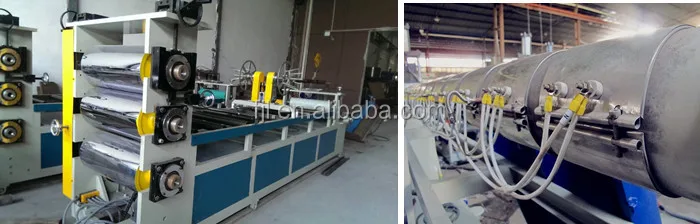

Parts of Machine Pictures:
