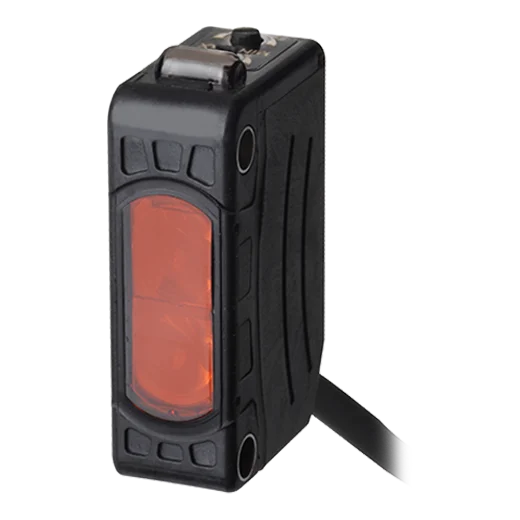

Autonics Photoelectric sensor BJ3M-PDT

Long distance sensing type
Long sensing distance with high quality lens
Long sensing distance
Through-beam type 15m, Diffuse reflective type 1m, Polarized retroreflective type 3m(MS-2A)
 M.S.R.(Mirror Surface Rejection) function (Polarized retroreflective type)
 Compact size: W20×H32×L10.6mm
 Protection structure IP65/IP67(IEC standard)
 Light ON/Dark ON selectable by VR
 Sensitivity adjustment VR incorporated
Built-in reverse power polarity, output short, overcurrent protection circuit
 Mutual interference prevention function(Except through-beam type)
 Improved noise resistance

BGS reflective type
 Adopts BGS method superior than convergent reflective to minimize error by background, or color, material of sensing object for stable sensing by adjusting the volume
 Visible light source to check the position of sensing spot and small spot minimizing effect of the ambient objects with narrow sensing width Transparent glass sensing type / Micro spot type

Autonics

Sensing type	Retroreflective type(built-in polarizing filter)
Sensing distance	3m(MS-2A)
Sensing target	Opaque material of min. Ø75mm
Light source	Red LED(660nm)
Response time	Max. 1ms
Power supply	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	NPN open collector
Connection type	Cable type(Ø3.5, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 55℃, storage: -40 to 70℃
Protection structure	IP65
Approval
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate, Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum, Sleeve: Brass, Ni-plate
Accessories_Common	Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver
Accessories_Individual	Reflector(MS-2A)
Weight	Approx. 85g (approx. 60g)

Transparent glass sensing type / Micro spot type
Stable sensing for transparent object(LCD, PDP, glass etc) by BJG30-DDT
 Easy to check sensing location with visible micro spot(BJN Series)
 Detects tiny objects (min. sensing target Ø0.2mm
